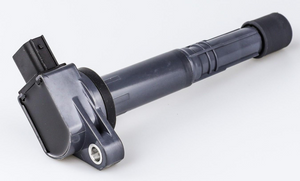

Elecdurauto ignition coil, OE numbers 30520-RNA-A01 / 099700-101 / UF582, is engineered for precise ignition performance in 2007 Honda Civic 1.5L and 1.8L engines. Designed to meet OEM-grade tolerances, this coil ensures direct-fit compatibility and is also interchangeable with various Civic and Fit platforms requiring consistent spark delivery and plug-on reliability.
Built for models demanding stable voltage output, efficient combustion, and long-term ignition durability under thermal and mechanical stress, this coil features premium copper windings, reinforced epoxy resin, and high-dielectric insulation materials. These design upgrades provide consistent coil output, extended lifespan, and reduced misfire rates—especially under high-RPM or heat-loaded driving conditions.
30520-RNA-A01 / 099700-101 / UF582
Copper windings, PPS housing, silicone boot
Elecdurauto
China
IATF 16949 / ISO 9001 / ISO 14000 / OHSAS 18000
OEM label and ODM customization accepted
100 pcs
7–15 Days
50,000 pcs / month
Individual box / 4-pack set / bulk tray / custom label
High-voltage tester, coil resistance meter, insulation tester, etc.
18 months / 12,000 miles
30520-RNA-A01 / 099700-101 / UF582
Honda Civic models using 1.5L / 1.8L engine
Model Years 2005 / 2006 / 2007 / 2008 / 2009 / 2010 / 2011
| Quantity: | |
|---|---|
Product Description
Consistent Spark Output: Maintains reliable ignition across varied driving conditions, including high RPM and elevated engine temperatures typical in city or highway use.
Premium Copper Windings: Ensures high conductivity and minimizes energy loss, delivering optimal combustion efficiency for 1.5L and 1.8L engine platforms.
Reinforced Epoxy Housing: Built to resist thermal expansion, vibration, and moisture intrusion, extending coil life and reducing failure rates.
OEM Level Compatibility: Features a direct-fit blade terminal and plug design for quick installation in L15A1 and R18A1 engine applications—no modification required.
Wide Application: Compatible with Honda Fit, City, and Civic models sharing similar ignition coil architecture, suitable for both domestic and imported variants.
High Reliability Under Pressure: Maintains spark stability under load, promoting smooth acceleration and consistent performance during stop-and-go traffic or long hauls.
Supports Advanced Combustion Technologies: Optimized for lean-burn and low-emission engines, helping reduce carbon output without compromising ignition integrity.
| Specification | Description |
|---|---|
| Coil Type | Coil On Plug (COP) Ignition |
| Voltage | 12V DC (Nominal) |
| Peak Ignition Voltage | Up to 42,000 V |
| Spark Energy | 45 – 55 mJ (varies by operating condition) |
| Primary Resistance | 0.35 – 0.50 Ω |
| Secondary Resistance | 5,000 – 8,000 Ω |
| Turns Ratio (P:S) | Approx. 1:85 |
| Inductance | 2.4 – 3.8 mH |
| Voltage Rise Time | < 2.0 kV/µs |
| Operating Temperature | –40°C to +130°C |
| Storage Temperature | –40°C to +100°C |
| Fluids Resistance | Resistant to gasoline, engine oil, brake fluid, and antifreeze |
| Vibration Resistance | Up to 55g |
| Housing Material | PPS with epoxy resin encapsulation |
| Mounting Type | 1 Mounting Hole |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Ignition Type | Electronic |
| Oil Filled | No |
| External Resistor Required | No |
| Package Contents | Ignition Coil, Instruction Sheet |
| Coil Wire Included | No |
| Dimensions (L×W×H) | Approx. 102mm × 38mm × 62mm (varies slightly by SKU) |
| Weight | Approx. 320g |
| Applicable Engine Types | L15A1 – Naturally Aspirated 1.5L I4 Gasoline Engine |
| Standard Compliance | ISO 9001 / IATF 16949 |
| Make & Model | Platform | Year | Engine Displacement | Engine Code |
|---|---|---|---|---|
| Honda CR-V | 3rd Gen | 2007–2012 | 2.0L | R20A1 |
| Honda CR-V (Import) | RE | 2006–2012 | 2.4L | K24A1 |
| Honda CR-V (Import) | RM | 2011–Present | 2.0L | R20A3 |
| Honda City | GM2 / GM3 | 2008–2014 | 1.8L | R18A1 |
| Honda Accord | 8th Gen | 2007–2013 | 2.0L | R20A3 |
| Honda Civic | 8th Gen | 2005–2011 | 1.8L | R18A1 |
| Honda Civic (Import) | FK1 | 2011–Present | 1.0L | XM1E |
| Honda Civic Type R | 4th Gen | 2015–Present | 2.0T | K20C1 |
| Honda Spirior (Accord) | CU2 | 2009–2014 | 2.0L | R20A4 |
Understanding what goes inside a high-performance ignition coil reveals why Elecdurauto ignition coils deliver exceptional spark reliability, heat resistance, and long service life.
Every layer of Elecdurauto's ignition coil design is optimised for ignition precision, voltage control, and energy efficiency—especially in EGR (Exhaust Gas Recirculation) and lean-burn systems where fuel economy and CO₂ reduction are essential.
At Elecdurauto, we know that a high-performance ignition coil starts with precision engineering and ends with uncompromising quality control. That's why we've heavily invested in state-of-the-art production equipment and rigorous testing systems to ensure every coil meets OEM-grade expectations reliably and consistently.
Automatic Assembly Machine
ECU Testing Machine
Injection Mould Area
Secondary Winding Machine
Shell Injection Area
Vacuum Casting Equipment
Product Testing Equipment
Ignition Coil Tester
Climate Test Chamber
Thermal Shock Chamber
Assembly Workshop
Comprehensive Performance Tester
At Elecdurauto, we specialise in manufacturing and supplying high-quality 2007 Honda Civic ignition coil and a wide range of global vehicle platforms. Our OEM-grade replacement ignition coils are trusted by importers, wholesalers, and aftermarket brands across 30+ countries. Whether you're sourcing bulk ignition coil supply, private label products, or direct-fit aftermarket alternatives, Elecdurauto delivers value, reliability, and service.
To maintain our position as a top ignition coil manufacturer, Elecdurauto operates with world-class machinery:
Vacuum Casting Equipment – For high-purity resin insulation and heat resistance
Automatic Winding Machines – Ensuring stable and high-speed coil winding
High-Voltage Testing Systems – Guaranteeing 100% product safety and performance
Injection Moulding Machines – For precise and durable component shaping
We also run a dedicated mould and injection workshop, which allows us to have faster lead times and tighter control over consistency.
Elecdurauto specialises in high-performance ignition coil solutions for Japanese vehicles, with a focus on 2007 Honda Civic ignition coil applications. Engineered for 1.5L L15A1 engines, each coil uses high-temperature copper windings, precision-wound magnetic cores, and PPS high-strength housings to maintain consistent spark output under elevated heat, vibration, and urban driving cycles.
Our production facilities overlap with Tier 1 OEM manufacturers of Denso, Bosch, Valeo, Delphi, and Magneti Marelli—allowing us to offer equivalent-quality ignition coils that match original performance.
We support OEM replacement ignition coils, branded label customisation, and custom SKU development tailored to your local market needs.
Want to highlight your branding? We support private label ignition coil production with your logo, packaging, and barcode-ready shipping.
We manage the entire production cycle—from raw material inspection to final packaging—with rigorous checks at every stage:
FMEA-based defect prevention
Standardised & lean production systems
Process stability testing & 100% final inspection
This ensures lower defect rates, fewer returns, and longer product lifespans for your customers.
Whether you need 100 pieces of ignition coils for the 2007 Honda Civic or a container shipment of mixed SKUs, our system is built to adapt:
Low MOQ (100 units per SKU)
Rapid 2–5 day dispatch for stock coils
15–25 day lead time for OEM & custom orders
Amazon FBA / Mercado Libre packaging support
Our standard MOQ for ignition coil bulk orders is 100 units per SKU, ideal for auto parts wholesalers, regional distributors, and Amazon sellers. For new partners or trial orders, we support flexible MOQ policies—reach out for current support programs.
For in-stock ignition coil models, we offer 2–5 day dispatch. For customised packaging, private label coils, or large volume orders, standard lead times are customised packaging, private label coils, or large volume orders, standard 15–25 working days, depending on SKU and quantity.
Yes, Elecdurauto specialises in OEM and ODM ignition coil manufacturing. We provide full support for private labelling, custom SKU packaging, barcoding (EAN/UPC), and customised ignition coil design for regional fitment needs.
Our factory is certified to IATF 16949, ISO/TS 16949:2009, ISO 9001, ISO 14001, and OHSAS 18001. These certifications ensure strict quality management, environmental control, and safety compliance—a must for global B2B ignition coil distribution.
Yes. For qualified B2B clients like auto part importers or e-commerce platform sellers, we offer free ignition coil samples (just pay shipping) so you can test product fit, quality, and performance.
Absolutely. Elecdurauto provides barcode-ready packaging, inventory consolidation, and dropshipping options for online sellers. Our coils come in compact, FBA-optimised boxes with model number and branding printed.
For ignition coil importers and resellers, we offer:
Regional exclusive agency support
Priority stock allocation
Co-branded marketing materials
Product training for auto workshops and retailers
After-sales assistance and warranty management
Every ignition coil undergoes:
High-voltage stress testing
Resistance & insulation checks
Vibration and thermal cycle testing
Final 100% functional test before packaging
We maintain a <0.5% warranty claim rate across all global markets.
Elecdurauto supplies ignition coils to Europe, South America, Southeast Asia, and the Middle East through both direct export and local distributor networks. We're actively expanding and open to onboarding new partners.
Each Elecdurauto 2007 Honda Civic ignition coil is engineered to match OEM specifications and offers direct-fit installation for 1.5L L15A1 engine applications. To ensure compatibility, confirm the OEM part number such as 099700-101, UF582, or 30520-RNA-A01, and verify your engine type. For precise matching, consult the application chart or send your VIN to our support team.
Common symptoms include engine misfires, rough idle, difficulty starting, poor fuel economy, and a check engine light. If you're experiencing these issues, it may be time to replace your ignition coil.
Many ignition coils, especially coil-on-plug (COP) types, are designed for easy installation. If you're familiar with basic engine components and have the correct tools, you can perform a DIY replacement. Always refer to your vehicle service manual for torque specs and safety guidelines.
Our ignition coils are designed for long service life, often exceeding 100,000 kilometres (60,000+ miles) under normal operating conditions. We use advanced vacuum casting, epoxy resin insulation, and high-temperature wire winding to ensure heat resistance and durability.
All Elecdurauto ignition coils come with an 18-month / 20,000 km limited warranty covering manufacturing defects. With a warranty return rate of less than 0.5%, our coils have proven long-term reliability in over 30+ countries. manufacturing defects.
Elecdurauto 2007 Honda Civic ignition coil from Elecdurauto is designed for naturally aspirated engine platforms, including models using the L15A1 1.5L engine. It is not intended for hybrid or turbocharged variants like Civic Hybrid with LDA2 engines. For hybrid compatibility, please refer to our extended catalog by engine type or OEM reference.
We combine global raw material sourcing, advanced automation (e.g., robotic winding, in-house injection), and full testing procedures, including high-voltage, insulation, and vibration testing. With a proven track record across OEM, fleet, and aftermarket clients, Elecdurauto delivers OEM, fleet, and aftermarket client reliability, performance, and fast lead times at scale.
