10461181 Peterbilt Starter Motor Wholesale Supply

10461181 Starter Motor Wholesale Fitment for Peterbilt heavy-duty truck

Peterbilt truck-parts distributors, fleet maintenance buyers and rotating-electrical wholesalers use 10461181 to keep Peterbilt heavy-duty truck demand tied to one 12V, 4.0kW, 11T CW configuration. The practical distinction is the 11-tooth module-4.233 drive and large three-hole flange used for the stated Peterbilt heavy-duty record, which should be checked before a similar heavy-duty housing is accepted.

Build the 10461181 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

10461181 Starter Motor Specifications and Drawing for Wholesale Buyers

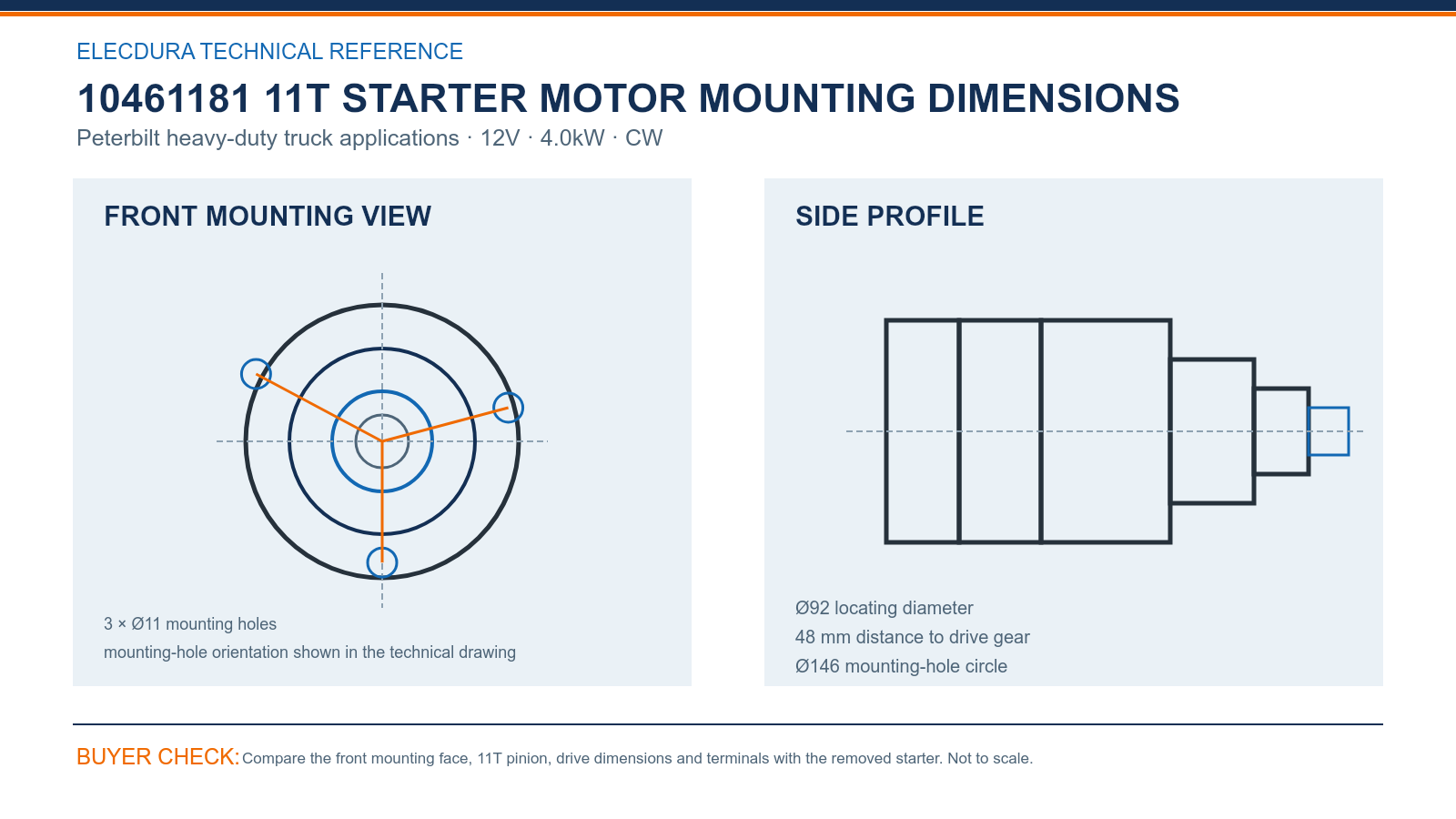

Compare 10461181 at the 3 × Ø11 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. The 48 mm distance to drive gear helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 10461181, count the 11T pinion and confirm module 4.233, CW rotation, 12V and 4.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

10461181 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 10461181, 10461391, 10461409, 10478897, 10479023, STD4181, STD4181NB can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 12V, 4.0kW, 11T, CW, the drawing and terminal photographs before accepting one physical unit.

10461181 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 10461181 quantity, destination and required arrival date.

Separate emergency road-service demand from planned fleet replenishment and protect the large flange during export packing. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 10461181 remains tied to the stated Peterbilt heavy-duty truck application, 11T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

10461181 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 10461181 for Peterbilt heavy-duty truck during fleet sourcing?

Use the complete removed-unit number and exact Peterbilt heavy-duty truck record. Compare the 11T pinion, 3 × Ø11 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order 10461181 from an alternate OE number in a Peterbilt fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 10461181 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed 10461181 starter motor in a Peterbilt fleet workshop?

Before fitting 10461181, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the 10461181 mounting drawing support product approval during a Peterbilt fleet inspection?

For 10461181, use a straight front view to compare the 3 × Ø11 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 48 mm distance to drive gear. Complete the check with 11T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of 10461181 stock in a Peterbilt fleet program?

Separate emergency road-service demand from planned fleet replenishment and protect the large flange during export packing. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of 10461181 during a Peterbilt fleet receiving check?

Receiving should verify the 10461181 label, quantity and packaging before opening sampled cartons. Compare the 11T drive, Ø92 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 10461181 in a Peterbilt fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 10461181, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 10461181 in a Peterbilt fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 10461181 without assuming that every no-crank complaint originates inside the starter.

10461181 Request Starter Motor Wholesale Pricing

Send the complete 10461181 reference, Peterbilt heavy-duty truck details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 4.0kW, 11T CW starter, MOQ, packing, lead time, warranty and freight.
