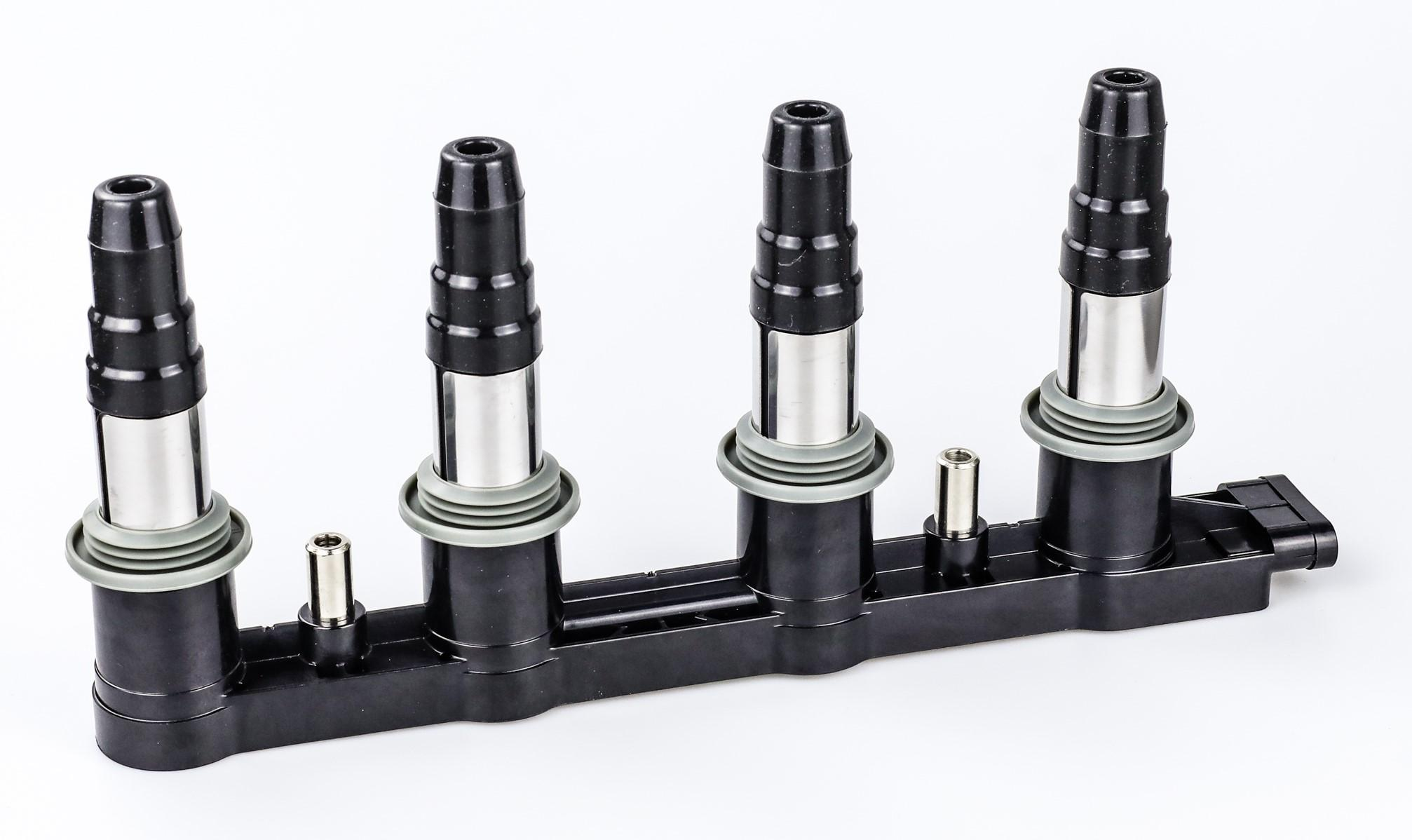

2012 Chevy Cruze Ignition Coil Performance Highlights
Consistent Spark Output: Delivers stable ignition across the full RPM range, ensuring smooth engine operation even under high-load or high-temperature conditions common in urban and highway driving.
Premium Copper Windings: Maximise electrical conductivity and minimise energy loss, supporting faster voltage rise time and more efficient spark generation in both LDE and 2H0 engines.
Reinforced Epoxy Housing: Offers excellent resistance to thermal expansion, moisture, and engine bay vibration, preserving coil integrity over extended service life.
OEM Level Compatibility: Designed as a direct-fit replacement for OE 25186686 with a 7-pin configuration, ensuring seamless installation without additional adjustments or wiring modifications.
Wide Application: Compatible with 1.6L and 1.8L Cruze models, as well as Aveo, Sonic, and G3 variants, making it a versatile solution for multiple compact GM platforms.
High Reliability Under Pressure: Engineered to maintain spark accuracy under increased cylinder pressure, supporting responsive acceleration and reduced engine misfire risk.
Supports Advanced Combustion Technologies: Performs reliably in systems utilising EGR or lean-burn strategies, aiding in improved fuel economy and lowered CO₂ emissions output
2012 Chevy Cruze Ignition Coil Technical Specifications
| Specification | Description |
| Coil Type | Coil On Plug (COP), 7-pin configuration (no external module) |
| Voltage | 12V DC (Nominal) |
| Peak Ignition Voltage | Up to 42,000 V |
| Spark Energy | 50 – 60 mJ (varies by operating condition) |
| Primary Resistance | 0.45 - 0.65 Ω |
| Secondary Resistance | 5,800 - 7,200 Ω |
| Turns Ratio (P:S) | Approx. 1:80 |
| Inductance | 2.8 – 4.0 mH |
| Voltage Rise Time | < 2.0 kV/µs |
| Operating Temperature | –40°C to +135°C |
| Storage Temperature | –40°C to +100°C |
| Fluids Resistance | Resistant to engine oil, coolant, fuel vapors, and brake fluid |
| Vibration Resistance | Up to 50g |
| Housing Material | High-strength PPS thermoplastic with epoxy encapsulation |
| Mounting Type | Bolt-on with integrated boot |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Flat blade (multi-pin) |
| Ignition Type | Fully electronic, no external ignition control module required |
| Oil Filled | No |
| External Resistor Required | No |
| Package Contents | Ignition Coil Unit, Instruction Sheet |
| Coil Wire Included | No |
| Dimensions (L×W×H) | Approx. 155mm × 50mm × 75mm (varies slightly by SKU) |
| Weight | Approx. 450g |
| Applicable Engine Types | 1.6L LDE / 1.8L 2H0 DOHC Ecotec Gasoline Engines |
| Standard Compliance | ISO 9001 / IATF 16949 |
Compatible Vehicles for 2012 Chevy Cruze Ignition Coil Replacement
| Make & Model | Platform | Year | Engine Displacement | Engine Code |
| Chevrolet Cruze Sedan | J300 | 2009–2012 | 1.6L | LDE |
| Chevrolet Cruze Sedan | J300 | 2009–2012 | 1.8L | 2H0 |
| Chevrolet Epica (Global) | — | 2009–Present | 1.8L | 2H0 |
How Our 2012 Chevy Cruze Ignition Coils Are Manufactured and Tested
At Elecdurauto, we know that a high-performance ignition coil starts with precision engineering and ends with uncompromising quality control. That's why we've heavily invested in state-of-the-art production equipment and rigorous testing systems to ensure every coil meets OEM-grade expectations reliably and consistently.
![automated ignition coil assembly line for OEM production]()
Automatic Assembly Machine
![ignition coil ECU functional testing equipment for quality control]()
ECU Testing Machine
![ignition coil plastic molding area in IATF 16949-certified factory]()
Injection Mould Area
![automated secondary winding machine for ignition coil copper wire]()
Secondary Winding Machine
![shell injection area for high-temp ignition coil housing manufacturing]()
Shell Injection Area
![vacuum casting system for ignition coil insulation and durability]()
Vacuum Casting Equipment
![professional ignition coil testing equipment for OEM compliance]()
Product Testing Equipment
![dedicated ignition coil tester for high-voltage performance check]()
Ignition Coil Tester
![climate test chamber for ignition coil thermal cycling validation]()
Climate Test Chamber
![thermal shock chamber for ignition coil reliability testing]()
Thermal Shock Chamber
![ignition coil production workshop with lean manufacturing process]()
Assembly Workshop
![full-function performance tester for automotive ignition coils]()
Comprehensive Performance Tester
OEM & Aftermarket Uses for 2012 Chevy Cruze Ignition Coils
2012 Chevy Cruze Ignition Coil Certifications & Industry Standards
![ISO 9001, ISO 14001, ISO 45001, IATF 16949 certified ignition coil manufacturer for OEM and aftermarket supply]()
Choosing a Reliable 2012 Chevy Cruze Ignition Coil Supplier
At Elecdurauto, we specialise in manufacturing and supplying high-quality 2012 Chevy Cruze ignition coil and a wide range of global vehicle platforms. Our OEM-grade replacement ignition coils are trusted by importers, wholesalers, and aftermarket brands across 30+ countries. Whether you're sourcing bulk ignition coil supply, private label products, or direct-fit aftermarket alternatives, Elecdurauto delivers value, reliability, and service.
1. Global-Grade Manufacturing Power
To maintain our position as a top ignition coil manufacturer, Elecdurauto operates with world-class machinery:
Vacuum Casting Equipment – For high-purity resin insulation and heat resistance
Automatic Winding Machines – Ensuring stable and high-speed coil winding
High-Voltage Testing Systems – Guaranteeing 100% product safety and performance
Injection Moulding Machines – For precise and durable component shaping
We also run a dedicated mould and injection workshop, which allows us to have faster lead times and tighter control over consistency.
2. Specialisation in Chevy Ignition Coil Technology
Elecdurauto specialises in precision-engineered ignition coil solutions for Chevrolet platforms, including the 2012 Chevy Cruze. Designed for 1.6L and 1.8L Ecotec engines, our 7-pin ignition coils (OE: 25186686) feature high-temperature copper windings, epoxy-sealed PPS housings, and a compact COP design for excellent spark delivery. Whether for the Cruze, Sonic, or Aveo, these coils ensure reliable performance under thermal stress and extended driving cycles.
3. Brand-Equivalent Sourcing + OEM/ODM Development
Our production facilities overlap with Tier 1 OEM manufacturers of Denso, Bosch, Valeo, Delphi, and Magneti Marelli—allowing us to offer equivalent-quality ignition coils that match original performance.
We support OEM replacement ignition coils, branded label customisation, and custom SKU development tailored to your local market needs.
Want to highlight your branding? We support private label ignition coil production with your logo, packaging, and barcode-ready shipping.
4. End-to-End Quality Control
We manage the entire production cycle—from raw material inspection to final packaging—with rigorous checks at every stage:
FMEA-based defect prevention
Standardised & lean production systems
Process stability testing & 100% final inspection
This ensures lower defect rates, fewer returns, and longer product lifespans for your customers.
5. Flexible Supply & Fast Lead Times
Whether you need 100 pieces of ignition coils for the 2012 Chevy Cruze or a container shipment of mixed SKUs, our system is built to adapt:
Low MOQ (100 units per SKU)
Rapid 2–5 day dispatch for stock coils
15–25 day lead time for OEM & custom orders
Amazon FBA / Mercado Libre packaging support
2012 Chevy Cruze Ignition Coil FAQs
1. What is the Minimum Order Quantity (MOQ) for your ignition coils?
Our standard MOQ for ignition coil bulk orders is 100 units per SKU, ideal for auto parts wholesalers, regional distributors, and Amazon sellers. For new partners or trial orders, we support flexible MOQ policies—reach out for current support programs.
2. What are your lead times for production and delivery?
For in-stock ignition coil models, we offer 2–5 day dispatch. For customised packaging, private label coils, or large volume orders, standard lead times are customised packaging, private label coils, or large volume orders, standard 15–25 working days, depending on SKU and quantity.
3. Do you support OEM/ODM orders for ignition coils?
Yes, Elecdurauto specialises in OEM and ODM ignition coil manufacturing. We provide full support for private labelling, custom SKU packaging, barcoding (EAN/UPC), and customised ignition coil design for regional fitment needs.
4. What certifications do your ignition coils meet?
Our factory is certified to IATF 16949, ISO/TS 16949:2009, ISO 9001, ISO 14001, and OHSAS 18001. These certifications ensure strict quality management, environmental control, and safety compliance—a must for global B2B ignition coil distribution.
5. Can I get free samples to test quality before placing a bulk order?
Yes. For qualified B2B clients like auto part importers or e-commerce platform sellers, we offer free ignition coil samples (just pay shipping) so you can test product fit, quality, and performance.
6. Do you support Amazon or Mercado Libre fulfilment needs?
Absolutely. Elecdurauto provides barcode-ready packaging, inventory consolidation, and dropshipping options for online sellers. Our coils come in compact, FBA-optimised boxes with model number and branding printed.
7. What support do you offer for long-term B2B partners?
For ignition coil importers and resellers, we offer:
Regional exclusive agency support
Priority stock allocation
Co-branded marketing materials
Product training for auto workshops and retailers
After-sales assistance and warranty management
8. What is your quality assurance process for ignition coils?
Every ignition coil undergoes:
High-voltage stress testing
Resistance & insulation checks
Vibration and thermal cycle testing
Final 100% functional test before packaging
We maintain a <0.5% warranty claim rate across all global markets.
9. Which countries or regions do you currently supply?
Elecdurauto supplies ignition coils to Europe, South America, Southeast Asia, and the Middle East through both direct export and local distributor networks. We're actively expanding and open to onboarding new partners.
10. How do I determine if this ignition coil is compatible with my vehicle?
Each Elecdurauto ignition coil is built to OEM standards and designed for direct replacement in models like the 2012 Chevy Cruze with 1.6L or 1.8L engines. To ensure proper fitment, confirm your OEM part number—such as 25186686—or engine code (e.g., LDE or 2H0). You can also check compatibility using our vehicle application chart or contact us with your VIN for personalized support.
11. What are the signs of a failing ignition coil?
Common symptoms include engine misfires, rough idle, difficulty starting, poor fuel economy, and a check engine light. If you're experiencing these issues, it may be time to replace your ignition coil.
12. Can I install this ignition coil myself, or do I need a mechanic?
Many ignition coils, especially coil-on-plug (COP) types, are designed for easy installation. If you're familiar with basic engine components and have the correct tools, you can perform a DIY replacement. Always refer to your vehicle service manual for torque specs and safety guidelines.
13. How long do Elecdurauto ignition coils typically last?
Our ignition coils are designed for long service life, often exceeding 100,000 kilometres (60,000+ miles) under normal operating conditions. We use advanced vacuum casting, epoxy resin insulation, and high-temperature wire winding to ensure heat resistance and durability.
14. What is the warranty policy on Elecdurauto ignition coils?
All Elecdurauto ignition coils come with an 18-month / 20,000 km limited warranty covering manufacturing defects. With a warranty return rate of less than 0.5%, our coils have proven long-term reliability in over 30+ countries. manufacturing defects.
15. Are these coils compatible with turbo or hybrid engines?
Elecdurauto ignition coils for the 2012 Chevrolet Cruze are specifically engineered for naturally aspirated 1.6L and 1.8L Ecotec engines and are not intended for hybrid or turbocharged variants. For best results, match the ignition coil by OE number (25186686) and confirm your engine type before ordering.
16. What makes Elecdurauto different from other ignition coil manufacturers?
We combine global raw material sourcing, advanced automation (e.g., robotic winding, in-house injection), and full testing procedures, including high-voltage, insulation, and vibration testing. With a proven track record across OEM, fleet, and aftermarket clients, Elecdurauto delivers OEM, fleet, and aftermarket client reliability, performance, and fast lead times at scale.
