32A61-09020 / 32A6109020 / 136-9518 / ME736957
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
| Quantity: | |
|---|---|

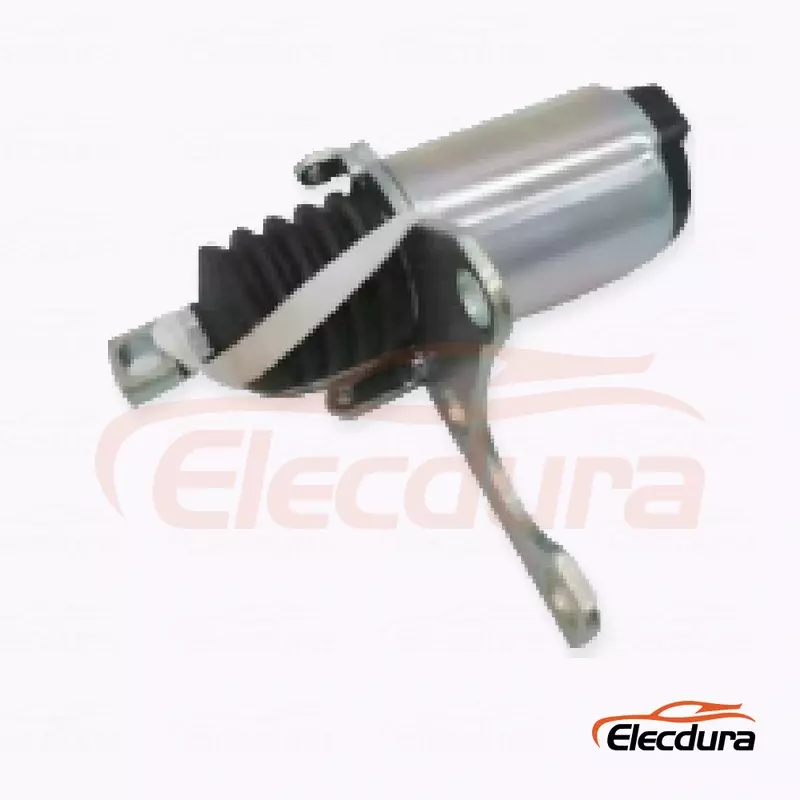

32A61-09020 is a 24V cable-and-lever fuel shutoff solenoid associated with Mitsubishi 4DQ, SE, SQ and SS engine families and Caterpillar 307 service demand. Its cable length, eyelet, lever and bracket geometry are more decisive than the cylindrical motor body alone.
Item | Confirmed Information |
Product Type | Fuel injection pump shutoff solenoid |
OE / Reference Numbers | 32A61-09020 / 32A6109020 / 136-9518 / ME736957 |
Electrical Version | 24V |
Application Scope | Mitsubishi 4DQ, SE, SQ and SS engine families; Caterpillar 307 equipment demand |
MOQ | 50 pcs |
Delivery Time | 7 - 15 Days |
Warranty | 12 Months |
Use 32A61-09020 or 32A6109020 as the main reference and treat 136-9518 or ME736957 as supporting cross-references. Before approval, compare the complete cable path, end eyelet, return mechanism and mounting bracket with the removed assembly.
Matching Point | Buyer Action |
24V marking | Confirm the machine system and old solenoid label both require 24V. |
Cable length and sheath | Compare overall reach, exposed cable and protective sheath. |
Cable eyelet | Match hole size, orientation and connection point on the shutoff lever. |
Mounting bracket | Check plate shape, bolt positions and installed angle. |
Cross-reference | Use 136-9518 or ME736957 only with physical and voltage confirmation. |
A moving motor does not guarantee correct shutdown if the cable is too short, routed incorrectly or attached to a different lever position. Service feedback should include cable travel and installed routing so the purchasing review addresses the complete actuator assembly.
Service or Order Situation | Recommended Review |
Motor operates, travel is short | Inspect cable routing, attachment point and required lever stroke. |
Cable eyelet does not fit | Do not enlarge or modify it before the correct end geometry is confirmed. |
Old unit has another voltage marking | Do not order the 24V product; request a separate voltage-specific match. |
Cross-reference only | Add removed-part photos because the same reference discussion may include different cable arrangements. |
For 32A61-09020, send the 24V marking, engine or Caterpillar 307 information, quantity and side-by-side measurements of cable length, eyelet and mounting bracket.
RFQ Item | What to Provide |
OE / reference | 32A61-09020 / 32A6109020 / 136-9518 / ME736957 |
Voltage | 24V required for the selected reference |
Application | Mitsubishi 4DQ, SE, SQ and SS engine families; Caterpillar 307 equipment demand |
Photos | Old label, electrical end, mounting area and complete removed part |
Commercial request | Quantity, destination market and packing requirement |
Yes. The offer is prepared for the 24V configuration. If the removed assembly has another voltage marking, request a separate match instead of using the product.
The solenoid is associated with Mitsubishi 4DQ, SE, SQ and SS engine families used in Caterpillar 307 service demand. Provide both engine and machine details when available.
Yes, as supporting cross-references. The 24V marking, cable, eyelet, lever and bracket still need to match the removed assembly.
The cable must reach the existing lever and deliver the required travel without incorrect routing or tension. A body-only comparison cannot confirm that.
Pause the installation and provide measured photos of both eyelets and the machine lever pin. Do not modify the connection before the correct version is identified.
Provide cable overall length, exposed-cable travel, eyelet dimensions, bracket-hole spacing and the installed lever position, together with the OE and 24V marking.
Send 32A61-09020, 24V confirmation, Caterpillar 307 or Mitsubishi engine details, quantity and cable-and-bracket measurements for quotation.
