M009T61972ZD HOWO Starter Motor 24V 5.5kW 12T

M009T61972ZD Heavy-Duty Truck Starter Motor for ZHONGQI MC11, MC13 (HOWO T7H)

For inventory buyers confirming an incoming batch, M009T61972ZD gives commercial-vehicle distributors, fleet-parts suppliers and importers a defined aftermarket starter motor for ZHONGQI MC11, MC13 (HOWO T7H). The supplied version combines 24V, 5.5kW and 12T for OE-reference matching, wholesale quotation and repeat purchasing.

For fleet-parts buyers preparing a volume quote, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

M009T61972ZD Starter Motor Specifications and Technical Drawing

For fleet-parts buyers separating similar housings, the key version difference is the mounting and housing clocking. Compare 3×120° spacing and 3×Ø8 with the old starter so the pinion alignment and cable access remain correct.

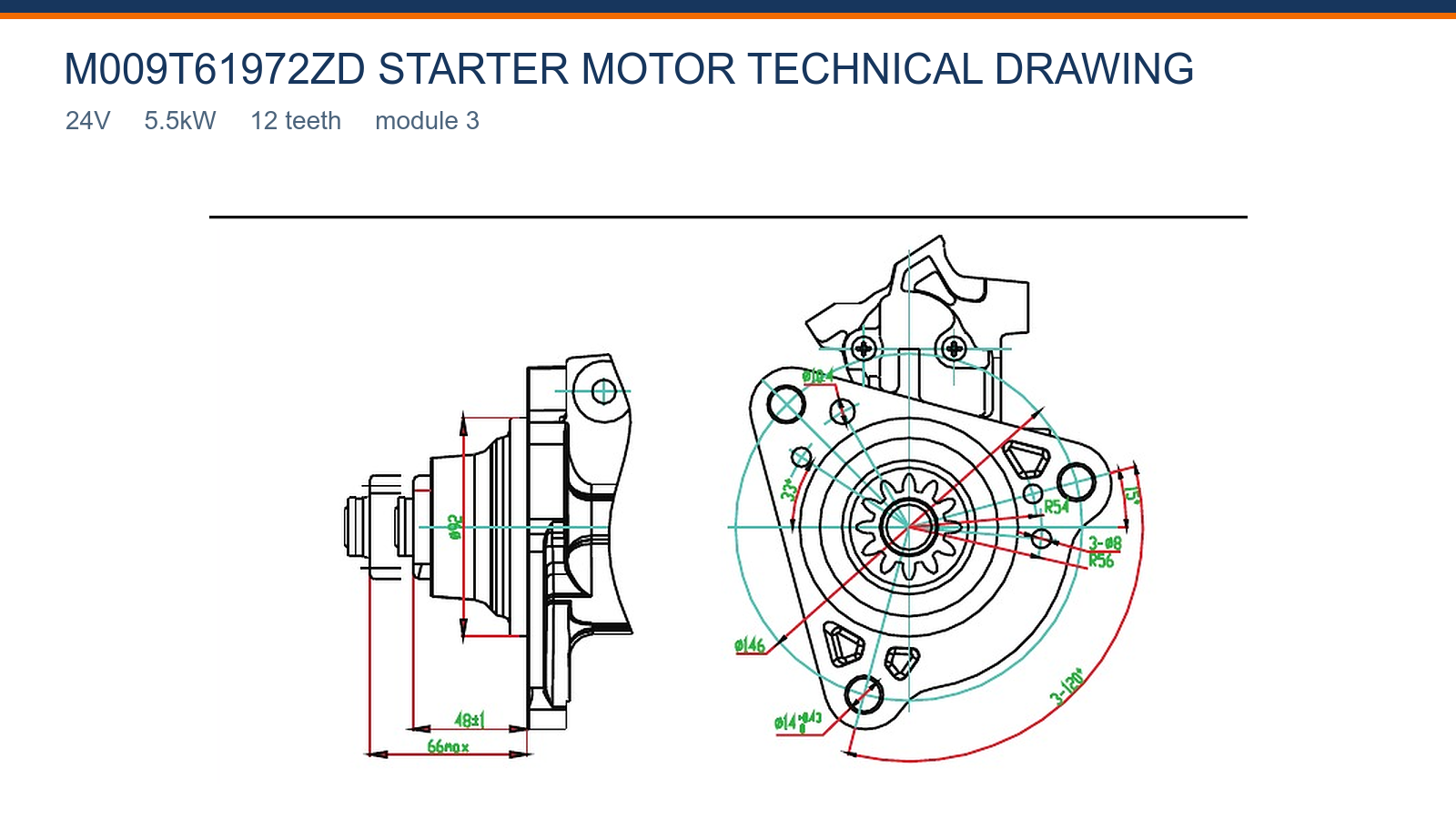

For technical sales teams evaluating a direct replacement, the source-faithful technical drawing records the available mounting information for M009T61972ZD, including 3×Ø8, Ø146, 48±1 mm, 3×120° spacing; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M009T61972ZD Aftermarket Replacement and Application

For equipment-parts dealers confirming electrical ratings, M009T61972ZD, 201V26201-7199 forms the usable OE and cross-reference group for this product, while ZHONGQI MC11, MC13 (HOWO T7H) is the stated application. Cross-reference numbers help buyers find the product, but a direct replacement should still agree on voltage, output, pinion and the visible mounting configuration.

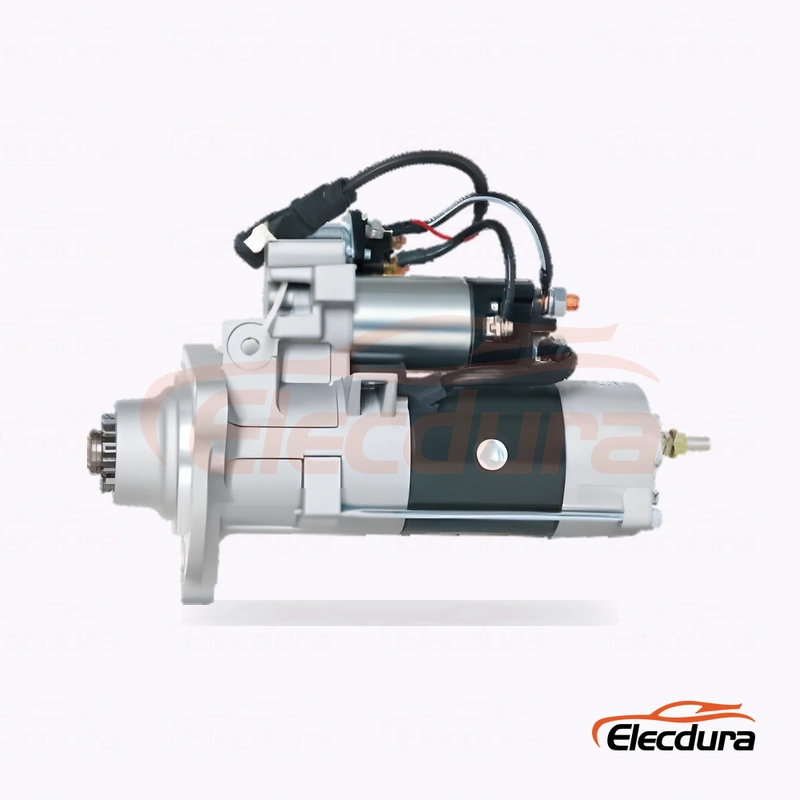

For purchasing teams checking repeat-order specifications, the original unit in hand should agree with the approved drive-end, side and rear views. Confirm the 12T pinion and module 3, then keep any different flange or terminal layout outside the current quoted item.

M009T61972ZD Wholesale Supply for Distributors and Importers

For distributors planning replenishment, Elecdura supports repeat-order and new-line sourcing for M009T61972ZD. Commercial planning can cover a 20 pcs MOQ, 7–15 day lead time subject to confirmation, neutral packaging or private-label review, and an 18-month agreed warranty.

For aftermarket product managers reviewing customer demand, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

M009T61972ZD Starter Motor Buyer FAQ

How should a workshop distinguish 3×Ø8, Ø146, 48±1 mm and 3×120° spacing before stock is assigned?

For service-parts networks checking repeat-order specifications, use the supplied technical drawing to compare 3×Ø8, Ø146, 48±1 mm and 3×120° spacing. Take each measurement from the same face shown or described, then compare the locating shoulder, bolt pattern and drive-end projection as one set. A single matching diameter is not enough if the hole pattern or axial reach places the pinion differently.

What evidence best identifies 24V and 5.5kW before stock is assigned?

For importers matching the existing starter, M009T61972ZD is defined as 24V and 5.5kW. Confirm the machine electrical system and the old starter rating together, because the voltage rating must match the installed network while output affects cranking performance. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

Which check should lead M009T61972ZD technical claim evidence before a purchase order is released?

For inventory buyers reviewing customer demand, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the ZHONGQI MC11, MC13 (HOWO T7H) equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

Which detail separates M009T61972ZD locating face when preparing a technical RFQ?

For maintenance suppliers preparing an OE-based quote, the M009T61972ZD flange should sit flat against the ZHONGQI MC11, MC13 (HOWO T7H) mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

Which check should lead M009T61972ZD drive-end photograph for warehouse identification?

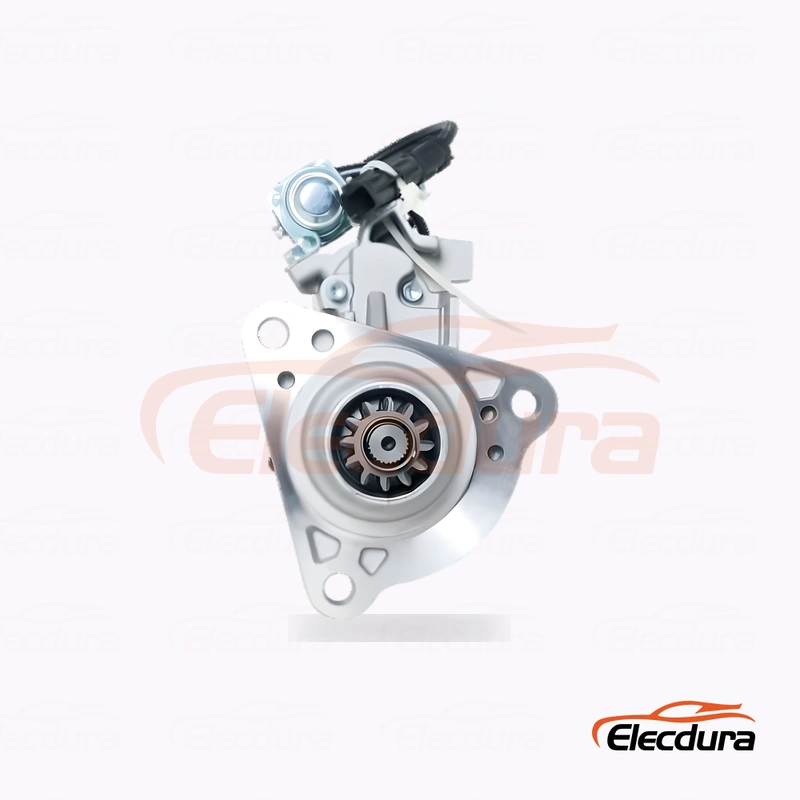

For equipment-parts dealers separating similar housings, the drive-end image for M009T61972ZD should be used to count 12 teeth and compare the flange, locating shoulder and pinion rest position. Compare an equally framed drive-end photo of the old unit. A side-on or oblique photo can hide tooth count and hole location, so request a straight-on image when the deciding features are unclear.

Which comparison prevents a mismatch for M009T61972ZD carton identification before comparing delivery options?

For purchasing teams defining label requirements, ask that unit and carton labels repeat the agreed reference, 24V, 5.5kW and 12T where the packaging format permits. Add the customer's barcode and destination marks before production. Clear identification allows distributors to receive, bin and pick this version without opening packaging or relying on a generic starter description.

How can a buyer screen M009T61972ZD inquiry package during fitment review?

For distributors confirming commercial terms, A useful inquiry for M009T61972ZD includes quantity, destination, required date, ZHONGQI MC11, MC13 (HOWO T7H), the full old-unit number and clear photos of the label, drive end, front housing and terminal arrangement. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 24V, 5.5kW, 12T version against one unambiguous product description.

Which check should lead M009T61972ZD label and suffix for warehouse identification?

For technical buyers comparing nearby starter versions, photograph the complete old-unit label for M009T61972ZD, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

Request a Wholesale Quote for M009T61972ZD Heavy-Duty Truck Starter Motor

For engine-parts specialists building a new starter range, discuss a M009T61972ZD supply program with Elecdura by sending the OE reference, application, annual or initial quantity, destination and branding needs. The reply will identify the offered product version and agreed commercial options.
