PSH0005945 GAZ Sobol G21A Starter Motor Distributor

PSH0005945 GAZ G21A Starter Motor Supply for Distributors

PSH0005945 serves GAZ Gazelle NN and Sobol NN vehicles using the G21A engine. The counterclockwise rotation is a decisive identifier because a similar 12V starter with the correct three-hole face can still be unsuitable if it turns in the opposite direction or uses a different drive position.

Send the vehicle and engine identification, complete PSH reference, old rating label and clear photographs from the mounting, drive and terminal sides. Elecdura can compare the CCW marking, ten-tooth pinion, three-hole geometry and terminal layout before returning a distributor quotation for the required GAZ configuration.

PSH0005945 12V 2.8kW Starter Motor Dimensions and CCW Drive

The product specification is 12V, 2.8kW, 10T, module 3.175 and CCW. These five values should remain together on the enquiry and carton identification. They separate this G21A starter from clockwise units and from products that share voltage or tooth count but use a different gear position.

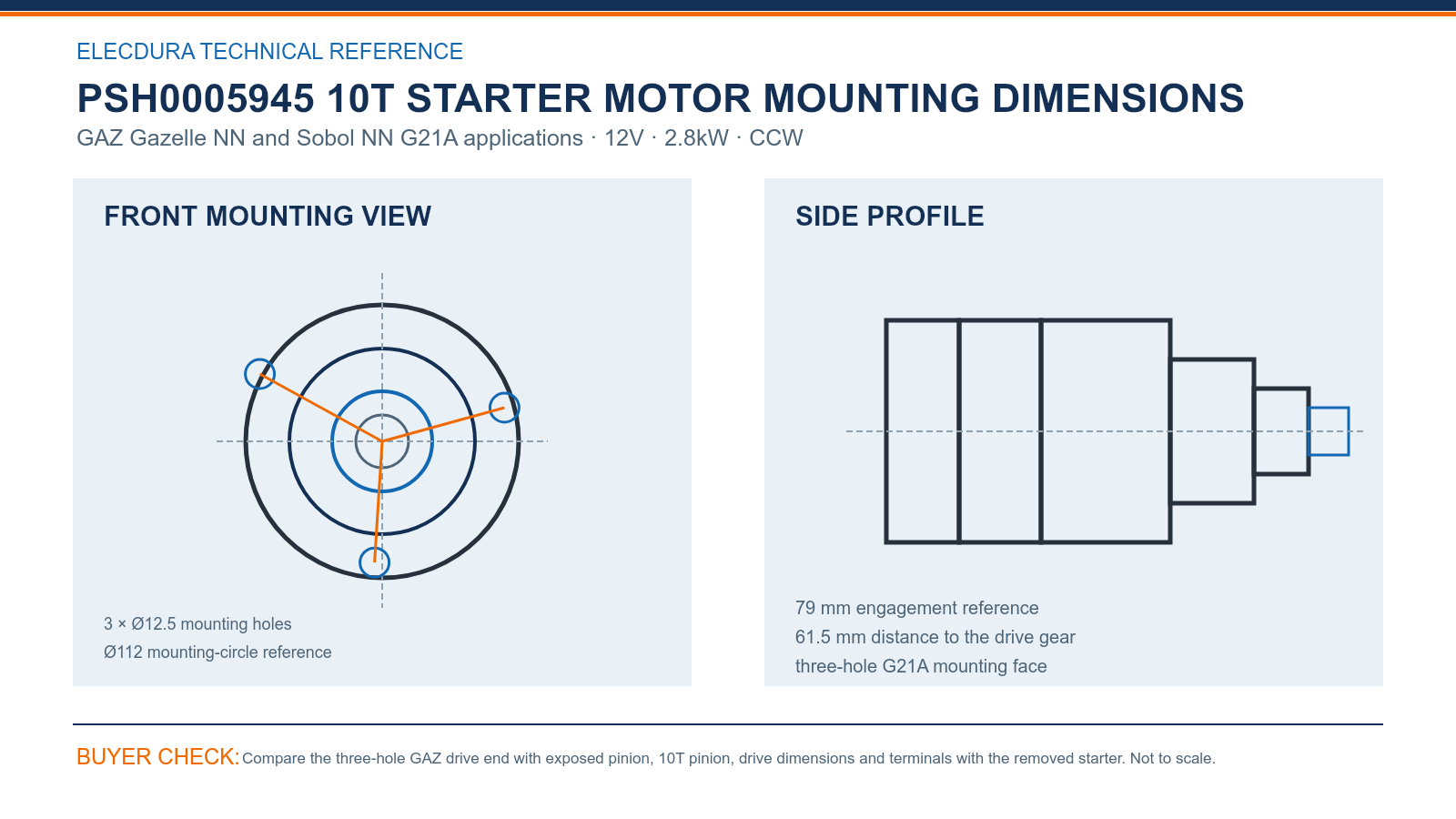

PSH0005945 GAZ Sobol G21A Starter Dimensions for Distributor Matching — compare the drawing with the removed starter before placing a volume order.

Compare the 79 mm engagement reference, 61.5 mm distance to the drive gear, three Ø12.5 mounting holes and the Ø112 mounting-circle reference. The exposed pinion and terminal arrangement should also match the removed unit, giving technical teams both measured and visible confirmation before quantity is released for supply.

PSH0005945 and PSH0008996 References for GAZ Starter Orders

PSH0005945, PSH0008996 and STQ2933RN form the main reference group for this GAZ application. State Gazelle NN or Sobol NN and the G21A engine beside the reference. This prevents a short number from being treated as sufficient when rotation, drive depth or connection layout still needs confirmation.

A distributor may serve both vehicle lines with one verified physical configuration when the removed units and application details agree. Keep chassis demand separated by branch or customer while using the same PSH reference group for sourcing. Clear vehicle and product identification supports cleaner stock transfers and faster warranty discussions.

PSH0005945 GAZ Starter Motor Wholesale and Service-Network Supply

For initial supply, agree the vehicle application, carton marking, packing protection and destination before production planning. The exposed pinion needs support that does not load the drive end during road or sea freight. Receiving can sample rotation markings, ten teeth, three-hole geometry and terminal condition before distributing stock to service branches.

Elecdura's starter production video introduces assembly and electrical testing. GAZ parts buyers can combine that factory overview with the PSH0005945 drawing, removed-unit photographs and CCW verification for this configuration. The result is a clearer basis for regional replenishment, mixed-branch orders and repeat supply of the same G21A configuration.

PSH0005945 Starter Motor FAQs for GAZ Commercial Vehicle Buyers

Why must CCW appear on a PSH0005945 purchase line?

Counterclockwise rotation is a defining feature of this G21A starter motor. A 12V ten-tooth unit with a similar mounting face may still be wrong if it rotates clockwise. Keep PSH0005945, 12V, 2.8kW, 10T, module 3.175 and CCW together so purchasing and receiving teams identify the same product version.

What should accompany a Gazelle NN or Sobol NN G21A enquiry?

Provide the vehicle model, chassis information, G21A engine identification and complete PSH references. Add clear mounting, side and terminal photographs of the removed starter and include the old rating label when readable. These details help Elecdura confirm that the 2.8kW CCW product is being quoted for the intended GAZ vehicle.

How do the 79 mm and 61.5 mm measurements identify this drive end?

The 79 mm value describes the engagement reference, while 61.5 mm shows the distance to the drive gear on the drawing. Compare both with the removed starter using the same flange reference. This helps detect a different nose or pinion position even when the housing and three-hole mounting face appear broadly similar.

Which measurements confirm the PSH0005945 three-hole mounting face?

Check all three Ø12.5 mounting holes and the Ø112 mounting-circle reference, then compare the flange outline in a square front photograph. Include the exposed ten-tooth pinion in the same view. Those points give the distributor a repeatable face-and-drive comparison before units are allocated to Gazelle NN or Sobol NN demand.

Can PSH0008996 be quoted against PSH0005945 without other details?

PSH0008996 belongs to the same useful reference group, but the enquiry should still state the GAZ vehicle, G21A engine, 12V 2.8kW 10T CCW specification and mounting dimensions. A terminal-side photograph adds the final visible check. This keeps cross-reference sourcing useful without assuming every unit is physically identical.

How should the exposed pinion be protected for distributor shipments?

Use internal support that prevents the starter body from shifting and keeps carton pressure away from the exposed drive end. Receiving should inspect the pinion teeth, nose area and terminal studs for transport damage. This is especially useful when PSH0005945 cartons travel by sea or are redistributed among regional GAZ service branches.

Which G21A vehicle checks should be completed before replacing the starter?

Test battery condition, cable voltage drop, grounds, relay and the start-signal circuit. Inspect the ring gear and confirm the G21A engine turns freely before installing another starter. These checks help distinguish a vehicle-side electrical or mechanical fault from a starter fault and reduce avoidable returns for Gazelle NN and Sobol NN fleets.

What details are needed for PSH0005945 distributor pricing?

Send the GAZ vehicle and chassis information, G21A engine identification, complete PSH references, old rating label, mounting and terminal photographs, quantity, forecast, destination, packing request and delivery target. Elecdura will compare the CCW drive, three-hole face and connection layout, then return a quotation for the identified PSH0005945 configuration.

Request PSH0005945 GAZ G21A Starter Motor Pricing

Email the GAZ vehicle and G21A engine details, complete PSH reference group, old rating label, mounting and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will compare the CCW drive and three-hole geometry, then return distributor pricing for the identified PSH0005945 starter.
