SV98-T39S
SV98-T39S
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
SV98-T39S
Mobile equipment hydraulic manifolds using Danfoss SV98-T39S cartridge geometry
Confirm 12v or 24v, connector, flange mounted cartridge assembly, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|

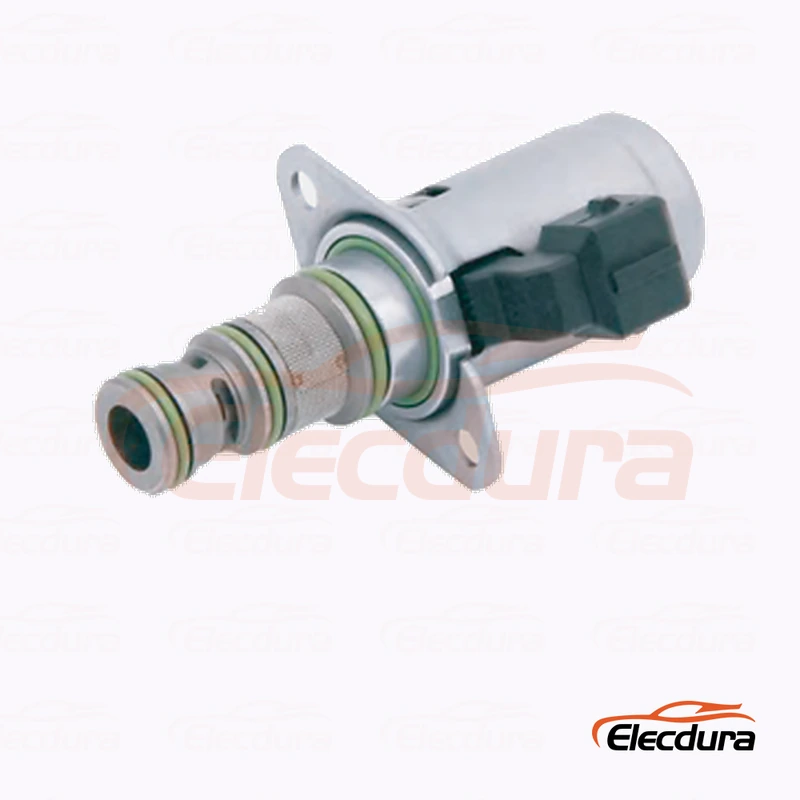

SV98-T39S is a 12V or 24V three way two position hydraulic solenoid valve for Mobile equipment hydraulic manifolds using Danfoss SV98-T39S cartridge geometry. Buyers should confirm the complete old marking, electrical version, connector, flange mounted cartridge assembly and hydraulic function before approving replacement stock.
Specification | Value |
|---|---|
Product Type | Three Way Two Position Hydraulic Solenoid Valve |
Primary Reference | SV98-T39S |
Cross References | SV98-T39S |
Electrical Version | 12V or 24V |
Working Pressure Reference | 240 bar |
Interface | Flange mounted cartridge assembly |
Application Scope | Mobile equipment hydraulic manifolds using Danfoss SV98-T39S cartridge geometry |
MOQ | 50 pcs |
Delivery Time | 7 to 15 Days |
Warranty | 12 Months |

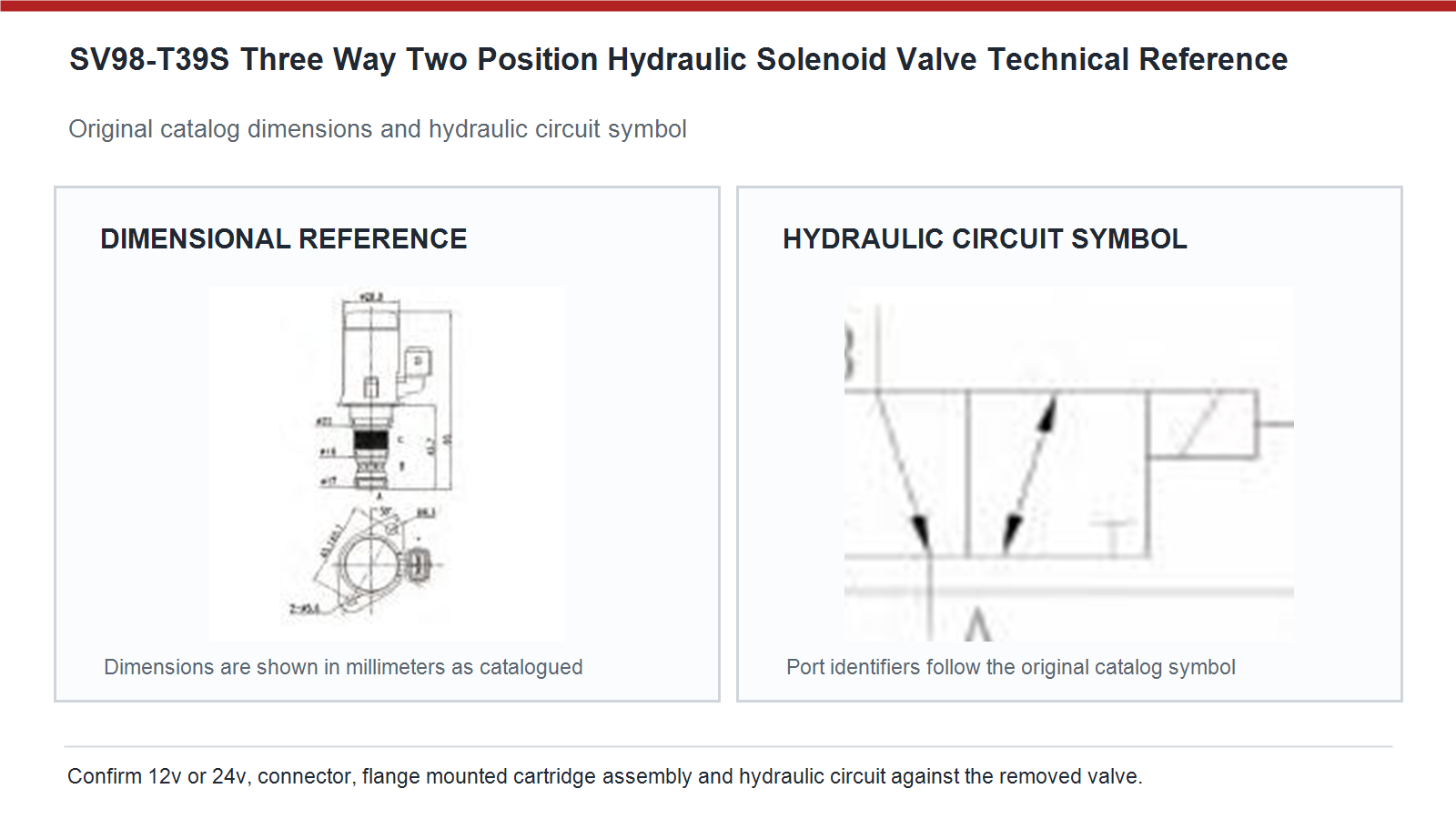

Use the original catalog dimensional reference and hydraulic symbol to compare the valve with the removed component and the machine schematic before purchase approval.
Complete every control point below before a sample or bulk order is released.
Approval Point | Buyer Review |
|---|---|
Reference | SV98-T39S |
Electrical | 12V or 24V; verify at the loaded connector during the actual command |
Mechanical | Compare flange mounted cartridge assembly, cartridge length, seals and installed clearance |
Hydraulic | Confirm normal state, energized state and manifold port relationship |
Machine Evidence | Mobile equipment hydraulic manifolds using Danfoss SV98-T39S cartridge geometry |
Separate electrical command, cartridge movement and machine response so the actual wiring or hydraulic fault is not hidden by a parts replacement.
Observed Condition | Recommended Check |
|---|---|
No movement | Check loaded connector voltage, ground, controller command and coil resistance. |
Slow response | Inspect oil cleanliness, filter condition, viscosity and cartridge movement. |
Reversed response | Stop operation and compare normal and energized port logic with the original valve. |
External leakage | Inspect seals, cartridge surface, manifold bore and correct seating depth. |
Repeated heating | Confirm voltage, duty cycle, connector resistance and full magnetic movement. |
During a mixed voltage shipment reaches receiving inspection, keep the verified reference, measurements and test result in the service record. Approve SV98-T39S from the complete old valve marking, 12v or 24v electrical version, connector keying, flange mounted cartridge assembly, sealing lands and normal hydraulic state. A shared equipment model does not prove interchangeability because pump and manifold revisions can change during production. Send the machine model, serial number and clear removed part photos with the inquiry.
During a serial controlled overhaul is prepared, keep the verified reference, measurements and test result in the service record. Read the coil label first and measure voltage at the connector while the real machine command is active. The working reference for this page is 12V or 24V. Do not infer voltage only from battery count because converters, harness changes and mixed voltage fleets can create misleading assumptions. Record the verified value on the purchase order and incoming inspection label.
During a hydraulic schematic differs from the catalog port letters, keep the verified reference, measurements and test result in the service record. Measure supply and ground at the loaded connector, then check coil resistance and verify that the controller is actually issuing the command. If electrical input is correct, inspect oil cleanliness, filter condition, cartridge movement and manifold contamination. Separate electrical command from hydraulic response before replacing another valve, otherwise a harness or blocked pilot passage may be missed.
During a repeat coil heating case is investigated, keep the verified reference, measurements and test result in the service record. Use the drawing to compare overall length, thread or flange position, sealing diameters and connector clearance with the removed component. Read the spring side of the hydraulic symbol as the normal state and the solenoid side as the energized state. Port letters are catalog identifiers and must be reconciled with the equipment schematic before commissioning.
During a removed label is partly unreadable, keep the verified reference, measurements and test result in the service record. Fine debris can restrict the moving element, damage sealing lands or block a pilot passage even when the coil energizes normally. Review the equipment filtration requirement, inspect the removed valve for particles and flush the affected circuit when contamination is found. Replacing SV98-T39S without correcting dirty oil can reproduce slow response, sticking or repeated coil stress soon after installation.
During an emergency field repair is evaluated, keep the verified reference, measurements and test result in the service record. Treat every suffix as an engineering identifier until its meaning is proven. A suffix can change voltage, connector, spring calibration, spool geometry or mounting details while the base model remains similar. Keep the complete old marking on the quotation and do not shorten SV98-T39S in purchasing records. Accept a cross reference only after dimensional, electrical and hydraulic checks agree.
During a maintenance planner builds critical spare stock, keep the verified reference, measurements and test result in the service record. Keep ports capped, seals protected and connector faces free from moisture or impact. Separate 12v or 24v and suffix variants with readable carton labels so warehouse picking cannot mix them. Store the valves in a clean, dry area away from welding dust and corrosive chemicals, and retain lot traceability to the approved sample and incoming inspection record.
Send the complete old valve marking, confirmed voltage, machine model and serial number, connector photos, interface dimensions and required quantity for a fitment focused B2B quotation.
