207-6860
Caterpillar 950G, 962G, 966G, 980G, 980H and related loader or engine applications with confirmed serial compatibility
Confirm voltage, connector, cartridge or flange dimensions, seals and hydraulic circuit before installation.
| Quantity: | |
|---|---|
207-6860 is catalogued as a 24V proportional pilot solenoid valve for Caterpillar heavy-equipment hydraulic control. Confirm the old part number, 7/8-14 UNF cartridge, connector, pilot circuit and machine serial record before ordering.
Item | Confirmed Information |
Product Type | Proportional pilot solenoid valve |
OE / Reference Numbers | 207-6860 |
Voltage | 24V |
Application Scope | Caterpillar 950G, 962G, 966G, 980G, 980H and related loader or engine applications with confirmed serial compatibility |
Electrical Version | 24VDC |
Valve Function | Proportional pilot control |
Thread | 7/8-14 UNF-2A |
Maximum Working Pressure | 350 bar |
Filtration | 25 micrometres or better |
Operating Temperature | -40 to +120 degrees Celsius |
Installation Torque | 34 to 37 Nm |
MOQ | 50 pcs |
Delivery Time | 7 - 15 Days |
Warranty | 12 Months |

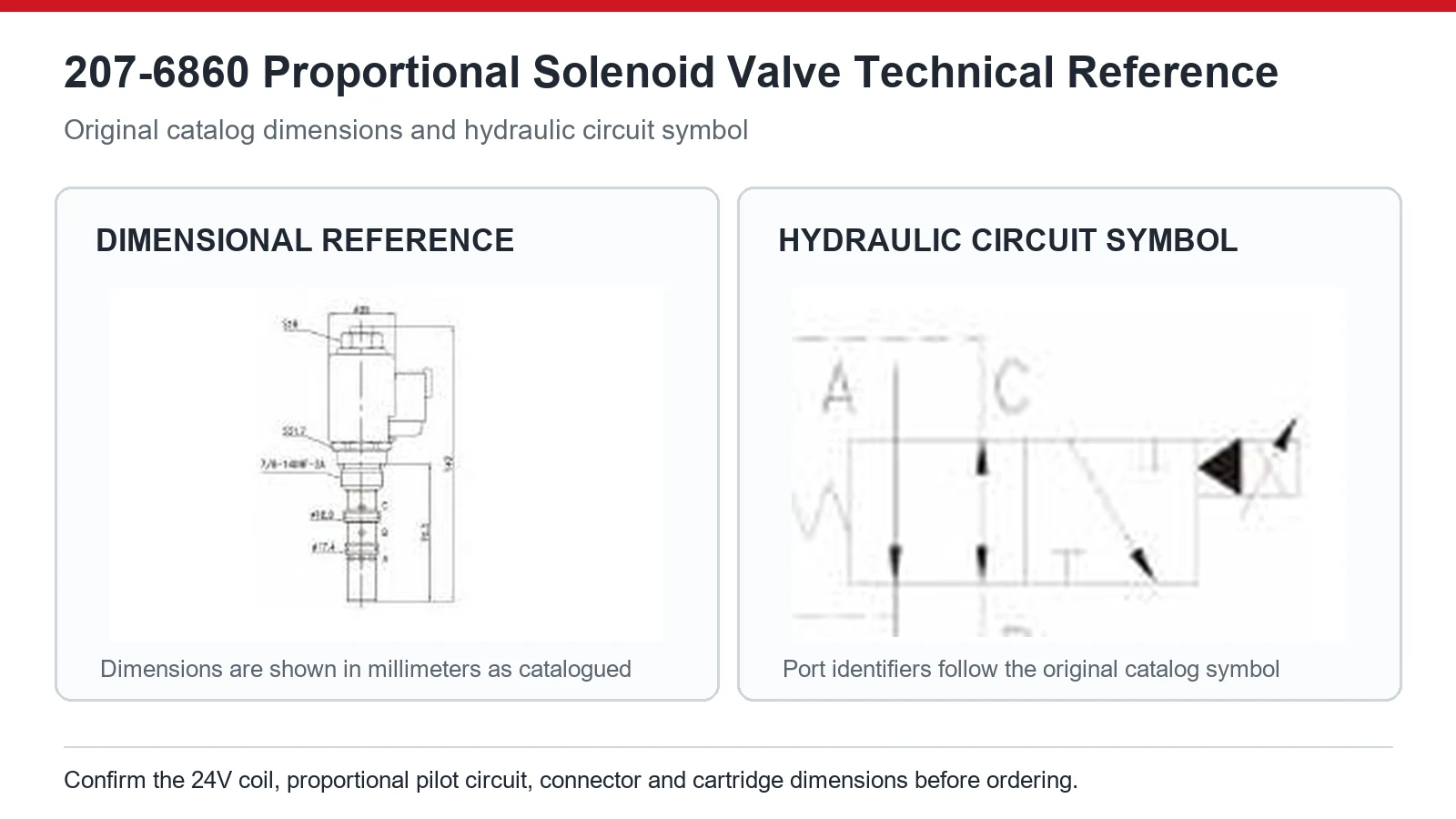

Use the 207-6860 dimensions and circuit image to check cartridge depth, sealing-land alignment and proportional pilot flow against the removed valve.
Release 207-6860 through the 24V proportional control, Caterpillar serial range, 7/8-14 geometry, 350 bar capability and pilot circuit.
Approval Point | Buyer Review |
Reference Control | 207-6860 |
Electrical Control | 24V; verify at the connector under command |
Mechanical Fit | Compare thread or flange, cartridge length, sealing lands and installed clearance |
Functional Control | Confirm normal state, energized state and hydraulic port relationship |
Application Evidence | Caterpillar 950G, 962G, 966G, 980G, 980H and related loader or engine applications with confirmed serial compatibility |
Sluggish or oscillating pilot response requires comparison of command current, coil behavior, pilot pressure, oil condition and cartridge movement.
Observed Situation | Recommended Check |
No hydraulic response | Check command voltage, connector, coil and whether the cartridge moves. |
Slow response | Review oil cleanliness, filter condition, viscosity and connector voltage under load. |
Reversed response | Compare normal and energized circuit states with the machine schematic. |
External leakage | Inspect seals, cartridge surface, bore condition and seating depth. |
Repeated coil heating | Check voltage, resistance, duty cycle, contamination and incomplete spool movement. |
Approval Item | Required Information |
Old Part Evidence | Complete label, connector face, mounting or cartridge side and one installed view |
Machine Evidence | Caterpillar 950G, 962G, 966G, 980G, 980H and related loader or engine applications with confirmed serial compatibility |
Measurements | Thread or flange, cartridge length, seals and installed clearance |
Electrical Evidence | 24V; measured under the actual command |
Commercial Evidence | Quantity, destination, packing, labeling and inspection requirements |
207-6860 is intended for proportional pilot control, where machine response changes with the electrical command. An on-off valve only switches between fixed states and may cause abrupt or incorrect movement. Approval must compare coil characteristics, circuit symbol, cartridge geometry and control strategy, not merely the 7/8-14 thread and external appearance.
Confirm the 24V supply at the connector, then observe command current or the specified control signal across the operating range. A static voltage check does not show whether the controller modulates the coil correctly. Compare electrical input with pilot response to separate wiring, controller, coil and hydraulic causes of weak or unstable operation.
Measure cartridge length, shoulder-to-seal distances, nose geometry and installed depth in addition to the 7/8-14 UNF thread. Confirm the valve block operates within the listed 350 bar maximum. Correct thread engagement cannot compensate for misaligned sealing lands or an unsuitable pressure or flow configuration. Use a documented comparison sheet.
Record the complete Caterpillar model and serial number, installed valve location and removed 207-6860 marking. Compare connector, cartridge and circuit details with the approved sample. Loader-family references help identify the application, but production and arrangement changes can require another valve, so serial compatibility remains a release condition.
Check command current stability, connector resistance, coil condition, pilot pressure, oil viscosity and spool freedom. Maintain filtration at 25 micrometres or better. Oscillation can result from controller tuning or hydraulic instability, while slow response may reflect contamination or voltage loss. Evaluate the electrical trace and hydraulic behavior together before replacement.
Verify 24V identification, coil resistance, connector keying, cartridge dimensions and leakage first. On a suitable fixture or machine, confirm that pilot response changes smoothly with the proportional command rather than only switching at one threshold. Record pressure conditions, signal values and machine serial information so later lots can be compared with the accepted behavior.
Provide 207-6860, Caterpillar model and serial number, 24V confirmation, connector and cartridge photographs, pilot-circuit details, quantity and destination.
