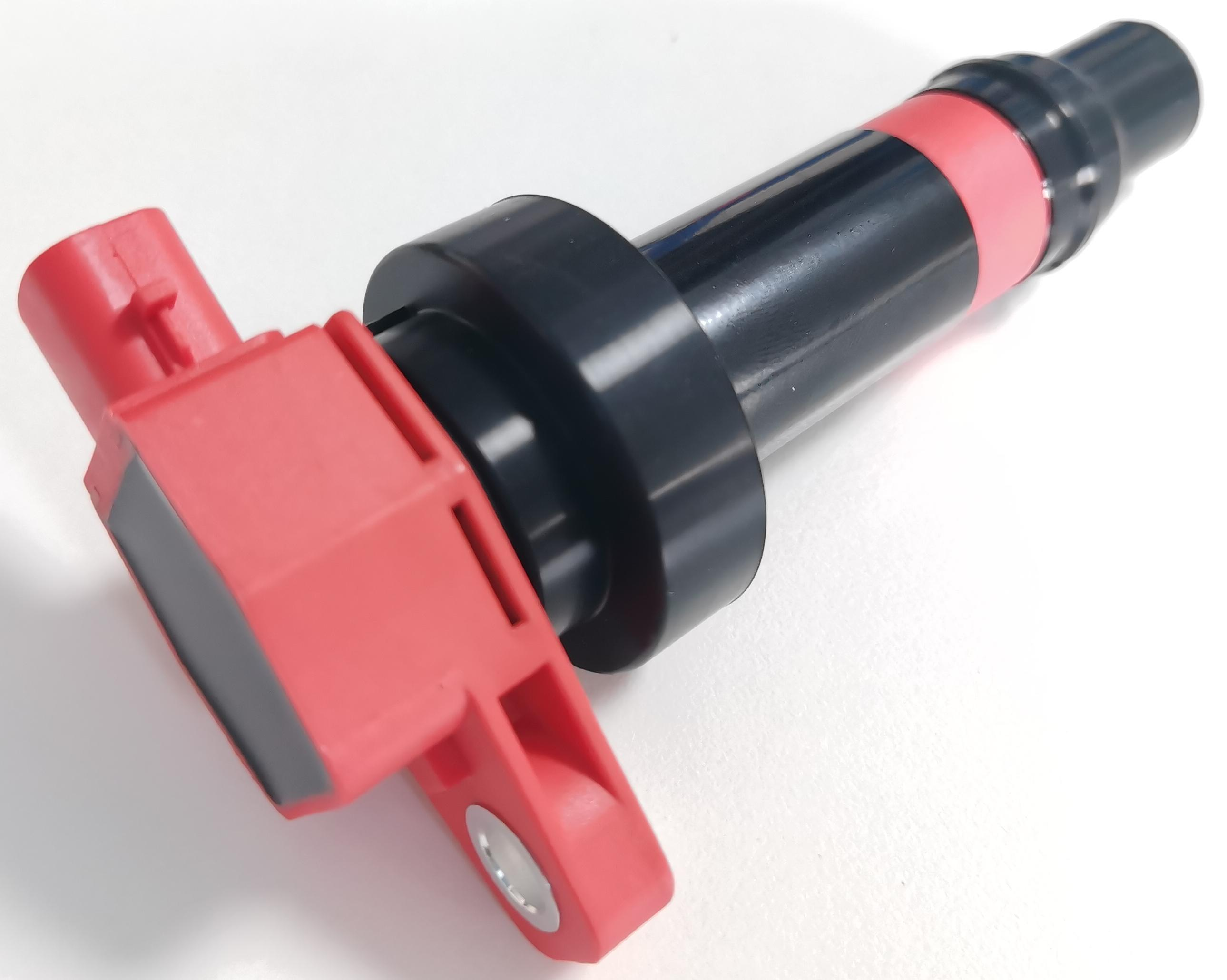

2014 Kia Soul Ignition Coil Performance Highlights
Consistent Spark Output: Delivers stable ignition under various operating conditions, maintaining performance during high RPMs and elevated engine temperatures.
Premium Copper Windings: Ensures optimal electrical conductivity and minimizes energy loss, supporting reliable combustion across a range of driving scenarios.
Reinforced Epoxy Housing: Engineered to withstand extreme thermal cycles, engine vibration, and moisture exposure common in compact performance applications.
OEM Level Compatibility: Designed for direct plug-and-play installation, matching OE numbers 273012B010, UF636, and 0986221063 for the G4FC engine.
Wide Application: Compatible with numerous 1.6L and 1.4L Gamma engines across Kia and Hyundai vehicles, including the Soul, K2, K3, ix25, and Elantra.
High Reliability Under Pressure: Maintains coil integrity and spark strength even in high-compression or stop-and-go urban traffic conditions.
Supports Advanced Combustion Technologies: Suitable for modern emissions systems and fuel-efficient designs, helping reduce CO₂ output and enhance throttle response.
2014 Kia Soul Ignition Coil Technical Specifications
| Specification | Description |
| Coil Type | Coil On Plug (COP) Ignition |
| Voltage | 12V DC (Nominal) |
| Peak Ignition Voltage | Up to 42,000 V |
| Spark Energy | 45 – 55 mJ (varies by operating condition) |
| Primary Resistance | 0.52 Ω |
| Secondary Resistance | 5,800 Ω |
| Turns Ratio (P:S) | Approx. 1:75 |
| Inductance | 2.3 – 3.9 mH |
| Voltage Rise Time | < 2.0 kV/µs |
| Operating Temperature | –40°C to +125°C |
| Storage Temperature | –40°C to +100°C |
| Fluids Resistance | Resistant to gasoline, engine oil, brake fluid, and coolant |
| Vibration Resistance | Up to 50g |
| Housing Material | PPS (Polyphenylene Sulfide) with epoxy resin encapsulation |
| Mounting Type | Direct Mount, Single Hole |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Ignition Type | Standard COP |
| Oil Filled | No |
| External Resistor Required | No |
| Package Contents | Ignition Coil Unit, Instruction Sheet |
| Coil Wire Included | No |
| Dimensions (L×W×H) | Approx. 100mm × 38mm × 62mm (varies slightly by SKU) |
| Weight | Approx. 340g |
| Applicable Engine Types | 1.6L Gamma G4FC / G4FG Engines (e.g., Kia Soul, K2, K3, Hyundai Elantra, etc.) |
| Standard Compliance | ISO 9001 / IATF 16949 |
Compatible Vehicles for 2014 Kia Soul Ignition Coil Replacement
| Make & Model | Platform | Year | Engine Displacement | Engine Code |
| Hyundai i30 | – | 2009–2012 | 1.6L | G4FC |
| Hyundai ix25 | – | 2014–Present | 1.6L | G4FG |
| Hyundai Veloster | – | 2010–Present | 1.6L | G4FG |
| Hyundai Elantra | – | 2008–2018 | 1.6L | G4FC / 14FC / 24FC |
| Hyundai Celesta | – | 2016–2018 | 1.6L | G4FG |
| Hyundai Reina | – | 2010–2017 | 1.4L / 1.6L | G4FA / G4FC |
| Hyundai Verna RV | – | 2016–Present | 1.6L | G4FG |
| Hyundai Mistra (Yi Xing) | – | 2018–Present | 1.6L | G4FG |
| Hyundai Langdong | – | 2015–Present | 1.6L | G4FD / G4FG |
| Hyundai Accent (Ruixian) | – | 2013–Present | 1.4L / 1.6L | G4FA / G4FC |
| Kia Forte (K3) | YD | 2012–Present | 1.6L | G4FG |
| Kia Forte Hatchback (K3S) | – | 2013–Present | 1.6L | G4FG |
| Kia K2 Hatchback | UB | 2011–Present | 1.4L / 1.6L | G4FA / G4FC |
| Kia K2 Sedan | UB / YB | 2011–Present | 1.4L / 1.6L | G4FA / G4FC / G4FG |
| Kia KX Cross | – | 2018–Present | 1.6L | G4FG |
| Kia KX3 | – | 2014–Present | 1.6L / 2.0L | G4FG / G4NA |
| Kia Cerato (Forte) | – | 2009–2018 | 1.6L | G4FC / G4FG |
| Kia Carens (Rondo) | UN | 2006–2013 | 1.6L | G4FC |
| Kia Soul | – | 2009–Present | 1.6L | G4FC |
| Kia Forte Koup | – | 2009–Present | 1.6L | G4FC |
2014 Kia Soul Ignition Coil Design & Component Overview
Understanding what goes inside a high-performance ignition coil reveals why Elecdurauto ignition coils deliver exceptional spark reliability, heat resistance, and long service life.
Every layer of Elecdurauto's ignition coil design is optimised for ignition precision, voltage control, and energy efficiency—especially in EGR (Exhaust Gas Recirculation) and lean-burn systems where fuel economy and CO₂ reduction are essential.
![Ignition coil structure diagram from professional ignition coil manufacturer]()
How Our 2014 Kia Soul Ignition Coils Are Manufactured and Tested
At Elecdurauto, we know that a high-performance ignition coil starts with precision engineering and ends with uncompromising quality control. That's why we've heavily invested in state-of-the-art production equipment and rigorous testing systems to ensure every coil meets OEM-grade expectations reliably and consistently.
![automated ignition coil assembly line for OEM production]()
Automatic Assembly Machine
![ignition coil ECU functional testing equipment for quality control]()
ECU Testing Machine
![ignition coil plastic molding area in IATF 16949-certified factory]()
Injection Mould Area
![automated secondary winding machine for ignition coil copper wire]()
Secondary Winding Machine
![shell injection area for high-temp ignition coil housing manufacturing]()
Shell Injection Area
![vacuum casting system for ignition coil insulation and durability]()
Vacuum Casting Equipment
![professional ignition coil testing equipment for OEM compliance]()
Product Testing Equipment
![dedicated ignition coil tester for high-voltage performance check]()
Ignition Coil Tester
![climate test chamber for ignition coil thermal cycling validation]()
Climate Test Chamber
![thermal shock chamber for ignition coil reliability testing]()
Thermal Shock Chamber
![ignition coil production workshop with lean manufacturing process]()
Assembly Workshop
![full-function performance tester for automotive ignition coils]()
Comprehensive Performance Tester
OEM & Aftermarket Uses for 2014 Kia Soul Ignition Coils
2014 Kia Soul Ignition Coil Certifications & Industry Standards
![ISO 9001, ISO 14001, ISO 45001, IATF 16949 certified ignition coil manufacturer for OEM and aftermarket supply]()
Choosing a Reliable 2014 Kia Soul Ignition Coil Supplier
At Elecdurauto, we specialise in manufacturing and supplying high-quality 2014 Kia Soul ignition coil and a wide range of global vehicle platforms. Our OEM-grade replacement ignition coils are trusted by importers, wholesalers, and aftermarket brands across 30+ countries. Whether you're sourcing bulk ignition coil supply, private label products, or direct-fit aftermarket alternatives, Elecdurauto delivers value, reliability, and service.
1. Global-Grade Manufacturing Power
To maintain our position as a top ignition coil manufacturer, Elecdurauto operates with world-class machinery:
Vacuum Casting Equipment – For high-purity resin insulation and heat resistance
Automatic Winding Machines – Ensuring stable and high-speed coil winding
High-Voltage Testing Systems – Guaranteeing 100% product safety and performance
Injection Moulding Machines – For precise and durable component shaping
We also run a dedicated mould and injection workshop, which allows us to have faster lead times and tighter control over consistency.
2. Specialisation in Kia Ignition Coil Technology
Elecdurauto specializes in high-performance ignition coil solutions engineered for Kia vehicles, including the 2014 Kia Soul ignition coil. Constructed with high-temperature copper windings, precision-wound cores, and durable PPS epoxy housings, these coils ensure consistent spark energy under demanding conditions. Designed specifically for Gamma engine applications, Elecdurauto's 2014 Kia Soul ignition coil delivers reliable ignition performance, even under thermal stress and heavy engine load.
3. Brand-Equivalent Sourcing + OEM/ODM Development
Our production facilities overlap with Tier 1 OEM manufacturers of Denso, Bosch, Valeo, Delphi, and Magneti Marelli—allowing us to offer equivalent-quality ignition coils that match original performance.
We support OEM replacement ignition coils, branded label customisation, and custom SKU development tailored to your local market needs.
Want to highlight your branding? We support private label ignition coil production with your logo, packaging, and barcode-ready shipping.
4. End-to-End Quality Control
We manage the entire production cycle—from raw material inspection to final packaging—with rigorous checks at every stage:
FMEA-based defect prevention
Standardised & lean production systems
Process stability testing & 100% final inspection
This ensures lower defect rates, fewer returns, and longer product lifespans for your customers.
5. Flexible Supply & Fast Lead Times
Whether you need 100 pieces of ignition coils for the 2014 Kia Soul or a container shipment of mixed SKUs, our system is built to adapt:
Low MOQ (100 units per SKU)
Rapid 2–5 day dispatch for stock coils
15–25 day lead time for OEM & custom orders
Amazon FBA / Mercado Libre packaging support
2014 Kia Soul Ignition Coil FAQs
1. What is the Minimum Order Quantity (MOQ) for your ignition coils?
Our standard MOQ for ignition coil bulk orders is 100 units per SKU, ideal for auto parts wholesalers, regional distributors, and Amazon sellers. For new partners or trial orders, we support flexible MOQ policies—reach out for current support programs.
2. What are your lead times for production and delivery?
For in-stock ignition coil models, we offer 2–5 day dispatch. For customised packaging, private label coils, or large volume orders, standard lead times are customised packaging, private label coils, or large volume orders, standard 15–25 working days, depending on SKU and quantity.
3. Do you support OEM/ODM orders for ignition coils?
Yes, Elecdurauto specialises in OEM and ODM ignition coil manufacturing. We provide full support for private labelling, custom SKU packaging, barcoding (EAN/UPC), and customised ignition coil design for regional fitment needs.
4. What certifications do your ignition coils meet?
Our factory is certified to IATF 16949, ISO/TS 16949:2009, ISO 9001, ISO 14001, and OHSAS 18001. These certifications ensure strict quality management, environmental control, and safety compliance—a must for global B2B ignition coil distribution.
5. Can I get free samples to test quality before placing a bulk order?
Yes. For qualified B2B clients like auto part importers or e-commerce platform sellers, we offer free ignition coil samples (just pay shipping) so you can test product fit, quality, and performance.
6. Do you support Amazon or Mercado Libre fulfilment needs?
Absolutely. Elecdurauto provides barcode-ready packaging, inventory consolidation, and dropshipping options for online sellers. Our coils come in compact, FBA-optimised boxes with model number and branding printed.
7. What support do you offer for long-term B2B partners?
For ignition coil importers and resellers, we offer:
Regional exclusive agency support
Priority stock allocation
Co-branded marketing materials
Product training for auto workshops and retailers
After-sales assistance and warranty management
8. What is your quality assurance process for ignition coils?
Every ignition coil undergoes:
High-voltage stress testing
Resistance & insulation checks
Vibration and thermal cycle testing
Final 100% functional test before packaging
We maintain a <0.5% warranty claim rate across all global markets.
9. Which countries or regions do you currently supply?
Elecdurauto supplies ignition coils to Europe, South America, Southeast Asia, and the Middle East through both direct export and local distributor networks. We're actively expanding and open to onboarding new partners.
10. How do I determine if this ignition coil is compatible with my vehicle?
Each Elecdurauto 2014 Kia Soul ignition coil is engineered to meet strict OEM specifications, ensuring direct fitment for Gamma engine applications, including models like Kia K2, K3, and Hyundai Elantra with 1.6L G4FC/G4FG engines. Confirm compatibility by matching OEM part numbers such as 273012B010, UF636, or 0986221063, and verifying your engine code. For precise fitment, consult the application chart or provide your VIN for expert assistance.
11. What are the signs of a failing ignition coil?
Common symptoms include engine misfires, rough idle, difficulty starting, poor fuel economy, and a check engine light. If you're experiencing these issues, it may be time to replace your ignition coil.
12. Can I install this ignition coil myself, or do I need a mechanic?
Many ignition coils, especially coil-on-plug (COP) types, are designed for easy installation. If you're familiar with basic engine components and have the correct tools, you can perform a DIY replacement. Always refer to your vehicle service manual for torque specs and safety guidelines.
13. How long do Elecdurauto ignition coils typically last?
Our ignition coils are designed for long service life, often exceeding 100,000 kilometres (60,000+ miles) under normal operating conditions. We use advanced vacuum casting, epoxy resin insulation, and high-temperature wire winding to ensure heat resistance and durability.
14. What is the warranty policy on Elecdurauto ignition coils?
All Elecdurauto ignition coils come with an 18-month / 20,000 km limited warranty covering manufacturing defects. With a warranty return rate of less than 0.5%, our coils have proven long-term reliability in over 30+ countries. manufacturing defects.
15. Are these coils compatible with turbo or hybrid engines?
Elecdurauto ignition coils for the 2014 Kia Soul are designed for naturally aspirated Gamma engine configurations, specifically 1.6L non-hybrid engines like the G4FC and G4FG series. These coils are not intended for hybrid powertrains or turbocharged variants.
16. What makes Elecdurauto different from other ignition coil manufacturers?
We combine global raw material sourcing, advanced automation (e.g., robotic winding, in-house injection), and full testing procedures, including high-voltage, insulation, and vibration testing. With a proven track record across OEM, fleet, and aftermarket clients reliability, performance, and fast lead times at scale.
