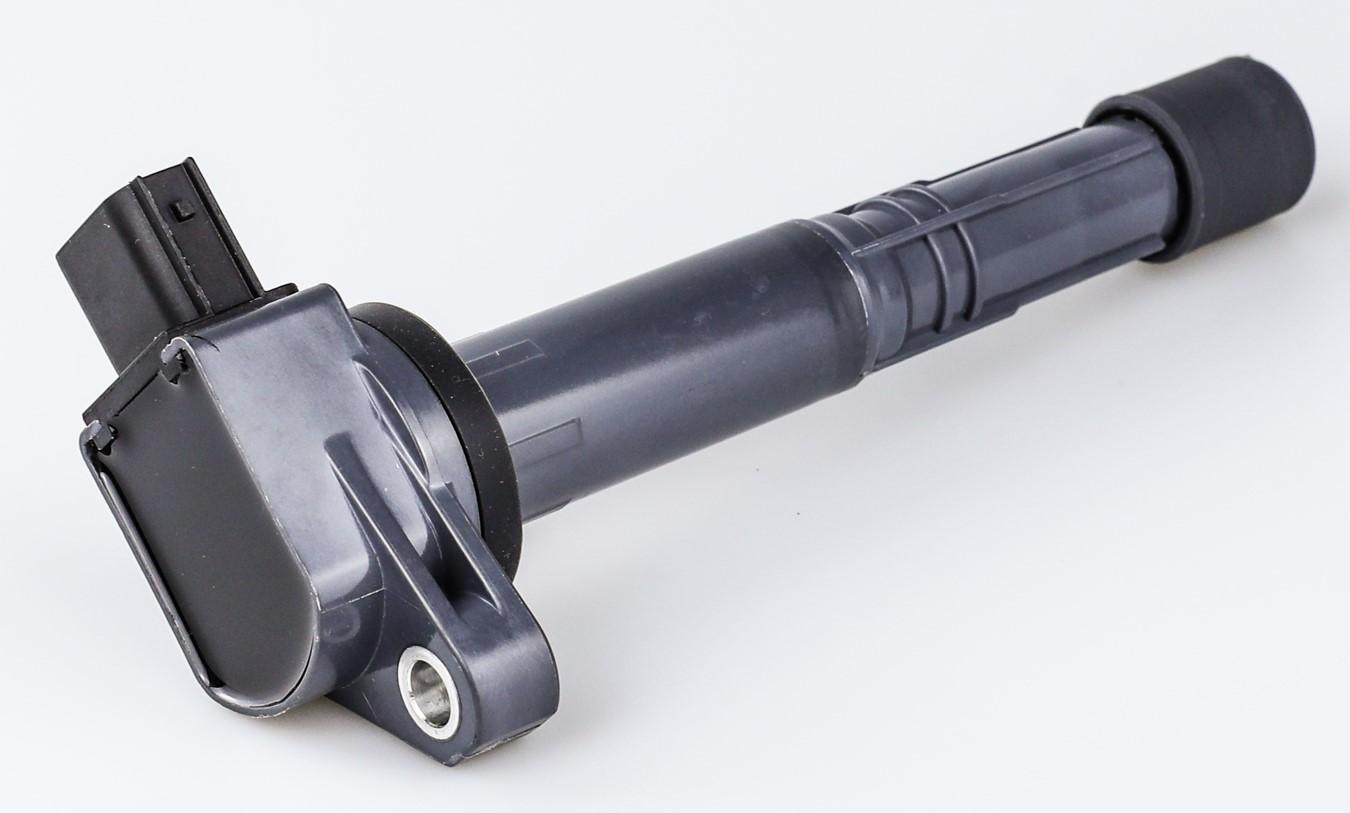

Elecdurauto ignition coil, OE number 30520-PNA-007, is designed for precise ignition performance in 2007 Honda Civic 2.0L and 2.4L engines, including applications using K20Z3, K24A4, and other K-series variants. Fully cross-compatible with part numbers 30520-RRA-007, UF311, 099700-070, 30520-RAA-007, 30520-PMA-007, UF583, and 099700-115R, it provides seamless replacement across a wide range of Honda and Acura platforms.
Built to deliver stable voltage output, enhanced fuel combustion efficiency, and long-term reliability under high engine load, this ignition coil features premium copper windings, high-temperature epoxy encapsulation, and insulation-grade materials. The result is consistent coil output and extended service life—even in high-RPM or thermal-stress environments.
30520-PNA-007 / 30520-RRA-007 / UF311 / 099700-070
Copper windings, PPS housing, silicone boot
Elecdurauto
China
IATF 16949 / ISO 9001 / ISO 14000 / OHSAS 18000
OEM label and ODM customization accepted
100 pcs
7–15 Days
50,000 pcs / month
Individual box / 4-pack set / bulk tray / custom label
High-voltage tester, coil resistance meter, insulation tester, etc.
18 months / 12,000 miles
30520-RAA-007 / 30520-PMA-007 / UF583 / 099700-115R
Honda Civic models using 2.0L/2.4L engine
Model Years 2006 / 2007 / 2008 / 2009 / 2010 / 2011
| Quantity: | |
|---|---|
Product Description
Consistent Spark Output: Maintains ignition stability under varying load conditions and high engine speeds, ensuring smooth performance across all driving scenarios.
Premium Copper Windings: Delivers high electrical conductivity and minimizes energy loss for optimal coil efficiency.
Reinforced Epoxy Housing: Protects internal components from heat, vibration, and moisture, enhancing long-term durability.
OEM Level Compatibility: Designed for direct replacement in Honda K-series engines with coil-on-plug configurations, ensuring secure fit and reliable function.
Wide Application: Suitable for a range of 2.0L and 2.4L models including the Civic Si, CR-V, and Accord, covering both domestic and import variants.
High Reliability Under Pressure: Withstands cylinder pressure spikes and thermal cycling, supporting stable spark output during rapid acceleration or uphill loads.
Supports Advanced Combustion Technologies: Compatible with systems using VTEC, EGR, and i-VTEC technologies, contributing to improved fuel economy and reduced emissions.
| Specification | Description |
|---|---|
| Coil Type | Coil On Plug (COP) Ignition |
| Voltage | 12V DC (Nominal) |
| Peak Ignition Voltage | Up to 40,000 V |
| Spark Energy | 45 – 55 mJ (varies by operating condition) |
| Primary Resistance | 0.4 – 0.6 Ω |
| Secondary Resistance | 8,000 – 9,200 Ω |
| Turns Ratio (P:S) | Approx. 1:80 |
| Inductance | 2.3 – 3.9 mH |
| Voltage Rise Time | < 1.8 kV/µs |
| Operating Temperature | –40°C to +135°C |
| Storage Temperature | –40°C to +100°C |
| Fluids Resistance | Resistant to gasoline, engine oil, brake fluid, and antifreeze |
| Vibration Resistance | Up to 55g |
| Housing Material | PPS with epoxy resin encapsulation |
| Mounting Type | 1 Mounting Hole |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Ignition Type | Distributorless (COP) |
| Oil Filled | No |
| External Resistor Required | No |
| Package Contents | Ignition Coil, Instruction Sheet |
| Coil Wire Included | No |
| Dimensions (L×W×H) | Approx. 100mm × 38mm × 65mm (varies slightly by SKU) |
| Weight | Approx. 320g |
| Applicable Engine Types | 2.0L K20A / 2.4L K24A / 1.8L R18A (depending on trim) |
| Standard Compliance | ISO 9001 / IATF 16949 |
| Make & Model | Platform | Year | Engine Displacement | Engine Code |
|---|---|---|---|---|
| Honda CR-V | Gen 2 | 2004–2007 | 2.0L | K20A4 |
| Honda CR-V | Gen 2 | 2004–2007 | 2.4L | K24A1 |
| Honda CR-V | RD5 | 2001–2006 | 2.0L | K20A4 |
| Honda CR-V | Gen 3 | 2007–2012 | 2.4L | K24Z1 |
| Honda Odyssey | Gen 1 | 1994–1999 | 2.3L | F23A7 |
| Honda Odyssey | Gen 2 | 2002–2005 | 2.3L | F23Z4 |
| Honda Odyssey | Gen 3 | 2003–2008 | 3.5L | J35A8 |
| Honda Odyssey | Gen 3 | 2005–2009 | 2.4L | K24A6 |
| Honda Stream | – | 2001–2006 | 2.0L | K20A1 |
| Honda Civic Si | Gen 8 | 2006–2011 | 2.0L | K20Z3 |
| Honda Accord | Gen 7 | 2002–2008 | 2.0L | K20A7 |
| Honda Accord | Gen 7 | 2002–2008 | 2.4L | K24A4 / K24A8 |
| Honda Accord | CM | 2003–2007 | 2.4L | K24A4 |
| Acura RDX | Gen 1 | 2007–2012 | 2.3L Turbo | K23A1 |
Understanding what goes inside a high-performance ignition coil reveals why Elecdurauto ignition coils deliver exceptional spark reliability, heat resistance, and long service life.
Every layer of Elecdurauto's ignition coil design is optimised for ignition precision, voltage control, and energy efficiency—especially in EGR (Exhaust Gas Recirculation) and lean-burn systems where fuel economy and CO₂ reduction are essential.
At Elecdurauto, we know that a high-performance ignition coil starts with precision engineering and ends with uncompromising quality control. That's why we've heavily invested in state-of-the-art production equipment and rigorous testing systems to ensure every coil meets OEM-grade expectations reliably and consistently.
Automatic Assembly Machine
ECU Testing Machine
Injection Mould Area
Secondary Winding Machine
Shell Injection Area
Vacuum Casting Equipment
Product Testing Equipment
Ignition Coil Tester
Climate Test Chamber
Thermal Shock Chamber
Assembly Workshop
Comprehensive Performance Tester
At Elecdurauto, we specialise in manufacturing and supplying high-quality 2007 Honda Civic ignition coil and a wide range of global vehicle platforms. Our OEM-grade replacement ignition coils are trusted by importers, wholesalers, and aftermarket brands across 30+ countries. Whether you're sourcing bulk ignition coil supply, private label products, or direct-fit aftermarket alternatives, Elecdurauto delivers value, reliability, and service.
To maintain our position as a top ignition coil manufacturer, Elecdurauto operates with world-class machinery:
Vacuum Casting Equipment – For high-purity resin insulation and heat resistance
Automatic Winding Machines – Ensuring stable and high-speed coil winding
High-Voltage Testing Systems – Guaranteeing 100% product safety and performance
Injection Moulding Machines – For precise and durable component shaping
We also run a dedicated mould and injection workshop, which allows us to have faster lead times and tighter control over consistency.
Elecdurauto focuses on high-performance ignition coil solutions for Honda vehicles, with special attention to models like the 2007 Honda Civic. Built with premium copper windings, precision-wound magnetic cores, and PPS reinforced housings, these coils ensure stable spark output under varying load and temperature conditions. Ideal for K20A7, K24A4, and K24A8 engine platforms, Elecdurauto ignition coils deliver long-term reliability and consistent performance in both urban and high-RPM driving environments.
Our production facilities overlap with Tier 1 OEM manufacturers of Denso, Bosch, Valeo, Delphi, and Magneti Marelli—allowing us to offer equivalent-quality ignition coils that match original performance.
We support OEM replacement ignition coils, branded label customisation, and custom SKU development tailored to your local market needs.
Want to highlight your branding? We support private label ignition coil production with your logo, packaging, and barcode-ready shipping.
We manage the entire production cycle—from raw material inspection to final packaging—with rigorous checks at every stage:
FMEA-based defect prevention
Standardised & lean production systems
Process stability testing & 100% final inspection
This ensures lower defect rates, fewer returns, and longer product lifespans for your customers.
Whether you need 100 pieces of ignition coils for the 2007 Honda Civic or a container shipment of mixed SKUs, our system is built to adapt:
Low MOQ (100 units per SKU)
Rapid 2–5 day dispatch for stock coils
15–25 day lead time for OEM & custom orders
Amazon FBA / Mercado Libre packaging support
Our standard MOQ for ignition coil bulk orders is 100 units per SKU, ideal for auto parts wholesalers, regional distributors, and Amazon sellers. For new partners or trial orders, we support flexible MOQ policies—reach out for current support programs.
For in-stock ignition coil models, we offer 2–5 day dispatch. For customised packaging, private label coils, or large volume orders, standard lead times are customised packaging, private label coils, or large volume orders, standard 15–25 working days, depending on SKU and quantity.
Yes, Elecdurauto specialises in OEM and ODM ignition coil manufacturing. We provide full support for private labelling, custom SKU packaging, barcoding (EAN/UPC), and customised ignition coil design for regional fitment needs.
Our factory is certified to IATF 16949, ISO/TS 16949:2009, ISO 9001, ISO 14001, and OHSAS 18001. These certifications ensure strict quality management, environmental control, and safety compliance—a must for global B2B ignition coil distribution.
Yes. For qualified B2B clients like auto part importers or e-commerce platform sellers, we offer free ignition coil samples (just pay shipping) so you can test product fit, quality, and performance.
Absolutely. Elecdurauto provides barcode-ready packaging, inventory consolidation, and dropshipping options for online sellers. Our coils come in compact, FBA-optimised boxes with model number and branding printed.
For ignition coil importers and resellers, we offer:
Regional exclusive agency support
Priority stock allocation
Co-branded marketing materials
Product training for auto workshops and retailers
After-sales assistance and warranty management
Every ignition coil undergoes:
High-voltage stress testing
Resistance & insulation checks
Vibration and thermal cycle testing
Final 100% functional test before packaging
We maintain a <0.5% warranty claim rate across all global markets.
Elecdurauto supplies ignition coils to Europe, South America, Southeast Asia, and the Middle East through both direct export and local distributor networks. We're actively expanding and open to onboarding new partners.
Each Elecdurauto 2007 Honda Civic ignition coil is engineered to match OEM specifications, ensuring direct-fit compatibility for Honda models equipped with K20A7, K24A4, or K24A8 engines. Cross-reference with OEM part numbers such as 30520-PNA-007, 30520-RRA-007, 30520-RAA-007, or UF311 to verify fitment. You may also consult the vehicle compatibility chart or provide your VIN to confirm proper application.
Common symptoms include engine misfires, rough idle, difficulty starting, poor fuel economy, and a check engine light. If you're experiencing these issues, it may be time to replace your ignition coil.
Many ignition coils, especially coil-on-plug (COP) types, are designed for easy installation. If you're familiar with basic engine components and have the correct tools, you can perform a DIY replacement. Always refer to your vehicle service manual for torque specs and safety guidelines.
Our ignition coils are designed for long service life, often exceeding 100,000 kilometres (60,000+ miles) under normal operating conditions. We use advanced vacuum casting, epoxy resin insulation, and high-temperature wire winding to ensure heat resistance and durability.
All Elecdurauto ignition coils come with an 18-month / 20,000 km limited warranty covering manufacturing defects. With a warranty return rate of less than 0.5%, our coils have proven long-term reliability in over 30+ countries. manufacturing defects.
Elecdurauto ignition coils for 2007 Honda Civic are designed for use in naturally aspirated engine platforms and do not support hybrid powertrains. For hybrid engine compatibility, please refer to our specialized coil series or contact us with your engine code for a tailored recommendation.
We combine global raw material sourcing, advanced automation (e.g., robotic winding, in-house injection), and full testing procedures, including high-voltage, insulation, and vibration testing. With a proven track record across OEM, fleet, and aftermarket clients, Elecdurauto delivers OEM, fleet, and aftermarket client reliability, performance, and fast lead times at scale.
