12V: 3934174 / SA-4697-12 / RE53559; 24V: 3934177 / SA-4697-24
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
The SA-4697 family pairs 3934174 with 12V and 3934177 with 24V. RE53559 appears with the 12V configuration in shutdown-solenoid catalogs, yet cross-brand fitment still depends on the same rod, bracket and connector geometry.
Item | Confirmed Information |

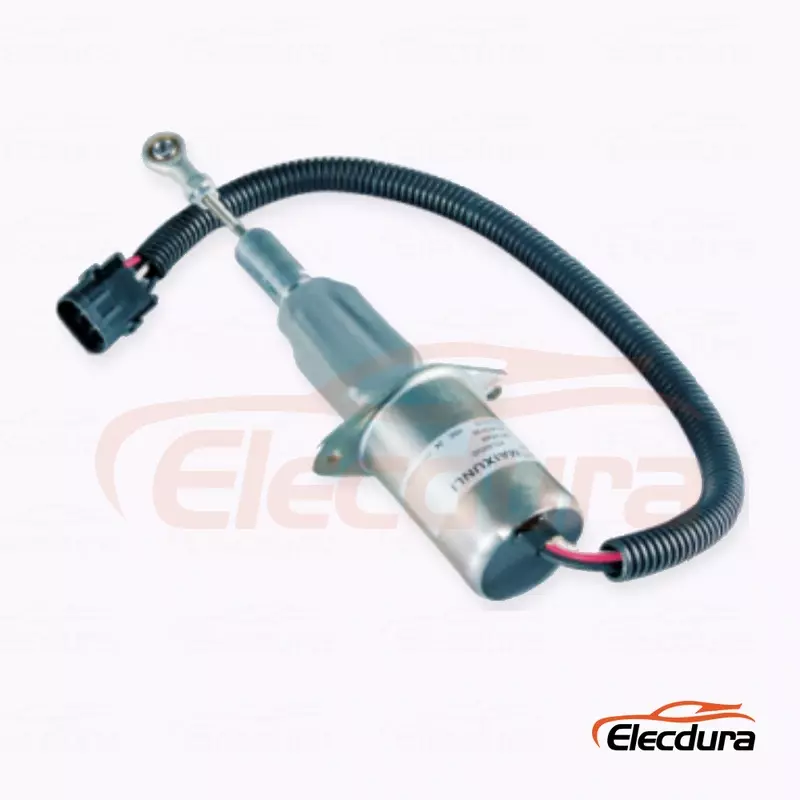

Product Type | Fuel shutdown solenoid |
OE / Reference Numbers | 12V: 3934174 / SA-4697-12 / RE53559; 24V: 3934177 / SA-4697-24 |
Electrical Version | 12V or 24V, selected by the SA-4697 group |
Application Scope | Cummins 5.9L and related industrial shutdown applications with confirmed SA-4697 configuration |
MOQ | 50 pcs |
Delivery Time | 7 - 15 Days |
Warranty | 12 Months |
Keep RE53559 beside 3934174 and SA-4697-12 only when the removed 12V solenoid shares the complete physical configuration. For 24V demand, use 3934177 or SA-4697-24 and exclude the 12V cross-reference.
Matching Point | Buyer Action |
12V group | 3934174 / SA-4697-12; verify RE53559 physically. |
24V group | 3934177 / SA-4697-24. |
Bracket | Compare plate outline, hole centers and engine-side orientation. |
Rod | Check resting length, joint, travel and direction. |
Connector | Match terminal form and control-circuit function. |
Cross-brand numbers can lead to a correct voltage and coil concept while leaving the bracket or rod unusable. A candidate should be rejected if hole centers, output direction or installed clearance differs, even when the SA number appears in a catalog group.
Service or Order Situation | Recommended Review |
Bracket holes miss | Do not modify the engine bracket; identify the correct configuration. |
Rod points the wrong way | Treat the candidate as another SA variant. |
Correct fit, weak action | Measure voltage under load and inspect linkage resistance. |
Engine will not stop | Confirm full pump-lever movement and rod adjustment. |
State the SA-4697 voltage group, RE53559 only if present, Cummins application, bracket, rod, connector and quantity.
RFQ Item | What to Provide |
OE / reference | 12V: 3934174 / SA-4697-12 / RE53559; 24V: 3934177 / SA-4697-24 |
Voltage | 12V or 24V, selected by the SA-4697 group |
Application | Cummins 5.9L and related industrial shutdown applications with confirmed SA-4697 configuration |
Photos | Old label, connector face, mounting bracket, rod or cable end and one complete removed-part view |
Commercial request | Quantity, destination market and packing requirement |
Yes. 3934174 and SA-4697-12 form the verified 12V group used in Cummins 5.9L and related industrial demand. The old voltage and mechanical configuration should agree before the order is approved.
3934177 and SA-4697-24 identify the confirmed 24V group. Keep them on a separate order line from 3934174 so picking and packing controls preserve the electrical version.
RE53559 appears as a 12V supporting cross-reference in solenoid catalogs. It can narrow the search, but the bracket, rod end, connector and installed clearance must match before a Cummins or John Deere application is released.
Modification can change alignment, rod travel and structural support, so it should not be used to turn an unmatched part into an approved replacement. Identify the correct SA configuration and mounting geometry instead.
The output may not carry the pump lever through its complete stop travel. Check joint play, rod adjustment, lever binding and bracket deflection while the solenoid is commanded to shut down.
Send the full OE, voltage, Cummins engine and serial, any RE53559 marking, connector face, bracket-hole centers, rod dimensions, installed photo and quantity. State whether the failure is electrical, mechanical or intermittent.
Send the voltage-specific SA-4697 group, application details, cross-reference evidence and mounting measurements for quotation.
