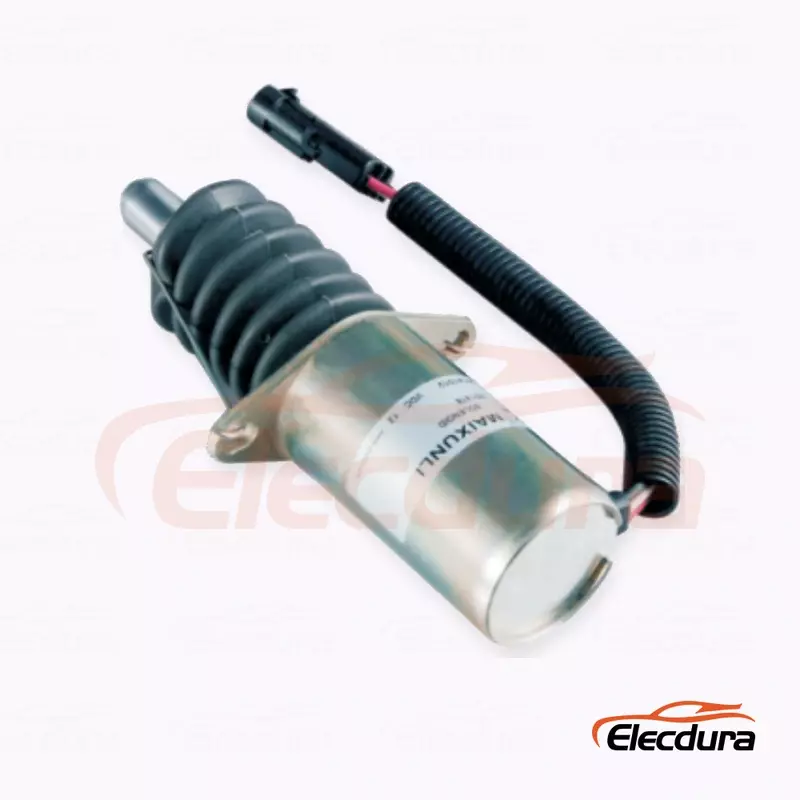

Fuel Shutdown Solenoid 3921978 P613-A42V12 for Cummins 6C, 6CT and 6CTA diesel engines

3921978 Heavy-Duty Pull Solenoid for Cummins Applications

3921978 serves Cummins 6C, 6CT and 6CTA diesel engines. Heavy-duty P- and D-series configurations may differ by pull direction, side or flat mounting, stroke, spring, rod end and pull/hold control. The complete reference and mechanical envelope must match before a neighboring series number is substituted.

3921978 Product Information

Pull Direction, Duty and Stroke Review for 3921978

Match the complete stamped reference because voltage, winding, mounting, terminals, output geometry and duty can differ within the same family.

Preventing Pull-Winding Heat on 3921978

Check the electrical command, component response and final mechanical movement as separate observations. This prevents a wiring, control-module or linkage fault from being mistaken for a failed replacement part.

3921978 Replacement Approval Checklist

Release the order only after electrical, mechanical and application evidence agrees with the removed assembly.

3921978 Technical FAQ

How should the voltage versions of 3921978 be separated?

Keep the complete voltage-specific reference and old-unit marking on every order line. Similar housings do not make different coils interchangeable. Measure system voltage at the original connector during operation, then label inventory by both OE and voltage so mixed fleets cannot receive the wrong electrical version.

What should be checked on Cummins 6C, 6CT and 6CTA diesel engines before ordering 3921978?

Use 3921978 / P613-A42V12 / 3921980 / P613-A42V24 as the first control, then compare the old label, voltage, connector face, mounting-hole centers, output end and operating direction. Record the engine or machine model and serial number, but do not use the model name alone because production changes can introduce another shutdown arrangement.

Why can the pull winding of 3921978 overheat?

The high-current pull stage should operate only long enough to complete travel; the hold stage then maintains position. Restricted stroke, wrong terminal assignment or a failed cut-out circuit can leave pull current active. Verify full travel and switching behavior before another solenoid is fitted.

Which measurements separate nearby heavy-duty solenoid versions?

Record body size, mounting orientation, hole centers, maximum stroke, resting rod length, rod-end thread and connector layout. Small changes in spring, rod or mount code can prevent correct operation even when voltage and overall appearance agree.

How should pull direction and duty be approved?

Observe whether the original linkage requires a pull or push action and whether the solenoid remains energized during operation. Match continuous/intermittent duty and pull/hold control. Do not reverse or extend the linkage to compensate for the wrong series.

What should be compared with the removed 3921978 assembly?

Compare the full label, voltage, connector face, terminal count, mounting-hole centers, body orientation, output end, resting length and working travel. Include one wider installed photo showing pump, lever or surrounding clearance because close product images can hide the geometry that decides fitment.

How can repeat electrical or coil damage be prevented?

Correct the original failure cause before installation. Check supply voltage, pull/hold timing, linkage resistance, mechanical stops, terminal tightness, heat and moisture exposure. A new unit can fail quickly when the high-current stage remains energized or the output cannot complete its designed stroke.

Request a Quote for 3921978

Send the complete reference group, confirmed voltage, Cummins 6C, 6CT and 6CTA diesel engines, removed-part photos, measurements and order quantity for a fitment-focused B2B quotation.
