99432760 Shangqi Starter Motor 24V 4.5kW 10T

99432760 Heavy-Duty Truck Starter Motor for SHANGQI / Shanghai Diesel Iveco (Hongyan Genlyon)

For distributors requesting production pricing, 99432760 supports truck, bus and fleet replacement programs for SHANGQI / Shanghai Diesel Iveco (Hongyan Genlyon). This heavy-duty truck starter motor is defined by its 24V electrical system, 4.5kW output and 10T pinion, giving distributors a practical basis for quotation and stock matching.

For aftermarket product managers planning replenishment, accurate version control reduces avoidable returns and mixed stock. The gallery, technical drawing where available, and order information below give commercial and technical teams a shared basis for the RFQ.

99432760 Starter Motor Specifications and Technical Drawing

For replacement-parts sellers reviewing a replacement proposal, the key version difference is the mounting and housing clocking. Compare 2×90° spacing and 3×Ø11 with the old starter so the pinion alignment and cable access remain correct.

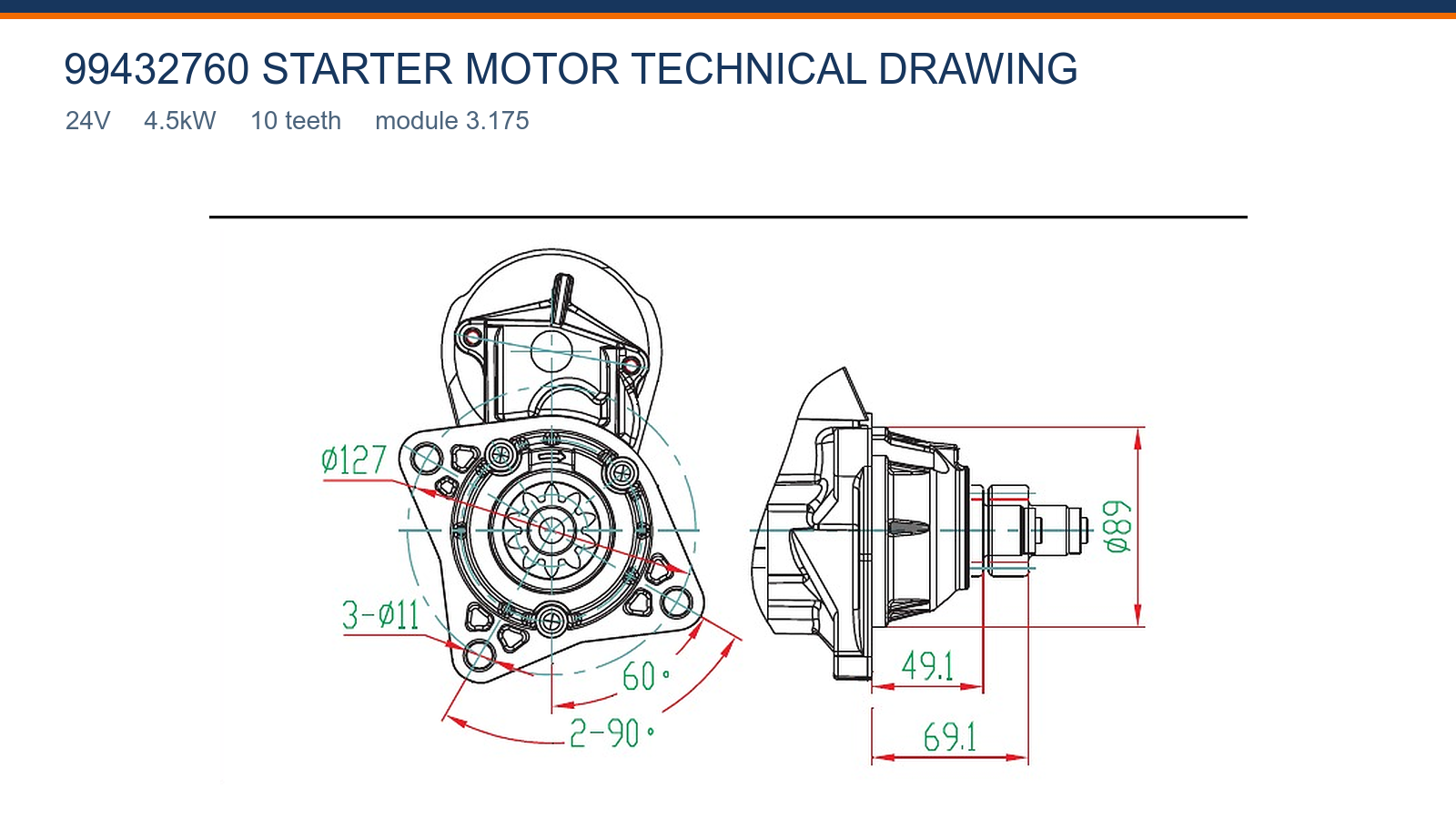

For service-parts networks confirming the stated application, the source-faithful technical drawing records the available mounting information for 99432760, including 3×Ø11, Ø127, 49.1 mm, 69.1 mm, 2×90° spacing; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

99432760 Aftermarket Replacement and Application

For engine-parts specialists reviewing drive-end geometry, use 99432760 as the primary product identity for SHANGQI / Shanghai Diesel Iveco (Hongyan Genlyon). The cross-reference group 99432760, 228000-5641 supports aftermarket matching, while the electrical rating and drive-end configuration distinguish the exact version supplied here.

For fleet-parts buyers comparing nearby starter versions, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 10T drive and cable-stud direction, and ask for a separate review when one of those features differs.

99432760 Wholesale Supply for Distributors and Importers

For aftermarket wholesalers confirming an incoming batch, importers planning 99432760 stock can request volume pricing, neutral or reviewed private-label packaging and agreed inspection records. Standard guidance is 20 pcs minimum, 7–15 days after confirmation and 18 months warranty under sales terms.

For sourcing managers defining label requirements, technical and commercial requirements should be confirmed on the same RFQ. Buyers can request suitable electrical tests, product identification photos, customer labels and carton information before the shipment is released.

99432760 Starter Motor Buyer FAQ

How should a distributor confirm 99432760 solenoid and cable routing before accepting a substitute?

For equipment-parts dealers comparing nearby starter versions, use the side and rear photographs of 99432760 to check solenoid position, battery-stud direction and start-terminal access in SHANGQI / Shanghai Diesel Iveco (Hongyan Genlyon). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

What should purchasing verify first for 2×90° spacing during an application review?

For purchasing teams preparing a technical RFQ, compare 2×90° spacing with the old flange in the same orientation. Clocking affects body clearance, solenoid position and terminal access even when diameter and hole count match. Use the printed angle or spacing callout rather than estimating from a rotated product photograph, and keep the same datum visible in both images.

What should purchasing verify first for Ø127 during an application review?

For distributors checking version-defining data, 99432760 shows Ø127. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

How can an importer validate 49.1 mm and 69.1 mm when preparing a product query?

For technical buyers comparing the flange and terminals, use 49.1 mm and 69.1 mm when comparing 99432760. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

Which check should lead 99432760 three-view gallery when checking a replacement proposal?

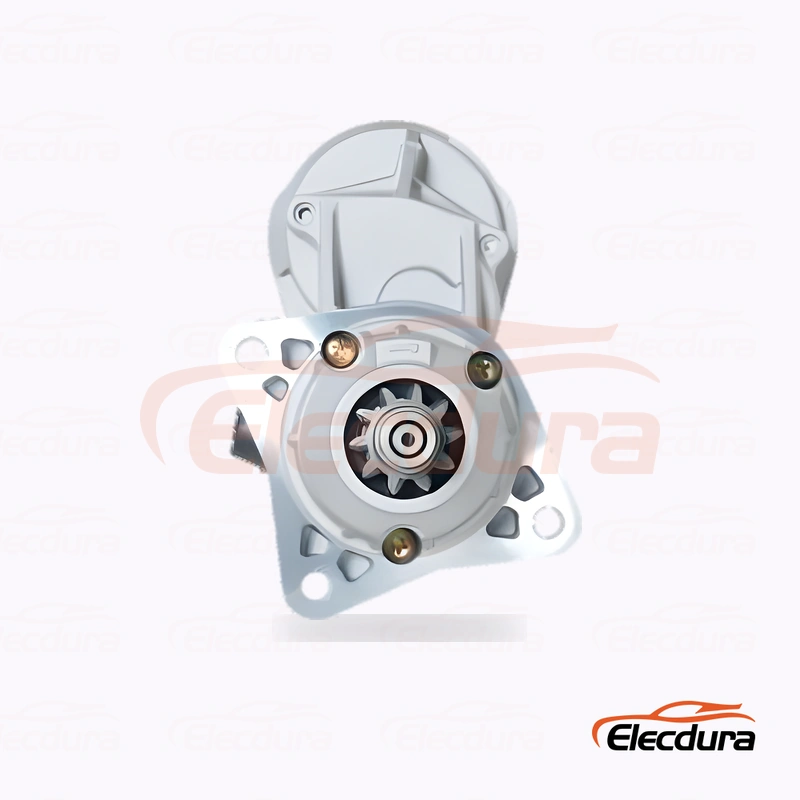

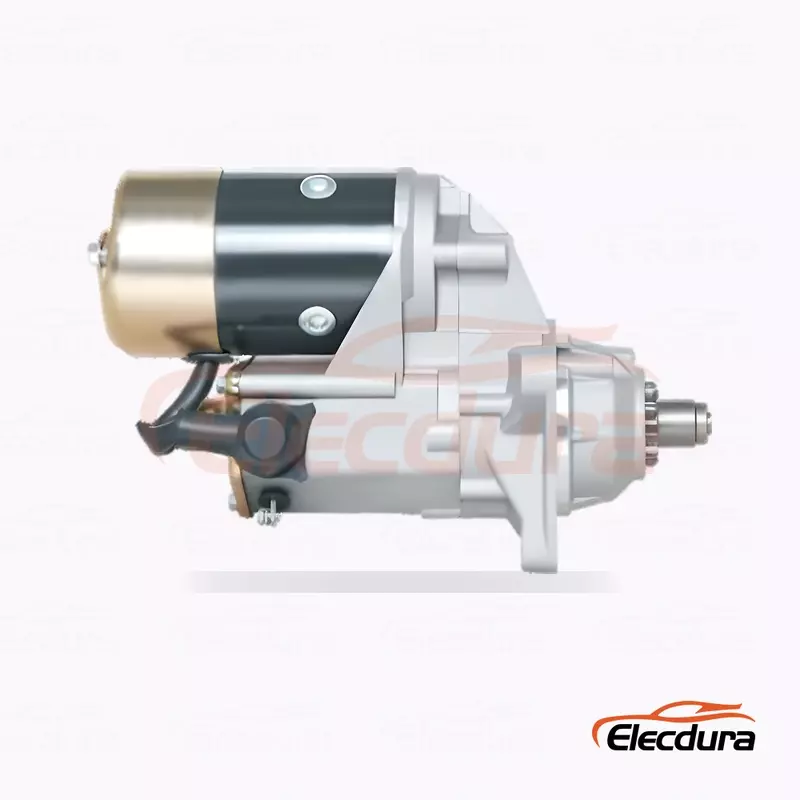

For engine-parts specialists reviewing a replacement proposal, use the drive-end view to compare the pinion and flange, the side profile to judge housing length and solenoid position, and the rear view to check terminals. All three images belong to 99432760; they should be reviewed together with the 10T drive and SHANGQI / Shanghai Diesel Iveco (Hongyan Genlyon) application. Request an additional close-up when the customer's unit hides a deciding feature.

Which comparison prevents a mismatch for 99432760 rear-terminal photograph before accepting a substitute?

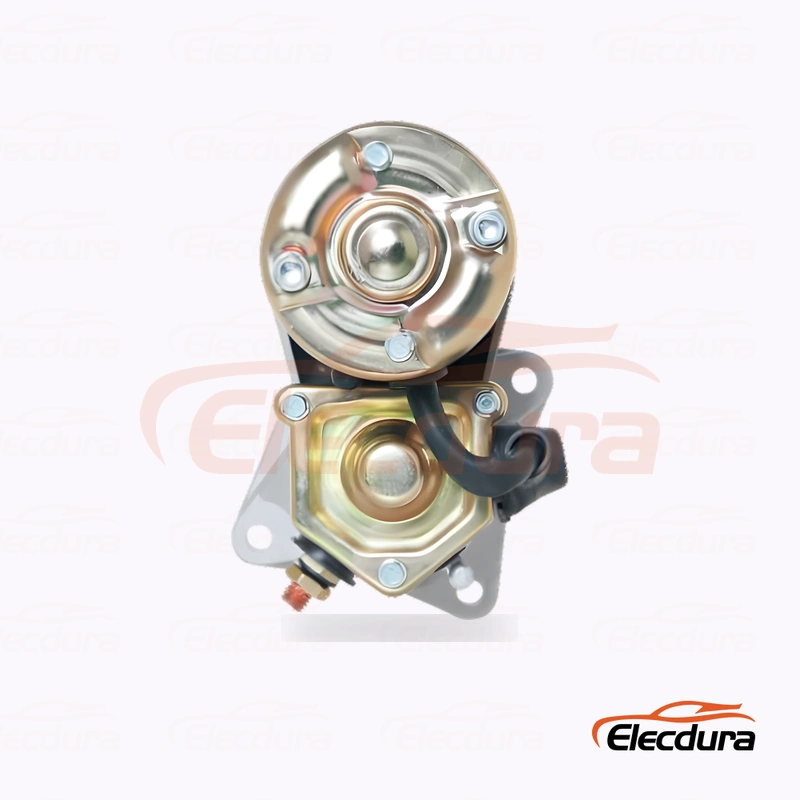

For fleet-parts buyers confirming the stated application, use the rear view of 99432760 to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in SHANGQI / Shanghai Diesel Iveco (Hongyan Genlyon). A correct drive end with an unusable terminal position is not a complete fitment match.

How can a buyer screen 99432760 terminal access for repeatable sourcing?

For technical sales teams checking application evidence, compare the rear housing and terminal direction in the approved product views for 99432760. The battery cable and start-signal lead must reach without sharp bends, rubbing or contact with hot and moving parts. If the body can be clocked differently within the same reference family, confirm the actual terminal position before stock is committed to the order.

What should receiving teams compare on 99432760 technical claim evidence before comparing delivery options?

For sourcing managers planning a repeat order, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the SHANGQI / Shanghai Diesel Iveco (Hongyan Genlyon) equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

Request a Wholesale Quote for 99432760 Heavy-Duty Truck Starter Motor

For wholesale program managers confirming commercial terms, prepare the RFQ with 99432760, 228000-5641, the complete application, quantity, target delivery and packaging requirements. We will respond with the defined 24V 4.5kW 10T starter motor line rather than a generic substitute.
