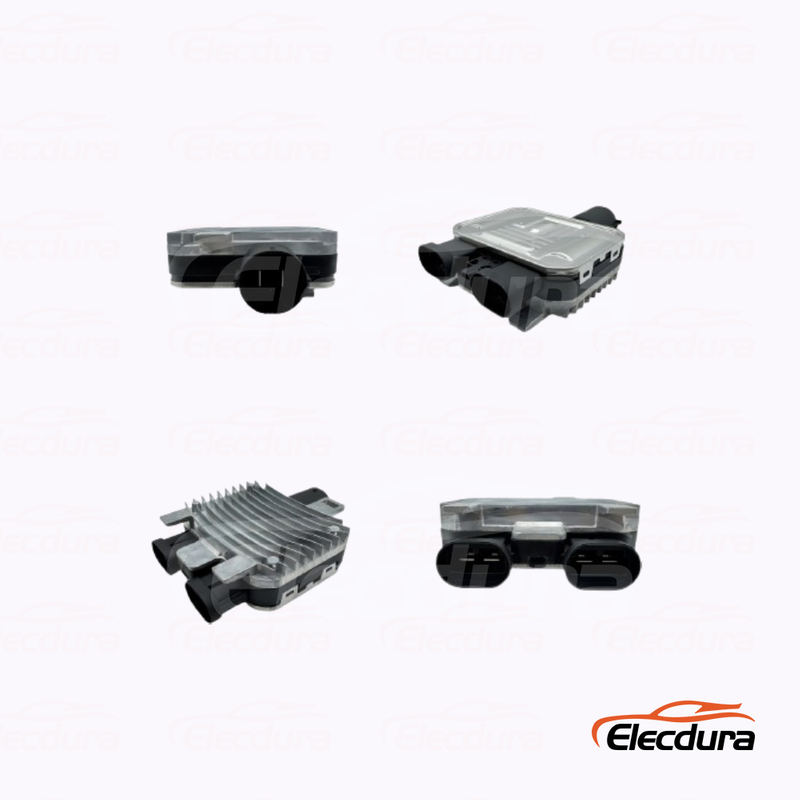

Dual-Connector HVAC Blower Speed Controller OE 940009402 for Volvo XC/S-Series and Land Rover Evoque

Heavy Duty Blower Motor Resistor Overview

This blower speed controller regulates power delivery to the HVAC blower motor for smooth fan speed control. Compared with open-coil resistor plates, this electronic controller uses an aluminum heat sink to dissipate heat and maintain stable output during long duty cycles.

• OE-level aftermarket replacement for 940009402 blower speed controller

• Aluminum heat sink supports thermal stability under continuous HVAC load

• Dual-connector harness design for OE-style matching

• Cross-platform fitment: Volvo + Jaguar + Land Rover applications listed below

• Fitment verification support by OE + connector photos + mounting outline

OEM Cross Reference – 940009402 / 7T43-8C609-BA / 940004204 / 941-0138-01

Important notice : OE / interchange numbers are for reference only. Please confirm fitment by OE number + connector layout + mounting pattern before ordering.

Vehicle Fitment – Volvo, Jaguar & Land Rover HVAC Blower Controller (940009402)

Technical Specifications – Aluminum Heat Sink Dual-Connector Blower Controller

Wire-Wound HVAC Resistor Block Design and Features

High-power wire-wound ceramic core

Stable resistance performance under continuous HVAC blower loads, supporting consistent fan speeds in truck HVAC systems.

Open-frame cooling structure

Improves airflow around the resistor element to enhance heat dissipation and reduce overheating risk.

Reinforced metal bracket

Designed for vibration resistance and stable installation on heavy-duty trucks and commercial vehicles.

Blower Motor Resistor Failure Symptoms and Diagnosis for Fleet Maintenance

Common symptoms of a faulty blower motor resistor include:

• Only one fan speed works

• Blower runs intermittently or stops

• No airflow from vents

• Burnt connector or overheating smell

• Unstable cabin temperature control

HVAC Resistor Block Installation Notes and Connector Check

• Confirm terminal layout and mounting pattern before installation

• Replace melted connector housing if overheating occurred

• If repeat failures happen, inspect blower motor current draw and wiring resistance

• Professional installation recommended for workshops and fleet environments

Blower Motor Resistor Quality Testing and Manufacturing Standard

From a manufacturer's standpoint, the most common field issues come from overheating and poor terminal contact. Our batch-level controls focus on:

• Resistance stability and electrical continuity checks

• Terminal contact and alignment inspection

• Assembly consistency for bracket positioning

• Heat endurance verification for production batches

Export Packing & Container Loading for Bulk Orders

For distributors and importers, stable packaging and shipment execution matter as much as product quality. We prepare bulk orders with export-standard carton packing, palletizing, and container loading. Before shipment, we can share loading photos and packing details to help you manage receiving and warehouse operations.

What you can expect

• Export-grade cartons with clear carton marks (OE No. / qty / batch)

• Palletizing + stretch wrap to reduce damage during long-distance transport

• Container loading with space optimization for bulk shipments

• Mixed-SKU consolidation support (send your part list for packing plan)

• Shipment photos available for your receiving & documentation process

MOQ note: MOQ is 100 pcs per item. For bulk orders, share your destination port and order mix—we'll propose an efficient packing and loading plan.

Sample Room & Fast Fitment Verification

For distributors and importers, the key to a smooth first order is fast and accurate fitment confirmation. Our dedicated sample room keeps resistor blocks and related HVAC electrical parts organized by OE reference and application. This enables quick cross-checking of connector layout, mounting pattern, and structure, so you can reduce wrong-fit risk and shorten purchasing cycles.

What this means for your sourcing team

• Faster OE and application verification before bulk production

• Quick photo support (connector & bracket details) for your internal approval

• Sample availability for evaluation and comparison

• Better accuracy for distributor listings and warehouse SKU management

• Reduced returns caused by mismatched connectors or mounting holes

How to request a sample or verification

Send your OE number / reference number, photos of the original part (if available), and target quantity. We'll confirm match and advise the most suitable option for your market.

Blower Motor Resistor MOQ 100 and Packaging for Bulk Orders

MOQ: 100 pcs for bulk orders. We support B2B export packaging suitable for importer/distributor warehousing.

To quote efficiently, please send:

• OE number: 940009402 / 7T43-8C609-BA / 940004204 / 941-0138-01

• Quantity (MOQ 100 pcs)

• Destination / port

• Connector & bracket photos (recommended for fast confirmation)

FAQ – OE 940009402 / 7T43-8C609-BA Dual-Connector HVAC Blower Controller

1. How should buyers confirm the correct 940009402 blower controller for Volvo and Evoque?

Match OE 940009402 plus both connector pin layouts and the heat sink outline. For dual-connector modules, connector mismatch is the most common wrong-order cause.

2. Why does this blower speed controller use a high fin aluminum heat sink?

Electronic blower controllers generate heat while regulating speed. The finned aluminum heat sink dissipates heat to improve stability during long blower operation in daily driving and fleet service.

3. What is the meaning of cross reference 7T43-8C609-BA?

7T43-8C609-BA is a common OE-style format used in catalogs for Jaguar/Land Rover related sourcing. Always verify using connector photos because OE formats can map to multiple revisions.

4. What are typical failure symptoms of this Volvo/JLR blower controller module?

Common symptoms include no blower, intermittent airflow, speed not responding, or blower stuck at one speed—often linked to thermal stress or connector contact issues.

5. What are the key differences between this module and open-coil resistor plates?

This is an electronic blower speed controller module with heat sink cooling. Open-coil plates rely on airflow cooling and provide stepped resistance stages; modules typically deliver smoother regulation.

6. What should workshops check to avoid repeat failures after replacement?

Check blower motor current draw, cabin filter restriction, and connector heat damage. High motor load or poor contact can overheat a new controller quickly.

7. Do melted connector housings need replacement when installing a new controller?

Yes. If the vehicle-side plug shows melting or discoloration, replacing the connector housing is recommended to restore proper contact and prevent repeat overheating.

8. How can importers speed up verification for mixed Volvo + Jaguar/Land Rover orders?

Ask for two connector photos (front/side) plus a heat sink outline photo. This method is faster than relying on model names alone and reduces wrong-fit risk.

9. What incoming QC checks should distributors do for bulk shipments?

Recommended QC checks include connector pin alignment, housing integrity, heat sink fin condition, and label verification for 940009402 / 7T43-8C609-BA.

10. What information is needed for the fastest quotation and lead-time confirmation?

Send OE/cross refs, vehicle model/year, quantity (MOQ 100), destination/port, and connector photos. This enables fast verification and avoids wrong-fit bulk orders.
