10461460 Clark Perkins Starter Motor Wholesale

10461460 Starter Motor Distributor Application Guide for Clark forklift and Perkins industrial-engine

For a fleet parts team, 10461460 identifies one Clark forklift and Perkins industrial-engine requirement. The large three-hole unit for Clark and Perkins industrial purchasing provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs 10461460 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

10461460 Starter Motor Mounting Dimensions for Distributor Approval

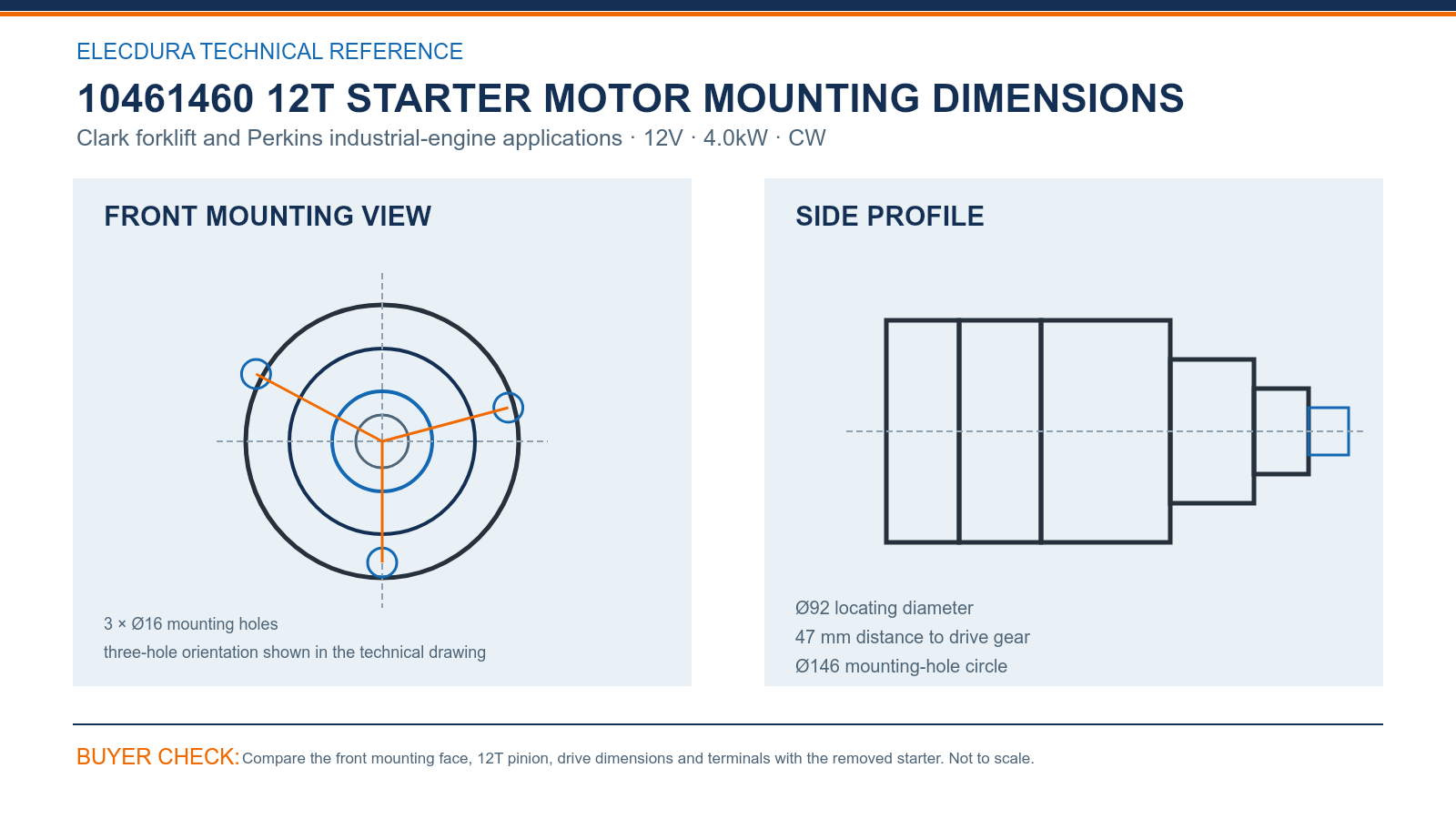

10461460 Clark Perkins 12V 4.0kW 12T starter mounting dimensions.

Use the 10461460 technical drawing to check Ø92 locating diameter, 47 mm distance to drive gear and Ø146 mounting-hole circle. Add the 3 × Ø16 mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the 10461460 comparison with 12V, 4.0kW, the 12T drive, module 3.175 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

10461460 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with 10461460, 10479604, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

10461460 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For 10461460, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Start with the forklift model or Perkins engine serial, then compare the 12T drive and large flange against the removed unit. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for 10461460; the product decision itself still depends on the complete reference, 12V 4.0kW rating, drive end, mounting face and terminal layout.

10461460 Starter Motor Questions from Commercial Buyers

How should buyers use the 10461460 cross-reference group in a Clark Perkins branch sourcing program?

A number match narrows the search but does not finish it. For 10461460, compare the stated application, electrical output, 12T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

How can branches reduce emergency transfers of 10461460 stock in a Clark Perkins branch program?

Rental fleets should base reserve quantities on utilization and workshop response time rather than total machine count alone. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How can an importer avoid mixing 10461460 with a similar drive-end version during branch sourcing?

For 10461460, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 12T, Ø146 mounting-hole circle, Ø92 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Before removing 10461460, what should the workshop test under load in a Clark Perkins branch workshop?

Before fitting 10461460, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for 10461460 during a Clark Perkins branch inspection?

For 10461460, use a straight front view to compare the 3 × Ø16 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 47 mm distance to drive gear. Complete the check with 12T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

What should a warehouse inspect when 10461460 starter motors arrive during a Clark Perkins branch receiving check?

For 10461460, match carton and product labels to the purchase order, then sample 12V, 12T, 3 × Ø16 mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What information should accompany a distributor RFQ for 10461460 in a Clark Perkins branch sourcing program?

A useful RFQ states 10461460, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving 10461460 in a Clark Perkins branch review?

For a service review of 10461460, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

10461460 Send a Starter Motor Distributor Enquiry

For a focused 10461460 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
