11E1-60100-24 / 11E1-60100 / 60V1-60100-24
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
| Quantity: | |
|---|---|

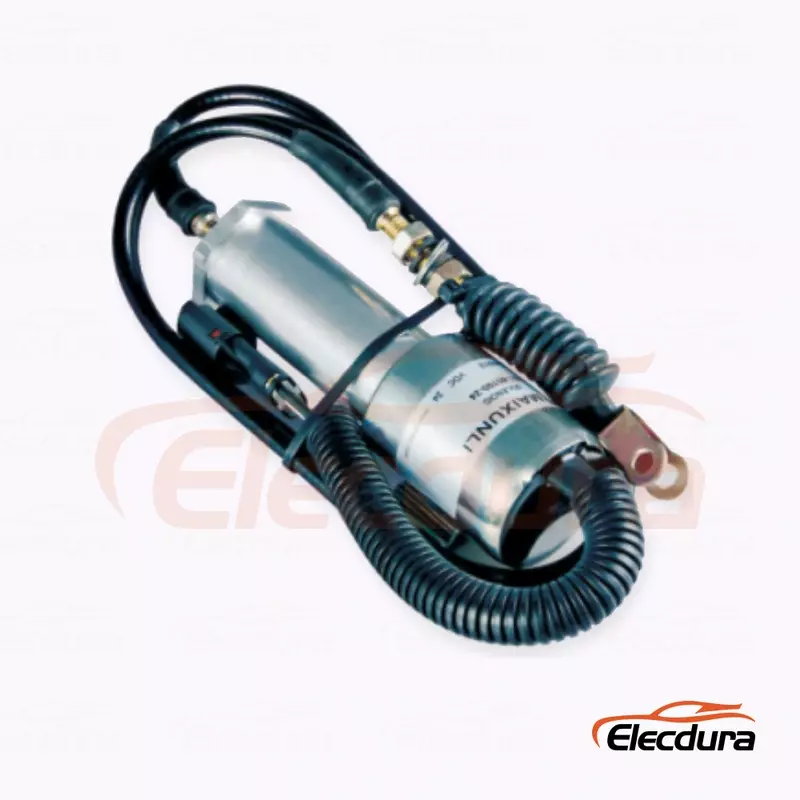

11E1-60100-24 is a cable-operated 24V shutdown assembly used across Hyundai R210-series service demand and related Daewoo equipment. Cable reach, eyelet orientation, bracket shape and connector routing are critical because the motor body can appear correct while the installed geometry is unusable.
Item | Confirmed Information |
Product Type | Fuel shutdown solenoid |
OE / Reference Numbers | 11E1-60100-24 / 11E1-60100 / 60V1-60100-24 |
Electrical Version | 24V |
Application Scope | Hyundai R210, R210-7 and R215-7 excavators; Daewoo DH220-5 service demand |
MOQ | 50 pcs |
Delivery Time | 7 - 15 Days |
Warranty | 12 Months |
Start with the 24V OE reference, then compare complete cable length, exposed travel, eyelet hole, bracket-hole spacing and connector lead routing. Equipment model support should be combined with an installed view so the cable path and lever attachment are visible.
Matching Point | Buyer Action |
24V marking | Confirm machine voltage and the old solenoid label. |
Cable length | Measure the sheath and total reach without stretching the assembly. |
Eyelet | Compare hole diameter, thickness and orientation at the fuel lever. |
Bracket | Check plate outline, bolt spacing and installed angle. |
Lead and connector | Match lead length, plug body and routing away from heat or moving parts. |
A motor can run while a stretched, misrouted or incorrectly adjusted cable fails to move the fuel lever through full shutdown travel. Observe both motor action and lever movement, then record whether the cable reaches, holds and releases without binding.
Service or Order Situation | Recommended Review |
Motor runs, lever barely moves | Inspect cable anchoring, sheath position and linkage adjustment. |
Cable does not return | Check lever binding and cable routing before replacing the motor. |
No motor response | Verify 24V supply, ground and connector condition under command. |
Replacement cable is shorter | Do not reroute under tension; identify the correct assembly length. |
Provide 11E1-60100-24, Hyundai or Daewoo model, machine voltage, cable measurements, bracket dimensions and connector photos.
RFQ Item | What to Provide |
OE / reference | 11E1-60100-24 / 11E1-60100 / 60V1-60100-24 |
Voltage | 24V |
Application | Hyundai R210, R210-7 and R215-7 excavators; Daewoo DH220-5 service demand |
Photos | Old label, connector face, mounting bracket, rod or cable end and one complete removed-part view |
Commercial request | Quantity, destination market and packing requirement |
Yes. The verified product family is 24V and appears in Hyundai R210, R210-7 and R215-7 service demand. A machine model still needs removed-part confirmation because cable and bracket arrangements can vary within a broad excavator family.
The cable must reach the fuel-control lever along the original route without tension, sharp bending or excess slack. A correct motor and voltage cannot compensate for a sheath or cable length that prevents full lever travel.
The shortened number appears as a supporting reference, but the purchase line should retain 11E1-60100-24 and explicitly state 24V. Keeping the suffix prevents the electrical version from being lost during quotation, packing or warehouse issue.
Watch the cable anchor, sheath and fuel lever while the motor operates. Lost motion, a loose bracket, stretched cable or wrong eyelet position can absorb travel before the lever reaches the stop position.
Several aftermarket pages associate 11E1-60100-24 with Daewoo DH220-5 alongside Hyundai R210-series models. Use that relationship as supporting application evidence and still compare the OE, voltage, cable and bracket with the removed unit.
Send the full OE, 24V confirmation, excavator model and serial information, total cable length, exposed travel, eyelet dimensions, bracket-hole spacing and connector view. An installed photo showing the original cable route is especially useful.
Send 11E1-60100-24, 24V confirmation, Hyundai or Daewoo equipment data, quantity and cable-and-bracket measurements for quotation.
