12V: 1756ES-12E3ULB1S5 / SA-4735-12; 24V: 1756ES-24E3ULB1S5 / SA-4735-24 / 11033561
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
| Quantity: | |
|---|---|
The SA-4735 family is defined by a long 1756ES configuration code, not by the short 1756ES label alone. Voltage, winding arrangement, rod direction, mounting and connector details are encoded in the suffix, so a buyer should preserve the complete removed-part number throughout sourcing and warehouse control.
Item | Confirmed Information |

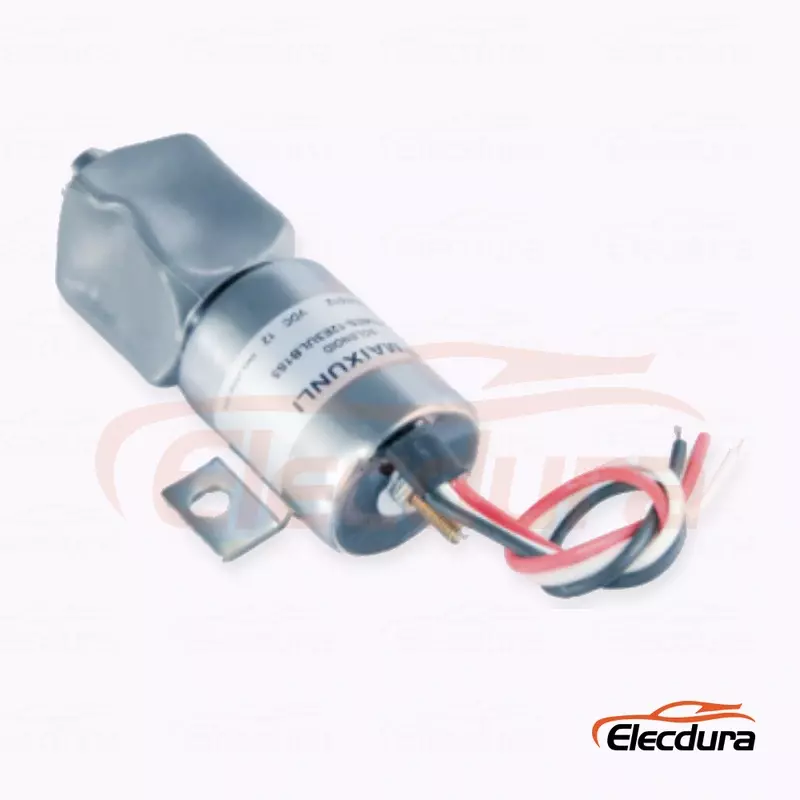

Product Type | Fuel shutdown solenoid |
OE / Reference Numbers | 12V: 1756ES-12E3ULB1S5 / SA-4735-12; 24V: 1756ES-24E3ULB1S5 / SA-4735-24 / 11033561 |
Electrical Version | 12V or 24V, selected by the complete 1756ES suffix |
Application Scope | Volvo, Hyundai R200-5E and cross-referenced construction-equipment applications subject to complete suffix matching |
MOQ | 50 pcs |
Delivery Time | 7 - 15 Days |
Warranty | 12 Months |
For 12V, retain 1756ES-12E3ULB1S5 with SA-4735-12. For 24V, retain 1756ES-24E3ULB1S5 with SA-4735-24 and confirm any 11033561, JCB or equipment cross-reference against the removed solenoid.
Matching Point | Buyer Action |
Complete suffix | Do not shorten the code to 1756ES; retain voltage and E3ULB1S5 characters. |
12V group | 1756ES-12E3ULB1S5 / SA-4735-12. |
24V group | 1756ES-24E3ULB1S5 / SA-4735-24; confirm 11033561 where applicable. |
Rod direction and end | Compare push/pull orientation, thread or eyelet and resting length. |
Mounting and connector | Match bracket-hole spacing, body angle and terminal layout. |
Service notes often record only 1756ES, even though several winding, voltage and mechanical variants share the same prefix. Before buying, recover the full label from the old unit or combine measured geometry, application evidence and voltage confirmation to identify the exact family member.
Service or Order Situation | Recommended Review |
Label shows only 1756ES | Request clearer side-lighted photos or record every remaining suffix character. |
Rod direction differs | Treat the candidate as another configuration even if voltage matches. |
Equipment cross-reference only | Confirm the full suffix and physical shape before approval. |
Old coil overheated | Inspect control timing and hold-circuit behavior so the replacement is not exposed to the same fault. |
Provide the complete 1756ES suffix, voltage, equipment and engine information, rod dimensions, bracket-hole spacing and connector view.
RFQ Item | What to Provide |
OE / reference | 12V: 1756ES-12E3ULB1S5 / SA-4735-12; 24V: 1756ES-24E3ULB1S5 / SA-4735-24 / 11033561 |
Voltage | 12V or 24V, selected by the complete 1756ES suffix |
Application | Volvo, Hyundai R200-5E and cross-referenced construction-equipment applications subject to complete suffix matching |
Photos | Old label, connector face, mounting bracket, rod or cable end and one complete removed-part view |
Commercial request | Quantity, destination market and packing requirement |
1756ES is a family prefix used across many voltage and mechanical configurations. Characters after the prefix distinguish important features, so an inquiry should carry 1756ES-12E3ULB1S5 or 1756ES-24E3ULB1S5 in full rather than relying on a shortened label.
SA-4735-12 belongs with 1756ES-12E3ULB1S5. Confirm the 12V machine system, rod direction, mounting holes and connector because another 1756ES unit can look similar while using a different mechanical code.
The confirmed 24V family uses 1756ES-24E3ULB1S5 and SA-4735-24; 11033561 appears as a supporting Volvo reference. Equipment names remain secondary to the full code, voltage and removed-part comparison.
A JCB reference such as 332/J5060 or 716/30091 can narrow the search, but production approval should still compare voltage, full 1756ES suffix, rod end, bracket and connector. Machine serial information is valuable when the removed label is incomplete.
Inspect whether the pull winding remained energized, whether the hold circuit changed state, and whether linkage resistance forced the solenoid to work against a mechanical stop. Correcting the control or linkage fault helps protect the replacement coil.
Record the full code in the ERP description, add a high-resolution label photo, and keep voltage, rod direction and bracket dimensions beside the item. Short internal nicknames should never replace the full 1756ES designation on a purchase line.
Send the complete 1756ES code, voltage, cross-reference, equipment details and removed-solenoid measurements for quotation.
