11N6-666030-24 / 11N6-66090-24
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
| Quantity: | |
|---|---|
The directory text omitted one digit in the Hyundai reference. Cross-checked catalogs and product data support 11N6-666030-24 as the correct 24V identifier, so the corrected number is used across the name, URL, title, custom field and product description.
Item | Confirmed Information |

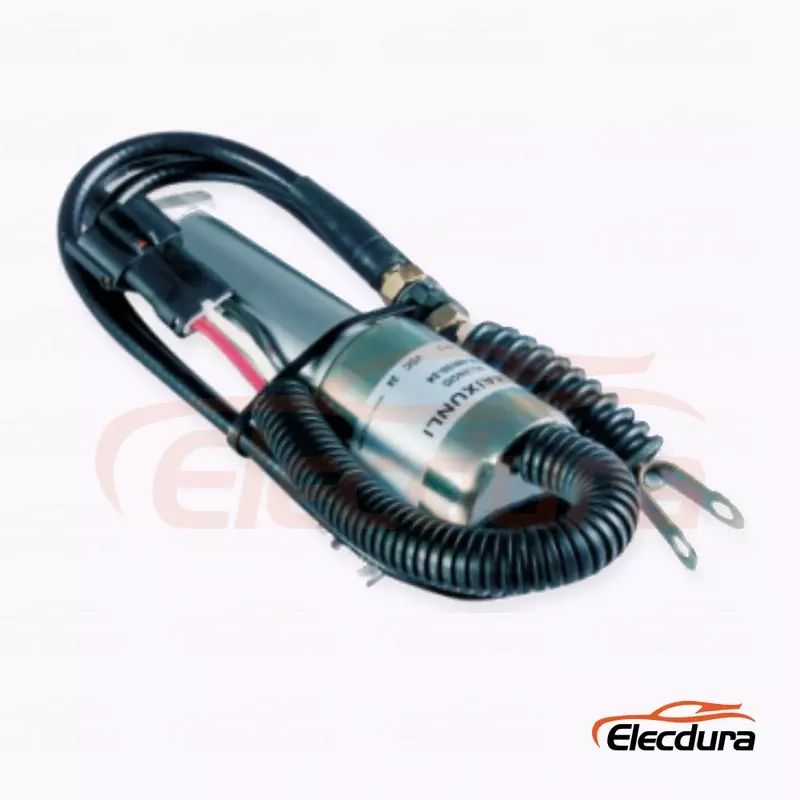

Product Type | Fuel shutdown solenoid |
OE / Reference Numbers | 11N6-666030-24 / 11N6-66090-24 |
Electrical Version | 24V |
Application Scope | Hyundai R210, R215, R220 and R225 excavator service demand; related Daewoo Doosan DH220-5 applications |
MOQ | 50 pcs |
Delivery Time | 7 - 15 Days |
Warranty | 12 Months |
Begin with the full seven-digit center group, then compare total cable reach, eyelet size, mounting plate and electrical connector. A one-digit error can return unrelated search results or prevent a buyer from locating service records.
Matching Point | Buyer Action |
Correct OE | Use 11N6-666030-24; do not publish the shortened catalog OCR form. |
Voltage | Confirm the 24V machine system and old marking. |
Cable | Measure sheath length, free travel and eyelet orientation. |
Bracket | Compare outline, bolt spacing and installed angle. |
Connector | Match plug body, lead length and routing near the pump linkage. |
A working motor can still fail to stop the engine when the cable sheath is loose, the eyelet is misadjusted or the lever binds. Watch the fuel lever through a complete command and measure cable travel before assigning the fault to the solenoid motor.
Service or Order Situation | Recommended Review |
Motor runs, no shutdown | Check cable anchoring, eyelet position and full fuel-lever travel. |
Cable does not return | Inspect routing, lever resistance and internal cable damage. |
No motor response | Measure 24V supply and ground under command. |
Replacement will not reach | Stop installation and compare the complete cable and bracket dimensions. |
Provide 11N6-666030-24, 24V confirmation, excavator model and serial, cable dimensions, eyelet, bracket and connector photos.
RFQ Item | What to Provide |
OE / reference | 11N6-666030-24 / 11N6-66090-24 |
Voltage | 24V |
Application | Hyundai R210, R215, R220 and R225 excavator service demand; related Daewoo Doosan DH220-5 applications |
Photos | Old label, connector face, mounting bracket, rod or cable end and one complete removed-part view |
Commercial request | Quantity, destination market and packing requirement |
The verified public identifier is 11N6-666030-24. The supplier-directory text lost one digit, so 11N6-66030-24 is treated as an OCR transcription error and is not used as an OE or URL keyword.
Yes. Independent listings and shutdown-solenoid catalogs consistently place the corrected number in a 24V Hyundai excavator application. Keep the -24 suffix on all quotation, carton and warehouse records.
R210, R210LC-7H, R215-7, R220LC and R225-9 applications appear across product data. Model names narrow the search, while machine serial information and the removed cable assembly complete fitment approval.
The motor may retract without moving the fuel lever through its final stop travel. A loose sheath, stretched cable, wrong eyelet position, bracket flex or restricted lever can absorb movement before shutdown occurs.
11N6-66090-24 appears as a related market reference on several listings. Use it only as supporting evidence and compare the full old label, cable length, bracket and connector before treating both numbers as the same installed assembly.
Send total cable length, exposed travel, eyelet hole diameter, bracket-hole spacing and connector lead length. Add the excavator model, serial plate and a photo of the original cable route so clearance and movement can be reviewed together.
Send 11N6-666030-24, excavator data, 24V proof, cable-and-bracket dimensions and quantity for quotation.
