13031614 Deutz TBD226B Starter Motor Wholesale

13031614 Starter Motor Wholesale Fitment for Deutz TBD226B and Weichai-Deutz 226B

Deutz engine distributors, Liugong equipment dealers and agricultural-parts wholesalers use 13031614 to keep Deutz TBD226B and Weichai-Deutz 226B demand tied to one 12V, 4.0kW, 10T CW configuration. The practical distinction is the 12V 4.0kW 10T module-3 product represented by the first distinct product view in this shared reference group, which should be checked before a similar heavy-duty housing is accepted.

Build the 13031614 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

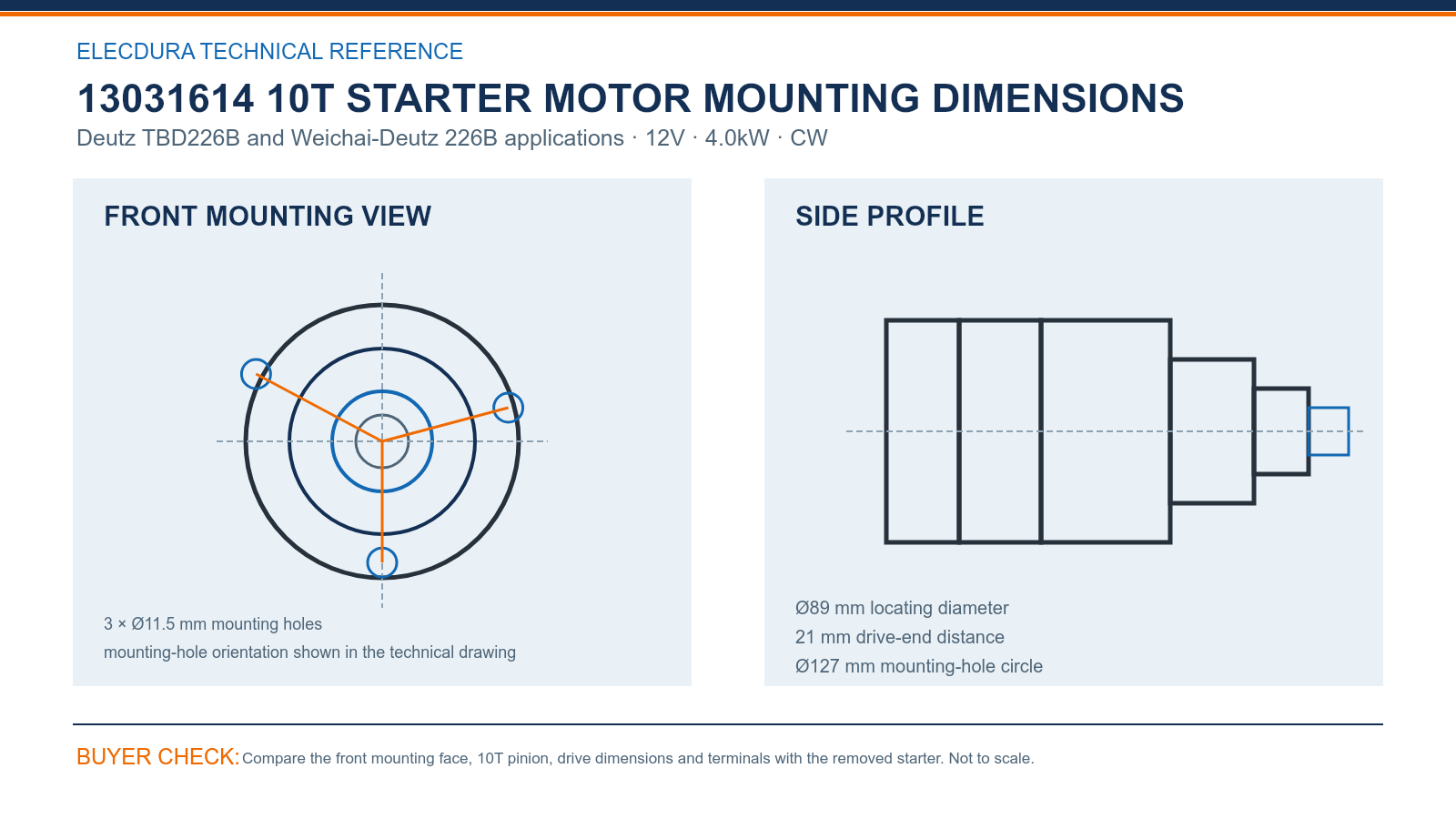

13031614 Starter Motor Specifications and Drawing for Wholesale Buyers

Compare 13031614 at the 3 × Ø11.5 mm mounting holes, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 21 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For 13031614, count the 10T pinion and confirm module 3, CW rotation, 12V and 4.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

13031614 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: 5302289, 5449610, 12187645, 13031614, 13035760, STM3314LP, STM3314MH can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 12V, 4.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

13031614 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested 13031614 quantity, destination and required arrival date.

Keep this product view tied to its own order line despite overlapping cross-references. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of 13031614 remains tied to the stated Deutz TBD226B and Weichai-Deutz 226B application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

13031614 Starter Motor Questions from Commercial Buyers

Before removing 13031614, what should the workshop test under load in a Deutz TBD226B fleet workshop for the first distinct TBD226B product view?

Before fitting 13031614, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for 13031614 during a Deutz TBD226B fleet inspection for the first distinct TBD226B product view?

For 13031614, use a straight front view to compare the 3 × Ø11.5 mm mounting holes and Ø127 mm mounting-hole circle; use the side view for Ø89 mm locating diameter and 21 mm drive-end distance. Complete the check with 10T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

What should a distributor match before ordering 13031614 for Deutz TBD226B and Weichai-Deutz 226B during fleet sourcing for the first distinct TBD226B product view?

Use the complete removed-unit number and exact Deutz TBD226B and Weichai-Deutz 226B record. Compare the 10T pinion, 3 × Ø11.5 mm mounting holes, Ø89 mm locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

What is the safe way to order 13031614 from an alternate OE number in a Deutz TBD226B fleet sourcing program for the first distinct TBD226B product view?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the 13031614 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

How can 13031614 stock be separated by application risk in a Deutz TBD226B fleet program for the first distinct TBD226B product view?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent 13031614 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving 13031614 during a Deutz TBD226B fleet receiving check for the first distinct TBD226B product view?

For 13031614, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11.5 mm mounting holes, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for 13031614 in a Deutz TBD226B fleet sourcing program for the first distinct TBD226B product view?

Send the complete OE number, exact Deutz TBD226B and Weichai-Deutz 226B details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 4.0kW 10T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review 13031614 after installation in a Deutz TBD226B fleet review for the first distinct TBD226B product view?

Keep the carton or product traceability code and note when and where 13031614 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

13031614 Request Starter Motor Wholesale Pricing

Send the complete 13031614 reference, Deutz TBD226B and Weichai-Deutz 226B details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 4.0kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
