S9368S Deutz TD226B Starter Motor Wholesale Supply

S9368S Starter Motor Wholesale Fitment for Deutz TD226B engine

Deutz engine distributors, construction-equipment dealers and heavy-duty electrical wholesalers use S9368S to keep Deutz TD226B engine demand tied to one 24V, 6.0kW, 10T CW configuration. The practical distinction is the 24V 6.0kW 10T module-3 configuration with the cataloged 21 mm drive-end position, which should be checked before a similar heavy-duty housing is accepted.

Build the S9368S RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S9368S Starter Motor Specifications and Drawing for Wholesale Buyers

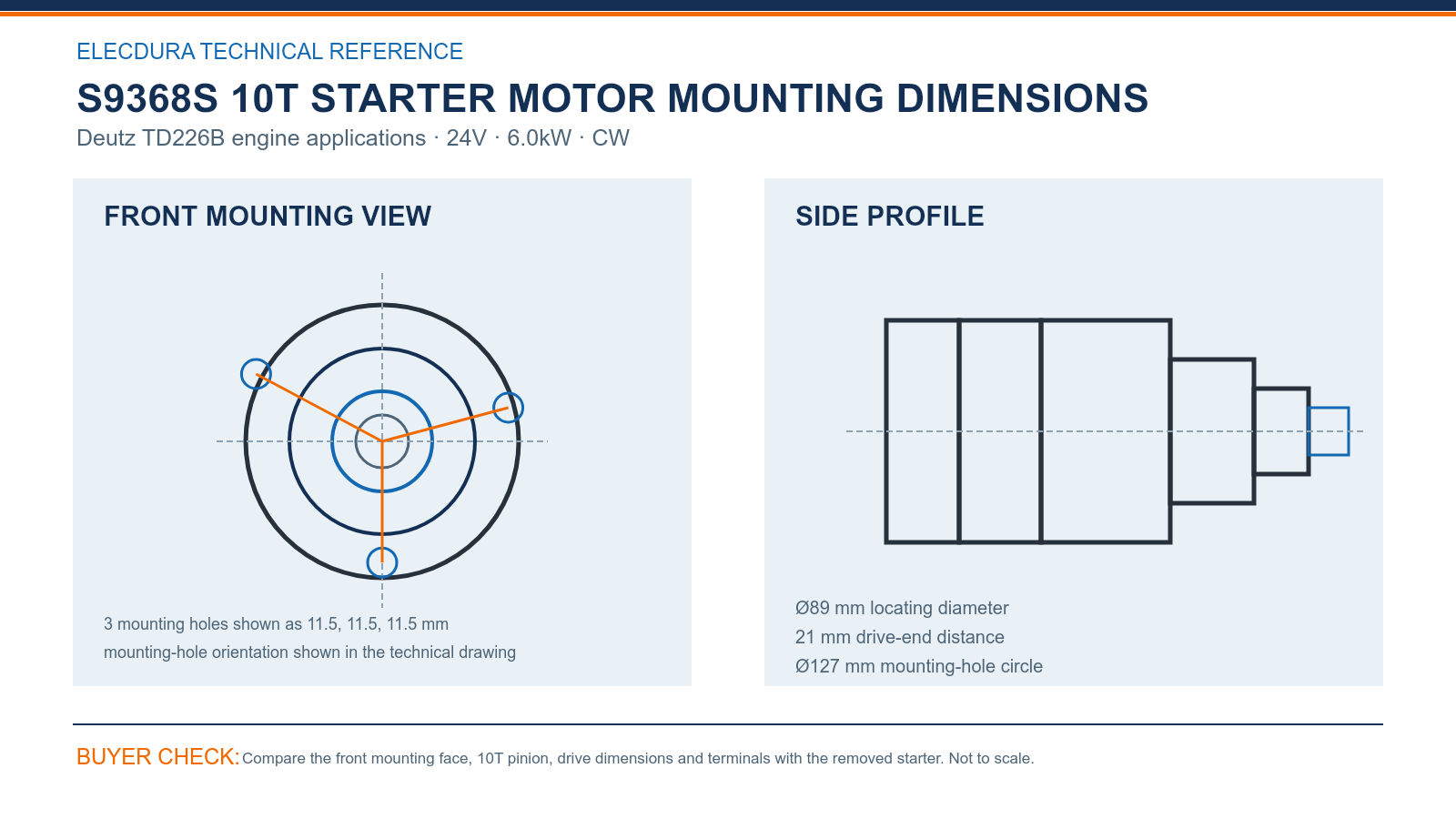

Compare S9368S at the 3 mounting holes shown as 11.5, 11.5, 11.5 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 21 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S9368S, count the 10T pinion and confirm module 3, CW rotation, 24V and 6.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S9368S Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S9368S, GM86R3009, GM86R3009VPP, M93R3006SE, M93R3007SE, M93R3007SE-VPP, M93R3015SE can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 6.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

S9368S Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S9368S quantity, destination and required arrival date.

Keep the 10T drive and 21 mm mounting geometry on receiving records for repeat engine-service orders. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S9368S remains tied to the stated Deutz TD226B engine application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S9368S Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering S9368S for Deutz TD226B engine during fleet sourcing?

Use the full old-unit number and Deutz TD226B engine record. Compare the 10T pinion, 3 mounting holes shown as 11.5, 11.5, 11.5 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order S9368S from an alternate OE number in a Deutz TD226B fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S9368S electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed S9368S starter motor in a Deutz TD226B fleet workshop?

Before fitting S9368S, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the S9368S mounting drawing support product approval during a Deutz TD226B fleet inspection?

For S9368S, compare 3 mounting holes shown as 11.5, 11.5, 11.5 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 21 mm drive-end distance in the side view. Add 10T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How can branches reduce emergency transfers of S9368S stock in a Deutz TD226B fleet program?

Keep the 10T drive and 21 mm mounting geometry on receiving records for repeat engine-service orders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of S9368S during a Deutz TD226B fleet receiving check?

Receiving should verify the S9368S label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for S9368S in a Deutz TD226B fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S9368S, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from S9368S in a Deutz TD226B fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S9368S without assuming that every no-crank complaint originates inside the starter.

S9368S Request Starter Motor Wholesale Pricing

Send the complete S9368S reference, Deutz TD226B engine details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 6.0kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
