M93R3004SE Deutz BF4M2012 Starter Motor Wholesale

M93R3004SE Starter Motor Wholesale Application Support for Deutz BF4M2012 engine

For Deutz BF4M2012 engine, M93R3004SE gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 6.0kW, 10T and CW, with particular attention to specified 24V 6.0kW 10T module-3 configuration for Deutz BF4M2012, before combining demand from different fleets or workshops.

Separate different old-unit numbers from the M93R3004SE enquiry and attach images for each configuration. State which line is a sample and which is a replenishment quantity, together with destination and timing. This gives the quotation a practical fitment boundary and a realistic packing and delivery plan.

M93R3004SE Starter Motor Mounting Reference for Commercial Buyers

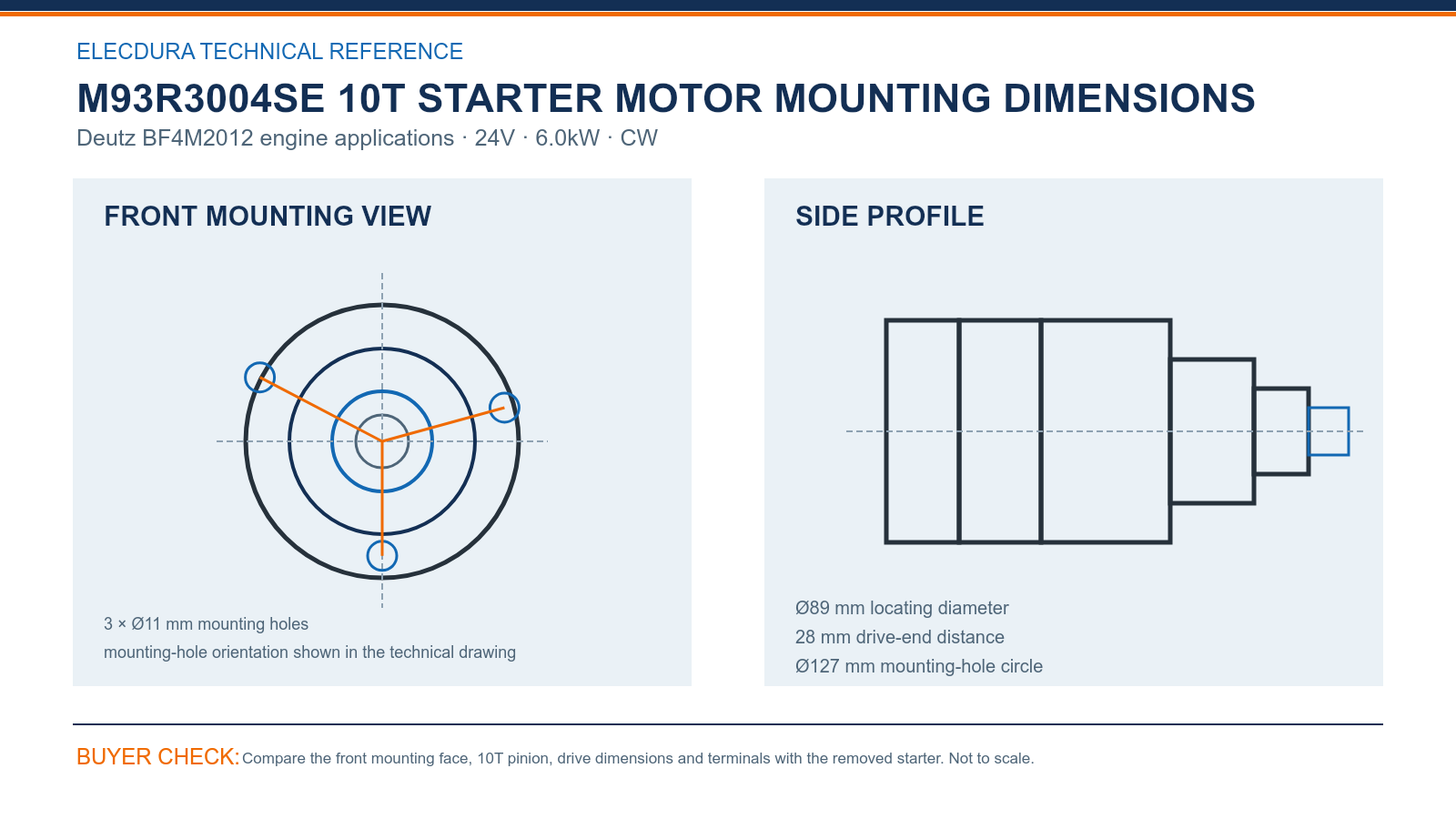

Check the M93R3004SE drawing against the removed starter at the mounting face and drive end. The critical references are 3 × Ø11 mm mounting holes, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 28 mm drive-end distance. A physical mismatch should stop the unit from entering ordinary stock until the application is clarified.

The M93R3004SE drive-end decision is completed by 10T, module 3 and CW, together with 24V and 6.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

M93R3004SE Starter Motor Cross-Reference Boundary for Importers

The M93R3004SE cross-reference group includes M93R3004SE, 42522942, 1163626, 1179586, 05710930, 370801052EY, 3708010A204. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 24V, 6.0kW, 10T, CW, mounting geometry and terminals.

If a mixed M93R3004SE enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

M93R3004SE Starter Motor Wholesale Ordering and Export Support

Elecdura can prepare M93R3004SE orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified M93R3004SE drive end and electrical rating throughout the order.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A M93R3004SE order should still be released against the complete OE number, Deutz BF4M2012 engine details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

M93R3004SE Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving M93R3004SE during a Deutz BF4M2012 service-network receiving check?

For M93R3004SE, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11 mm mounting holes, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

How should a buyer compare the old unit with the M93R3004SE technical image during a Deutz BF4M2012 service-network inspection?

For M93R3004SE, sample the 3 × Ø11 mm mounting holes, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 28 mm drive-end distance. Count the 10T pinion and photograph the terminal side in the same inspection. These points can be checked without dismantling the unit and give receiving teams a practical comparison with the approved sample.

How can an importer avoid mixing M93R3004SE with a similar drive-end version during service-network sourcing?

For M93R3004SE, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 10T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

When does a cross-reference related to M93R3004SE need a separate quotation in a Deutz BF4M2012 service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The M93R3004SE group is acceptable only when 24V, 6.0kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why should voltage-drop results accompany an enquiry for M93R3004SE in a Deutz BF4M2012 service-network workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for M93R3004SE installation and for any later service discussion with the supplier.

How should Prestolite distributors plan stock for M93R3004SE in a Deutz BF4M2012 service-network program?

Retain the supplier-defined 6.0kW specification and dimensional record for repeat supply. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for M93R3004SE in a Deutz BF4M2012 service-network sourcing program?

A useful RFQ states M93R3004SE, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving M93R3004SE in a Deutz BF4M2012 service-network review?

For a service review of M93R3004SE, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

M93R3004SE Email for Starter Motor B2B Pricing

A complete RFQ for M93R3004SE should state the application, removed-unit number, physical photographs, quantity, destination and delivery target. Send these details to info@elecdurauto.com for a direct response on the correct 24V 6.0kW 10T CW starter, MOQ, packaging, warranty and shipping choices.
