2012370800001 XTZ 2511 VTZ Starter Motor Wholesale

2012370800001 Starter Motor Wholesale Supply for XTZ and VTZ

Agricultural importers can serve both XTZ 2511 and VTZ 2027 demand through a defined reference group. Machine identity should remain visible because seasonal service teams often order from remote locations.

A tractor starter selected only by broad application can create an expensive field return. The ten-tooth drive, mounting angles, locating diameter and connection side should be compared before dispatch.

2012370800001 Starter Motor Dimensions for Tractor Parts Buyers

The Elecdura specification lists 24V, 4.5kW, 10T, module 3 and clockwise rotation. Using that same rating in technical, sales and receiving documents keeps the order unambiguous.

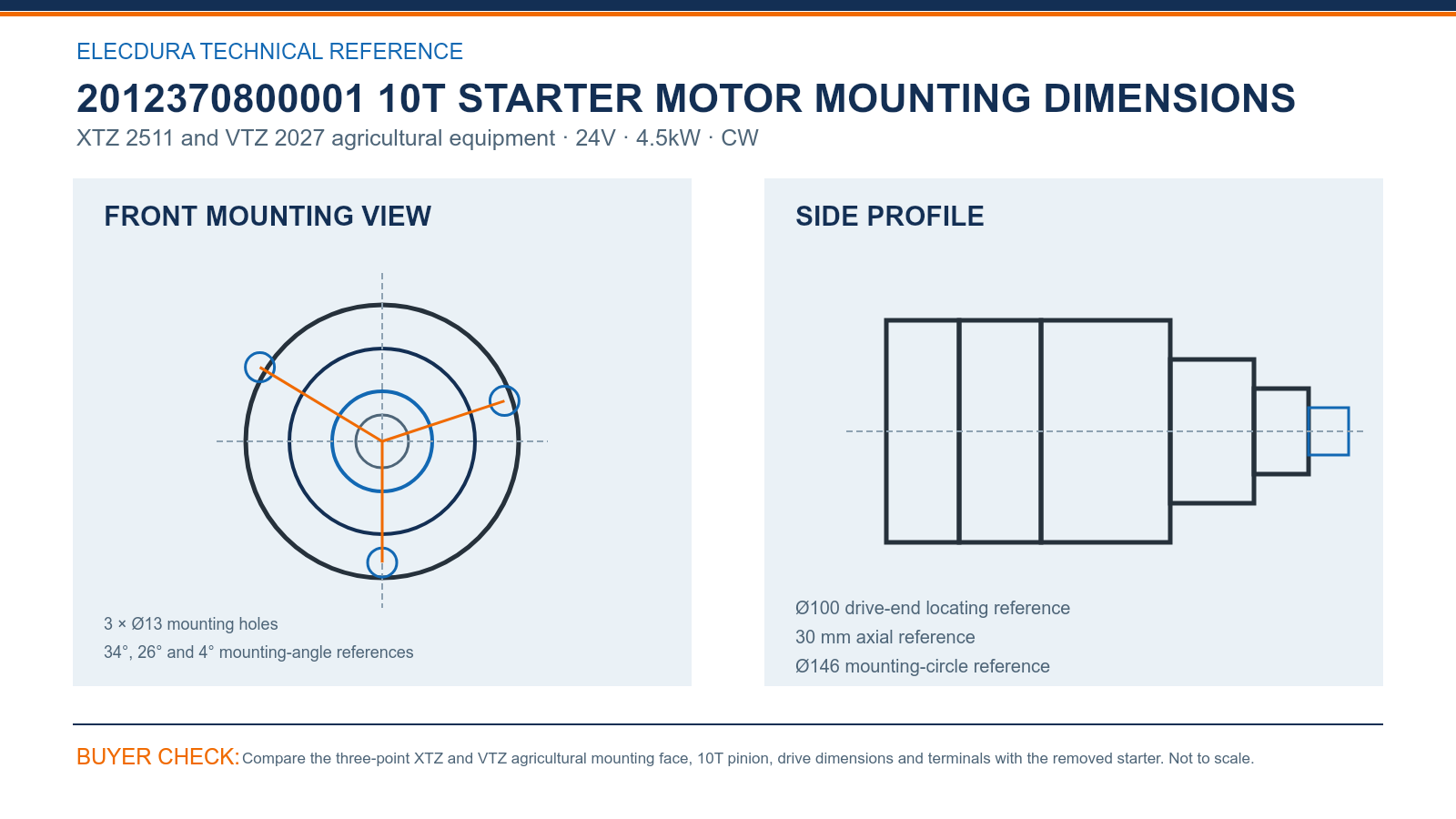

2012370800001 Starter Motor Dimensions for XTZ and VTZ Dealers — compare the drawing with the removed starter before placing a volume order.

The first shipment should match three Ø13 holes, an Ø146 mounting circle, Ø100 locating reference, 30 mm axial position and the 34°, 26° and 4° orientation.

2012370800001 Starter Motor Reference Checks for Agricultural Dealers

2012370800001 can be searched with 2012370801, 11131394, IS1453, STR2012ZL and MS628. Add XTZ 2511 or VTZ 2027 machine data to every wholesale quotation line and stock description.

Reserve stock can be planned around planting and harvest periods, supported machine population and delivery time to rural workshops. Separate quantities by model even when the physical starter group is shared.

2012370800001 Starter Motor Seasonal Stock and Production Video

A field-return report should include the machine serial, hours, cranking voltage, cable-drop readings, installation photographs and delivery lot. These details allow useful remote support without requiring another immediate site visit.

The video presents Elecdura starter production and electrical testing for export supply. Agricultural distributors can review manufacturing capability together with their seasonal forecast, packaging, private-label and delivery requirements.

2012370800001 Starter Motor FAQs for B2B Buyers

What should distinguish an XTZ 2511 order from a VTZ 2027 order?

The buyer should provide machine model, engine or serial details and removed-starter label. For 2012370800001, those details must agree with the XTZ or VTZ model, 10T drive, three-hole face and 24V system rather than a broad brand description. This keeps two agricultural applications traceable even when they use the same reference group. Retain the 2012370800001 comparison photographs with the delivery lot for after-sales review.

Which electrical checks matter before replacing a tractor starter for slow cranking?

Before replacing the starter, check 24V battery bank, connections, positive and ground voltage drop and start-command voltage. Keep the readings with the 2012370800001 request for XTZ 2511 and VTZ 2027 agricultural equipment so the circuit, ring gear and starter can be considered separately. This identifies seasonal battery or cable faults that can resemble a starter failure. Include the confirmed 2012370800001 configuration in later forecasts and repeat purchases.

How can importers plan this line for planting and harvest periods?

Use active XTZ and VTZ fleet population, workshop withdrawals, rural delivery time and replenishment schedule when deciding 2012370800001 reserve quantities and warehouse labels. A description that includes the XTZ or VTZ model, 10T drive, three-hole face and 24V system makes repeat picking faster and clearer. This aligns reserve stock with periods when machine downtime is most costly. Keep quantities separated by machine family in the seasonal purchasing plan.

How do 2012370800001, 11131394 and IS1453 support product search?

Use reference group including KZATE, Iskra, Krauf and Mahle numbers as a search set, then keep XTZ 2511 and VTZ 2027 agricultural equipment on the same enquiry. Confirm the XTZ or VTZ model, 10T drive, three-hole face and 24V system on the removed unit before treating the numbers as one 2012370800001 product. This expands procurement search while keeping application and physical checks attached.

What should be measured on the first XTZ or VTZ shipment?

The 2012370800001 physical comparison should cover 3 × Ø13 holes, Ø146 circle, Ø100 location, 30 mm axial reference and mounting angles. Relate those dimensions to the XTZ or VTZ model, 10T drive, three-hole face and 24V system before accepting a similar-looking housing. This creates a physical receiving standard for later lots. Keep the matched 2012370800001 images with branch stock details for future replenishment.

Which electrical and drive rating belongs on an XTZ or VTZ order?

Use 24V, 4.5kW, 10T, module 3 and clockwise rotation throughout the product description, quotation, stock label and receiving sheet. Keeping one rating across every document prevents a nearby tractor starter from entering the order and gives service teams a clear basis for physical comparison. Keep the confirmed 2012370800001 comparison with receiving and later purchase orders.

What evidence helps resolve a field return without another site visit?

A useful no-crank report records machine serial, hours, cranking readings, installation photos, lot and returned-unit views. Relating that evidence to the 2012370800001 installation in XTZ 2511 and VTZ 2027 agricultural equipment gives after-sales staff more than a short failure description. This supports remote diagnosis for agricultural equipment located far from the distributor. Preserve the XTZ 2511 and VTZ 2027 agricultural equipment fitment and mounting comparison in the customer's reorder notes.

Which data lets Elecdura price an XTZ and VTZ supply program?

Send quantity by machine family, annual forecast, packing, required date and destination in one enquiry. Elecdura can then check the XTZ or VTZ model, 10T drive, three-hole face and 24V system and quote quantity, packing and lead time against the actual destination. This matches commercial terms to a distributor's seasonal purchasing pattern. Carry the agreed 2012370800001 identity through packing and branch-transfer documents.

Request 2012370800001 Starter Motor B2B Program Pricing

Email quantities by XTZ 2511 and VTZ 2027 model, engine or machine serials, old-unit references and photos, annual forecast, required date, packing and destination to info@elecdurauto.com. Elecdura will review 2012370800001 and quote the supply program.
