82013134 Ford 5000 Toyota 2J Starter Motor Wholesale Supply

82013134 Starter Motor Fitment Support for Ford and Toyota Buyers

The 82013134 reference group covers Ford 5000 tractor and Toyota 2J demand. State the application separately on each RFQ line even when the offered starter specification is the same, because machine history, cable routing and service conditions are not interchangeable.

For either request, provide the machine plate, engine information, complete old-unit number and face, pinion and terminal photographs. Elecdura compares the 11-tooth drive, Ø146 three-hole circle, Ø92 locating feature and axial dimensions before stating the commercial offer.

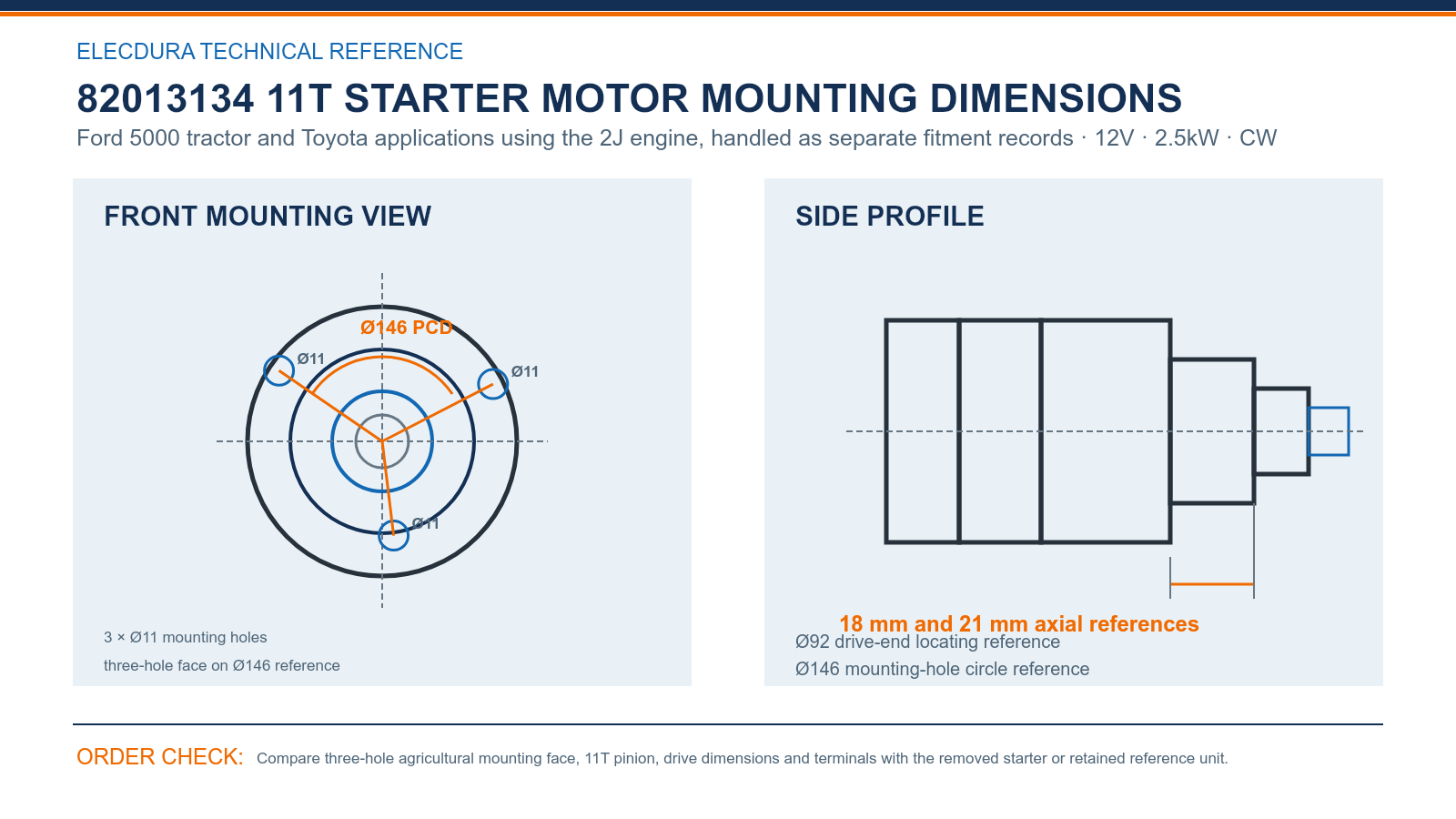

82013134 Starter Motor Specifications and B2B Fitment Drawing

82013134 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

Ford 5000 tractor and Toyota 2J inquiries should each be checked against the actual machine even when they use the same 82013134 buying reference. Compare 3 × Ø11 mounting holes, Ø146 mounting-hole circle reference, Ø92 drive-end locating reference and 18 mm and 21 mm axial references with the removed starter.

Send the relevant engine or machine plate together with mounting, pinion and terminal photographs. The buyer can then confirm the 11-tooth CW unit for that application without treating a tractor installation as automatic proof for a forklift.

82013134 Starter Motor OE Checks for Mixed-Equipment Orders

The purchasing group includes 82014160, 82021372 variants, 84017265, 87755550, Iskra 11.131.705 and AZF4115. Submit the full number found on the removed starter and state whether the request is for Ford 5000 or Toyota 2J equipment.

1. Electrical check: confirm 12V and 2.5kW.

2. Drive check: verify 11 teeth and clockwise rotation.

3. Housing check: measure the three Ø11 holes, locating diameter and 18/21 mm axial points.

If the old label or geometry differs, submit it as another inquiry so the buyer receives a clearly separated quotation.

82013134 Starter Motor Wholesale Handling for Agricultural Importers

An agricultural importer can verify the unit on a named Ford 5000 tractor, while a forklift importer checks the Toyota 2J installation separately. Elecdura can then support repeat orders with neutral cartons or review customer branding for qualified quantities while keeping the application clear on technical labels.

At receiving, verify the 11-tooth drive, three-hole casting, terminal position and full reference against the confirmed machine details. This lets one warehouse carry the product while sales and service teams preserve the application information needed for responsible supply.

The video presents Elecdura starter-motor assembly and electrical testing. Send either the Ford 5000 or Toyota 2J machine details, old-unit information, quantity and packing request so the reply can address the defined 82013134 configuration without combining the two applications.

82013134 Starter Motor Wholesale FAQ

Why should Ford 5000 and Toyota 2J requests remain separate?

The machines belong to different equipment and service environments even when the supplied data lists one starter configuration. Put each engine plate, old-unit number, photographs and requested quantity on a separate RFQ line. This prevents a distributor from using a successful tractor installation as automatic proof for a forklift, or the reverse, without checking the physical unit.

Which related references may appear with 82013134?

The group may include 82014160, 82021372 variants, 84017265, 87755550, Iskra 11.131.705 and AZF4115. Preserve the full reference supplied by the customer and verify 12V, 2.5kW, 11 teeth, clockwise rotation and the mounting face. Related numbers support the search but do not replace the machine-specific comparison.

What identifies the three-hole mounting face?

Measure the three Ø11 holes on the Ø146 reference and the Ø92 locating feature, then compare the 18 mm and 21 mm axial points. Use a straight face image and actual tools rather than scaling the drawing. This combination identifies the nose more reliably than the motor shell, which can look similar across several industrial starters.

How should the 11-tooth pinion be compared?

Clean and count all teeth, photograph the drive end and compare the resting position and depth with the removed starter. During the initial installation, check engagement sound and release. A product with the correct face but another pinion depth can still grind or mesh incompletely, so both gear and axial dimensions must be checked.

What information is useful for a Ford 5000 inquiry?

Send the tractor serial or production details, engine information, old-unit label and photographs of the face, pinion and terminals. Include any existing parts invoice. This information lets Elecdura compare the specified unit with the actual tractor and gives the distributor a clear basis for agricultural branch replenishment.

What information is useful for a Toyota 2J inquiry?

Provide the forklift or equipment model, serial number, 2J engine plate and complete removed-starter information. Add face and terminal photographs and dimensional checks. Put the Toyota 2J request on a separate RFQ line from Ford 5000 quantities. The two applications may share one product configuration, but the quotation should remain traceable to the Toyota machine presented by the buyer.

How should a mixed-equipment warehouse receive this product?

Inspect full labels, 11-tooth drives, three-hole castings, terminals and packaging across selected cartons, then note the shipment lot. Sales staff should identify each release as Ford 5000 or Toyota 2J so the application is not lost at the service counter. Keep the application visible on the carton and dispatch note.

Which details allow an efficient 82013134 quote?

Send the complete reference, clearly state Ford 5000 or Toyota 2J, attach machine and old-unit details, and provide quantity, destination, target date and packaging preference. Elecdura can then return the specified 12V 2.5kW 11T offer with physical comparison points, MOQ, normal lead time and warranty terms.

Request a 82013134 Starter Motor Wholesale Quote

Send 82013134 or the complete related reference, the Ford 5000 or Toyota 2J machine details, old-unit label, mounting, pinion and terminal photographs, quantity and destination. Elecdura will quote the 12V 2.5kW 11T configuration with fitment and supply terms.

Mark the application on every quantity line when an order contains both agricultural and forklift demand. Elecdura can preserve separate packing labels and application details while supplying the specified starter configuration.
