20520903 Freightliner FC80 Starter Motor Distributor

20520903 Starter Motor Fleet Replacement Supply for Freightliner FC80 8.3L

20520903 supports Freightliner FC80 8.3L sourcing where buyers need a defined electrical and drive-end match. Its 12V, 7.3kW, 12T CW specification must remain linked to the FC80 8.3L application with a 12T SAE-3 heavy-duty flange; a visually related unit may belong on a different RFQ line.

Before comparing 20520903 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

20520903 Starter Motor Technical Data for Fleet Parts Buyers

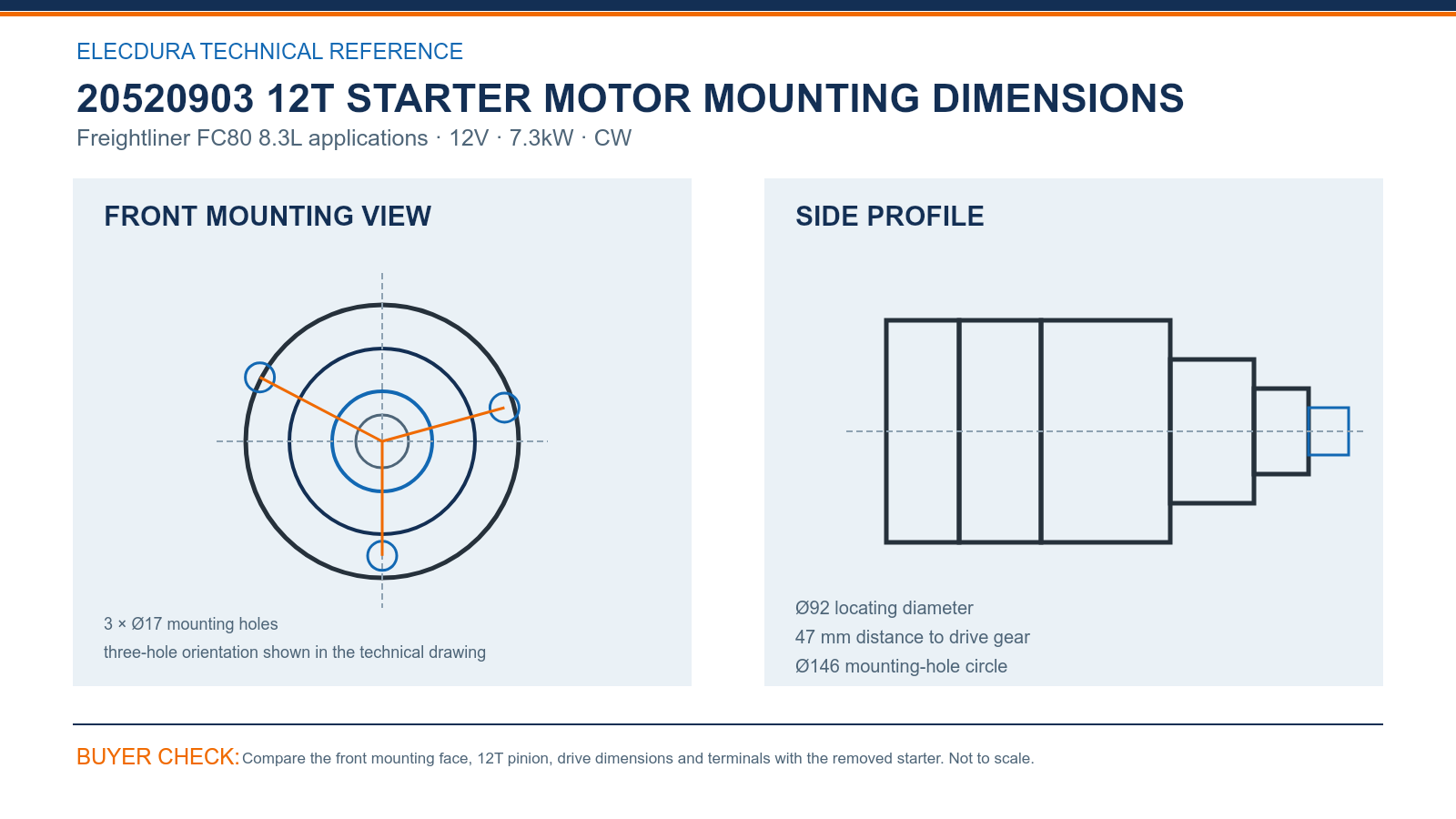

20520903 Freightliner FC80 12V 7.3kW 12T starter dimensions.

The 20520903 dimensional review starts at the mounting face: verify 3 × Ø17 mounting holes, Ø146 mounting-hole circle and Ø92 locating diameter. Then compare the 47 mm distance to drive gear. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For 20520903, electrical and mechanical identity must agree: 12V, 7.3kW, 12T, module 3.175 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

20520903 Starter Motor Cross-Reference Review for Fleet Buyers

The 20520903 cross-reference group includes 20520903, 21001825, 85103338, 8200058, 8200186, M9T70278, M110R2602SE. These numbers improve search coverage across fleets and supplier systems, but they do not replace a check of 12V, 7.3kW, 12T, CW, mounting geometry and terminals.

If a mixed 20520903 enquiry contains different pinions, drive positions or connector layouts, list each complete reference and photograph separately. Elecdura can then return distinct offers instead of placing unlike starters under one broad reference family.

20520903 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for 20520903 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Freightliner FC80 8.3L population, recent consumption and transfer time between service locations. Keeping 20520903, the 12T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For 20520903, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

20520903 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering 20520903 for Freightliner FC80 8.3L during workshop sourcing?

Use the complete removed-unit number and exact Freightliner FC80 8.3L record. Compare the 12T pinion, 3 × Ø17 mounting holes, Ø92 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting 20520903 in a Freightliner FC80 workshop workshop?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for 20520903 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Why is the 20520903 reference match only the start of product selection in a Freightliner FC80 workshop sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The 20520903 group is acceptable only when 12V, 7.3kW, 12T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

How does the 20520903 mounting drawing support product approval during a Freightliner FC80 workshop inspection?

For 20520903, use a straight front view to compare the 3 × Ø17 mounting holes and Ø146 mounting-hole circle; use the side view for Ø92 locating diameter and 47 mm distance to drive gear. Complete the check with 12T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How can branches reduce emergency transfers of 20520903 stock in a Freightliner FC80 workshop program?

Protect the large drive end in transit and separate planned FC80 replenishment from one-off Volvo cross-reference enquiries. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of 20520903 during a Freightliner FC80 workshop receiving check?

Receiving should verify the 20520903 label, quantity and packaging before opening sampled cartons. Compare the 12T drive, Ø92 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for 20520903 in a Freightliner FC80 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 20520903, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from 20520903 in a Freightliner FC80 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 20520903 without assuming that every no-crank complaint originates inside the starter.

20520903 Ask for Starter Motor Export Pricing

Prepare the 20520903 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
