M009T70379 Freightliner C112 Starter Motor Distributor

M009T70379 Freightliner C112 Starter Distributor Supply

A C112 starter purchase affects roadside recovery, scheduled freight and workshop capacity. Buyers should provide the truck model, engine and operating fleet size so a distributor can price the correct unit and plan reserve quantities across depots.

M009T70379 also appears in broader Freightliner and Mercedes MBE4000 searches, while neighboring heavy-duty products may use an 11T drive. Keep this product's specified 12T module-3.175 pinion and C112 application attached to every quotation.

M009T70379 12T SAE Starter Dimensions for Wholesale Buyers

The product line should read 12V, 5.5kW, 12T, module 3.175 and CW. This prevents a shared heavy-duty cross-reference from hiding a different pinion pitch or tooth count when cartons are received or transferred.

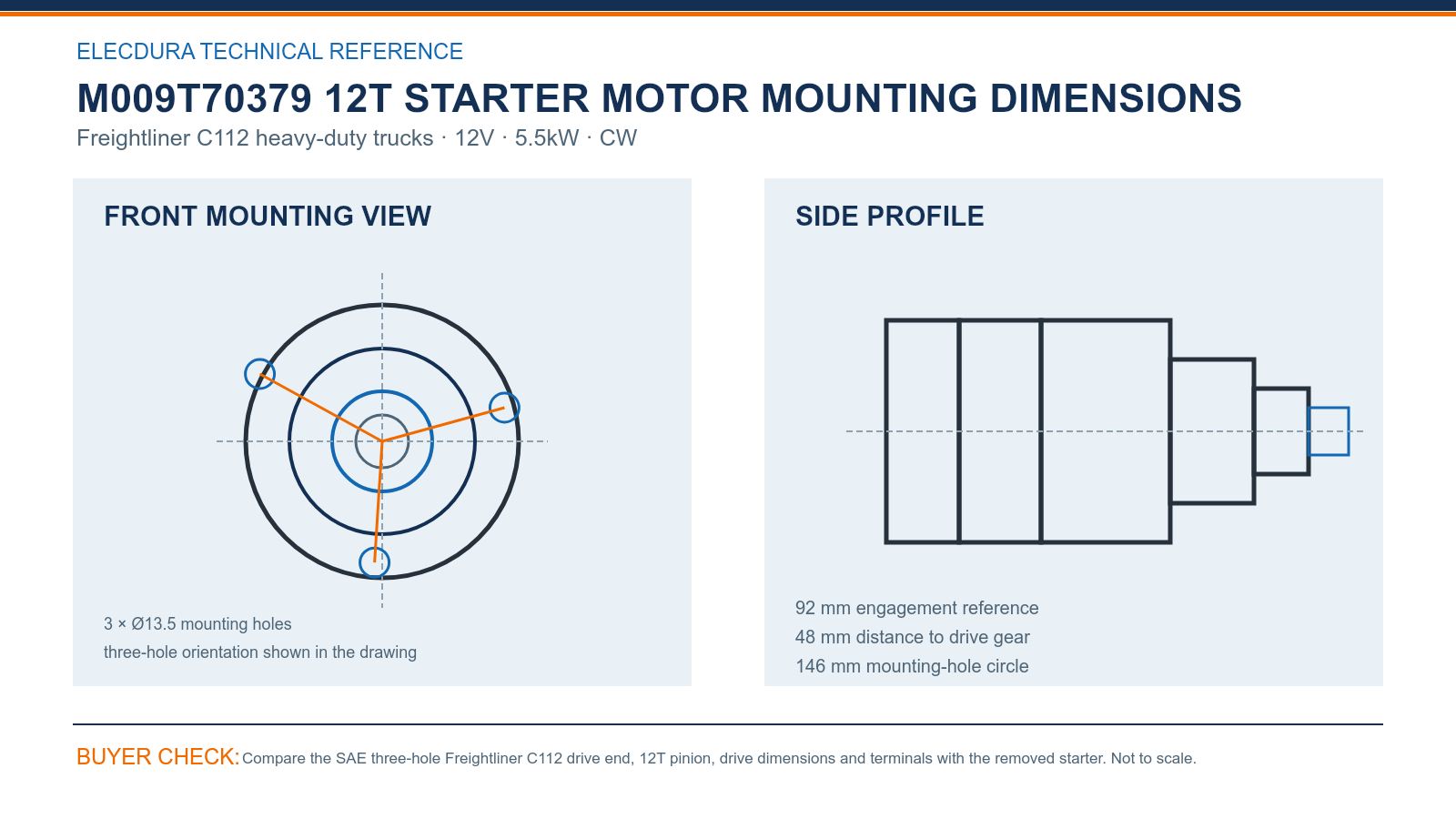

M009T70379 Freightliner C112 Starter Drawing for Distributors — compare the drawing with the removed starter before placing a volume order.

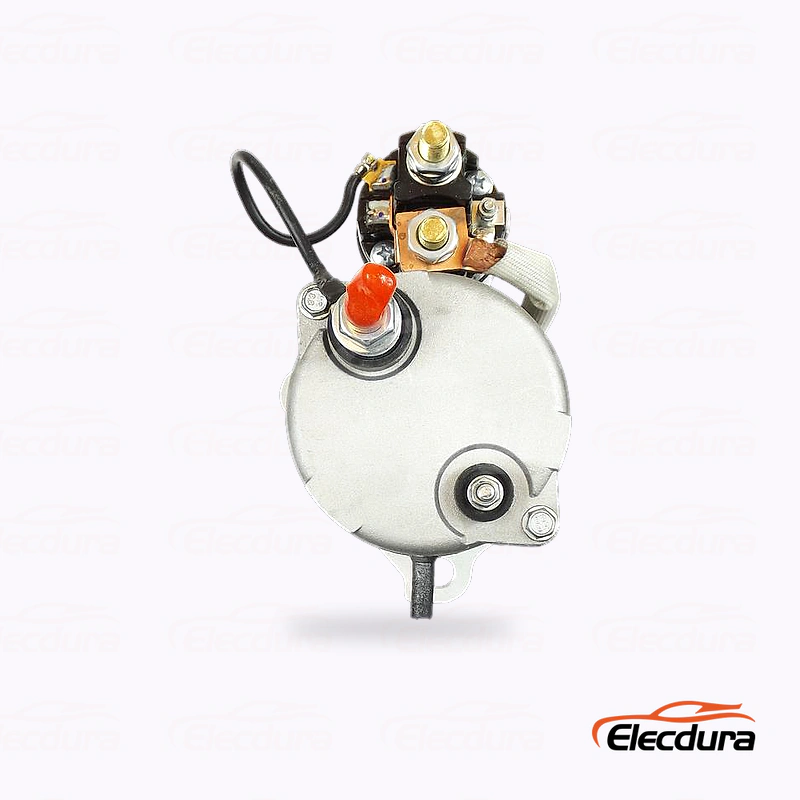

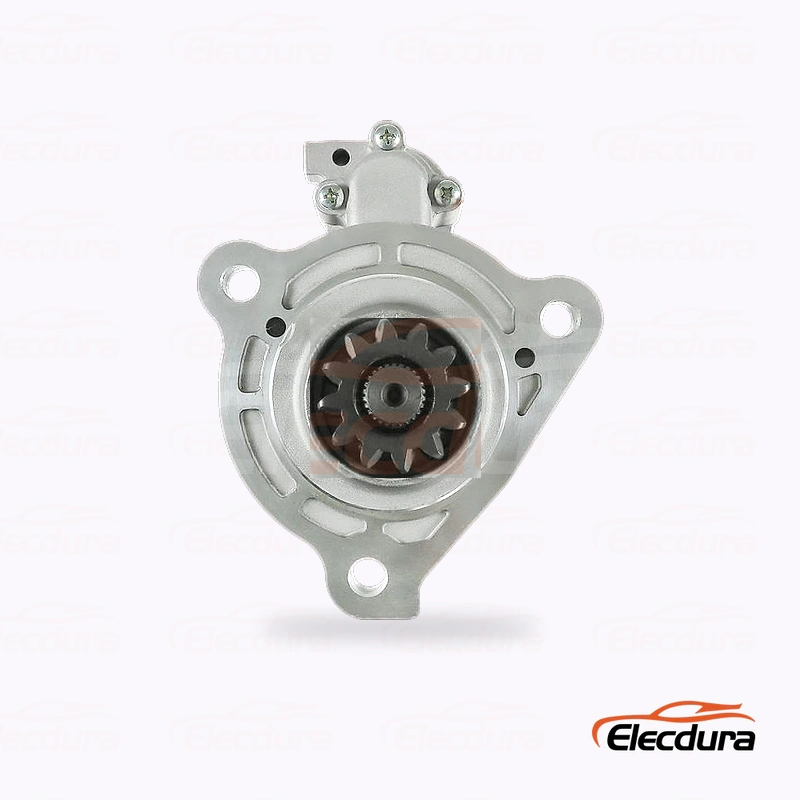

Compare three Ø13.5 holes on the 146 mm circle with the 92 mm engagement and 48 mm drive-distance references. A front face, pinion close-up and terminal-side photograph provide the minimum useful remote comparison for a C112 order.

M009T70379 Freightliner OE Matching for Fleet Distributors

Delco 8200434 and related Freightliner, Cummins and Mitsubishi numbers can guide sourcing for M009T70379. They should be read with the C112 truck and 12T drive, not treated as permission to merge every model carrying the same starter family.

Highway fleets can set reserve stock by active C112 vehicles, route exposure and replenishment time at each depot. If the same OE group appears on an MBE4000 vehicle outside the C112 population, preserve a separate fitment note until the physical comparison is complete.

M009T70379 Highway Truck Starter Supply for Volume Orders

Sample pinion count, SAE ear condition, terminal insulation, label clarity and carton reinforcement across the shipment. Record an accepted C112 unit from the first lot so receiving teams at remote depots can identify damage or a version mix before installation.

Elecdura's heavy-duty starter production and testing video supports supplier review for fleet programs. Freightliner distributors can pair it with their own first-lot checks, pallet protection, labeling and scheduled replenishment requirements.

M009T70379 Starter FAQs for Freightliner C112 Fleet Buyers

Which Freightliner C112 details should accompany M009T70379?

Provide the Freightliner C112 model year, engine designation, VIN and any fleet configuration that affects the starter. Record M009T70379 and all related numbers on the removed unit, with front, pinion and terminal photographs. State quantities by depot, delivery location and required date so the distributor can address fitment and supply planning together.

Why must this product retain the 12T module-3.175 drive?

This C112 product uses a 12T module-3.175 drive. Related heavy-duty Mitsubishi references also appear with 11T module-4.233 pinions, so voltage and an SAE face cannot separate the versions alone. Keep the 12T specification visible from search title through warehouse label to protect a highway fleet from the wrong ring-gear interface.

What should be compared on the M009T70379 SAE drawing?

Compare three Ø13.5 holes on the 146 mm circle, the 92 mm engagement reference and the 48 mm distance to the drive gear. Check the solenoid and terminal clocking in a straight side view. The face, 12T pinion and electrical label should agree before a sample becomes the standard for C112 replenishment.

How should 8200434 and other heavy-duty references be used?

Use 8200434 and the wider Mitsubishi, Freightliner and Delco group to locate possible supply and reconcile older invoices. Then narrow the candidate with the C112 vehicle, 12T module-3.175 drive and terminal layout. A cross-reference helps find the family; it does not make every heavy-truck application identical.

How can a highway fleet position C112 starter stock?

Map active C112 trucks to their home depots, route exposure and typical roadside recovery time. Hold emergency stock where a failed truck creates the greatest freight disruption, with central units covering normal replenishment. Review failure and lead-time data periodically instead of assigning one spare ratio to every branch.

What should receiving inspect on an M009T70379 delivery?

Sample the 12T pinion, SAE ears, label, terminal insulation and fitted carton support from several pallet locations. Heavy bodies can damage nose castings or studs if they move during transport. Keep the accepted C112 face and terminal images with the lot before units are sent to separate depots.

Which vehicle-side checks help avoid a false starter return?

Load-test the battery set and record cranking voltage, then measure voltage drop through positive cables, disconnects and the engine-ground path. Check relay command, solenoid trigger voltage, terminal tightness, ring-gear condition and free engine rotation. Those readings help prevent a wiring or battery fault from becoming an M009T70379 warranty return.

What completes an M009T70379 distributor request?

Send the C112 year, engine and VIN, all M009T70379 family references, the electrical label and clear front, pinion and terminal photographs. Add quantity by depot, annual demand, carton or labeling needs, destination and delivery schedule. Elecdura can then prepare distributor pricing for the specified 12T configuration.

Request M009T70379 Freightliner C112 Starter Distributor Pricing

Email the Freightliner C112 model year, engine details, all old-starter references, face and terminal photographs, quantities by depot and delivery date to info@elecdurauto.com. Elecdura will review M009T70379 and prepare distributor pricing.
