S1136S Freightliner C112 C120 Starter Motor Wholesale

S1136S Starter Motor B2B Fitment Guide for Freightliner C112 and C120 heavy-truck

Freightliner parts distributors, fleet maintenance buyers and export wholesalers can use S1136S as the commercial identity for the starter required in Freightliner C112 and C120 heavy-truck. The order should preserve the 12T pinion and the Freightliner C112/C120 flange with a 12-tooth drive and 47 mm pinion position, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full S1136S application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

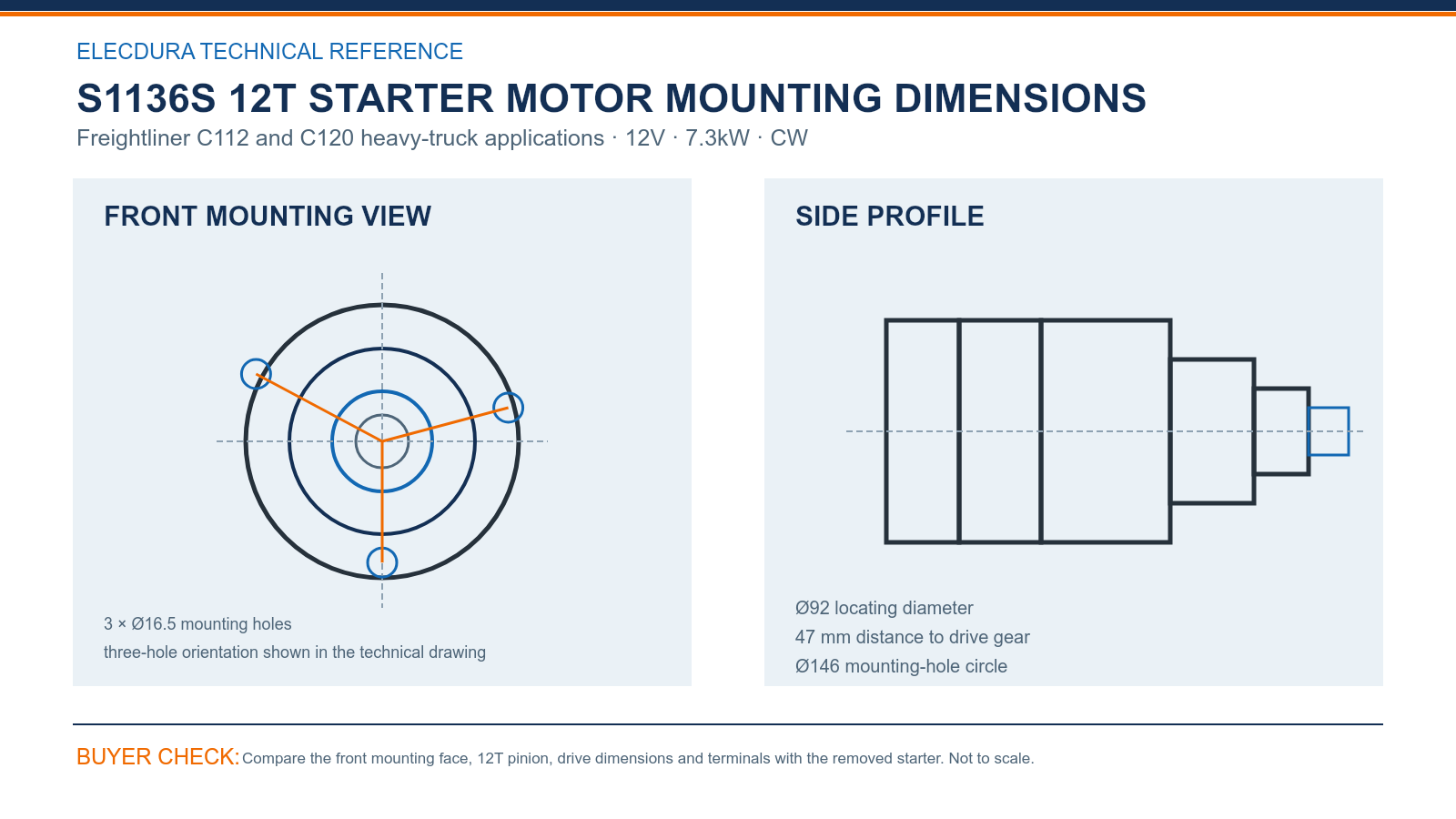

S1136S Starter Motor Drive-End Drawing for Aftermarket Distributors

S1136S Freightliner C112 C120 12V 7.3kW 12T starter dimensions.

For S1136S first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø16.5 mounting holes, Ø92 locating diameter, Ø146 mounting-hole circle and 47 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S1136S mounting check, verify 12V, 7.3kW, 12T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S1136S Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S1136S, UD12373S, 10461163, 10461215, 10461773, 19011514, 8200084 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 7.3kW, 12T, CW, the drawing and terminal photographs before accepting one physical unit.

S1136S Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S1136S, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S1136S sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved S1136S configuration remains defined by 12V, 7.3kW, 12T, CW, mounting geometry and terminals, which should be retained in the purchase record.

S1136S Starter Motor Questions from Commercial Buyers

Which mounting-face points distinguish the specified S1136S version during a Freightliner C112 C120 dealer inspection?

Place the removed starter and S1136S on the same mounting-face orientation. Compare Ø92 locating diameter, Ø146 mounting-hole circle, the 3 × Ø16.5 mounting holes and the 47 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Which old-unit checks matter most when sourcing S1136S during dealer sourcing?

Confirm S1136S against the complete OE number, the stated Freightliner C112 and C120 heavy-truck use and clear front, side and terminal photographs. The decisive points are 12T, 3 × Ø16.5 mounting holes and 47 mm distance to drive gear. Those controls keep visually related starters from being combined in one order.

How should buyers use the S1136S cross-reference group in a Freightliner C112 C120 dealer sourcing program?

A number match narrows the search but does not finish it. For S1136S, compare the stated application, electrical output, 12T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What workshop readings are useful when diagnosing a starting complaint involving S1136S in a Freightliner C112 C120 dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S1136S. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which usage records improve purchasing decisions for S1136S in a Freightliner C112 C120 dealer program?

Review workshop consumption by the stated Freightliner C112 and C120 heavy-truck population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical S1136S reorder point and avoids holding the wrong drive-end version as emergency stock.

How should incoming S1136S units be sampled before shelving during a Freightliner C112 C120 dealer receiving check?

Use a first-lot sample to confirm S1136S, 12V, 7.3kW, 12T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

What makes the fleet quotation for S1136S ready for review in a Freightliner C112 C120 dealer sourcing program?

List S1136S together with the supported equipment record, 12V, 7.3kW, 12T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

What records support an after-sales review of S1136S in a Freightliner C112 C120 dealer review?

For S1136S, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S1136S Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with S1136S, the supported Freightliner C112 and C120 heavy-truck record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 7.3kW, 12T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
