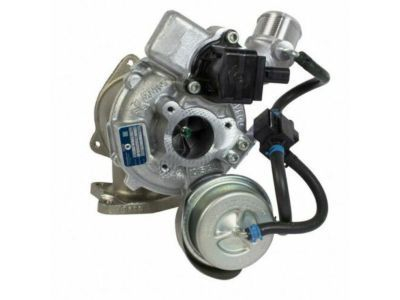

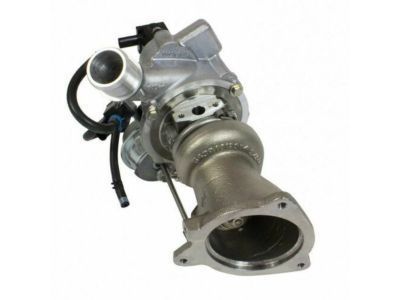

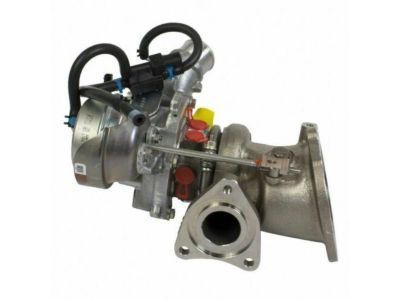

Elecdurauto CJ5Z6K682L turbocharger is a direct-fit replacement for the 2013 Ford Fusion 1.6L EcoBoost, offering OE-level quality without the dealership price tag. Built with high-temp Inconel and forged aluminum components, it's optimized for long-term durability and efficient boost recovery — ideal for garages, parts resellers, and fleet maintenance buyers looking for a reliable, high-value solution with fast international delivery.
CJ5Z-6K682-L / CJ5Z6K682L
Inconel turbine, forged aluminum compressor
Elecdurauto
China
IATF 16949 / ISO 9001 / CE / RoHS
OEM label and ODM customization accepted
100 pcs
7–15 Days
50,000 pcs / month
Individual box / 4-pack set / bulk tray / custom label
VSR balanced, high-speed tested
18 months
CJ5Z-6K682-D / CJ5Z-6K682-K
Escape, Fusion, Transit, C-Max (1.6L)
Model Years 2013 / 2014 / 2015 / 2016 / 2017 / 2018 / 2019
| Quantity: | |
|---|---|
Product Description
Elecdurauto delivers a premium-grade 2013 Ford Fusion turbocharger designed to restore factory-level boost response and long-term durability. This unit is a direct-fit turbo replacement for 2013 Ford Fusion with 1.6L EcoBoost, built using OE-spec materials and assembled in ISO/IATF-certified facilities.
Direct Replacement for Ford 1.6L EcoBoost (2013–2019): Bolt-on compatible with Escape, Fusion, Transit Connect, and C-Max models.
Pre-Calibrated Electronic Actuator: Matched to OE specs — install and go, no reprogramming needed.
Heavy-Duty Construction: Equipped with a forged aluminum compressor wheel and cast iron turbine housing for long-term reliability under lod.
Advanced Balancing Technology: Both thermal and high-speed dynamic balancing reduce vibration and premature wear.
Global Emission Compliant: Meets Euro V and Tier 4 standards — ideal for regulated markets.
Export-Ready Inventory: Units are stocked and ready to ship with fast international logistics.
Built for Value-Driven Buyers: Ideal for fleets and wholesale buyers focused on durability, fitment, and cost savings.
| Specification | Description |
|---|---|
| Product Name | Turbocharger Assembly |
| Compatible Vehicles | 2013–2019 Ford Escape, Fusion, C-Max, Transit Connect (1.6L EcoBoost) |
| Fitment Type | Direct Bolt-On Replacement |
| Condition | 100% Brand New |
| Dimensions (L × W × H) | 14.1 × 14.3 × 12.4 inches |
| Weight | 17.5 lbs (7.9 kg) |
| Actuator Included | Yes – Pre-calibrated pneumatic wastegate actuator |
| Cooling Method | Liquid-cooled (Coolant) |
| Wastegate Type | Pneumatic Internal Wastegate |
| Gasket / Seal Kit Included | Yes |
| Oil Supply Line Included | No |
| Exhaust Manifold Included | No |
| Exhaust Brake Included | No |
| Temperature Sensor Included | No |
| Speed Sensor Included | No |
| Position Sensor Included | No |
| Geometry Type | Fixed Geometry |
| CHRA (Core Assembly) | Replaceable Cartridge (CHRA) |
| Compressor Wheel | Forged Aluminum – OEM Grade |
| Compressor Outlet Diameter | 1.686 in / 42.82 mm |
| Balancing Method | VSR High-Speed & Thermal Balanced |
| Emission Compliance | Euro V / Tier 4 |
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
| 2019 | Ford | Fiesta | ST | 1.6L L4 - Gas |
| 2018 | Ford | Fiesta | ST | 1.6L L4 - Gas |
| 2017 | Ford | Fiesta | ST | 1.6L L4 - Gas |
| 2016 | Ford | Escape | SE, Titanium | 1.6L L4 - Gas |
| 2016 | Ford | Fiesta | ST | 1.6L L4 - Gas |
| 2016 | Ford | Transit Connect | XL, XLT | 1.6L L4 - Gas |
| 2015 | Ford | Escape | SE, Titanium | 1.6L L4 - Gas |
| 2015 | Ford | Fiesta | ST | 1.6L L4 - Gas |
| 2015 | Ford | Transit Connect | XL, XLT | 1.6L L4 - Gas |
| 2014 | Ford | Escape | SE, Titanium | 1.6L L4 - Gas |
| 2014 | Ford | Fiesta | ST | 1.6L L4 - Gas |
| 2014 | Ford | Fusion | S, SE, Titanium | 1.5L / 1.6L / 2.0L / 2.5L L4 - Gas |
| 2014 | Ford | Transit Connect | Titanium, XL, XLT | 1.6L L4 - Gas |
| 2013 | Ford | Escape | SE, SEL | 1.6L L4 - Gas |
| 2013 | Ford | Fusion | S, SE, Titanium | 1.6L / 2.0L / 2.5L L4 - Gas |

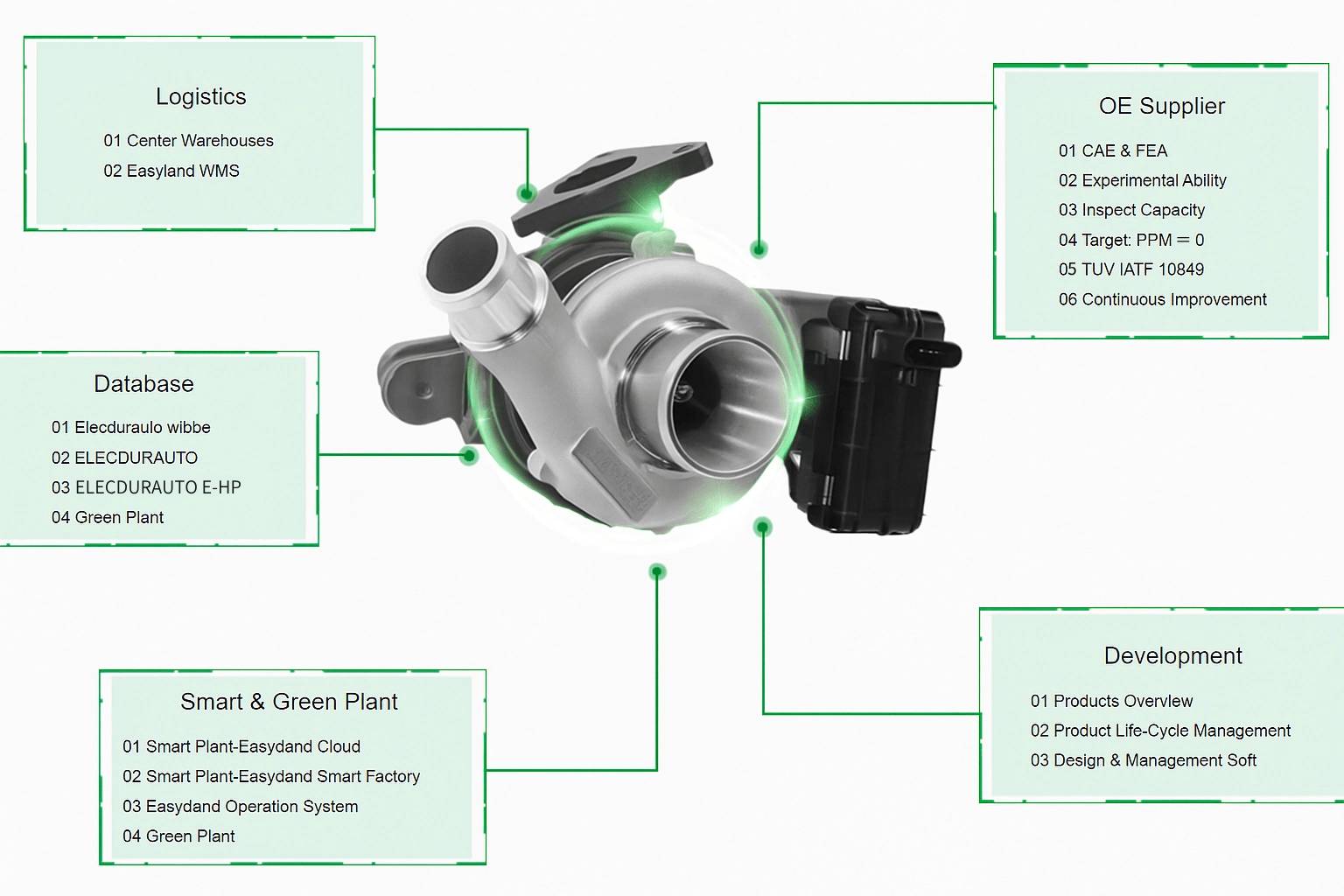

As a trusted turbo replacement for 2013 Ford Fusion with 1.6L engine, our CJ5Z6K682L model is backed by centralized warehousing, automated balance testing, and digital serial traceability — ensuring product consistency across every shipment.
Elecdurauto follows a fully integrated production process to ensure every turbocharger meets strict quality and performance standards. From raw material inspection and CNC machining to automated assembly and dynamic testing, each step is optimized for precision, consistency, and efficiency. This end-to-end system guarantees reliable output for both OEM replacement and aftermarket demand.
Material Incoming Quality Control
Precision CNC Machining Cluster
Automated Material Loading Lathe
Three-Axis CMM Inspection
Automated Assembly Workstation
Functional Testing & Assembly Validation
Turbocharger Performance Test Bench
Elecdurauto is more than a turbocharger supplier — we are a precision manufacturing partner trusted by global distributors, fleets, and aftermarket brands. Backed by world-class production capabilities, OEM-grade engineering, and a deep understanding of B2B demands, we deliver value far beyond the product.
Over $45 million USD in total investment
Annual capacity: 1,000,000+ complete turbos and 2,000,000 CHRA units
Equipped with CNC machines and semi-automated lines from the US, UK, Germany, Japan, and Switzerland
Advanced R&D and testing center for turbochargers and core components
EMS 4.0 smart factory system with full digital integration (ERP, MES, PLM, CRM, SCM)
Covers 500+ turbo models compatible with major OE brands
Supports small-batch, multi-spec orders with fast delivery (7–15 working days)
Maintains safety stock for fast-moving SKUs and urgent shipments
Flexible shipping: door-to-door by air, sea, or express (DHL, FedEx, Maersk)
Turbochargers feature Inconel turbine wheels and forged aluminum compressors
Tested for thermal endurance (950°C–1100°C) and long-cycle durability
Designed to reduce emissions, increase torque, and improve fuel economy
Ideal for both automotive and marine applications with international-level quality
Manufactured to IATF 16949, ISO 9001, CE, RoHS certified standards
Strict QA at every step — from raw materials to final balance tests
Supports OEM & private label services (laser logo, QR traceability, custom packaging)
1-Year Unlimited Mileage Warranty & free QC reports included with every order
100% customer-oriented design and reverse engineering services
Tailored development for special materials, designs, or performance upgrades
From full turbo assemblies to individual components — we are your one-stop turbo center
Yes, this Elecdurauto unit is a direct-fit turbo replacement for 2013 Ford Fusion with 1.6L EcoBoost. Designed to match OE part number CJ5Z-6K682-L, it installs without modification and restores stock-level boost, torque response, and emission performance. This 2013 Ford Fusion turbocharger is ideal for both repair jobs and high-volume aftermarket distribution.
Common signs include loss of boost, increased fuel consumption, check engine light, whining noise, or smoke from the exhaust. These are often linked to internal bearing wear or actuator failure.
Yes, it includes a pre-calibrated pneumatic actuator and matching gasket/seal kit for a complete installation. No extra parts are required.
For a skilled technician, installation of this 2013 Ford Fusion turbo replacement unit typically takes 2–3 hours. Our team can provide step-by-step diagrams or installation guides upon request for service centers or technical teams.
We offer an 18-month, unlimited mileage warranty on all Elecdurauto units. Each 2013 Ford Fusion turbocharger ships with a QC report verifying balance specs, leak test results, and traceable serials for warranty registration.
While this turbo is built to OE specifications, it's durable enough to handle light tuning and performance remaps. Ideal for mild upgrades without sacrificing reliability.
Yes, we offer full OEM/ODM services, including laser-etched branding, custom cartons, and QR code tracking for distributors and online sellers.
We ship globally via DHL, FedEx, or sea freight. Average lead time is 7–15 business days, depending on quantity and destination.
Absolutely. Our turbos are FBA-optimized, individually boxed with model labels and barcode-ready packaging to support eCommerce platforms.
