M100R2004SE Starter Motor Distributor Application Guide for Deutz-Fahr and Weichai-Deutz TBD226B

For a fleet parts team, M100R2004SE identifies one Deutz-Fahr and Weichai-Deutz TBD226B requirement. The separate product view for the 12V 4.0kW 10T M100R2004SE reference group provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs M100R2004SE with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

M100R2004SE Starter Motor Mounting Dimensions for Distributor Approval

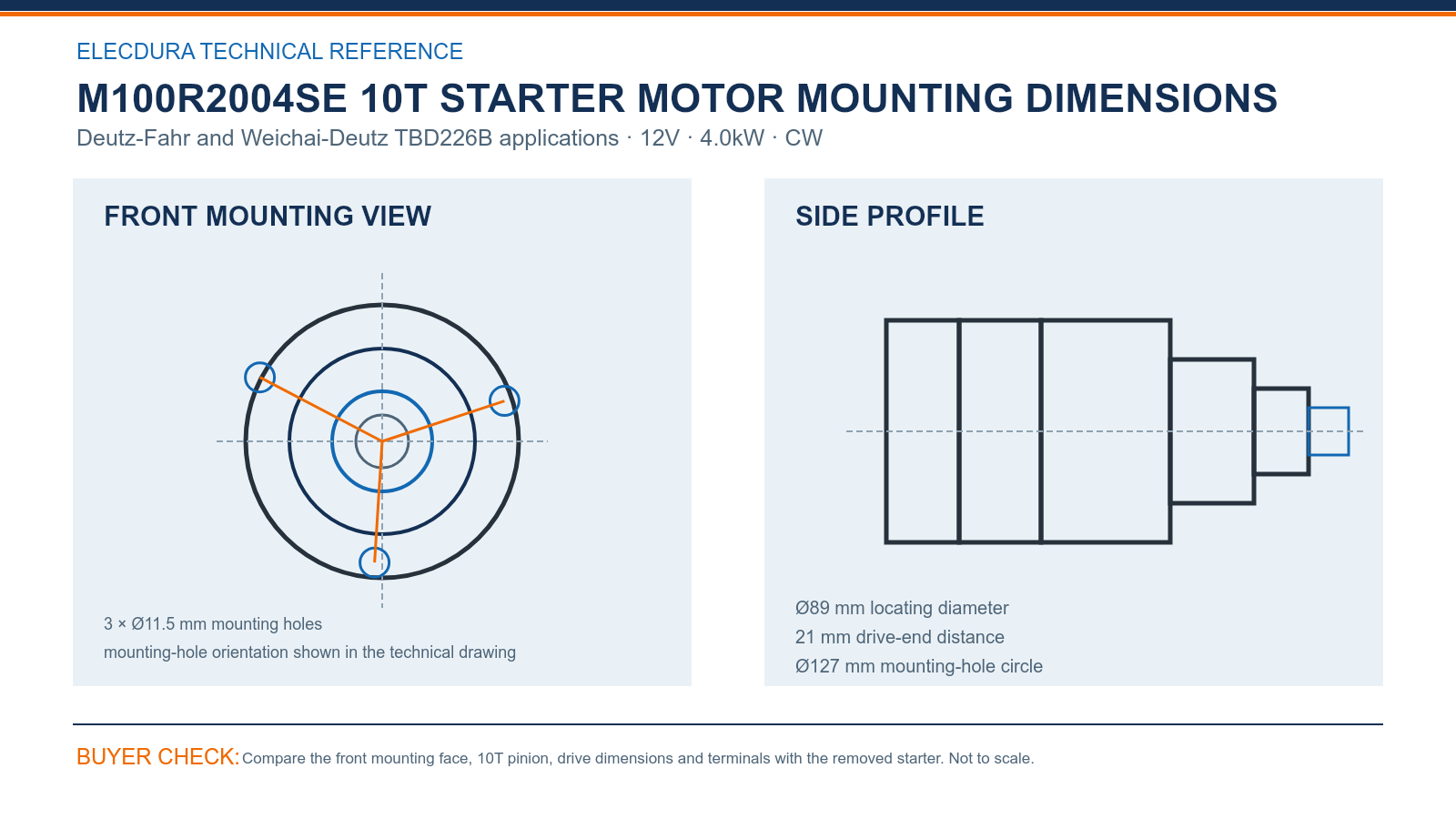

Use the M100R2004SE technical drawing to check Ø89 mm locating diameter, 21 mm drive-end distance and Ø127 mm mounting-hole circle. Add the 3 × Ø11.5 mm mounting holes to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the M100R2004SE comparison with 12V, 4.0kW, the 10T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

M100R2004SE Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with 5302289, 5449610, 12187645, 13031614, 13035760, STM3314LP, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

M100R2004SE Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For M100R2004SE, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Use the complete Prestolite number and submitted unit to approve this product without merging product views. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for M100R2004SE; the product decision itself still depends on the complete reference, 12V 4.0kW rating, drive end, mounting face and terminal layout.

M100R2004SE Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming M100R2004SE during a Deutz branch inspection for the M100R2004SE-specific product view?

Place the removed starter and M100R2004SE on the same mounting-face orientation. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, the 3 × Ø11.5 mm mounting holes and the 21 mm drive-end distance. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Before removing M100R2004SE, what should the workshop test under load in a Deutz branch workshop for the M100R2004SE-specific product view?

Before fitting M100R2004SE, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Why does M100R2004SE require a physical comparison for Prestolite applications during branch sourcing for the M100R2004SE-specific product view?

For M100R2004SE, ask the workshop for the removed starter label and the exact equipment record. Match 12V, 4.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Do all references listed with M100R2004SE identify an interchangeable unit in a Deutz branch sourcing program for the M100R2004SE-specific product view?

The references identify a related sourcing family, not automatic interchangeability. Use 5302289, 5449610, 12187645, 13031614, 13035760 to locate possible matches, then confirm 12V, 4.0kW, 10T, CW and the mounting face. Any difference in drive position, terminal layout or locating diameter requires a separate product decision.

Which operating factors should guide a fleet's M100R2004SE reserve quantity in a Deutz branch program for the M100R2004SE-specific product view?

Review workshop consumption by the stated Deutz-Fahr and Weichai-Deutz TBD226B population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical M100R2004SE reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for M100R2004SE during a Deutz branch receiving check for the M100R2004SE-specific product view?

Use a first-lot sample to confirm M100R2004SE, 12V, 4.0kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote M100R2004SE without delay in a Deutz branch sourcing program for the M100R2004SE-specific product view?

List M100R2004SE together with the supported equipment record, 12V, 4.0kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for M100R2004SE in a Deutz branch review for the M100R2004SE-specific product view?

For M100R2004SE, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

M100R2004SE Send a Starter Motor Distributor Enquiry

For a focused M100R2004SE quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
