M100R2006SE Deutz Starter Motor Wholesale Supply

M100R2006SE Starter Motor Aftermarket Supply for Deutz TBD226B engine

The buyer value of M100R2006SE is a clear stock definition for Deutz TBD226B engine: 12V, 4.0kW, 10T and CW. The deciding physical detail is the 12V 4.0kW 10T module-3 product controlled by the M100R2006SE reference, so the application name alone is not enough to release a first order or replace an approved sample.

For the first M100R2006SE order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

M100R2006SE Starter Motor Specification Table for B2B Sourcing

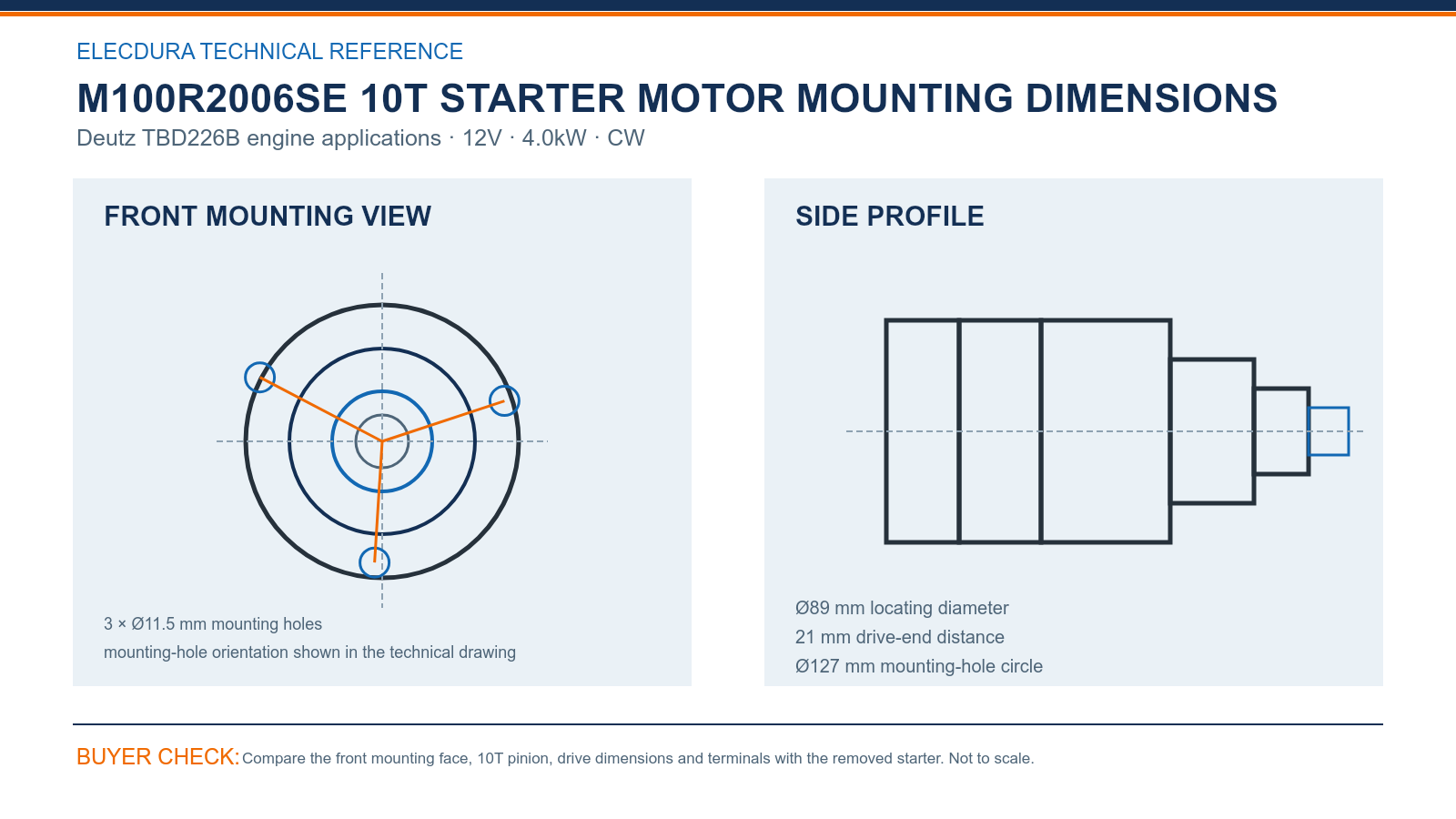

A warehouse can confirm the M100R2006SE interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 × Ø11.5 mm mounting holes, then verify the 21 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For M100R2006SE, record 10T, CW, 12V and 4.0kW, including module 3. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

M100R2006SE Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with M100R2006SE, STP2066ML, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

M100R2006SE Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial M100R2006SE sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved M100R2006SE label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for M100R2006SE continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

M100R2006SE Starter Motor Questions from Commercial Buyers

How should a buyer request samples and bulk pricing for M100R2006SE in a Deutz regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For M100R2006SE, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

What electrical checks help confirm that M100R2006SE is actually required in a Deutz regional workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for M100R2006SE installation and for any later service discussion with the supplier.

What fitment evidence makes a quotation for M100R2006SE reliable during regional sourcing?

Use the complete removed-unit number and exact Deutz TBD226B engine record. Compare the 10T pinion, 3 × Ø11.5 mm mounting holes, Ø89 mm locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

How should a mixed-reference enquiry for M100R2006SE be prepared in a Deutz regional sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the M100R2006SE electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

What should be measured on the drive end before releasing M100R2006SE to stock during a Deutz regional inspection?

The first-lot check should cover 3 × Ø11.5 mm mounting holes, Ø89 mm locating diameter and 21 mm drive-end distance. Add the 10T pinion, rotation and terminal position to the inspection sheet. Recording those details helps a warehouse identify a mixed or incorrectly labelled unit before it reaches a workshop or customer.

What should an importer include in the replenishment forecast for M100R2006SE in a Deutz regional program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For M100R2006SE, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a warehouse inspect when M100R2006SE starter motors arrive during a Deutz regional receiving check?

For M100R2006SE, match carton and product labels to the purchase order, then sample 12V, 10T, 3 × Ø11.5 mm mounting holes and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

What traceability details should accompany a warranty enquiry for M100R2006SE in a Deutz regional review?

Keep the carton or product traceability code and note when and where M100R2006SE was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

M100R2006SE Start a Starter Motor Wholesale Enquiry

To discuss M100R2006SE supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
