S0041 MAN D0826 D0226 Starter Motor Wholesale

S0041 Starter Motor Distributor Application Guide for MAN D0826LUH03 and D0226MF

For a fleet parts team, S0041 identifies one MAN D0826LUH03 and D0226MF requirement. The 24V 4.0kW 10T module-3.175 catalog configuration provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S0041 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S0041 Starter Motor Mounting Dimensions for Distributor Approval

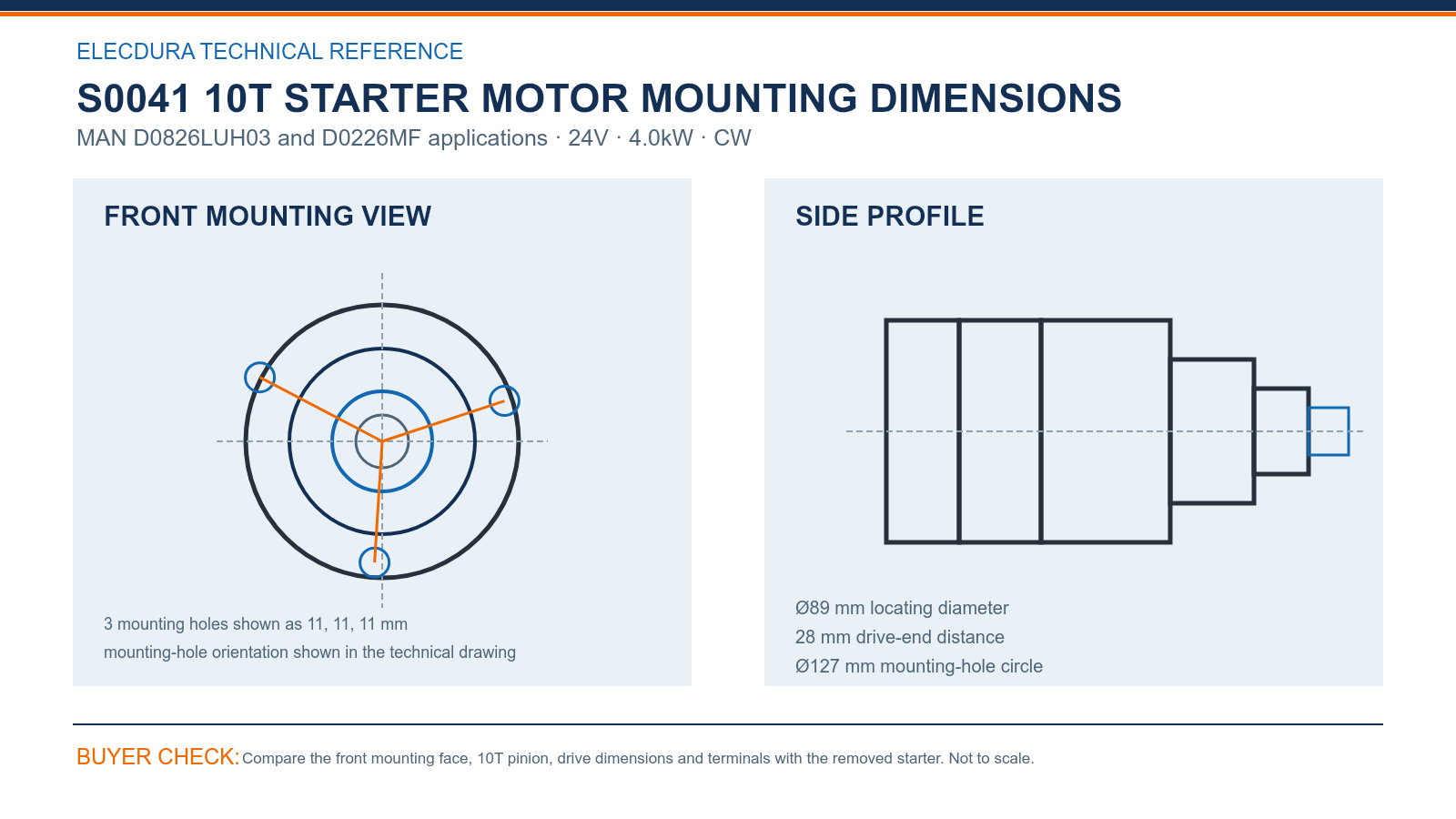

S0041 MAN D0826LUH03 and D0226MF 24V 4.0kW 10T starter mounting dimensions.

The S0041 dimensional review starts at the mounting face: verify 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 28 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S0041, count the 10T pinion and confirm module 3.175, CW rotation, 24V and 4.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S0041 Starter Motor Cross-Reference Review for Fleet Buyers

• Use the full number: Start with S0041, 111640, 0001368016, 0001368081, 0986011290, 0986011291, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0041 Starter Motor Wholesale Supply and Export Planning

Distributors can combine an initial S0041 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

Separate this product from the neighboring higher-tooth MAN configuration in warehouse data. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved S0041 configuration remains defined by 24V, 4.0kW, 10T, CW, mounting geometry and terminals, which should be retained in the purchase record.

S0041 Starter Motor Questions from Commercial Buyers

What traceability details should accompany a warranty enquiry for S0041 in a MAN D0826 D0226 branch review?

Keep the carton or product traceability code and note when and where S0041 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

Which old-unit checks matter most when sourcing S0041 during branch sourcing?

Confirm S0041 with the complete OE number, MAN D0826LUH03 and D0226MF record and clear front, side and terminal photographs. Check 10T, 3 mounting holes shown as 11, 11, 11 mm and 28 mm drive-end distance so visually related starters stay on separate order lines.

How should buyers use the S0041 cross-reference group in a MAN D0826 D0226 branch sourcing program?

A number match narrows the search but does not finish it. For S0041, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What workshop readings are useful when diagnosing a starting complaint involving S0041 during a MAN D0826 D0226 branch electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0041. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Why is a straight mounting-face photo useful for confirming S0041 during a MAN D0826 D0226 branch inspection?

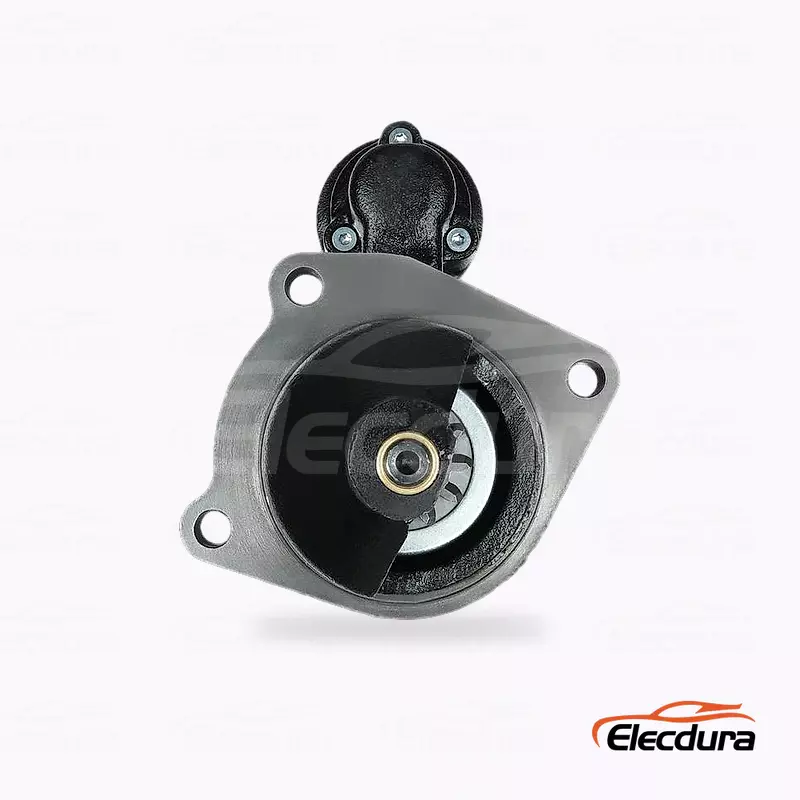

Align the removed starter and S0041 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 28 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can urgent service demand and routine S0041 replenishment share one enquiry in a MAN D0826 D0226 branch program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0041 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

How can a buyer quarantine a mismatched S0041 unit quickly during a MAN D0826 D0226 branch receiving check?

For S0041, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What should be included in a wholesale enquiry for S0041 in a MAN D0826 D0226 branch sourcing program?

Send the complete OE number, exact MAN D0826LUH03 and D0226MF details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 4.0kW 10T CW starter with packing, lead time, warranty and freight options.

S0041 Request a Starter Motor Fleet Supply Quote

Prepare the S0041 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
