S0075 Renault MIDR04.02 Starter Motor Wholesale

S0075 Starter Motor Fleet Replacement Supply for Renault MIDR04.02.26A/4 engine

S0075 supports Renault MIDR04.02.26A/4 engine sourcing where buyers need a defined electrical and drive-end match. Its 24V, 4.0kW, 10T CW specification must remain linked to the 24V 4.0kW 10T module-3.175 catalog configuration; a visually related unit may belong on a different RFQ line.

A useful enquiry pairs S0075 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

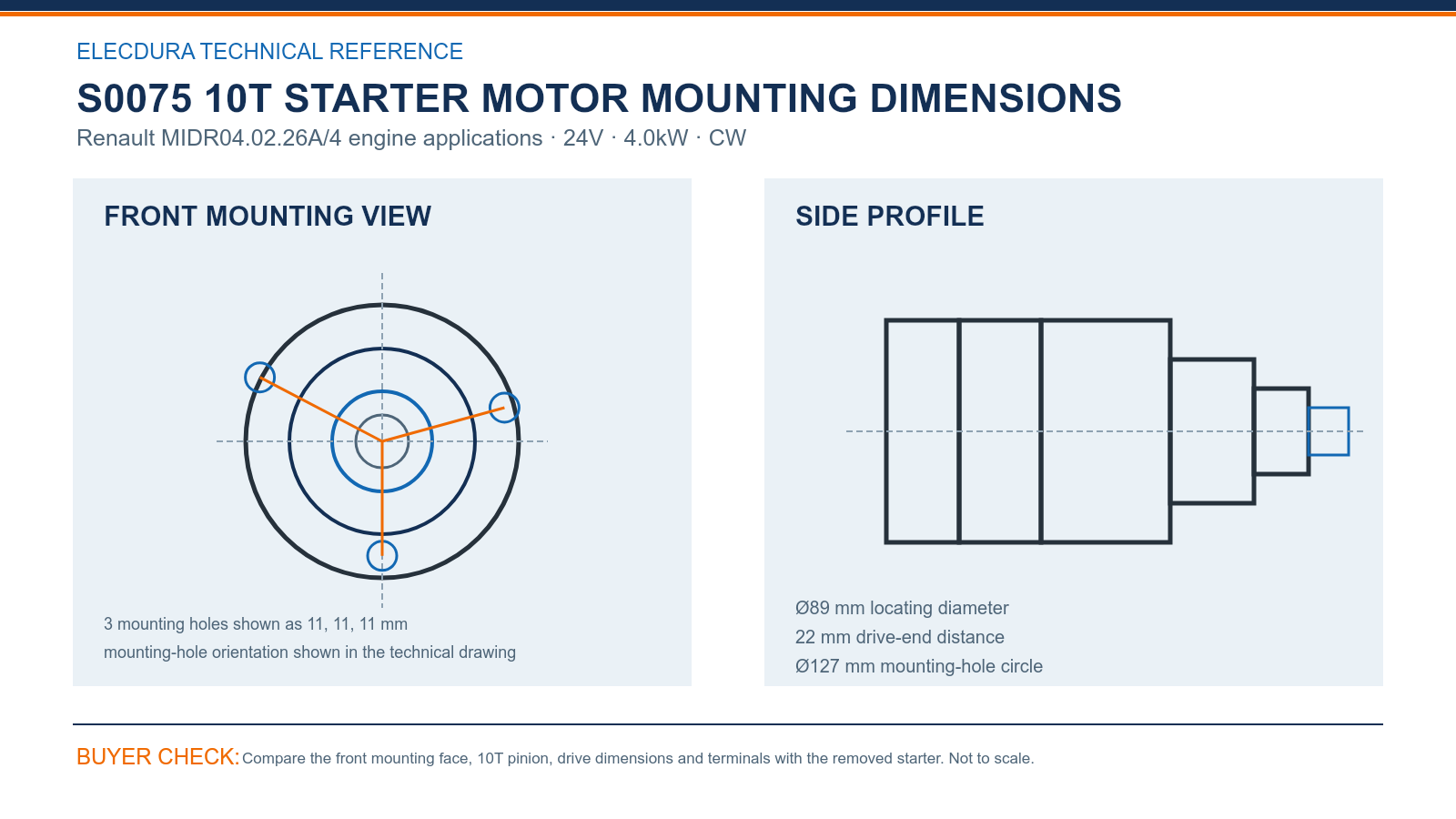

S0075 Starter Motor Mounting Dimensions for Distributor Approval

For S0075 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 22 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

The S0075 drive-end decision is completed by 10T, module 3.175 and CW, together with 24V and 4.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S0075 Starter Motor OE Number Guide for Aftermarket Supply

The S0075 cross-reference group includes S0075, 0001360013, 0001360050, 0001368052, 0001368070, 0001368304, 0001368306. Use these numbers to search supplier systems, then confirm 24V, 4.0kW, 10T, CW, mounting geometry and terminals.

For S0075, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0075 Starter Motor Wholesale Ordering and Export Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S0075, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Retain the engine suffix and connector view for accurate Renault reorders. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0075 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0075 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering S0075 for Renault MIDR04.02.26A/4 engine during workshop sourcing?

Use the full old-unit number and Renault MIDR04.02.26A/4 engine record. Compare the 10T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting S0075 during a Renault MIDR04.02 workshop diagnosis?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S0075 helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Why is the S0075 reference match only the start of product selection in a Renault MIDR04.02 workshop sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0075 group is acceptable only when 24V, 4.0kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

How does the S0075 mounting drawing support product approval during a Renault MIDR04.02 workshop inspection?

For S0075, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 22 mm drive-end distance in the side view. Add 10T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How can branches reduce emergency transfers of S0075 stock in a Renault MIDR04.02 workshop program?

Retain the engine suffix and connector view for accurate Renault reorders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of S0075 during a Renault MIDR04.02 workshop receiving check?

Receiving should verify the S0075 label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for S0075 in a Renault MIDR04.02 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0075, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from S0075 in a Renault MIDR04.02 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0075 without assuming that every no-crank complaint originates inside the starter.

S0075 Start a Starter Motor Wholesale Enquiry

Prepare the S0075 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
