S0469 Fendt Renault Starter Motor Wholesale

S0469 Starter Motor B2B Fitment Guide for Fendt D226-6 and Renault 113.12 tractor

Fendt and Renault tractor distributors, farm workshops and electrical-parts importers can source S0469 for Fendt D226-6 and Renault 113.12 tractor. Preserve the 9T pinion and 12V 3.0kW 9T catalog configuration for D226-6 applications; do not substitute by engine family or housing appearance alone.

A useful enquiry pairs S0469 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S0469 Starter Motor Mounting Dimensions for Distributor Approval

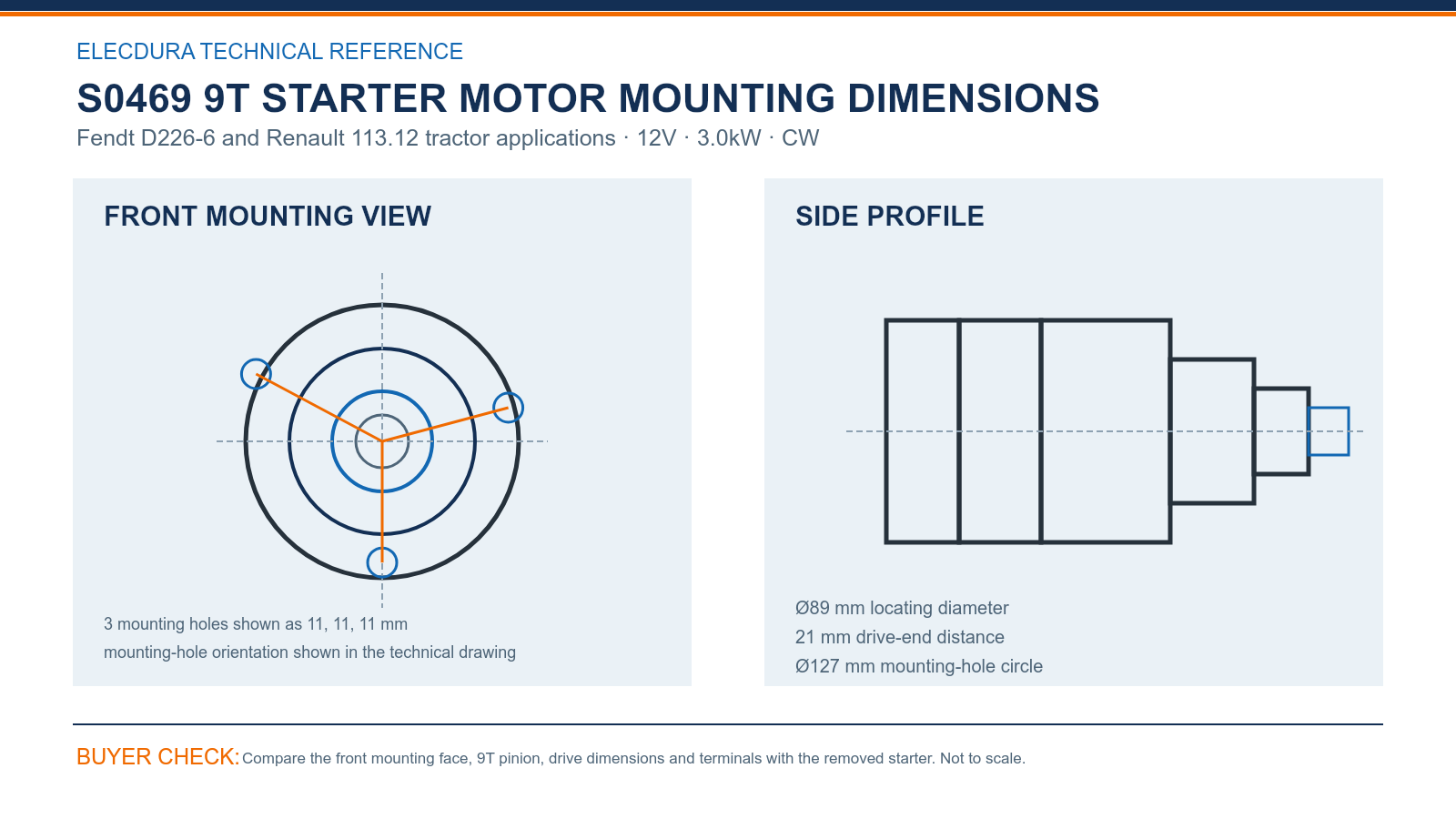

S0469 Fendt D226-6 and Renault 113.12 tractor 12V 3.0kW 9T starter mounting dimensions.

A warehouse can confirm the S0469 interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 mounting holes shown as 11, 11, 11 mm, then verify the 21 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S0469, record 9T, CW, 12V and 3.0kW, including module 3. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

S0469 Starter Motor Reference Matching for B2B Quotations

1. Search group: S0469, 0001359025, 0001367007, 0001369017, 11130706, AZJ3244, IS0706 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 3.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0469 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial S0469 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified S0469 drive end and electrical rating throughout the order.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0469 remains tied to the stated Fendt D226-6 and Renault 113.12 tractor application, 9T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0469 Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for S0469 in a Fendt Renault dealer sourcing program?

A number match narrows the search but does not finish it. For S0469, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of S0469 during a Fendt Renault dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0469. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How should a fleet workshop verify S0469 against the removed starter during dealer sourcing?

For S0469 in Fendt D226-6 and Renault 113.12 tractor, confirm the machine or engine identity and read the full old-unit label. Check 9T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

Which S0469 dimensions are practical for a warehouse inspection during a Fendt Renault dealer inspection?

For S0469, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and 21 mm drive-end distance. Record the 9T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

What demand information helps set a sensible reorder level for S0469 in a Fendt Renault dealer program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S0469, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

Which physical points should be checked before S0469 enters branch stock during a Fendt Renault dealer receiving check?

For S0469, match carton and product labels to the purchase order, then sample 12V, 9T, 3 mounting holes shown as 11, 11, 11 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about S0469 in a Fendt Renault dealer sourcing program?

A useful RFQ states S0469, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S0469 starter in a Fendt Renault dealer review?

For a service review of S0469, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0469 Request Starter Motor Wholesale Pricing

For a focused S0469 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
