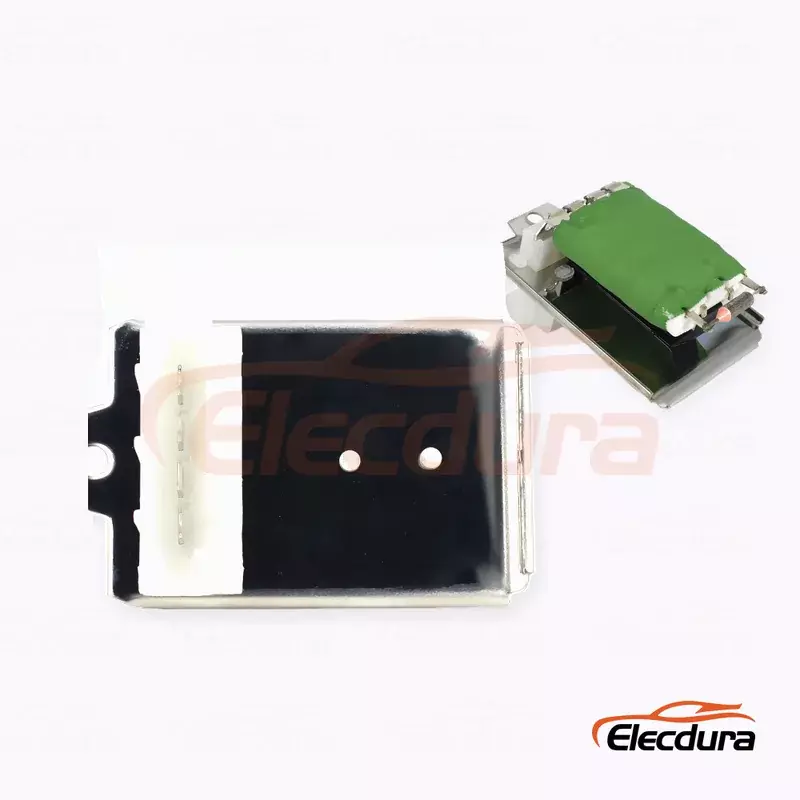

VW T4 Blower Motor Resistor 701959263A for A/C Systems

701959263A Blower Motor Resistor for VW T4 A/C Distributor Supply

OE 701959263A identifies a blower motor resistor used in selected Volkswagen T4 and EuroVan HVAC systems with manually controlled air conditioning. Some T4 installations also place this resistor in a rear ventilation blower housing. Distributors should therefore identify both the HVAC control type and the resistor location before treating an A-suffix inquiry as order-ready.

The final letter is not a packaging detail. It separates 701959263A from the base 701959263 version used for non-A/C T4 applications. Keeping the suffix visible on quotations, samples, cartons and warehouse labels reduces the risk of combining two similar-looking resistor variants under one stock code.

Match the 701959263A A-Suffix to Manual A/C and Rear-Blower Systems

A T4 badge or model year does not identify the HVAC hardware on its own. The same vehicle family can include non-A/C heating, manually controlled air conditioning, automatic climate control and additional rear ventilation equipment. OE 701959263A is associated with the manual-A/C resistor route, not a generic electronic power stage for every T4 climate system.

• Confirm the complete OE on the removed resistor, including the final A.

• Identify whether the vehicle has manual A/C controls or an automatic Climatronic panel.

• State whether the removed part came from the front main blower or a rear ventilation blower housing.

• Compare the connector face, housing profile and mounting points with the source part.

These four checks answer different questions. The OE confirms the purchasing identity, the control panel defines the HVAC type, the installation position identifies the blower circuit, and the physical comparison catches a variant that may share a vehicle family but not the same interface.

VW and SEAT Application Screening for 701959263A Wholesale Orders

Application screening for this A-suffix resistor spans both Volkswagen and SEAT vehicle lines. Use the model group to route the inquiry, then retain the full OE and HVAC configuration through quotation and receiving. A model name should never be used to erase the suffix or approve a visually similar unit.

When several vehicle lines are combined in a distributor program, keep the T4 configuration note attached to the product data. This prevents a broad application list from turning into an unsupported claim that every HVAC option within those model families uses the same resistor.

Reduce Heat-Damage and Repeat-Failure Risk for 701959263A Stock

Missing blower speeds can point toward the resistor circuit, but they do not prove that 701959263A is the correct replacement. Diagnose the vehicle first and identify the part separately. A damaged connector, excessive blower motor current or restricted airflow can overheat a correctly selected resistor and create the appearance of a defective replacement batch.

• Connector contact: reject loose, darkened or melted terminals before installing a new resistor.

• Motor load: investigate a blower motor that draws excessive current or turns sluggishly.

• Cooling airflow: keep the resistor's airflow path clear so heat can leave the resistance elements.

• Position control: compare the front or rear blower location with the approved reference photographs.

For incoming inspection, verify the full A-suffix label, connector keying, housing profile and mounting interface against the approved sample. Electrical values should only become contractual inspection criteria when the buyer and Elecdura have agreed on the reference unit, test conditions and measurement method.

OE 701959263A A/C Blower Motor Resistor Order FAQs

Which VW T4 HVAC setup uses blower motor resistor 701959263A?

OE 701959263A is associated with T4 and EuroVan applications using manually controlled air conditioning. Some installations also use this resistor in a rear ventilation blower housing. Confirm the A-suffix on the removed part, identify the HVAC control panel and state the blower position before requesting a sample or combining demand.

Can 701959263A replace the non-A/C resistor 701959263?

No automatic substitution should be made. The base 701959263 reference is used for non-A/C T4 sourcing, while 701959263A identifies the A/C-related variant. Similar housing colors or a shared Transporter model do not prove interchangeability. Keep both numbers on separate RFQ lines and compare the complete OE, connector, mounting and HVAC configuration.

Is 701959263A intended for Climatronic systems?

The verified T4 use is tied to manually controlled air conditioning, not a blanket claim for automatic Climatronic systems. Automatic climate control can use different blower-control hardware. Ask for a clear control-panel photograph or reliable vehicle configuration data, then match the original OE and resistor interface before confirming the product.

Can the same 701959263A resistor be used for a rear ventilation blower?

Some T4 applications place this resistor in the rear ventilation blower housing as well as the front main blower area. The installation position must therefore be stated rather than assumed. Compare the removed part, connector orientation and mounting details from the actual blower location before assigning the same inventory item to a rear-blower request.

Which Volkswagen and SEAT models should be screened for 701959263A?

Volkswagen screening includes Caddy, Golf Cabriolet, Passat, Polo, Transporter or Caravelle T4, EuroVan and Vento. SEAT screening includes Arosa, Cordoba, Ibiza and Inca. These model groups start the inquiry, but the full OE, model year, HVAC type and physical interface still determine whether a specific order can proceed.

Why is the complete A suffix required on distributor labels?

Dropping the final letter can merge 701959263A with the separate base 701959263 resistor in purchasing systems, carton marks or warehouse bins. Retain the A on the purchase order, barcode data, packaging and receiving sheet. This keeps the manual-A/C variant traceable through quotation, shipment and later replenishment.

Does a blower that runs only at selected speeds prove 701959263A fitment?

No. Missing low or intermediate speeds can justify testing the resistor circuit, but the symptom cannot identify the required OE. Diagnose the motor, speed selector, wiring and connector, then identify the replacement from the complete OE and HVAC arrangement. Symptom-led ordering can select the wrong T4 variant even when the diagnosis is correct.

What should be inspected when the old connector shows heat damage?

Inspect the terminals for looseness, oxidation and loss of spring contact, then check blower motor current and the airflow path around the resistor. Replace damaged connector components before fitting the new unit. Heat marks often indicate a system condition that could overheat another correctly matched 701959263A resistor.

What details are needed to quote 701959263A for a bulk order?

Provide the complete OE, vehicle model and year, manual A/C or other control type, front or rear blower position, connector and mounting photographs, required quantity, destination and packaging request. Elecdura can then quote the identified A-suffix product and flag any missing fitment check before samples or bulk production are arranged.

Request a Quote for 701959263A VW T4 A/C Blower Resistor

Send OE 701959263A as a complete number and state the vehicle, model year, HVAC control type and resistor location. Add clear photographs of the connector face, housing and mounting points when the removed-part identity is difficult to read.

For mixed Volkswagen and SEAT programs, separate each application group on the inquiry and identify any base 701959263 demand as another line. Elecdura will return the available commercial terms, packaging options and reference checks for the confirmed A-suffix requirement.
