Factory-direct manufacturer and wholesale supplier of heavy-duty radiator cooling fans, Elecdurauto supports overseas distributors, importers, fleet operators, and industrial project buyers with stable supply and engineering-level products.
Fast Evaluation for B2B Buyers
Suitable for distributors, resellers, and project buyers seeking a stable heavy-duty radiator cooling fan with consistent overseas supply. For buyers who are unsure about technical specifications, Elecdurauto provides selection guidance before ordering to help confirm application fit quickly.
Elecdurauto
China
IATF 16949 / ISO 9001 / CE / RoHS
50 - 100 pcs
7 – 30 Days
Brand / Neutral / Customized Packaging
18 Months
| Quantity: | |
|---|---|
Product Description
As a professional heavy-duty brushless cooling fan manufacturer and export wholesale supplier, Elecdurauto focuses on providing 27V industrial cooling solutions for overseas distributors, generator parts traders, truck parts wholesalers, and industrial equipment importers who require stable quality, controlled cost, and long-term supply.
Unlike light-duty or retail cooling fans, this series is developed for:
Long-hour continuous running without interruption
High ambient temperature and poor ventilation conditions
Dusty, humid, rainy, and coastal environments
Unstable power supply in many developing markets
In real export business, our customers are mainly located in Africa, the Middle East, South America, and Southeast Asia, where equipment reliability directly determines business reputation and repeat orders. This model is built exactly for those markets.
This Elecdurauto heavy-duty brushless cooling fan is widely used in truck cooling systems, diesel generator sets, construction machinery electrical compartments, and industrial automation cabinets. It is a functional industrial matching fan, not a VIN-locked OE replacement part.
Heavy-Duty Long-Haul Truck Cooling
Continuous Generator Room Ventilation
Electrical Cabinet Thermal Management
Extreme-Duty Machinery Cooling Solutions

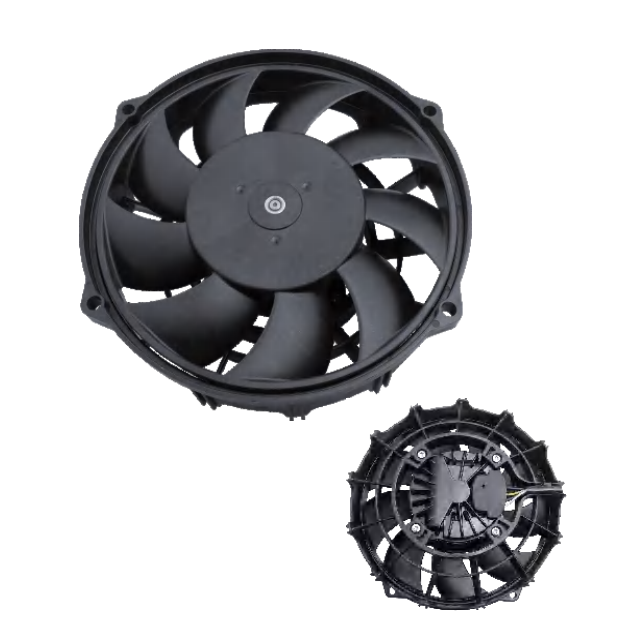

The WL222502 cooling fan is engineered for heavy-duty trucks, diesel generator sets, and industrial machinery that require high airflow and long-hour operation under harsh working conditions.
| Parameter | Specification |
|---|---|
| Model | WL222502 |
| Product Type | Brushless Electric Cooling Fan |
| Rated Test Voltage | 27 V |
| Operating Voltage Range | 16–32 VDC |
| Power Consumption | 120 W |
| Load Current | ≤ 4.5 A |
| Speed Range | 900 – 3650 RPM |
| Maximum Airflow | ≥ 1100 m³/h |
| Static Pressure | 0 Pa |

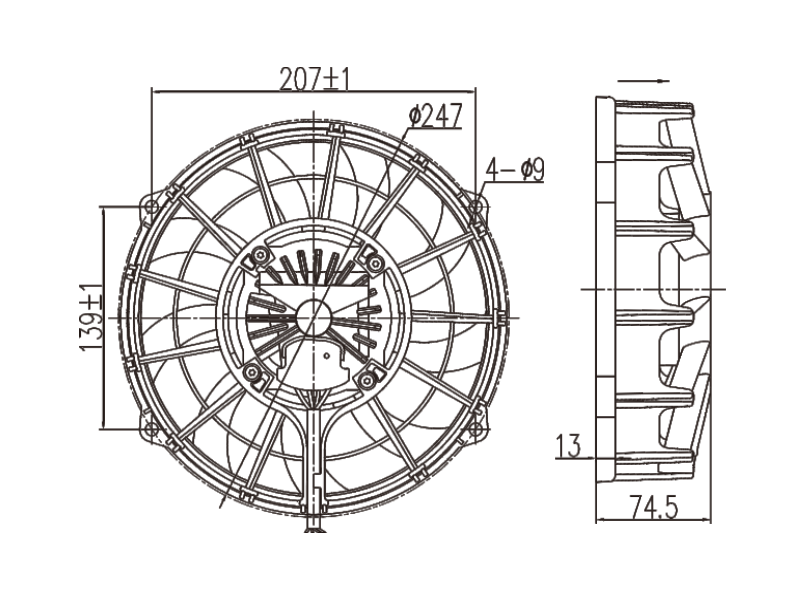

| Blade Diameter | 225 mm (9 inch) |
| Overall Diameter | 247 mm |
| Mounting Hole Pattern | 4 × Ø9 mm |
| Thickness | 74.5 mm |
| Control Method | PWM / High-Level Signal (High Gear) |
| Connector Type | DELPHI 12185126 |
| Protection Rating | IP68 |
| Rotation Direction | As indicated (Axial Flow) |
| Cooling Type | Forced Air Cooling |
| Application Voltage Class | 24V / 27V Heavy-Duty Systems |
The WL222502 is a universal industrial cooling fan designed for trucks, diesel generator sets, construction machinery, and commercial power equipment.
It is not VIN-locked and fits a wide range of heavy-duty applications for global aftermarket distributors.
| Application Category | Typical Equipment |
|---|---|
| Heavy-Duty Trucks | Long-haul trucks, vocational trucks |
| Diesel Generator Sets | Standby and mobile diesel generators |
| Construction Machinery | Excavators, loaders, bulldozers |
| Agricultural Equipment | Tractors, harvesters, sprayers |
| Industrial Power Units | Industrial engines, power modules |
| Fleet Vehicles | Commercial fleet trucks, service vehicles |
| Off-Road Vehicles | Mining vehicles, off-road transport equipment |
| Industrial Cooling Systems | Enclosed equipment, radiator-based systems |
| Mobile Equipment | Mobile compressors, mobile generators |
| OEM Cooling Assemblies | Engine and radiator module manufacturers |
Unlike traditional brushed fans that suffer from carbon brush wear and frequent mechanical degradation, Elecdurauto brushless cooling fans eliminate brush friction entirely. This allows the fan to operate continuously for extended periods without performance decay.
The Elecdurauto brushless motor operates with optimized electromagnetic control, delivering higher electrical efficiency with lower internal energy loss. Compared with brushed motors, less power is wasted as heat.
In heavy-duty applications, unstable torque leads to:
Speed fluctuation
Airflow inconsistency
Unstable cooling performance
Elecdurauto's brushless motor ensures steady torque output across the full speed range, even under long-hour continuous operation and fluctuating voltage environments.
Brushed motors fail mainly due to:
Brush wear
Sparking
Carbon dust accumulation
Overheating after long-term use
Elecdurauto brushless motors eliminate these inherent weaknesses, significantly lowering overall failure rates in real export markets.
Elecdurauto heavy-duty cooling fans are widely supplied to global distributors, generator manufacturers, industrial equipment assemblers, and project integrators, serving long-term bulk purchasing and engineering applications across different markets.
Heavy-Duty Cooling Fan Assemblies
Durable Blower and Motor Units
OE-Grade Cooling Fan Solutions
Professional Fan Clutch Range
Elecdurauto focuses on small and medium bulk export wholesale, which perfectly fits the purchasing behavior of overseas distributors and local import traders.
✅ Trial order: 30 pcs
✅ Standard wholesale: 50–100 pcs
✅ Long-term cooperation: 100+ pcs per shipment
The brushless cooling fan delivers powerful and stable airflow to quickly remove internal heat from trucks, generators and industrial equipment. It effectively prevents overheating shutdown, component aging and thermal failure, ensuring electrical systems can operate continuously and safely under heavy load.
With IP68 waterproof & dustproof protection, a fully sealed motor chamber and automotive-grade waterproof connectors, this fan continues to operate reliably in:
Heavy rain regions
Dusty mining and desert construction sites
Coastal high-humidity areas
Muddy and vibration-intensive off-road environments
By combining fast heat dissipation with extreme environmental protection, this cooling fan is engineered not only for technical performance, but also for long-term wholesale business stability.
Monthly production capacity: 5,000–10,000 pcs
Stable motor and blade raw material supply
Dedicated export assembly inspection line
Priority scheduling for 30–100 pcs wholesale orders
Elecdurauto provides flexible OEM services for overseas distributors, including:
Voltage customization
Connector type customization
Fan speed curve tuning
Brand logo printing
Color box & packaging design
OEM helps distributors:
Build brand identity
Avoid pure price competition
Improve local market control
18-month international warranty
Technical response within 24 hours
Quality issue replacement for bulk orders
Long-term spare parts and technical support
All Elecdurauto heavy-duty brushless cooling fans are manufactured under a strict quality management system and comply with international safety and performance standards required for global export markets.
Yes. WL222502 is manufactured as an OE-grade replacement cooling fan, designed to match original equipment specifications in performance, dimensions, and electrical compatibility.
It is suitable for aftermarket replacement, importer stock programs, and wholesale distribution.
Yes. WL222502 is specifically positioned for the aftermarket, supporting:
Stable batch consistency
Standardized specifications
Long-term supply availability
This makes it suitable for importers, wholesalers, and regional distributors supplying heavy-duty vehicle and equipment markets.
Yes. WL222502 is widely used as a replacement solution for OE cooling fans installed on:
Heavy-duty trucks
Generator sets
Construction and agricultural machinery
It is designed to meet OE-level airflow, voltage, and protection requirements, ensuring reliable replacement performance.
Absolutely. WL222502 is available for:
Bulk orders
Importer stock programs
Wholesale distribution
Long-term supply agreements
It is ideal for customers who require repeat orders, price stability, and consistent quality.
The product is manufactured under strict production control and quality inspection procedures, ensuring:
Consistent electrical performance
Stable airflow output
Reliable sealing and durability
Each batch is tested to meet OE replacement quality expectations for heavy-duty applications.
Yes. WL222502 features:
Standardized mounting dimensions
225mm blade size
DELPHI connector
This allows direct installation as an OE replacement without modification in most applications.
Yes. With IP68 protection, the fan is suitable for:
Dusty environments
Wet and outdoor conditions
Long-distance and continuous operation
This is essential for aftermarket replacement parts used in real-world working conditions.
Yes. WL222502 supports:
Neutral packaging
Private labeling
Customized carton and marking
This is particularly attractive for importers and distributors building their own brands.
WL222502 is a standardized production model, not a one-off or project-only item.
This ensures continuous availability, consistent specifications, and reliable lead times for long-term cooperation.
This model is supplied to global aftermarket markets, including:
Europe
Middle East
Africa
South America
Southeast Asia
It is well-suited for regions with strong demand for heavy-duty OE replacement parts.
