10461453 Hummer 6.2D Starter Motor Wholesale

10461453 Starter Motor Aftermarket Supply for Hummer H1 6.2D with 3L80 transmission

The buyer value of 10461453 is a clear stock definition for Hummer H1 6.2D with 3L80 transmission: 24V, 4.5kW, 10T and CW. The deciding physical detail is the 24V 4.5kW 10T module-2.54 drive with the compact Hummer mounting pattern, so the application name alone is not enough to release a first order or replace an approved sample.

For the first 10461453 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

10461453 Starter Motor Specification Table for B2B Sourcing

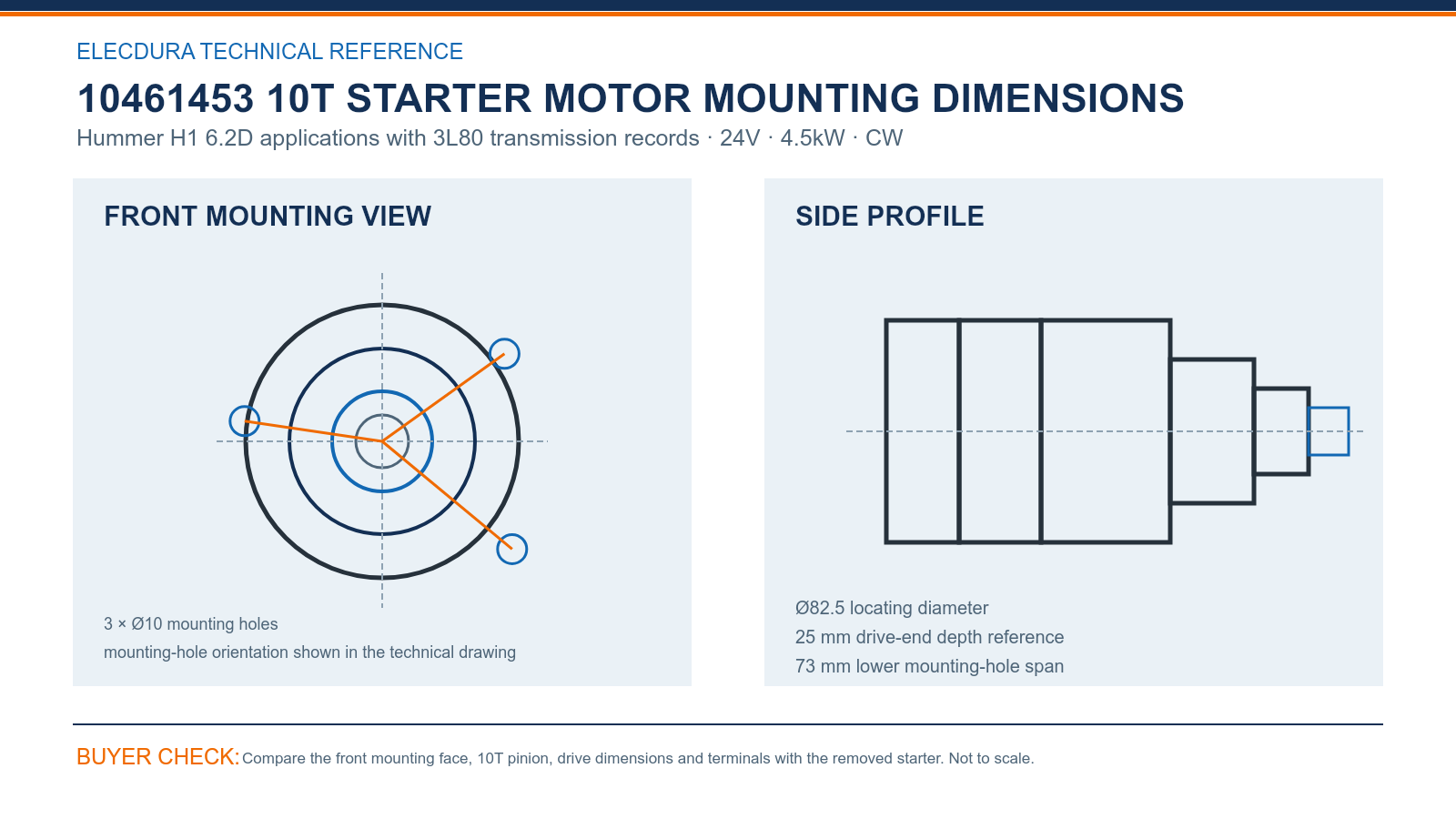

A warehouse can confirm the 10461453 interface without dismantling the unit. Measure Ø82.5 locating diameter and 73 mm lower mounting-hole span, inspect 3 × Ø10 mounting holes, then verify the 25 mm drive-end depth reference. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For 10461453, record 10T, CW, 24V and 4.5kW, including module 2.54. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

10461453 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S1258S, 113435, 10461453, 10465015, 10479611, 10497166, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

10461453 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial 10461453 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved 10461453 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for 10461453 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

10461453 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of 10461453 stock in a Hummer 6.2D regional program?

Define packaging around the compact nose and terminal layout and retain the approved drawing with military or specialist vehicle stock. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Why is a straight mounting-face photo useful for confirming 10461453 during a Hummer 6.2D regional inspection?

Place the removed starter and 10461453 on the same mounting-face orientation. Compare Ø82.5 locating diameter, 73 mm lower mounting-hole span, the 3 × Ø10 mounting holes and the 25 mm drive-end depth reference. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

Can 10461453 be selected from the application name alone during regional sourcing?

Confirm 10461453 against the complete OE number, the stated Hummer H1 6.2D with 3L80 transmission use and clear front, side and terminal photographs. The decisive points are 10T, 3 × Ø10 mounting holes and 25 mm drive-end depth reference. Those controls keep visually related starters from being combined in one order.

Which checks should follow an OE-number match for 10461453 in a Hummer 6.2D regional sourcing program?

A number match narrows the search but does not finish it. For 10461453, compare the stated application, electrical output, 10T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of 10461453 in a Hummer 6.2D regional workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing 10461453. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

What receiving records are useful for a shipment of 10461453 during a Hummer 6.2D regional receiving check?

Receiving should verify the 10461453 label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø82.5 locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for 10461453 in a Hummer 6.2D regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For 10461453, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving 10461453 in a Hummer 6.2D regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate 10461453 without assuming that every no-crank complaint originates inside the starter.

10461453 Start a Starter Motor Wholesale Enquiry

To discuss 10461453 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
