M009T80472-24V-8.5KW-12T-3M Mercedes-Benz Starter Motor

M009T80472-24V-8.5KW-12T-3M Heavy-Duty Starter Motor for BENZ

For distributors planning mixed-model inventory, Elecdura offers M009T80472-24V-8.5KW-12T-3M as an aftermarket heavy-duty starter motor for BENZ. The 24V, 8.5kW and 12T configuration is intended for professional replacement sourcing by heavy-duty parts distributors, importers and fleet suppliers.

For aftermarket product managers confirming an incoming batch, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

M009T80472-24V-8.5KW-12T-3M Starter Motor Specifications and Technical Drawing

For replacement-parts sellers preparing an OE-based quote, this reference group can cover nearby starter versions. Keep M009T80472-24V-8.5KW-12T-3M, 24V, 8.5kW and 12T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

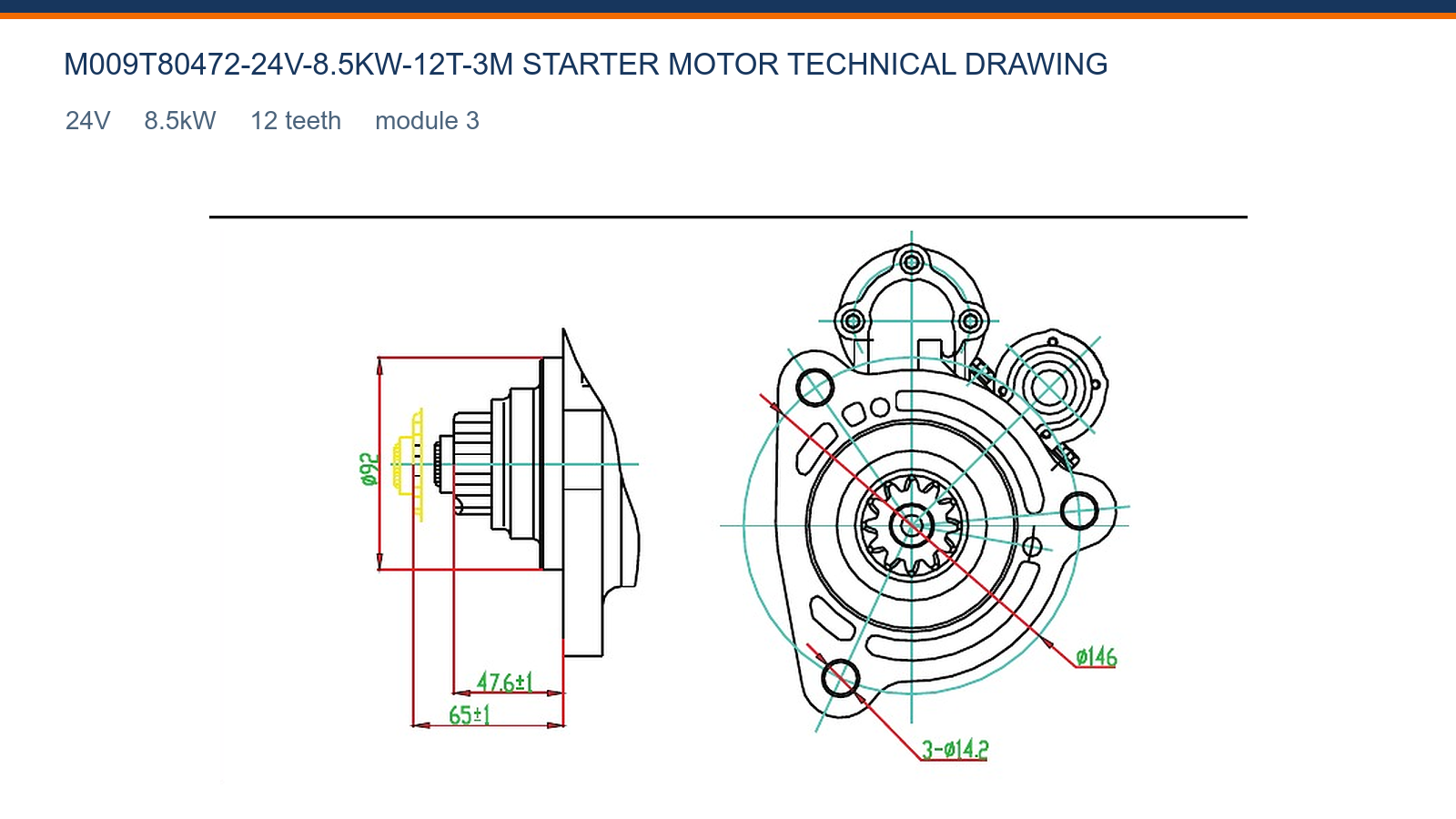

For service-parts networks separating similar housings, the source-faithful technical drawing records the available mounting information for M009T80472-24V-8.5KW-12T-3M, including 3×Ø14.2, Ø92, Ø146, 47.6±1 mm, 65±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M009T80472-24V-8.5KW-12T-3M Aftermarket Replacement and Application

For engine-parts specialists checking version-defining data, the replacement search starts with M009T80472-24V-8.5KW-12T-3M, M009T80472, 19011501 and the BENZ application. For mixed fleets or previously repaired machines, add clear old-unit photos so a substituted starter does not become the only fitment evidence.

For fleet-parts buyers confirming electrical ratings, before a purchase order is released, compare the removed starter's mounting face, 12T drive and terminal direction with the approved gallery. Module 3 is part of the pinion definition. Any conflicting physical feature should remain on a separate RFQ line until the correct replacement is confirmed.

M009T80472-24V-8.5KW-12T-3M Wholesale Supply for Distributors and Importers

For aftermarket wholesalers setting packaging requirements, importers planning M009T80472-24V-8.5KW-12T-3M stock can request volume pricing, neutral or reviewed private-label packaging and agreed inspection records. Standard guidance is 20 pcs minimum, 7–15 days after confirmation and 18 months warranty under sales terms.

For sourcing managers updating a customer item master, technical and commercial requirements should be confirmed on the same RFQ. Buyers can request suitable electrical tests, product identification photos, customer labels and carton information before the shipment is released.

M009T80472-24V-8.5KW-12T-3M Starter Motor Buyer FAQ

Which check should lead M009T80472-24V-8.5KW-12T-3M three-view gallery when confirming the quotation line?

For equipment-parts dealers confirming electrical ratings, use the drive-end view to compare the pinion and flange, the side profile to judge housing length and solenoid position, and the rear view to check terminals. All three images belong to M009T80472-24V-8.5KW-12T-3M; they should be reviewed together with the 12T drive and BENZ application. Request an additional close-up when the customer's unit hides a deciding feature.

What should purchasing verify first for BENZ before an installation slot is booked?

For purchasing teams checking repeat-order specifications, BENZ identifies the intended heavy-duty engine family, but it should not be used by itself. Pair the application with M009T80472-24V-8.5KW-12T-3M, the 24V electrical system and the 12-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration prior to fixing the quote and shipment date.

How should a distributor confirm M009T80472-24V-8.5KW-12T-3M solenoid and cable routing when checking a replacement proposal?

For distributors matching the starter being replaced, use the side and rear photographs of M009T80472-24V-8.5KW-12T-3M to check solenoid position, battery-stud direction and start-terminal access in BENZ. Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

Which comparison prevents a mismatch for BENZ cranking condition before stock is assigned?

For technical buyers checking application evidence, before replacing the starter on BENZ, test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 24V, 8.5kW starter and make a technical RFQ easier to resolve.

What should purchasing verify first for flange clocking when preparing a fitment check?

For engine-parts specialists preparing an OE-based quote, no separate angular callout is stated for M009T80472-24V-8.5KW-12T-3M. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

What should purchasing verify first for M009T80472-24V-8.5KW-12T-3M locating face before an installation slot is booked?

For fleet-parts buyers separating similar housings, the M009T80472-24V-8.5KW-12T-3M flange should sit flat against the BENZ mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

Which comparison prevents a mismatch for M009T80472-24V-8.5KW-12T-3M rear-terminal photograph when checking a replacement proposal?

For technical sales teams evaluating a direct replacement, use the rear view of M009T80472-24V-8.5KW-12T-3M to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in BENZ. A correct drive end with an unusable terminal position is not a complete fitment match.

Which detail separates M009T80472-24V-8.5KW-12T-3M inquiry package when the old starter is available?

For sourcing managers preparing distributor pricing, A useful inquiry for M009T80472-24V-8.5KW-12T-3M includes quantity, destination, required date, BENZ, the full old-unit number and clear photos of the label, drive end, mounting surface and cable studs. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 24V, 8.5kW, 12T version against a single, fully defined specification.

Request a Wholesale Quote for M009T80472-24V-8.5KW-12T-3M Heavy-Duty Starter Motor

For wholesale program managers reviewing customer demand, to source M009T80472-24V-8.5KW-12T-3M for a distributor or importer program, send the OE group, BENZ, planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
