S0067 Mercedes OM353 Starter Motor Wholesale Supply

S0067 Starter Motor Distributor Application Guide for Mercedes-Benz OM353.985 and MB-Trac

For a fleet parts team, S0067 identifies one Mercedes-Benz OM353.985 and MB-Trac requirement. The 12V 3.0kW 9T module-3 configuration with the cataloged 48 mm drive-end distance provides a clear fitment boundary for sample, stock and replacement reviews.

A useful enquiry pairs S0067 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S0067 Starter Motor Mounting Dimensions for Distributor Approval

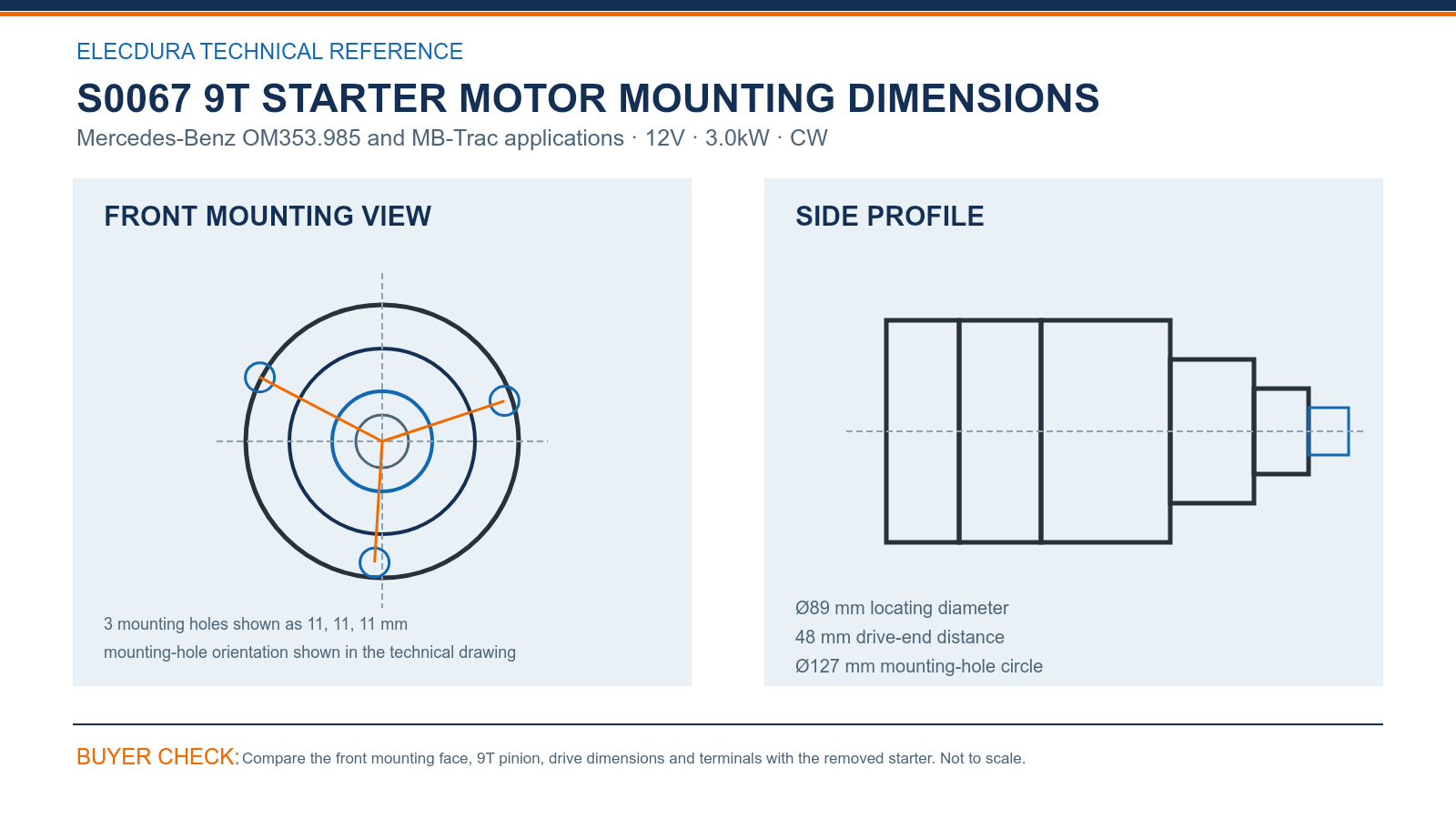

Use the S0067 technical drawing to check Ø89 mm locating diameter, 48 mm drive-end distance and Ø127 mm mounting-hole circle. Add the 3 mounting holes shown as 11, 11, 11 mm to the receiving sheet. These are practical controls for an approved sample because they can be measured before the starter is installed or released to branch stock.

Complete the S0067 comparison with 12V, 3.0kW, the 9T drive, module 3 and CW rotation. Review pinion condition, terminal location and available cable clearance together. These controls prevent a valid OE search result from being treated as automatic physical interchangeability.

S0067 Starter Motor Reference Group for Wholesale Sourcing

• Use the full number: Start with S0067, 110525, 111790, 0001367031, 0001367034, 0001367059, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0067 Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S0067, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Confirm the OM353 engine and complete Bosch or Mercedes number before approving the 9T starter. Once that boundary is fixed, purchasing can separate urgent units from routine replenishment and define branch quantities, stock labels and freight timing without encouraging an unverified substitute.

Elecdura’s video shows starter-motor production and electrical testing used to support wholesale orders. It provides supplier-capability context for S0067; the product decision itself still depends on the complete reference, 12V 3.0kW rating, drive end, mounting face and terminal layout.

S0067 Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for S0067 in a Mercedes OM353 branch sourcing program?

A number match narrows the search but does not finish it. For S0067, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

How should Mercedes-Benz distributors plan stock for S0067 in a Mercedes OM353 branch program?

Retain engine and MB-Trac application mapping for agricultural and commercial reorders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a fleet workshop verify S0067 against the removed starter during branch sourcing?

For S0067, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 9T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

Which electrical conditions can imitate a failed S0067 starter motor in a Mercedes OM353 branch workshop?

Before fitting S0067, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the S0067 mounting drawing support product approval during a Mercedes OM353 branch inspection?

For S0067, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 48 mm drive-end distance in the side view. Add 9T, CW and terminal orientation; this is more reliable than an angled overall photograph.

Which physical points should be checked before S0067 enters branch stock during a Mercedes OM353 branch receiving check?

For S0067, match carton and product labels to the purchase order, then sample 12V, 9T, 3 mounting holes shown as 11, 11, 11 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about S0067 in a Mercedes OM353 branch sourcing program?

A useful RFQ states S0067, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S0067 starter in a Mercedes OM353 branch review?

For a service review of S0067, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0067 Send a Starter Motor Distributor Enquiry

For a focused S0067 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
