S0254 Mercedes OM353 Unimog Starter Motor Wholesale

S0254 Starter Motor Aftermarket Supply for Mercedes OM353.940, OM314.917 and Unimog U800

S0254 defines stock for Mercedes OM353.940, OM314.917 and Unimog U800 as 24V, 4.0kW, 9T and CW. Confirm 24V 4.0kW 9T module-3 catalog configuration before releasing a first order or replacing an approved sample.

Build the S0254 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S0254 Starter Motor Specifications and Drawing for Wholesale Buyers

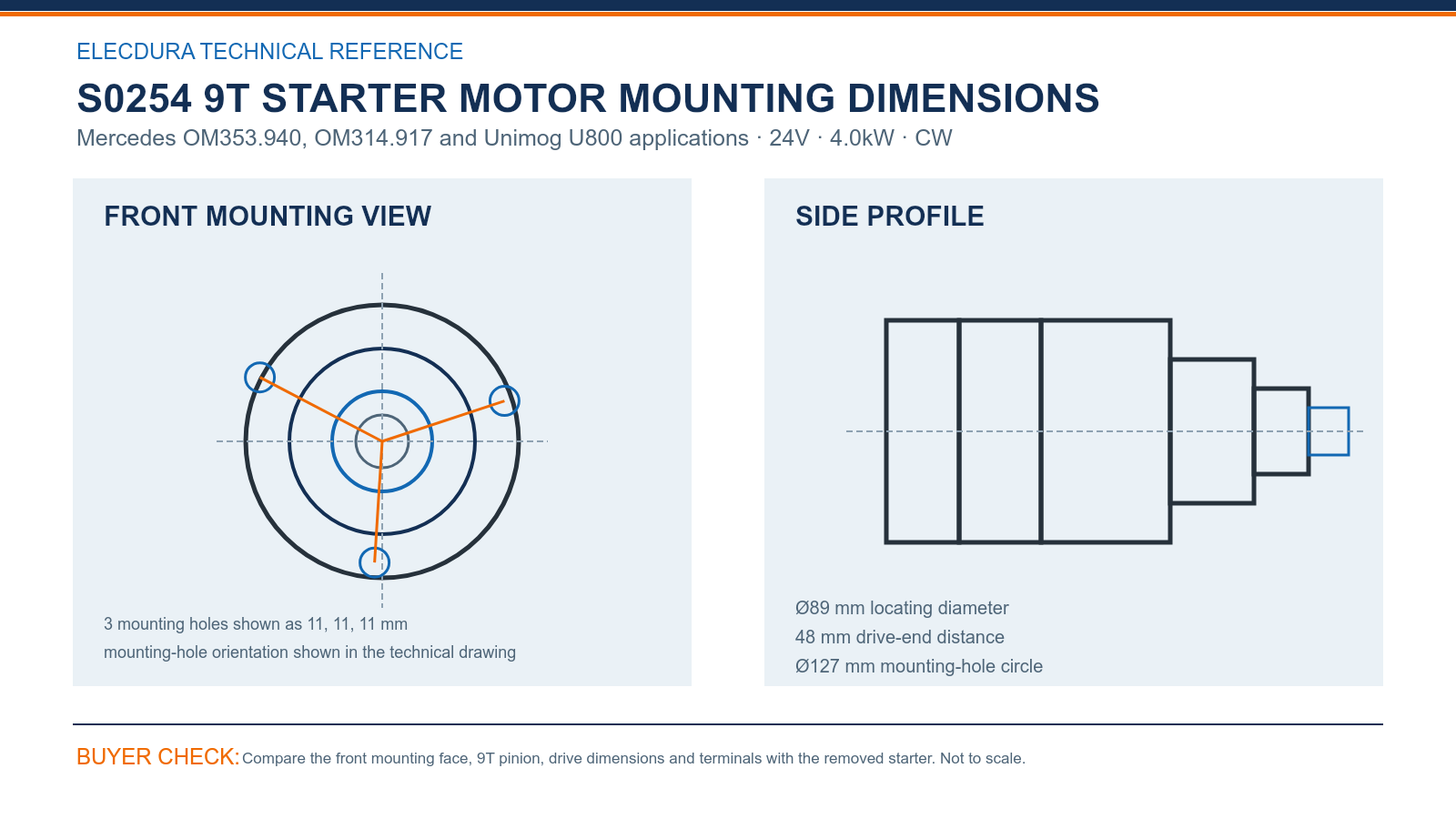

S0254 Mercedes OM353.940, OM314.917 and Unimog U800 24V 4.0kW 9T starter mounting dimensions.

A warehouse can confirm the S0254 interface without dismantling the unit. Measure Ø89 mm locating diameter and Ø127 mm mounting-hole circle, inspect 3 mounting holes shown as 11, 11, 11 mm, then verify the 48 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S0254, electrical and mechanical identity must agree: 24V, 4.0kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0254 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S0254, 116040, 0001360056, 0001368028, 0986012940, 11130660, retaining prefixes, suffixes and separators in the RFQ.

• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0254 Starter Motor Fleet Supply and Replenishment Support

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S0254 quantity, destination and required arrival date.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0254 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

For supplier evaluation, the video presents Elecdura starter-motor assembly and testing. A S0254 order should still be released against the complete OE number, Mercedes OM353.940, OM314.917 and Unimog U800 details, electrical specification and physical comparison, giving purchasing both capability information and a clear product boundary.

S0254 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S0254 stock in a Mercedes OM353 Unimog regional program?

Retain the accepted engine, terminal and mounting data for repeat commercial orders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How can an importer avoid mixing S0254 with a similar drive-end version during regional sourcing?

For S0254 in Mercedes OM353.940, OM314.917 and Unimog U800, confirm the machine or engine identity and read the full old-unit label. Check 9T, Ø127 mm mounting-hole circle, Ø89 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

When does a cross-reference related to S0254 need a separate quotation in a Mercedes OM353 Unimog regional sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0254 group is acceptable only when 24V, 4.0kW, 9T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why should voltage-drop results accompany an enquiry for S0254 during a Mercedes OM353 Unimog regional electrical check?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for S0254 installation and for any later service discussion with the supplier.

Which dimensions in the S0254 drawing should receiving teams sample during a Mercedes OM353 Unimog regional inspection?

For S0254, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. Count the 9T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of S0254 during a Mercedes OM353 Unimog regional receiving check?

Receiving should verify the S0254 label, quantity and packaging before opening sampled cartons. Compare the 9T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S0254 in a Mercedes OM353 Unimog regional sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0254, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S0254 in a Mercedes OM353 Unimog regional review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0254 without assuming that every no-crank complaint originates inside the starter.

S0254 Email for Starter Motor B2B Pricing

To discuss S0254 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
