S0591 Mercedes OM636 Starter Motor Wholesale Supply

S0591 Starter Motor Aftermarket Supply for Mercedes-Benz OM636.915 and Hatz diesel

S0591 defines stock for Mercedes-Benz OM636.915 and Hatz diesel as 12V, 2.4kW, 9T and CW. Confirm 12V 2.4kW 9T module-3 two-hole starter with an Ø105 mm mounting-hole circle before releasing a first order or replacing an approved sample.

For the first S0591 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S0591 Starter Motor Specification Table for B2B Sourcing

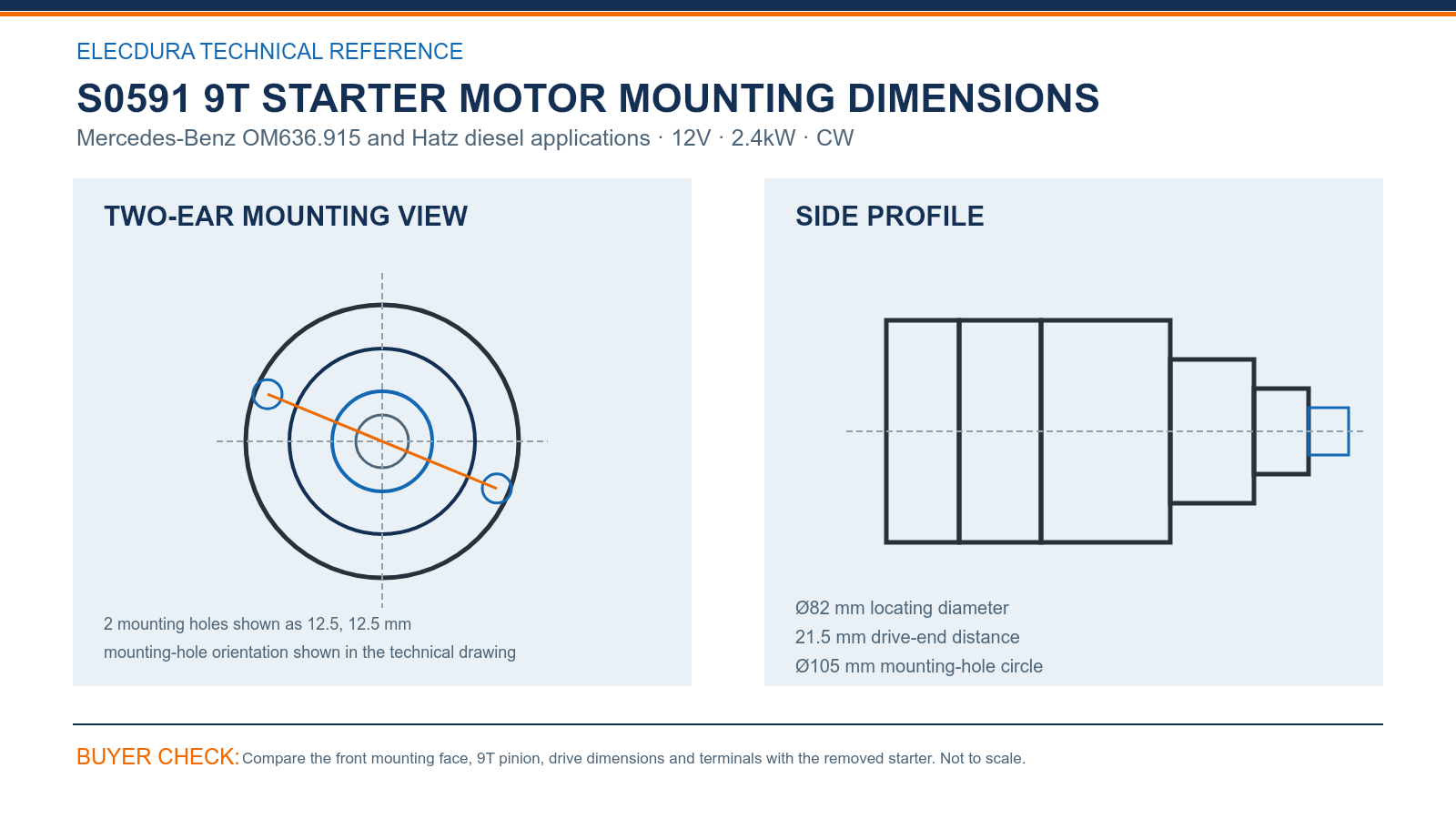

A warehouse can confirm the S0591 interface without dismantling the unit. Measure Ø82 mm locating diameter and Ø105 mm mounting-hole circle, inspect 2 mounting holes shown as 12.5, 12.5 mm, then verify the 21.5 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S0591, record 9T, CW, 12V and 2.4kW, including module 3. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

S0591 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S0591, 0001354006, 0001354088, 0001362074, 0001366014, CST10261AS, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S0591 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial S0591 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S0591 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0591 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0591 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S0591 stock in a Mercedes OM636 regional program for a two-hole OM636 mounting face?

Retain the 9T drive and two-hole geometry because three-hole Bosch units are not equivalent. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Why is a straight mounting-face photo useful for confirming S0591 during a Mercedes OM636 regional inspection for a two-hole OM636 mounting face?

Align the removed starter and S0591 at the mounting face. Compare Ø82 mm locating diameter, Ø105 mm mounting-hole circle, 2 mounting holes shown as 12.5, 12.5 mm and 21.5 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can S0591 be selected from the application name alone during regional sourcing for a two-hole OM636 mounting face?

Confirm S0591 with the complete OE number, Mercedes-Benz OM636.915 and Hatz diesel record and clear front, side and terminal photographs. Check 9T, 2 mounting holes shown as 12.5, 12.5 mm and 21.5 mm drive-end distance so visually related starters stay on separate order lines.

Which checks should follow an OE-number match for S0591 in a Mercedes OM636 regional sourcing program for a two-hole OM636 mounting face?

A number match narrows the search but does not finish it. For S0591, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of S0591 in a Mercedes OM636 regional workshop for a two-hole OM636 mounting face?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0591. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

What receiving records are useful for a shipment of S0591 during a Mercedes OM636 regional receiving check for a two-hole OM636 mounting face?

Receiving should verify the S0591 label, quantity and packaging before opening sampled cartons. Compare the 9T drive, Ø82 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S0591 in a Mercedes OM636 regional sourcing program for a two-hole OM636 mounting face?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0591, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S0591 in a Mercedes OM636 regional review for a two-hole OM636 mounting face?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0591 without assuming that every no-crank complaint originates inside the starter.

S0591 Start a Starter Motor Wholesale Enquiry

To discuss S0591 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
