S0737S Mercedes OM353 Starter Motor Wholesale

S0737S Starter Motor Fleet Replacement Supply for Mercedes-Benz OM353.949 engine

S0737S supports Mercedes-Benz OM353.949 engine sourcing where buyers need a defined electrical and drive-end match. Its 12V, 3.0kW, 9T CW specification must remain linked to the 12V 3.0kW 9T catalog configuration for the OM353.949 record; a visually related unit may belong on a different RFQ line.

A useful enquiry pairs S0737S with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S0737S Starter Motor Mounting Dimensions for Distributor Approval

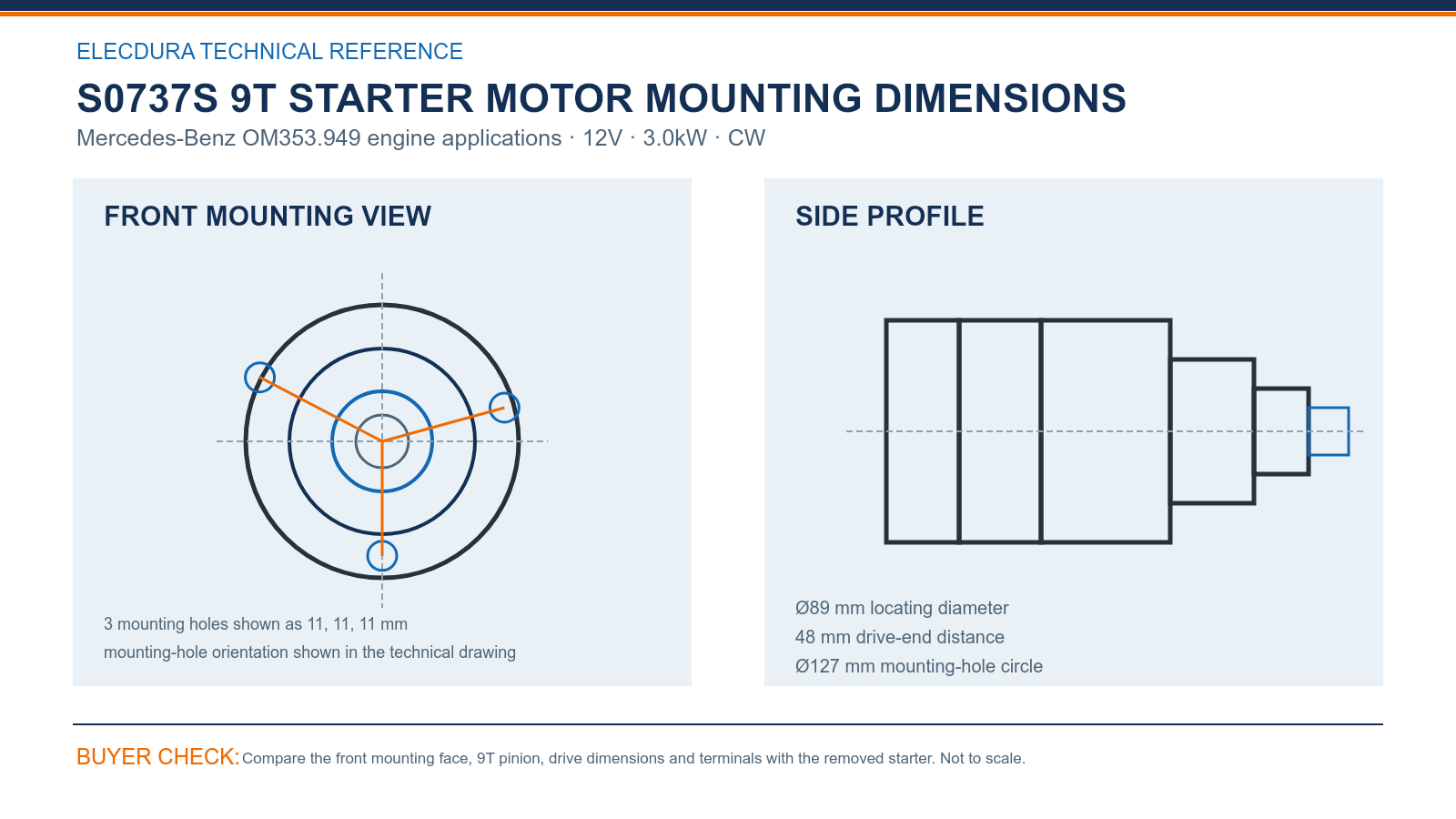

S0737S Mercedes-Benz OM353.949 engine 12V 3.0kW 9T starter mounting dimensions.

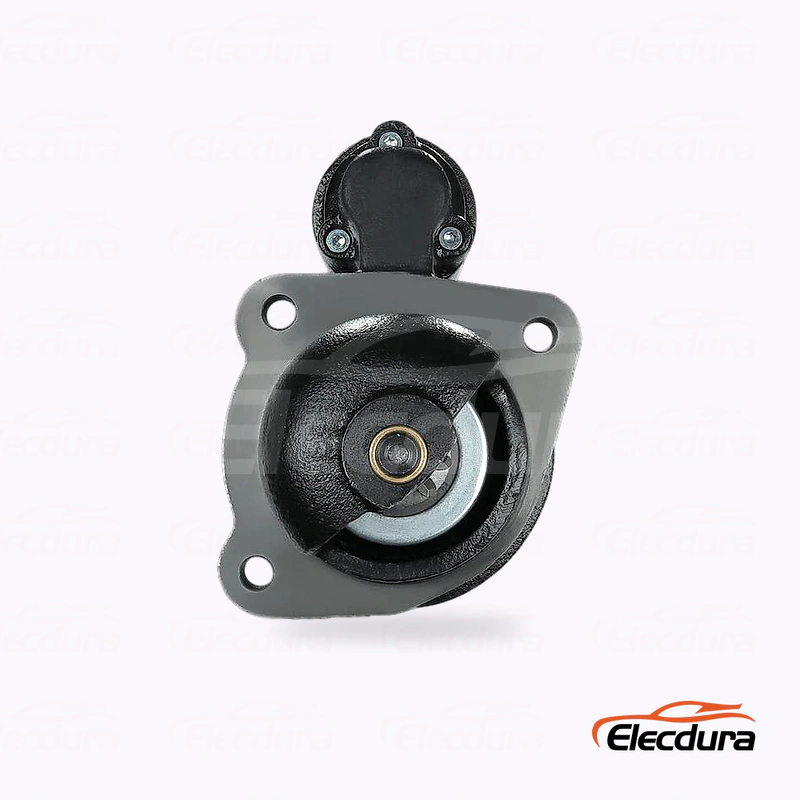

For S0737S first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 48 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

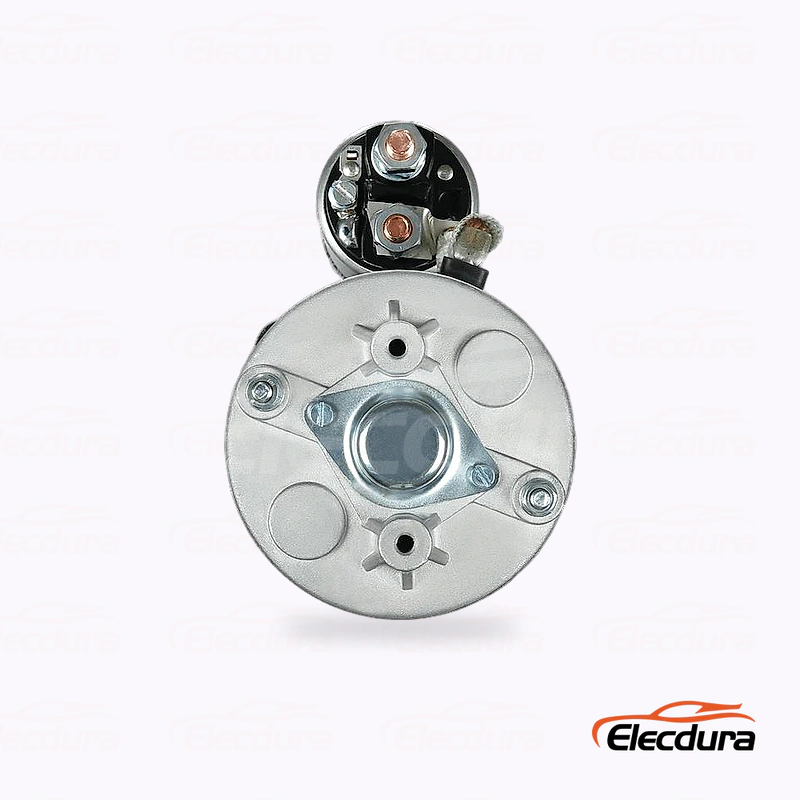

The S0737S drive-end decision is completed by 9T, module 3 and CW, together with 12V and 3.0kW. Confirm main-terminal and control-terminal positions under the actual cable routing. Similar dimensions do not compensate for the wrong rotation, pinion or electrical rating.

S0737S Starter Motor OE Number Guide for Aftermarket Supply

The S0737S cross-reference group includes S0737S, 0001359111, 0001367010, 0001367039, 0986011250, 0986011251, 9000083053. Use these numbers to search supplier systems, then confirm 12V, 3.0kW, 9T, CW, mounting geometry and terminals.

For S0737S, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0737S Starter Motor Wholesale Ordering and Export Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S0737S, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Preserve the accepted terminal and mounting views for commercial-engine reorders. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0737S continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0737S Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering S0737S for Mercedes-Benz OM353.949 engine during workshop sourcing?

Use the full old-unit number and Mercedes-Benz OM353.949 engine record. Compare the 9T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

How can a service team rule out cable or battery faults before fitting S0737S during a Mercedes OM353 workshop diagnosis?

Record battery voltage at rest and during the start attempt, then test both main cables under load. Check grounds, terminal tightness and the control feed to the solenoid. Supplying those readings with an enquiry for S0737S helps the workshop avoid replacing a sound starter when the actual fault is elsewhere.

Why is the S0737S reference match only the start of product selection in a Mercedes OM353 workshop sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0737S group is acceptable only when 12V, 3.0kW, 9T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

How does the S0737S mounting drawing support product approval during a Mercedes OM353 workshop inspection?

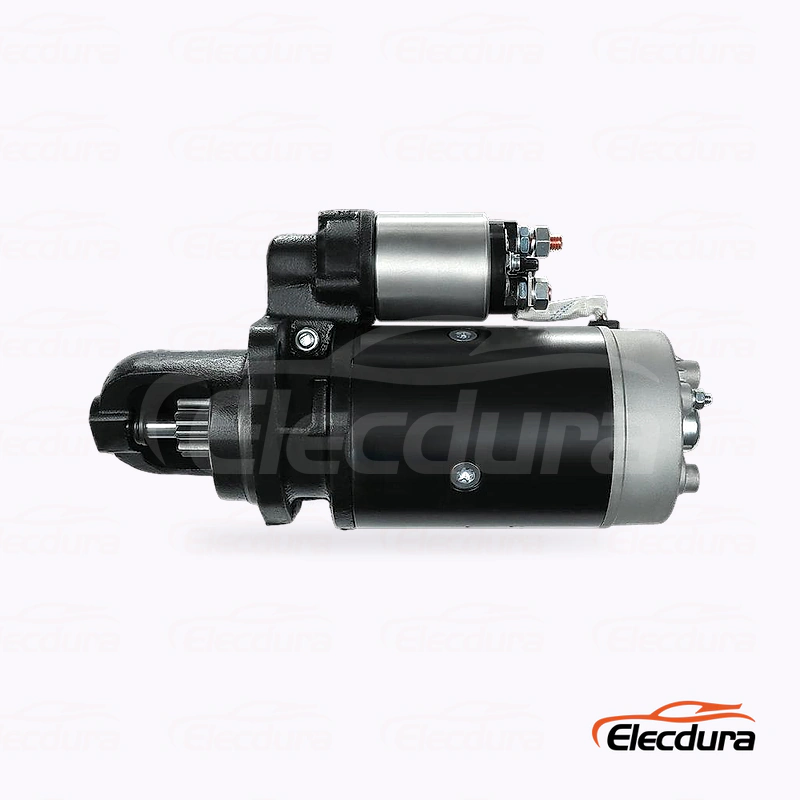

For S0737S, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 48 mm drive-end distance in the side view. Add 9T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How can branches reduce emergency transfers of S0737S stock in a Mercedes OM353 workshop program?

Preserve the accepted terminal and mounting views for commercial-engine reorders. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of S0737S during a Mercedes OM353 workshop receiving check?

Receiving should verify the S0737S label, quantity and packaging before opening sampled cartons. Compare the 9T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for S0737S in a Mercedes OM353 workshop sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0737S, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from S0737S in a Mercedes OM353 workshop review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0737S without assuming that every no-crank complaint originates inside the starter.

S0737S Start a Starter Motor Wholesale Enquiry

Prepare the S0737S enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
