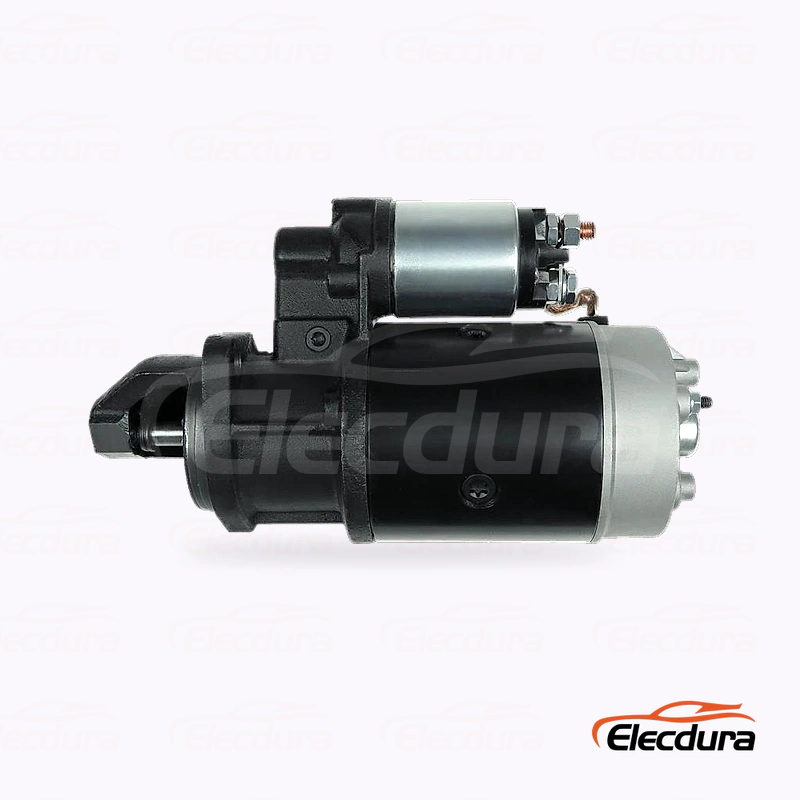

S0663S Claas Mercedes OM636 Starter Motor Wholesale

S0663S Starter Motor B2B Fitment Guide for Claas Columbus and Mercedes OM636

Claas agricultural dealers, Mercedes classic-parts distributors and starter wholesalers can source S0663S for Claas Columbus and Mercedes OM636. Preserve the 9T pinion and 12V 2.7kW 9T catalog configuration for the OM636 application group; do not substitute by engine family or housing appearance alone.

Send the full S0663S application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

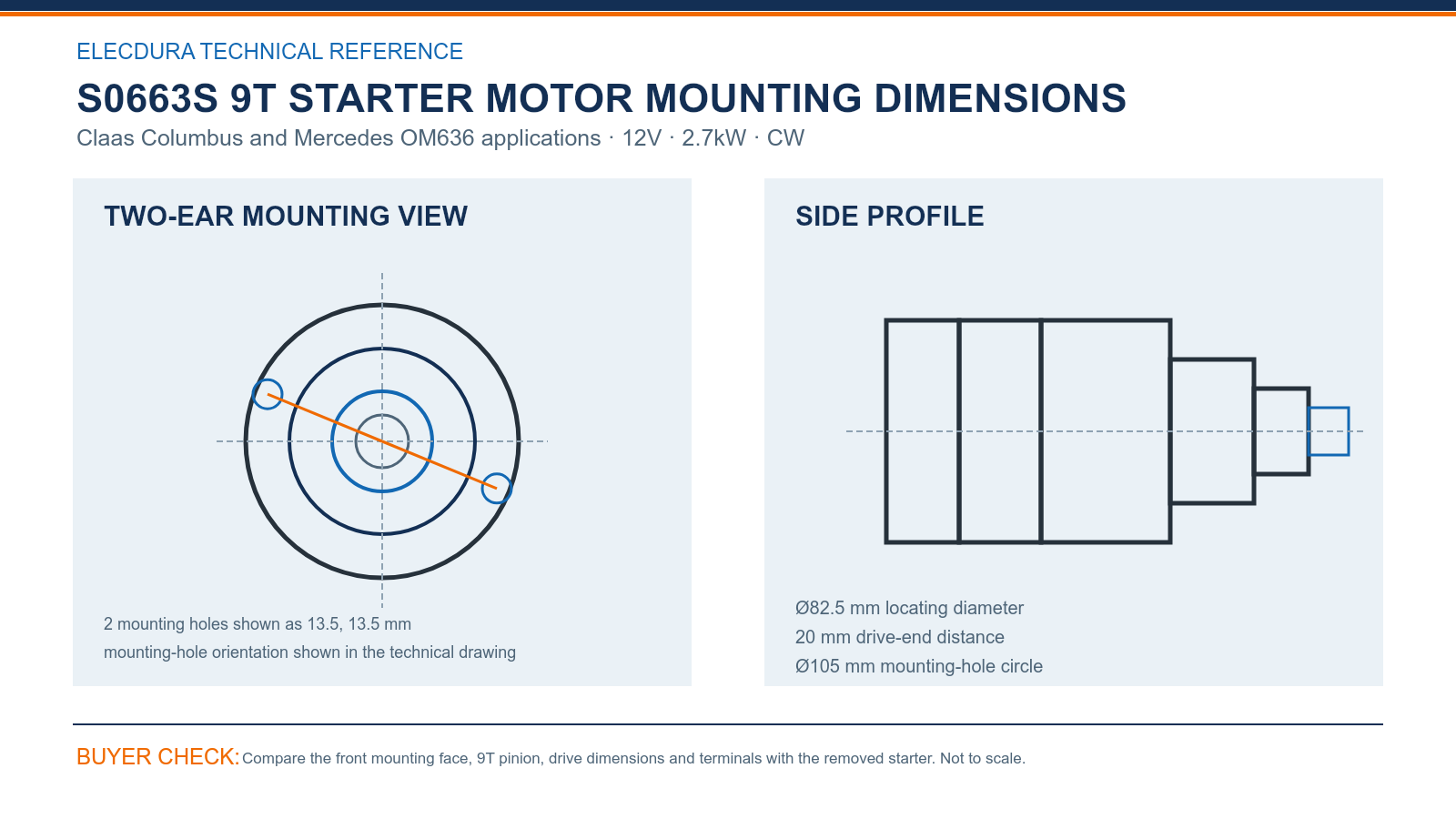

S0663S Starter Motor Drive-End Drawing for Aftermarket Distributors

S0663S Claas Columbus and Mercedes OM636 12V 2.7kW 9T starter mounting dimensions.

Compare S0663S at the 2 mounting holes shown as 13.5, 13.5 mm, Ø105 mm mounting-hole circle and Ø82.5 mm locating diameter. The 20 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S0663S, count the 9T pinion and confirm module 3, CW rotation, 12V and 2.7kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S0663S Starter Motor Reference Group for Wholesale Sourcing

1. Search group: S0663S, 112249, 0001354031, 0001354095, 0001362033, 0001362053, 0001366025 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 2.7kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0663S Starter Motor Distributor Stock and Delivery Support

MOQ begins at 20 pieces, with normal lead time of 7–15 days after order confirmation and an 18-month warranty under agreed terms. For S0663S, the offer can distinguish samples, available stock and production quantities while confirming carton protection and the shipment plan for the destination.

Stock planning should reflect the supported Claas Columbus and Mercedes OM636 population, recent consumption and transfer time between service locations. Keeping S0663S, the 9T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0663S continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0663S Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S0663S during a Claas Mercedes OM636 dealer receiving check?

For S0663S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 2 mounting holes shown as 13.5, 13.5 mm, Ø82.5 mm locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What workshop readings are useful when diagnosing a starting complaint involving S0663S during a Claas Mercedes OM636 dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0663S. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How can an importer avoid mixing S0663S with a similar drive-end version during dealer sourcing?

For S0663S in Claas Columbus and Mercedes OM636, confirm the machine or engine identity and read the full old-unit label. Check 9T, Ø105 mm mounting-hole circle, Ø82.5 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

When does a cross-reference related to S0663S need a separate quotation in a Claas Mercedes OM636 dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0663S group is acceptable only when 12V, 2.7kW, 9T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

What physical controls belong on a first-lot check for S0663S during a Claas Mercedes OM636 dealer inspection?

For S0663S, compare 2 mounting holes shown as 13.5, 13.5 mm and Ø105 mm mounting-hole circle in a straight front view, then Ø82.5 mm locating diameter and 20 mm drive-end distance in the side view. Add 9T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How should Mercedes-Benz distributors plan stock for S0663S in a Claas Mercedes OM636 dealer program?

Keep agricultural and vehicle records linked to the approved starter view. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S0663S in a Claas Mercedes OM636 dealer sourcing program?

A useful RFQ states S0663S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S0663S in a Claas Mercedes OM636 dealer review?

For a service review of S0663S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0663S Start a Starter Motor Wholesale Enquiry

For a focused S0663S quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
