207-1551 Caterpillar Starter Motor 24V 8.5kW 12T

207-1551 Construction Equipment Starter Motor for CAT C7 (325B)

For regional parts suppliers building a new starter range, 207-1551 is an aftermarket construction equipment starter motor for CAT C7 (325B). Its 24V system, 8.5kW output and 12T pinion give construction-equipment parts distributors, importers and fleet suppliers a clear product definition for OE-reference replacement and repeat-order sourcing.

For aftermarket wholesalers requesting production pricing, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

207-1551 Starter Motor Specifications and Technical Drawing

For product managers comparing the flange and terminals, the 8.5kW output makes the electrical match especially important. Confirm the 24V system, cable capacity, grounds and the old starter rating before approving this configuration for a batch order.

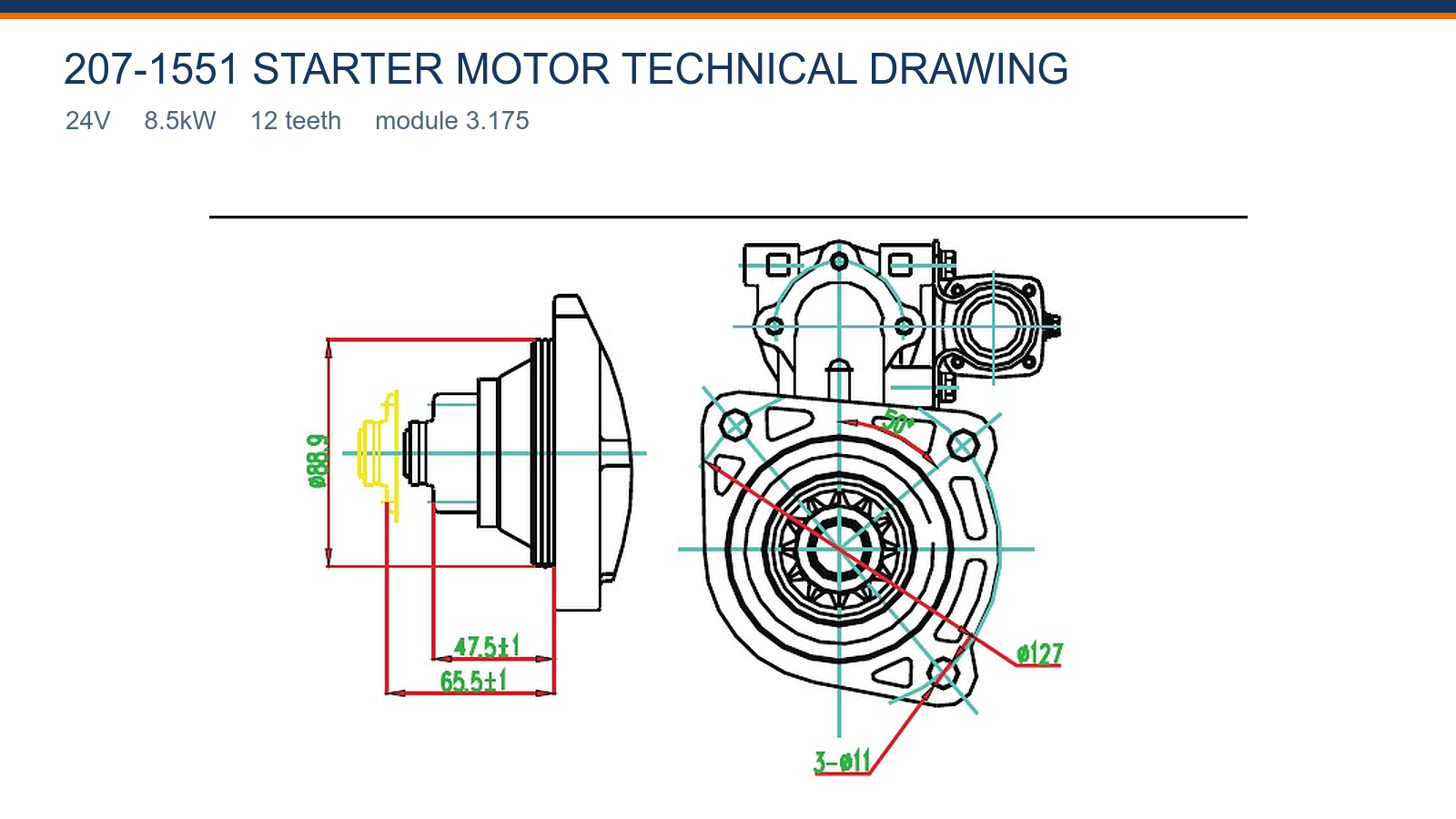

For maintenance suppliers reviewing a replacement proposal, the source-faithful technical drawing records the available mounting information for 207-1551, including 3×Ø11, 65.5±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

207-1551 Aftermarket Replacement and Application

For fitment reviewers matching the unit taken from service, this aftermarket starter motor is organized around 207-1551 for CAT C7 (325B). Related numbers remain useful search and purchasing references, but Elecdura treats a changed rating, pinion, flange or terminal layout as a separate version for quotation.

For application specialists reviewing drive-end geometry, start with the complete reference and application, then compare the 12T drive, flange shape and terminal orientation. A physical difference should be resolved before volume pricing is accepted.

207-1551 Wholesale Supply for Distributors and Importers

For sales teams opening a first trade order, Elecdura supports repeat-order and new-line sourcing for 207-1551. Commercial planning can cover a 20 pcs MOQ, 7–15 day lead time subject to confirmation, neutral packaging or private-label review, and an 18-month agreed warranty.

For warehouse planners confirming an incoming batch, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

207-1551 Starter Motor Buyer FAQ

How can an importer validate 207-1551 carton identification when checking a replacement proposal?

For aftermarket product managers preparing distributor pricing, ask that unit and carton labels repeat the agreed reference, 24V, 8.5kW and 12T where the packaging format permits. Add the customer's barcode and destination marks before production. Clear identification allows distributors to receive, bin and pick this version without opening packaging or relying on a generic starter description.

What should receiving teams compare on 3×Ø11 when preparing a technical RFQ?

For engine-parts specialists comparing nearby starter versions, the drawing lists 3×Ø11 for 207-1551. Count the holes, measure their diameters and compare their positions from the locating face. A matching outer housing does not compensate for a hole pattern that will not seat squarely, so flange geometry should pass before the starter reaches the installation bay.

Which specification deserves priority for 24V and 8.5kW before comparing delivery options?

For fleet-parts buyers preparing a technical RFQ, 207-1551 is defined as 24V and 8.5kW. Confirm the machine electrical system and the old starter rating together, because voltage determines system compatibility while output affects cranking performance. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

Which check should lead 207-1551 cartons and units during an application review?

For aftermarket wholesalers preparing a volume quote, sample cartons from different positions in the shipment and compare the 207-1551 labels, 24V marking, 12-tooth pinion, flange shape and terminal protection with the buying description. Photograph any mixed marking, damaged terminal or different drive end ahead of installation, and isolate those pieces so the rest of the lot can be assessed consistently.

Which comparison prevents a mismatch for 65.5±1 mm before an installation slot is booked?

For fitment reviewers comparing the flange and terminals, use 65.5±1 mm when comparing 207-1551. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

How can an importer validate 207-1551 among Caterpillar versions when checking a replacement proposal?

For application specialists reviewing a replacement proposal, 207-1551 should remain separate from another Caterpillar starter whenever voltage, output, tooth count, module, flange geometry or terminal position changes. For this line, retain 24V, 8.5kW and 12T together in the purchasing description. That specification bundle gives sales, warehouse and technical teams one consistent basis for reviewing alternatives.

How can a buyer screen 207-1551 drive-end photograph when confirming the RFQ entry?

For replacement-parts sellers confirming the stated application, the drive-end image for 207-1551 should be used to count 12 teeth and compare the flange, locating shoulder and pinion rest position. View the customer's old starter from the same angle and lighting. An uneven camera angle can mask the pinion and bolt positions; clear frontal framing supports a better replacement decision.

Which specification deserves priority for 207-1551 solenoid and cable routing when confirming the RFQ entry?

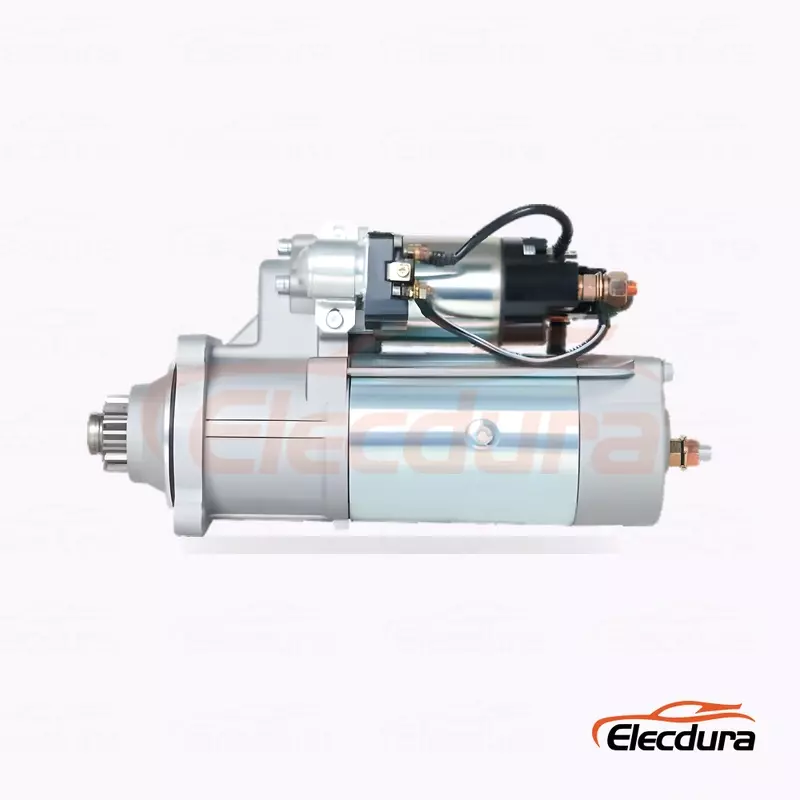

For service-parts networks checking application evidence, use the side and rear photographs of 207-1551 to check solenoid position, battery-stud direction and start-terminal access in CAT C7 (325B). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

Request a Wholesale Quote for 207-1551 Construction Equipment Starter Motor

For importers preparing a volume quote, provide 207-1551, CAT C7 (325B), expected order quantity and destination. Include photos or measurements when the starter being replaced differs in suffix or mounting appearance, and Elecdura will review the correct version before pricing.
