M3T56174 Caterpillar Starter Motor 24V 5.5kW 10T

M3T56174 Forklift Starter Motor for CAT S6K (forklift FD50, FD70)

For aftermarket wholesalers building a new starter range, M3T56174 gives forklift parts distributors, importers and service networks a defined aftermarket starter motor for CAT S6K (forklift FD50, FD70). The supplied version combines 24V, 5.5kW and 10T for OE-reference matching, wholesale quotation and repeat purchasing.

For sourcing managers setting packaging requirements, distributors can quote the exact application and starter configuration without turning the page into a generic component guide. Elecdura can also review customer labels, carton requirements and inspection documents for planned orders.

M3T56174 Starter Motor Specifications and Technical Drawing

For maintenance suppliers comparing the flange and terminals, this reference group can cover nearby starter versions. Keep M3T56174, 24V, 5.5kW and 10T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

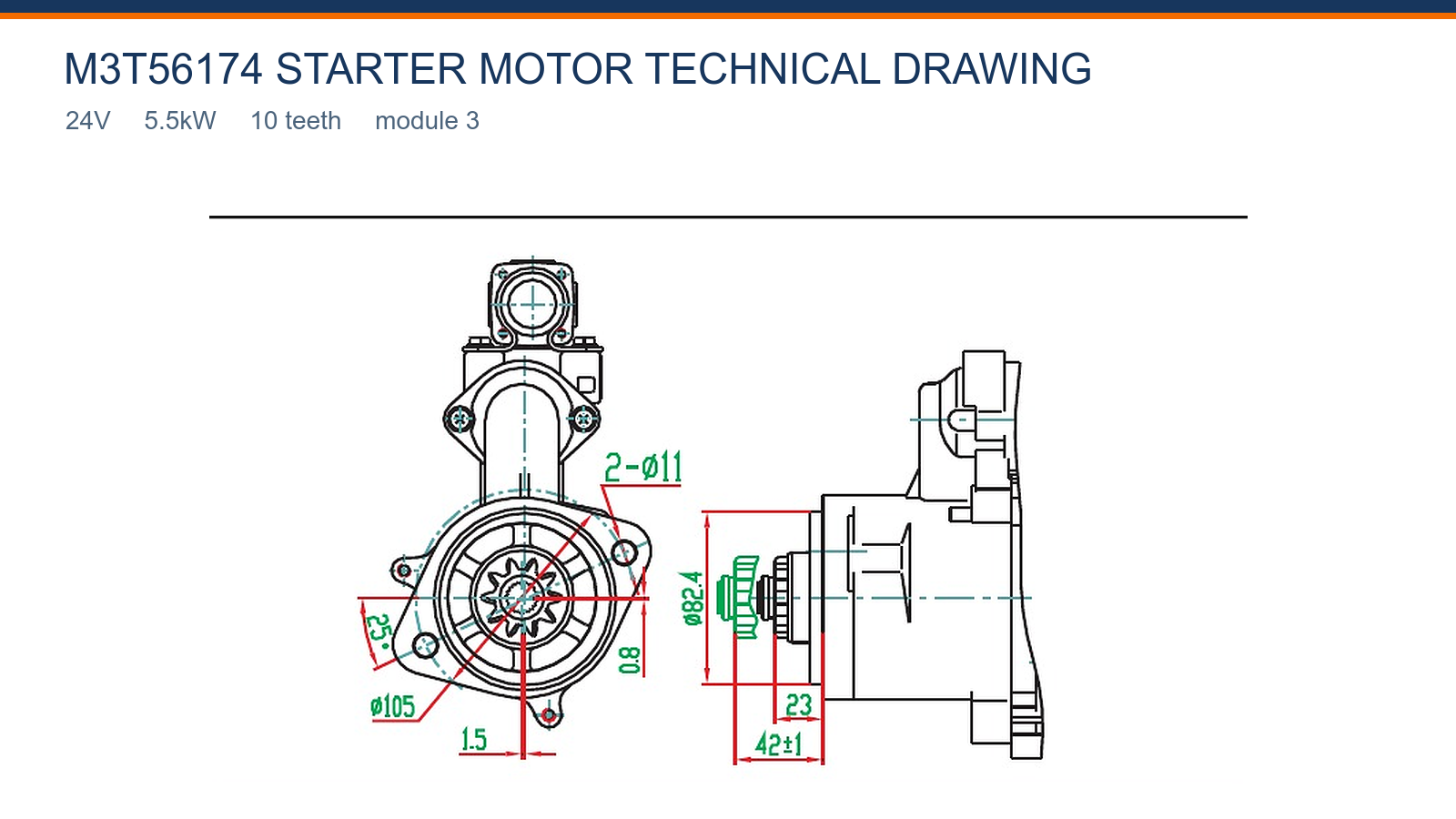

For equipment-parts dealers reviewing a replacement proposal, the source-faithful technical drawing records the available mounting information for M3T56174, including 2×Ø11, Ø105, Ø82.4, 1.5 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M3T56174 Aftermarket Replacement and Application

For application specialists matching the existing starter, match M3T56174 to CAT S6K (forklift FD50, FD70) and keep the related numbers M3T56174, M3T56184, 34766-10903 on the same enquiry. If the old unit carries another suffix, flange, drive or terminal arrangement, quote it separately until the physical version is confirmed.

For replacement-parts sellers reviewing drive-end geometry, do not merge a easily confused unit into this order only because the main number is related. The 10T drive, module 3, flange and terminals should agree with the version shown here.

M3T56174 Wholesale Supply for Distributors and Importers

For warehouse planners opening a first stocking order, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For importers confirming an incoming batch, define the reference group, accepted product version, inspection request and packaging standard before production. Those records help both sides manage replenishment and resolve any receiving question efficiently.

M3T56174 Starter Motor Buyer FAQ

What should purchasing verify first for 2×Ø11 when preparing a product query?

For engine-parts specialists reviewing drive-end geometry, the drawing lists 2×Ø11 for M3T56174. Count the holes, measure their diameters and compare their positions from the locating face. A matching outer housing does not compensate for a hole pattern that will not seat squarely, so flange geometry should pass before the starter reaches the installation bay.

How can an importer validate M3T56174 locating face during fitment review?

For fleet-parts buyers comparing nearby starter versions, the M3T56174 flange should sit flat against the CAT S6K (forklift FD50, FD70) mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

What evidence best identifies 2×Ø11, Ø105, Ø82.4 and 1.5 mm before comparing delivery options?

For technical sales teams preparing a technical RFQ, use the supplied technical drawing to compare 2×Ø11, Ø105, Ø82.4 and 1.5 mm. Take each measurement from the same face shown or described, then compare the locating shoulder, bolt pattern and drive-end projection as one set. A single matching diameter is not enough if the hole pattern or axial reach places the pinion differently.

Which comparison prevents a mismatch for module 3 when checking a replacement proposal?

For fitment reviewers evaluating a direct replacement, module 3 is part of the gear geometry for M3T56174. Confirm it together with the 10-tooth count and pinion diameter; another module changes tooth pitch even when the number of teeth is unchanged. The old starter or ring-gear specification should therefore support the module match before a substitute is accepted.

Which check should lead M3T56174 drawing dimensions before accepting a substitute?

For application specialists comparing the flange and terminals, read the M3T56174 drawing as a comparison aid, not as permission to ignore the starter being replaced. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

What evidence best identifies M3T56174 order testing for a first distributor purchase?

For sales teams planning mixed-model inventory, Elecdura can discuss armature, solenoid, no-load and load testing for M3T56174. State the required report format, sampling expectation and acceptance points in the RFQ. Testing should use the stated 24V and 5.5kW configuration, while identity and mounting checks remain separate because electrical results do not prove physical interchangeability.

What evidence best identifies M3T56174 stock identification before accepting a substitute?

For warehouse planners updating a customer item master, label the storage location with M3T56174, 24V, 5.5kW and 10T, and keep a verified drive-end and rear-view image with the item master. Do not combine easily confused Caterpillar units when a module, mounting reference or terminal orientation differs. Clear version separation supports faster picking and reduces returns caused by near-match stock.

How can an importer validate flange clocking for repeatable sourcing?

For importers checking application evidence, no separate angular callout is stated for M3T56174. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

Request a Wholesale Quote for M3T56174 Forklift Starter Motor

For inventory buyers defining label requirements, ask for a quote on M3T56174 with the full CAT S6K (forklift FD50, FD70) record, quantity and packaging plan. We will verify the requested 24V, 5.5kW and 10T configuration and return the relevant wholesale terms.
