1113256 Case Crane 250 12T Starter Motor Wholesale

1113256 Starter Three-Hole Checks for B2B Approval

The Delco-style face shown here uses three Ø16 mounting references, two 60° lower relationships, a 51° upper reference, an Ø92 locating diameter, an Ø146 face reference and a 43 mm drive-end dimension. These details allow a heavy-equipment distributor to compare the actual nose housing before committing to a production quantity.

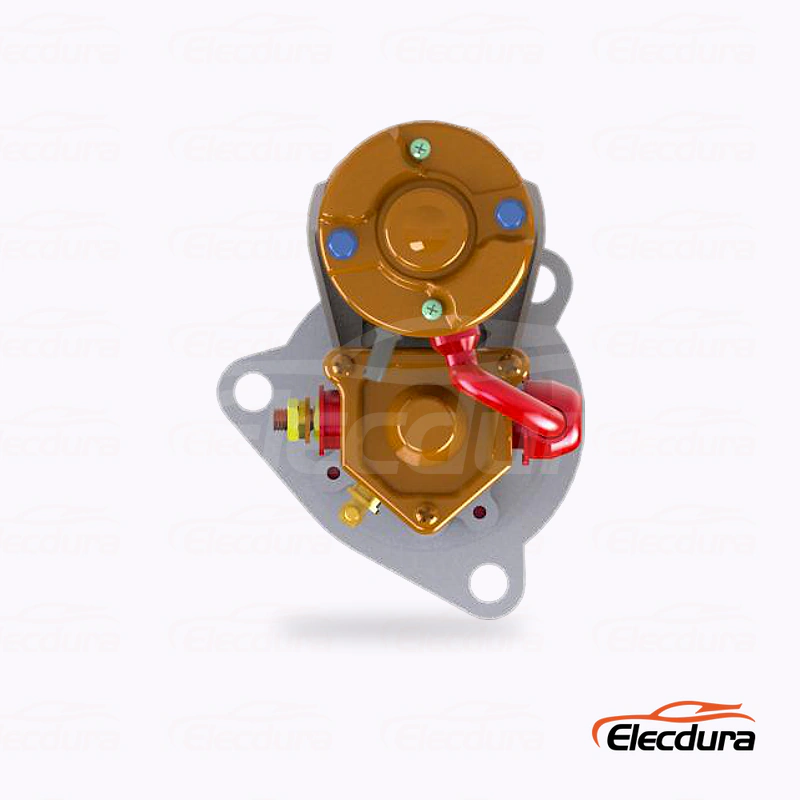

Take photographs perpendicular to the mounting face and from the terminal side. Angled product photos can hide an ear position or solenoid clocking difference that becomes obvious only during installation.

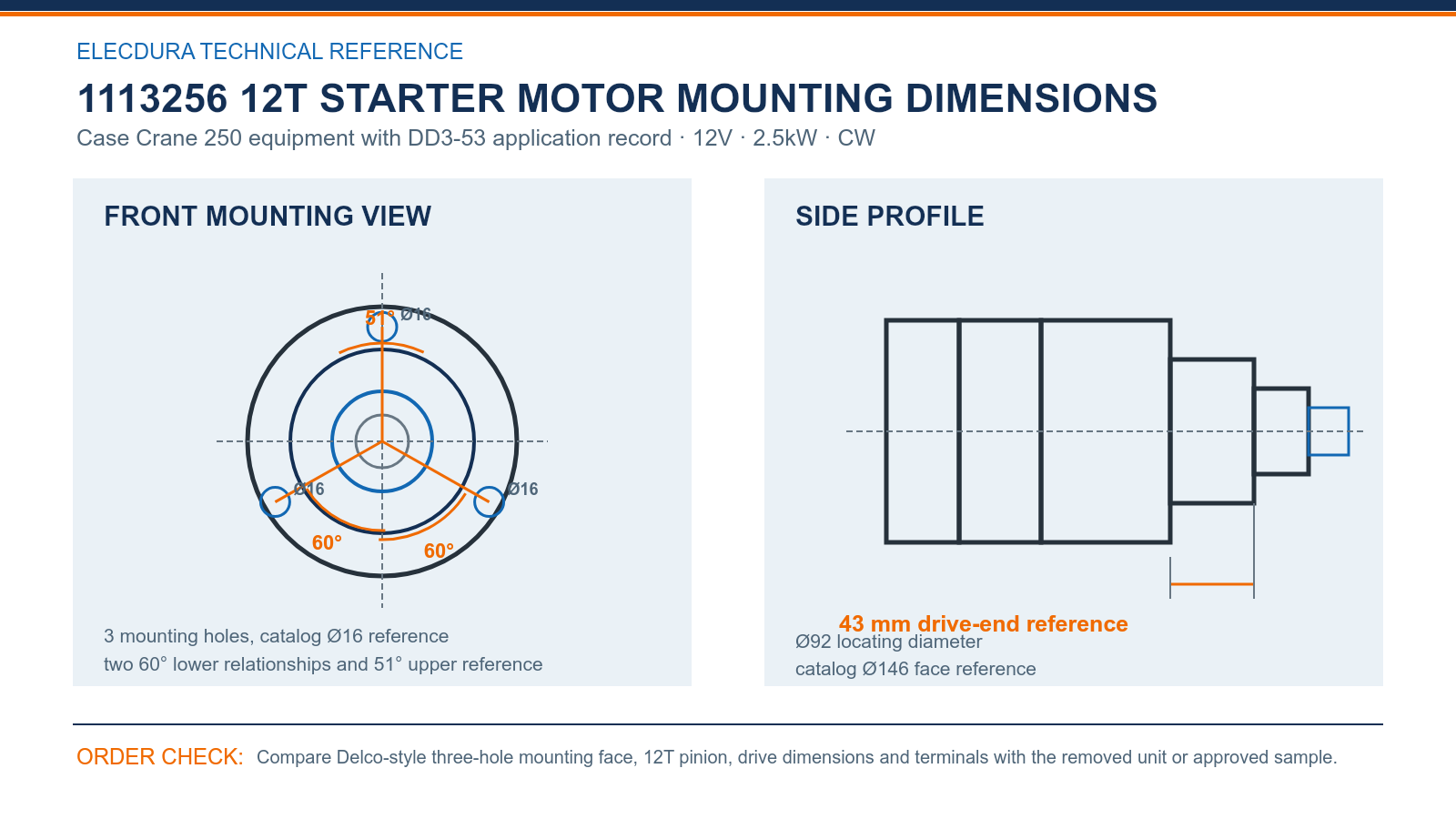

1113256 12V 2.5kW Starter Motor Specifications and B2B Fitment Drawing

1113256 12T starter mounting and drive-end reference for B2B sample review.

Heavy-equipment procurement teams can use the 1113256 diagram as a sample-inspection checklist. Its key references include 3 mounting holes, catalog Ø16 reference, two 60° lower relationships and 51° upper reference, Ø92 locating diameter and 43 mm drive-end reference.

The approved old unit remains the control whenever a heavy-equipment service record is incomplete.

1113256 Starter Specification for Case Crane 250 Service

Crane-parts buyers need the replacement record to be as specific as the machine they are supporting. The 1113256 version offered here is rated 12V, 2.5kW, 12T and CW for Case Crane 250 with DD3-53 machine details. That complete definition should appear on the RFQ and purchase order.

Other 1113256 listings can describe different electrical versions. Elecdura therefore uses the buyer’s old unit, machine record and approved sample as the control for this product rather than treating a broad aftermarket number as complete fitment proof.

1113256 Starter Wholesale Support for Crane Parts Distributors

Elecdura can quote a sample, scheduled stock order or repeat supply program for this Case starter. Neutral cartons are available, and private-label packaging can be evaluated after the exact product, labeling content, quantity and destination are confirmed.

• Keep machine model and DD3-53 record with the OE number.

• Use the approved sample as the receiving benchmark.

• Separate any different-voltage 1113256 request into its own inquiry.

The video below gives procurement teams an overview of Elecdura starter production and testing. Product selection for this Case Crane 250 inquiry still depends on the catalog 12V 2.5kW 12T specification, complete reference, mounting drawing and customer approval record.

1113256 Case Crane 250 equipment with DD3-53 machine details Starter Motor Wholesale FAQ

Why is the 1113256 starter on this page specified as 12V?

This Case Crane 250 DD3-53 product line is specified as 12V, 2.5kW, 12 teeth and CW rotation. Other market pages may use 1113256 for a different electrical version. Send the old starter and machine evidence so Elecdura can confirm this exact configuration before bulk supply.

Can every Delco Remy 1113256 listing replace this Case starter?

No automatic interchange should be assumed from the number alone. The buyer must compare voltage, rated power, twelve pinion teeth, three-hole face, locating diameter, drive depth and terminals. A listing that differs in electrical rating or geometry should remain a separate product record even when it uses the same prominent reference.

What should a Case Crane 250 buyer send with the RFQ?

Provide the complete 1113256 or related number, machine model, DD3-53 record, old-unit photos, required quantity, destination and packaging preference. Include close views of the pinion, three-hole mounting face and terminals. If a drawing or previous approved sample exists, attach it so the quotation is tied to the correct version.

How do the three Ø16 holes help identify the starter?

The hole count and size are useful only when combined with their clocking. The catalog shows two 60° lower relationships and a 51° upper reference around the face. Comparing that geometry with the removed starter helps separate housings that appear similar from the side but mount differently on the equipment.

What do the Ø92 and 43 mm dimensions represent for approval?

They are catalog control points for the locating and drive-end geometry. The buyer should measure the actual unit or approved sample with suitable tools and compare the values with the drawing. Do not scale the website image, because screen size and browser rendering cannot provide a valid inspection measurement.

Why should another-voltage 1113256 request be kept separate?

Voltage is a fundamental application requirement and cannot be corrected through packaging or a cross-reference note. Keeping a different-voltage inquiry in its own product record protects quotations, stock labels and receiving inspection. It also prevents staff from shipping a visually similar unit into the wrong Case or heavy-equipment electrical system.

How is a first 1113256 sample approved for repeat orders?

Check the agreed label, catalog 12V and 2.5kW rating, twelve teeth, clockwise rotation, three-hole clocking, locating diameter, 43 mm side reference and terminal position. Photograph the accepted sample and save the measurements with the Case Crane 250 record so production and later receiving teams use the same benchmark.

Can Elecdura provide distributor packaging for this Case starter?

Yes. Neutral packaging can support ordinary wholesale orders, while private-label cartons, labels and barcodes are reviewed for qualified programs. Buyers should provide artwork, quantity, destination and inspection requirements early. The packaging approval must identify this exact catalog 1113256 12V 12T line, not a generic Delco starter.

Request a 1113256 Starter Motor Wholesale Quote

Provide the Case Crane 250 and DD3-53 record, complete 1113256 reference, twelve-tooth confirmation, three-hole measurements and required quantity. Elecdura will base the quotation on the stated 12V 2.5kW product and the buyer-approved heavy-equipment sample.

Add the Case equipment photographs, measured nose details and the buyer’s test expectations. Elecdura can respond with the sample route and commercial terms for this 1113256 heavy-equipment requirement.
