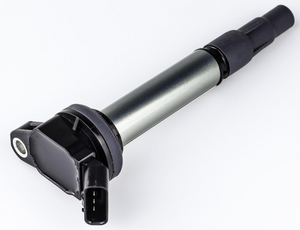

Elecdurauto ignition coil, OE numbers 90919-02252 / 90919-02258, is precisely engineered for 2009 Toyota Corolla 1.6L / 1.8L / 2.0L engines using ZR-series powertrains. This component offers direct-fit replacement for OE parts including 90919-C2003, 90919-C2005, and aftermarket equivalents such as 0986AG0711, UF596, UF619.
Ideal for ignition system replacement scenarios requiring stable voltage delivery, reliable spark timing, and long-term thermal performance. The coil incorporates high-conductivity copper windings, PPS high-temperature housing, and epoxy resin encapsulation to resist heat, moisture, and vibration—delivering consistent energy output and extended service life across daily driving or fleet operations.
90919-02258 / 90919-02252 / 90919-C2003 / 90919-C2005
Copper windings, PPS housing, silicone boot
Elecdurauto
China
IATF 16949 / ISO 9001 / ISO 14000 / OHSAS 18000
OEM label and ODM customization accepted
100 pcs
7–15 Days
50,000 pcs / month
Individual box / 4-pack set / bulk tray / custom label
High-voltage tester, coil resistance meter, insulation tester, etc.
18 months / 12,000 miles
90919-02258 / 90919-02252 / UF596 / UF619 / 0986A-G0711
Corolla models using 1.6L 1.8L engine
Model Years 2009 / 2010 / 2011 / 2012 / 2013 / 2014
| Quantity: | |
|---|---|
Product Description
Stable Spark Output Across Driving Conditions: Delivers consistent ignition performance for Toyota Corolla models, including those equipped with 1ZR, 2ZR, and 3ZR engines—ideal for high RPM, daily commute, and stop-start traffic.
High-Purity Copper Windings: Optimized for enhanced conductivity and reduced energy loss, ensuring efficient coil energy transfer and quicker engine starts in all climates.
Durable Epoxy-Encased Housing: Provides long-lasting insulation against thermal stress, vibration, and moisture—extending coil service life in compact sedans and hybrid platforms.
OE-Grade Fit and Functionality: Designed for direct-fit replacement of OE numbers 90919-02252, 90919-02258, 90919C2003, and UF596; ensures reliable compatibility with coil-on-plug systems in 2009 Toyota Corolla Ignition Coil.
Adaptable Across Multiple Toyota Platforms: Compatible with various Corolla variants, as well as Prius, Levin, Verso, and CT200h hybrid models—ideal for distributors managing broad inventory needs.
Reliable Performance in High-Load Conditions: Engineered for high-cylinder pressure applications to support smoother acceleration and reduce risk of misfires.
Eco-Compatible for Advanced Engine Designs: Meets the demands of EGR-equipped and lean-burn hybrid powertrains, contributing to improved fuel economy and reduced emissions in modern Toyota applications.
| Specification | Description |
|---|---|
| Coil Type | Coil On Plug (COP) Ignition |
| Voltage | 12V DC (Nominal) |
| Peak Ignition Voltage | Up to 45,000 V |
| Spark Energy | 45 – 60 mJ (varies by operating condition) |
| Primary Resistance | 0.35 – 0.55 Ω |
| Secondary Resistance | 5,500 – 9,000 Ω |
| Turns Ratio (P:S) | Approx. 1:85 |
| Inductance | 2.7 – 3.9 mH |
| Voltage Rise Time | < 2.0 kV/µs |
| Operating Temperature | –40°C to +135°C |
| Storage Temperature | –40°C to +100°C |
| Fluids Resistance | Resistant to gasoline, engine oil, brake fluid, and antifreeze |
| Vibration Resistance | Up to 55g |
| Housing Material | PPS with epoxy resin encapsulation |
| Mounting Type | 1 Mounting Hole |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Ignition Type | Electronic |
| Oil Filled | No |
| External Resistor Required | No |
| Package Contents | Ignition Coil, Instruction Sheet |
| Coil Wire Included | No |
| Dimensions (L×W×H) | Approx. 108mm × 43mm × 64mm (varies slightly by SKU) |
| Weight | Approx. 370g |
| Applicable Engine Types | 1ZR, 2ZR, 3ZR, 8ZR (Gasoline + Hybrid) |
| Standard Compliance | ISO 9001 / IATF 16949 |
| Make & Model | Platform | Year | Engine Displacement | Engine Code |
|---|---|---|---|---|
| Toyota RAV4 | XA40 | 2013–2016 | 2.0L | 6ZR |
| Toyota RAV4 | XA40 | 2016–Present | 2.0L | 6ZR |
| Toyota Corolla Axio | – | 2007–2016 | 1.6L | 1ZR |
| Toyota Corolla Hybrid | E180 | 2015–Present | 1.8L Hybrid | 8ZR |
| Toyota Corolla | E140/E150 | 2006–2014 | 1.6L | 1ZR |
| Toyota Corolla | E140/E150 | 2006–2014 | 1.8L | 2ZR |
| Toyota Corolla | E140/E150 | 2010–2013 | 2.0L | 3ZR |
| Toyota Corolla | E180 | 2014–Present | 1.6L | 1ZR |
| Toyota Corolla | E180 | 2014–Present | 1.8L | 2ZR |
| Toyota Levin Hybrid | E180 | 2015–Present | 1.8L Hybrid | 8ZR |
| Toyota Levin Hybrid | E210 | 2018–Present | 1.8L Hybrid | 8ZR |
| Toyota Levin | E180 | 2013–Present | 1.6L | 4ZR |
| Toyota Levin | E180 | 2013–Present | 1.8L | 2ZR |
| Toyota Levin | E180 | 2013–Present | 1.8L | 7ZR |
| Toyota Noah | – | 2000–Present | 2.0L | 3ZR-FAE |
| Toyota Prius | – | 2011–Present | 1.8L Hybrid | 5ZR |
| Toyota Vios | XP90 | 2007–2013 | 1.6L | 1ZR |
| Toyota Wish | – | 2009–Present | 2.0L | 3ZR |
| Toyota Yaris | – | 2008–2013 | 1.6L | 4ZR |
| Toyota Yaris | – | 2008–2013 | 1.6L | 1ZR |
| Toyota Verso | – | 2011–2016 | 1.6L | 1ZR |
| Toyota Verso | – | 2011–Present | 1.8L | 2ZR |
| Toyota Verso | – | 2011–2013 | 2.0L | 3ZR |
| Lexus CT200h | A10 | 2011–Present | 1.8L Hybrid | 5ZR |
| Lexus NX200 | AZ10 | 2014–Present | 2.0L | 3ZR |
Understanding what goes inside a high-performance ignition coil reveals why Elecdurauto ignition coils deliver exceptional spark reliability, heat resistance, and long service life.
Every layer of Elecdurauto's ignition coil design is optimised for ignition precision, voltage control, and energy efficiency—especially in EGR (Exhaust Gas Recirculation) and lean-burn systems where fuel economy and CO₂ reduction are essential.
At Elecdurauto, we know that a high-performance ignition coil starts with precision engineering and ends with uncompromising quality control. That's why we've heavily invested in state-of-the-art production equipment and rigorous testing systems to ensure every coil meets OEM-grade expectations reliably and consistently.
Automatic Assembly Machine
ECU Testing Machine
Injection Mould Area
Secondary Winding Machine
Shell Injection Area
Vacuum Casting Equipment
Product Testing Equipment
Ignition Coil Tester
Climate Test Chamber
Thermal Shock Chamber
Assembly Workshop
Comprehensive Performance Tester
Elecdurauto manufactures and supplies high-performance 2009 Toyota Corolla ignition coils designed to meet OE standards across a wide range of Toyota ZR-series engines, including 1ZR, 2ZR, and 3ZR. Built for direct-fit replacement, these coils are trusted by automotive distributors, importers, and aftermarket brands in over 30 countries.
Whether for bulk B2B ignition coil supply, private label production, or aftermarket repair networks, Elecdurauto ignition coils ensure voltage stability, long service life, and reliable compatibility with key Toyota platforms like Corolla, Prius, Yaris, and CT200h.
To maintain our position as a top ignition coil manufacturer, Elecdurauto operates with world-class machinery:
Vacuum Casting Equipment – For high-purity resin insulation and heat resistance
Automatic Winding Machines – Ensuring stable and high-speed coil winding
High-Voltage Testing Systems – Guaranteeing 100% product safety and performance
Injection Moulding Machines – For precise and durable component shaping
We also run a dedicated mould and injection workshop, which allows us to have faster lead times and tighter control over consistency.
We are experts in pencil ignition coils, particularly designed for Toyota and Lexus. Using imported high-temperature copper wire, magnetic cores, and high-grade epoxy, our coils maintain spark strength in extreme environments. Ideal for vehicles using 2GR or 2GR-FE engines.
Our production facilities overlap with Tier 1 OEM manufacturers of Denso, Bosch, Valeo, Delphi, and Magneti Marelli—allowing us to offer equivalent-quality ignition coils that match original performance.
We support OEM replacement ignition coils, branded label customisation, and custom SKU development tailored to your local market needs.
Want to highlight your branding? We support private label ignition coil production with your logo, packaging, and barcode-ready shipping.
We manage the entire production cycle—from raw material inspection to final packaging—with rigorous checks at every stage:
FMEA-based defect prevention
Standardised & lean production systems
Process stability testing & 100% final inspection
This ensures lower defect rates, fewer returns, and longer product lifespans for your customers.
Whether you need 100 pieces of 2009 Toyota Corolla ignition coil or a container shipment of mixed SKUs, our system is built to adapt:
Low MOQ (100 units per SKU)
Rapid 2–5 day dispatch for stock coils
15–25 day lead time for OEM & custom orders
Amazon FBA / Mercado Libre packaging support
Our standard MOQ for ignition coil bulk orders is 100 units per SKU, ideal for auto parts wholesalers, regional distributors, and Amazon sellers. For new partners or trial orders, we support flexible MOQ policies—reach out for current support programs.
For in-stock ignition coil models, we offer 2–5 day dispatch. For customised packaging, private label coils, or large volume orders, standard lead times are customised packaging, private label coils, or large volume orders, standard 15–25 working days, depending on SKU and quantity.
Yes, Elecdurauto specialises in OEM and ODM ignition coil manufacturing. We provide full support for private labelling, custom SKU packaging, barcoding (EAN/UPC), and customised ignition coil design for regional fitment needs.
Our factory is certified to IATF 16949, ISO/TS 16949:2009, ISO 9001, ISO 14001, and OHSAS 18001. These certifications ensure strict quality management, environmental control, and safety compliance—a must for global B2B ignition coil distribution.
Yes. For qualified B2B clients like auto part importers or e-commerce platform sellers, we offer free ignition coil samples (just pay shipping) so you can test product fit, quality, and performance.
Absolutely. Elecdurauto provides barcode-ready packaging, inventory consolidation, and dropshipping options for online sellers. Our coils come in compact, FBA-optimised boxes with model number and branding printed.
For ignition coil importers and resellers, we offer:
Regional exclusive agency support
Priority stock allocation
Co-branded marketing materials
Product training for auto workshops and retailers
After-sales assistance and warranty management
Every ignition coil undergoes:
High-voltage stress testing
Resistance & insulation checks
Vibration and thermal cycle testing
Final 100% functional test before packaging
We maintain a <0.5% warranty claim rate across all global markets.
Elecdurauto supplies ignition coils to Europe, South America, Southeast Asia, and the Middle East through both direct export and local distributor networks. We're actively expanding and open to onboarding new partners.
Each Elecdurauto ignition coil is built to match OEM specifications, including popular models like the Toyota Camry 2.4L, Hilux 2.7L, and Lexus RX350. Please cross-check the OEM part number (e.g., 90919-02260, 90919-02248) and engine code (like 2AZ-FE or 1GR-FE) for accurate compatibility. You can also consult our application chart or send us your VIN for confirmation.
Common symptoms include engine misfires, rough idle, difficulty starting, poor fuel economy, and a check engine light. If you're experiencing these issues, it may be time to replace your ignition coil.
Many ignition coils, especially coil-on-plug (COP) types, are designed for easy installation. If you're familiar with basic engine components and have the correct tools, you can perform a DIY replacement. Always refer to your vehicle service manual for torque specs and safety guidelines.
Our ignition coils are designed for long service life, often exceeding 100,000 kilometres (60,000+ miles) under normal operating conditions. We use advanced vacuum casting, epoxy resin insulation, and high-temperature wire winding to ensure heat resistance and durability.
All Elecdurauto ignition coils come with an 18-month / 20,000 km limited warranty covering manufacturing defects. With a warranty return rate of less than 0.5%, our coils have proven long-term reliability in over 30+ countries. manufacturing defects.
Yes. Our product line includes naturally aspirated, turbocharged, and hybrid engine coils. We likely have a matching coil if you're sourcing a Toyota Prius, Lexus NX300, or Hilux Revo Turbo. Ask for our full catalogue by engine type or OEM number.
We combine global raw material sourcing, advanced automation (e.g., robotic winding, in-house injection), and full testing procedures, including high-voltage, insulation, and vibration testing. With a proven track record across OEM, fleet, and aftermarket clients, Elecdurauto delivers OEM, fleet, and aftermarket client reliability, performance, and fast lead times at scale.
