Product Description

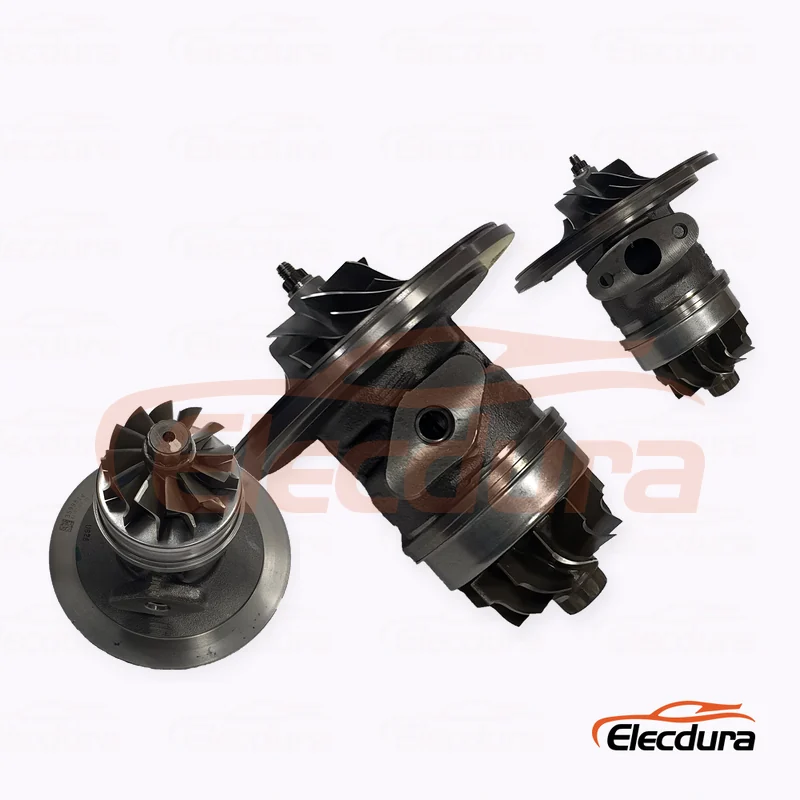

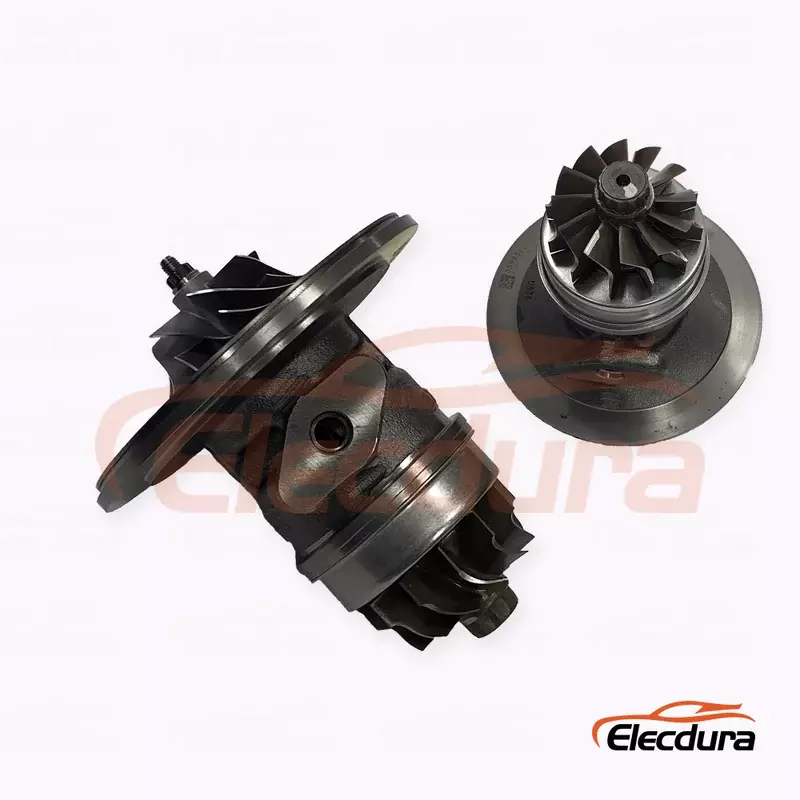

HE300WG 3787966 is retained as a technical-matching reference for Cummins ISX11.9 and ISX12 heavy-truck engines. Public cross-reference evidence for catalog value P1518196273 is limited, and the wider HE300WG family includes different fuel, emission, wastegate, and service configurations. Distributors should not release stock from the ISX name alone. The engine data plate, CPL, fuel type, complete Holset label, control hardware, cooling layout, and housing dimensions must agree before a cartridge is approved for a repair program.
| Application Direction | Matching Focus | Stocking Note |
|---|---|---|
| Cummins ISX heavy-truck technical matching | 3787966, engine CPL, fuel type, control and cooling | Technical-review SKU; no release from ISX wording alone |
| Specification | Details |
|---|---|
| Product Type | Turbo Core / CHRA Cartridge |
| Fit Turbo Model | HE300WG |
| Turbo Part Number | 3787966 |
| OE Reference Number | P1518196273 - To Be Confirmed |
| Engine / Application Reference | ISX11.9 / ISX12 wastegated heavy-truck technical-matching reference |
| Engine Model | Cummins ISX11.9 / ISX12 catalog reference |
| Application Reference | Cummins ISX11.9 / ISX12 heavy-truck engine reference requiring configuration confirmation |
| Reference Year | Fuel type, emission stage and engine CPL must be confirmed |
| Supply Direction | Heavy Truck Engine Technical-Matching Supply |
| MOQ | 100 pcs |
| Warranty | 12 Months |
| Supplier Brand | Elecdurauto |
| Control Type | Wastegated |
| Verification Status | Catalog application requires engine-level confirmation |
| Matching Item | Reference Information |
|---|---|
| Turbo Model | HE300WG |
| Turbo Part Number | 3787966 |
| OE Reference Number | P1518196273 - To Be Confirmed |
| Engine Model | Cummins ISX11.9 / ISX12 catalog reference |
| Application Reference | Cummins ISX11.9 / ISX12 heavy-truck engine reference requiring configuration confirmation |
| Turbo Nameplate Photo | Recommended |
| Original Turbo / Cartridge Photo | Recommended when numbers are unclear |
| Cooling Type | Oil and coolant configuration must be confirmed |
| Special Matching Note | Fuel type, engine CPL, wastegate hardware and catalog reference P1518196273 require confirmation |
| Application Reference | Engine | Reference Year | Matching Basis |
|---|---|---|---|
| Cummins ISX11.9 / ISX12 heavy-truck engine reference requiring configuration confirmation | Cummins ISX11.9 / ISX12 catalog reference | Fuel type, emission stage and engine CPL must be confirmed | The catalog record catalog connects HE300WG 3787966 with Cummins ISX11 / ISX12 and reference P1518196273, but reliable public cross-matching is limited; engine CPL, fuel type and current turbo label are mandatory. |
A controlled HE300WG core record can support difficult heavy-truck inquiries without turning limited catalog data into a fitment claim.
CPL and fuel-type evidence help importers separate diesel and gas-related ISX turbo families.
Wastegate, oil, cooling, and emissions diagnosis reduce costly repeat engine downtime.
Elecdurauto supplies the core only after complete configuration review.
The catalog supplies the reference, but reliable public records did not establish a sufficiently clear OE and application chain. Publishing it as fully confirmed would overstate the evidence. Buyers should provide the current Holset label and Cummins engine record before the reference is used for cartridge release. Release documentation should retain 3787966, Cummins ISX12 Heavy Truck, nameplate photographs, and the confirmed HE300WG configuration for future procurement.
The engine serial number and CPL identify the build configuration more precisely than ISX11.9 or ISX12 wording. They help determine fuel system, rating, emission stage, and turbo control. Distributors should retain the CPL with turbo photographs and physical measurements for every confirmed fleet case. Release documentation should retain 3787966, Cummins ISX12 Heavy Truck, nameplate photographs, and the confirmed HE300WG configuration for future procurement.
HE300WG turbos appear in both diesel and natural-gas ISX service records, and control or housing arrangements may differ. A supplier should never infer interchange from the model family. The engine plate, fuel system, turbo number, wastegate, and cooling connections should agree before approval. Release documentation should retain 3787966, Cummins ISX12 Heavy Truck, nameplate photographs, and the confirmed HE300WG configuration for future procurement.
The valve, lever, actuator, pressure or electronic control, hoses, and calibration should be inspected separately from the rotating core. Binding hardware or incorrect control can produce low boost, overboost, or excessive exhaust temperature. A new cartridge cannot correct an unresolved wastegate-system fault. Release documentation should retain 3787966, Cummins ISX12 Heavy Truck, nameplate photographs, and the confirmed HE300WG configuration for future procurement.
Release should stop when the turbo label is unreadable, CPL is missing, fuel type is uncertain, P1518196273 is the only reference, or the physical housings do not match a confirmed record. Technical review is preferable to shipping a high-risk core into a heavy-truck engine repair. Release documentation should retain 3787966, Cummins ISX12 Heavy Truck, nameplate photographs, and the confirmed HE300WG configuration for future procurement.
Each verified case should preserve engine serial, CPL, fuel type, rating, emission stage, turbo label, wastegate, cooling layout, dimensions, and service outcome. Repeated agreement can create a controlled fleet SKU. Unfamiliar configurations should continue through the same evidence-based review process. Release documentation should retain 3787966, Cummins ISX12 Heavy Truck, nameplate photographs, and the confirmed HE300WG configuration for future procurement. Warehouse approval should remain traceable to the verified unit.
