10PA15C
Confirm from the removed compressor
John Deere
IATF 16949, ISO 9001, and other major OEM certification systems
OEM label and ODM customization accepted
50 - 100 pcs
7–15 Days
Neutral packaging or customized private-label packaging
18 months
John Deere agricultural machinery using the 10PA15C PV8 120 mm 12V configuration
Match 10PA15C, PV8 120 mm, 12V, mounting, cylinder head, ports and connector to the removed compressor
| Quantity: | |
|---|---|
This line is intended for enquiries where the drive system is more useful than an uncertain OE number. The eight-rib 120 mm clutch on a 12V 10PA15C assembly lets a wholesaler separate it immediately from twin-V-belt and larger-diameter John Deere compressors.
Agricultural purchasing teams should place PV8 120 mm in the product name, not bury it in a footnote. The visible drive difference affects belt alignment and is one of the easiest facts for a fleet workshop to photograph before asking a distributor for a quotation.

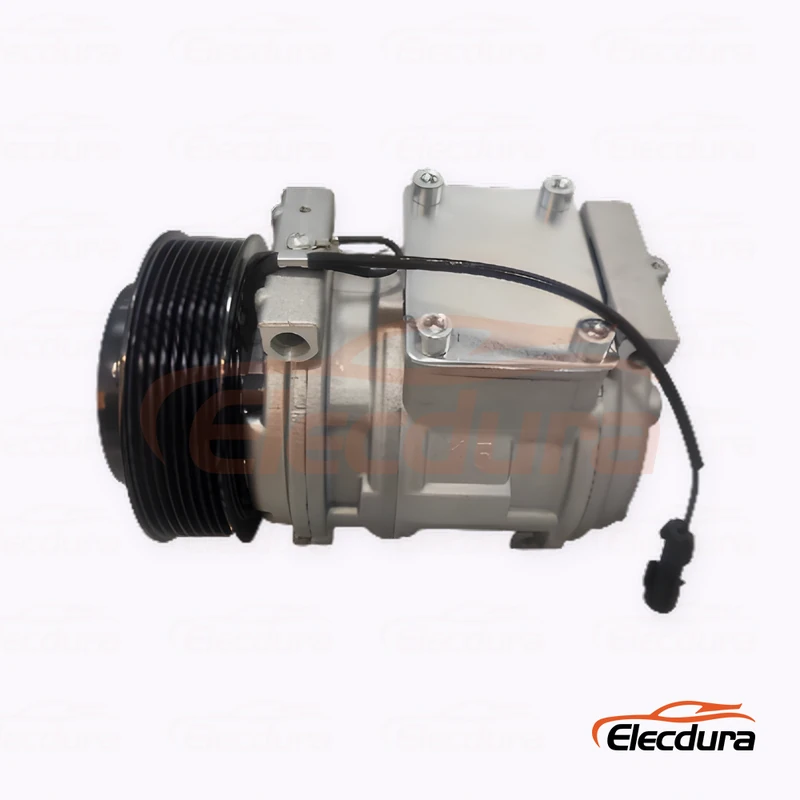

| Product | Complete heavy-duty air conditioning compressor assembly |
|---|---|
| Application family | John Deere agricultural machinery using the 10PA15C PV8 120 mm 12V configuration |
| Compressor model | 10PA15C |
| Clutch voltage | 12V |
| Pulley | PV8, 120 mm |
| Refrigerant | R134a |
| Product identity | John Deere PV8 120 mm |
| OE / reference | Confirm from the removed compressor |
| Ordering checkpoints | Product identity, model, pulley, voltage, mount, ports, connector and original-unit images |
The buying definition is 10PA15C, PV8, 120 mm, 12V and R134a. John Deere equipment can use other 10PA15C eight-rib arrangements, so the measured 120 mm clutch remains a required checkpoint for this specific wholesale line.
The OE field is intentionally left for confirmation from the removed compressor. Buyers should not add a popular John Deere cross reference unless the original label and physical interfaces support that number.
Measure the pulley at the same physical points used in the approval record and count all eight ribs. Then compare connector style, coil position, mounting span, cylinder-head orientation and suction/discharge ports; a correct rib count does not make those interfaces interchangeable.
The removed compressor should be photographed with a ruler or caliper visible at the clutch. A second image should show the belt path and mounting face. These details give sourcing staff stronger evidence than a machine description that may cover several years or HVAC packages.
Warehouse staff should receive this unit as a measured PV8 product. Confirm 120 mm, 12V and 10PA15C before scanning it into inventory, and quarantine any compressor carrying an eight-rib clutch of another diameter even when the housing appears identical.
The bin location and carton label should emphasize “PV8 120 mm.” That language prevents staff from choosing a twin-A product by compressor model alone and also helps branches explain why a nearby John Deere listing cannot be supplied as an automatic alternative.
The application statement covers John Deere agricultural machinery only where the offered configuration matches the take-off unit. Machine series, cab suppliers and service replacements can introduce different compressors within an otherwise similar equipment family.
If a buyer later provides a cross number, append it to the approved record only after checking the original label and interfaces. Keep 10PA15C, PV8 120 mm and 12V beside the number so the next order cannot be reduced to a single database lookup.
For a productive RFQ, send the machine model and serial range if available, the old compressor label, clear clutch and port photos, required volume and destination. State whether the project needs a sample, neutral packaging or an existing private-label specification.
Elecdura can structure a wholesale offer around confirmed monthly demand and inspection requirements. Because the page is drive-led, every commercial document should repeat PV8 120 mm and 12V until the buyer has signed off the first article.
The following purchasing questions address the configuration, evidence and commercial controls most likely to affect a John Deere PV8 120 mm wholesale order.
Use 10PA15C, 12V, PV8 120 mm, R134a, the John Deere application and the exact approved product images together; no single attribute is sufficient.
No. For John Deere PV8 120 mm, a shared compressor family does not establish the same clutch, voltage, mount, head, ports, connector or hose direction for the intended John Deere machine.
The offered John Deere PV8 120 mm configuration uses PV8 and 120 mm. For John Deere PV8 120 mm, both the belt profile and measured diameter should be checked against the removed complete assembly.
This John Deere PV8 120 mm configuration uses 12V. John Deere PV8 120 mm approval requires the machine system, connector shape, terminal arrangement and visible coil position to be confirmed.
A John Deere PV8 120 mm RFQ should provide the machine model and serial information when available, original references, label and interface images, quantity, destination, delivery target and packaging request.
Compare the delivered unit with the approved image set, then inspect the PV8 120 mm clutch, 12V connection, mounting ears, head, ports, caps and carton identity.
Yes. Neutral packaging, private-label presentation and batch inspection can be discussed after the exact John Deere PV8 120 mm sample and purchase specification are accepted.
No. For John Deere PV8 120 mm, qualified workshops must follow the relevant machine and A/C system procedure for refrigerant recovery, flushing, oil balance, evacuation, charging and installation.
Send the John Deere application, removed-compressor references and images, requested volume, destination and packaging needs. Elecdura will review the 10PA15C 12V PV8 120 mm complete A/C compressor configuration before issuing a quotation.
