10PA15C
Confirm from the removed compressor
John Deere
IATF 16949, ISO 9001, and other major OEM certification systems
OEM label and ODM customization accepted
50 - 100 pcs
7–15 Days
Neutral packaging or customized private-label packaging
18 months
John Deere 2266 combine harvesters using the A2 132 mm configuration
Confirm the 2266 application, 10PA15C body, 12V clutch, A2 132 mm pulley, mount and pad ports
| Quantity: | |
|---|---|
A combine-parts buyer rarely begins with a perfect compressor number. Enquiries often arrive as “John Deere 2266, 12 volt” plus one mobile-phone photograph. This product record turns that incomplete request into a controlled 10PA15C, twin A-belt and 132 mm purchasing identity before a sample or bulk quotation is approved.
For distributors serving harvest fleets, downtime risk is concentrated in a short seasonal window. Keeping the 2266 application beside the clutch face, connector and mounting view helps sales staff answer quickly without promising that every John Deere 10PA15C assembly will interchange.

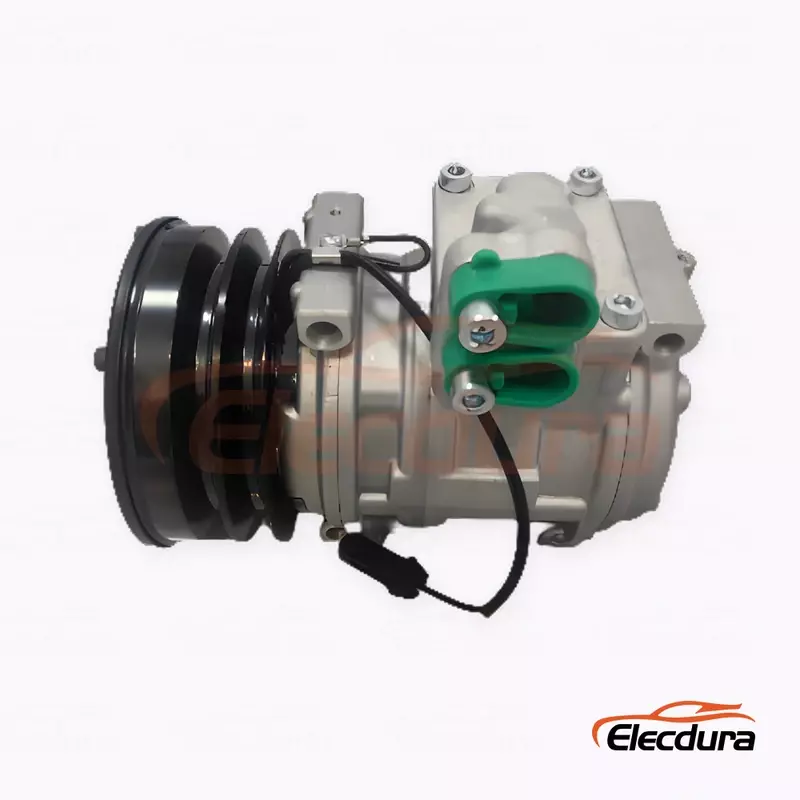

| Product | Complete heavy-duty air conditioning compressor assembly |
|---|---|
| Application family | John Deere 2266 combine harvesters using the A2 132 mm configuration |
| Compressor model | 10PA15C |
| Clutch voltage | 12V |
| Pulley | A2, 132 mm |
| Refrigerant | R134a |
| Product identity | John Deere 2266 |
| OE / reference | Confirm from the removed compressor |
| Ordering checkpoints | Product identity, model, pulley, voltage, mount, ports, connector and original-unit images |
The offered configuration is 10PA15C, A2, 132 mm, 12V and R134a. Those checkpoints give purchasing teams a practical way to separate this John Deere 2266 assembly from nearby two-groove compressors before a sample is approved.
Pulley diameter must remain on the quotation and inspection sheet because visually similar 10PA15C units can use a different clutch size. For this product, the approved value is 132 mm and should be verified at receiving against the signed sample.
The first visual checkpoint is the two-groove A-section clutch, not the cast 10PA15C family name. Procurement should then compare the pulley diameter, 12V electrical connection, top-pad relationship, mounting ears and hose approach with the compressor removed from the combine.
A useful approval package includes a straight clutch photograph, a port-side photograph, a mounting-side photograph and any readable label. Those views let an importer challenge a plausible but wrong single-groove or eight-rib unit before it reaches the warehouse.
At goods-in, the 2266 compressor should be matched to the approved gallery and purchase-order configuration. Inspect the A2 belt profile, measure the 132 mm clutch, confirm the 12V lead, check that protective caps are present and isolate any casting or pad orientation that differs from the signed sample.
The stock label should say 2266, 10PA15C, A2, 132 mm and 12V in full. A generic “John Deere compressor” bin creates an avoidable picking risk because other agricultural machines use the same compressor family with different drives and electrical arrangements.
John Deere 2266 is the application anchor, but machine history still matters. Previous HVAC repairs, regional equipment packages and an engine or cab conversion can leave a take-off compressor that differs from the standard request.
Any cross-reference supplied by a customer should be paired with original-unit photographs and physical measurements. This keeps later replenishment tied to the approved 2266 configuration instead of relying on a number alone.
An RFQ should state the 2266 model, machine serial or year when known, quantity, destination, packaging preference and the original compressor details. Elecdura can then align the catalog identity with sample timing, carton marks, inspection points and expected repeat demand.
After the physical layout is accepted, wholesale customers can discuss neutral packaging, private labels and scheduled releases. Commercial planning stays tied to the 10PA15C A2 132 mm 12V assembly rather than to an overly broad John Deere family description.
The following purchasing questions address the configuration, evidence and commercial controls most likely to affect a John Deere 2266 wholesale order.
Use 10PA15C, 12V, A2 132 mm, R134a, the John Deere application and the exact approved product images together; no single attribute is sufficient.
No. For John Deere 2266, a shared compressor family does not establish the same clutch, voltage, mount, head, ports, connector or hose direction for the intended John Deere machine.
The offered John Deere 2266 configuration uses A2 and 132 mm. For John Deere 2266, both the belt profile and measured diameter should be checked against the removed complete assembly.
This John Deere 2266 configuration uses 12V. John Deere 2266 approval requires the machine system, connector shape, terminal arrangement and visible coil position to be confirmed.
A John Deere 2266 RFQ should provide the machine model and serial information when available, original references, label and interface images, quantity, destination, delivery target and packaging request.
Compare the delivered unit with the approved image set, then inspect the A2 132 mm clutch, 12V connection, mounting ears, head, ports, caps and carton identity.
Yes. Neutral packaging, private-label presentation and batch inspection can be discussed after the exact John Deere 2266 sample and purchase specification are accepted.
No. For John Deere 2266, qualified workshops must follow the relevant machine and A/C system procedure for refrigerant recovery, flushing, oil balance, evacuation, charging and installation.
Send the John Deere application, removed-compressor references and images, requested volume, destination and packaging needs. Elecdura will review the 10PA15C 12V A2 132 mm complete A/C compressor configuration before issuing a quotation.
