S0115 Deutz-Fahr F3L912 Starter Motor Wholesale

S0115 Starter Motor Wholesale Fitment for Atlas Copco F3L912 and Deutz-Fahr DX 3.90

Deutz-Fahr dealers, compressor-service distributors and heavy-duty electrical wholesalers use S0115 to keep Atlas Copco F3L912 and Deutz-Fahr DX 3.90 demand tied to one 12V, 3.0kW, 9T CW configuration. The practical distinction is the 12V 3.0kW 9T module-3 configuration with an Ø89 mm locating face, which should be checked before a similar heavy-duty housing is accepted.

Build the S0115 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S0115 Starter Motor Specifications and Drawing for Wholesale Buyers

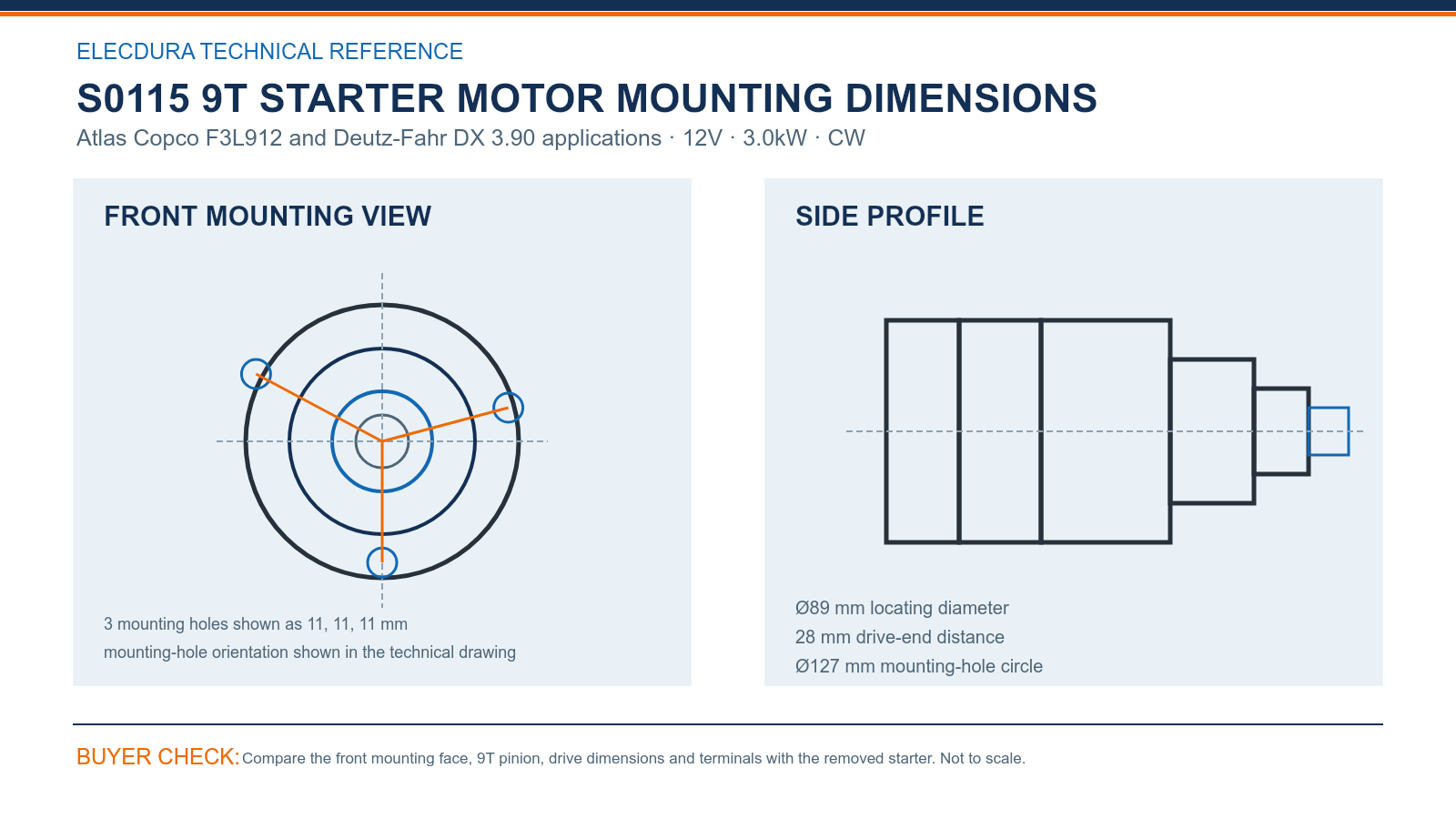

Compare S0115 at the 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 28 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For S0115, count the 9T pinion and confirm module 3, CW rotation, 12V and 3.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

S0115 Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: S0115, 110536, 116139, 0001359049, 0001359073, 0001359078, 0001362311 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 12V, 3.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0115 Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested S0115 quantity, destination and required arrival date.

Separate compressor and tractor demand by exact engine and mounting record. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0115 remains tied to the stated Atlas Copco F3L912 and Deutz-Fahr DX 3.90 application, 9T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0115 Starter Motor Questions from Commercial Buyers

What should a distributor match before ordering S0115 for Atlas Copco F3L912 and Deutz-Fahr DX 3.90 during fleet sourcing?

Use the full old-unit number and Atlas Copco F3L912 and Deutz-Fahr DX 3.90 record. Compare the 9T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order S0115 from an alternate OE number in a Deutz-Fahr F3L912 fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0115 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which electrical conditions can imitate a failed S0115 starter motor during a Deutz-Fahr F3L912 fleet electrical check?

Before fitting S0115, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

How does the S0115 mounting drawing support product approval during a Deutz-Fahr F3L912 fleet inspection?

For S0115, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 28 mm drive-end distance in the side view. Add 9T, CW and terminal orientation; this is more reliable than an angled overall photograph.

How can branches reduce emergency transfers of S0115 stock in a Deutz-Fahr F3L912 fleet program?

Separate compressor and tractor demand by exact engine and mounting record. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

Which arrival photographs help trace a shipment of S0115 during a Deutz-Fahr F3L912 fleet receiving check?

Receiving should verify the S0115 label, quantity and packaging before opening sampled cartons. Compare the 9T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How can an importer obtain an accurate delivered price for S0115 in a Deutz-Fahr F3L912 fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0115, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

Which installation facts help review unusual performance from S0115 in a Deutz-Fahr F3L912 fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0115 without assuming that every no-crank complaint originates inside the starter.

S0115 Request Starter Motor Wholesale Pricing

Send the complete S0115 reference, Atlas Copco F3L912 and Deutz-Fahr DX 3.90 details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 12V, 3.0kW, 9T CW starter, MOQ, packing, lead time, warranty and freight.
