S0196 DAF CD85 Scania Starter Motor Wholesale

S0196 Starter Motor Wholesale Fitment for DAF CD85 and Scania DS11.14

DAF and Scania truck distributors, commercial fleets and heavy-duty starter importers use S0196 to keep DAF CD85 and Scania DS11.14 demand tied to one 24V, 4.0kW, 9T CW configuration. The practical distinction is the 24V 4.0kW 9T module-3 catalog configuration, which should be checked before a similar heavy-duty housing is accepted.

Before comparing S0196 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S0196 Starter Motor Technical Data for Fleet Parts Buyers

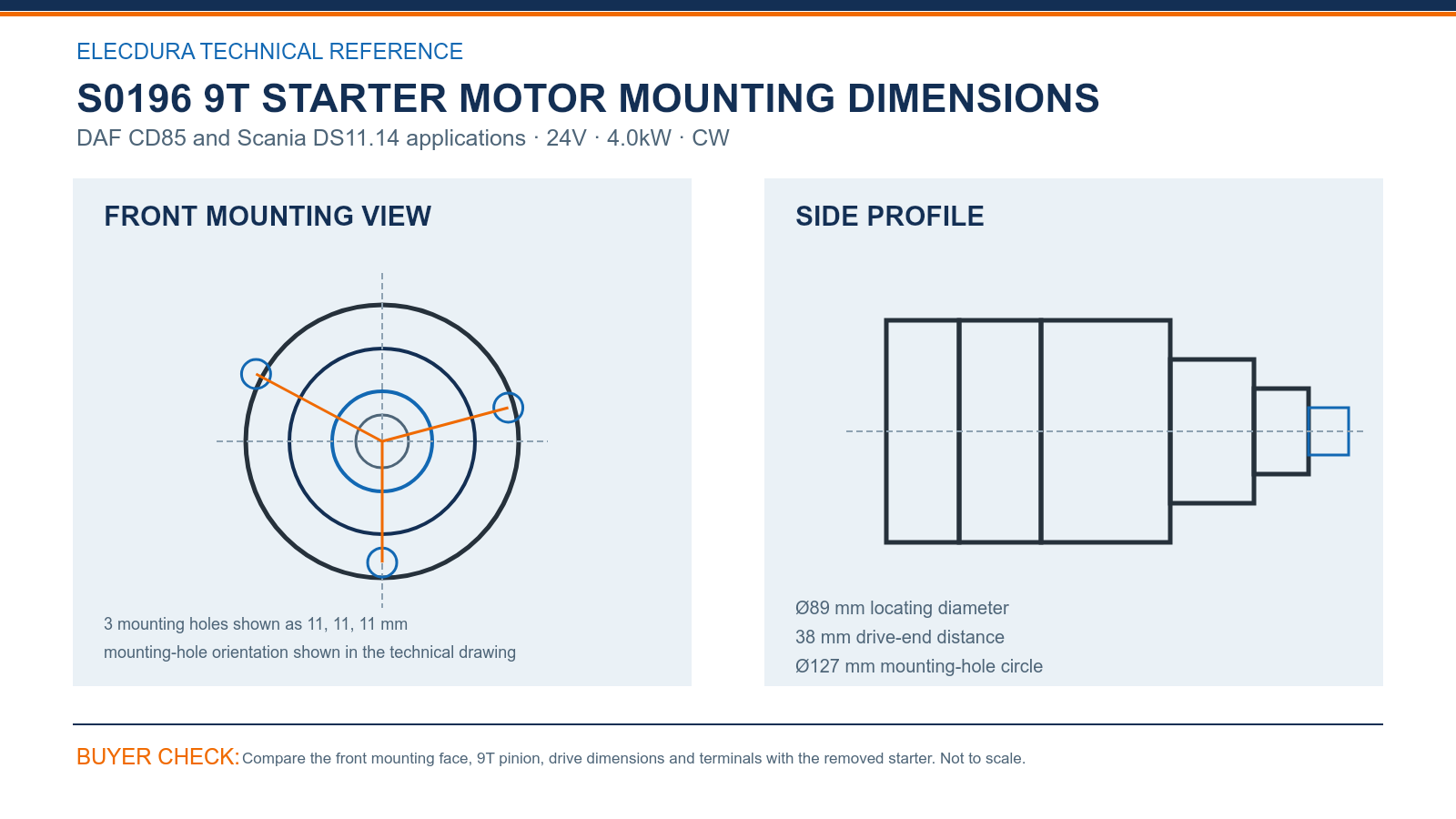

The S0196 dimensional review starts at the mounting face: verify 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. Then compare the 38 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S0196, electrical and mechanical identity must agree: 24V, 4.0kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0196 Starter Motor Cross-Reference Review for Fleet Buyers

1. Search group: S0196, 111399, 0001368083, 0986017520, 1201327AELB426, AELB426R, AMPB074 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0196 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S0196 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0196 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0196 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0196 Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of S0196 stock in a DAF CD85 Scania fleet program?

Preserve the approved mounting face and terminal orientation for mixed fleets. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a mixed-reference enquiry for S0196 be prepared in a DAF CD85 Scania fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0196 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Can S0196 be selected from the application name alone during fleet sourcing?

Confirm S0196 with the complete OE number, DAF CD85 and Scania DS11.14 record and clear front, side and terminal photographs. Check 9T, 3 mounting holes shown as 11, 11, 11 mm and 38 mm drive-end distance so visually related starters stay on separate order lines.

Why should voltage-drop results accompany an enquiry for S0196 during a DAF CD85 Scania fleet electrical check?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for S0196 installation and for any later service discussion with the supplier.

Which dimensions in the S0196 drawing should receiving teams sample during a DAF CD85 Scania fleet inspection?

For S0196, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 38 mm drive-end distance. Count the 9T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of S0196 during a DAF CD85 Scania fleet receiving check?

Receiving should verify the S0196 label, quantity and packaging before opening sampled cartons. Compare the 9T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for S0196 in a DAF CD85 Scania fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For S0196, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving S0196 in a DAF CD85 Scania fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate S0196 without assuming that every no-crank complaint originates inside the starter.

S0196 Start a Starter Motor Wholesale Enquiry

Send the complete S0196 reference, DAF CD85 and Scania DS11.14 details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 4.0kW, 9T CW starter, MOQ, packing, lead time, warranty and freight.
